Power Supplies
SERIE 903 SERIES

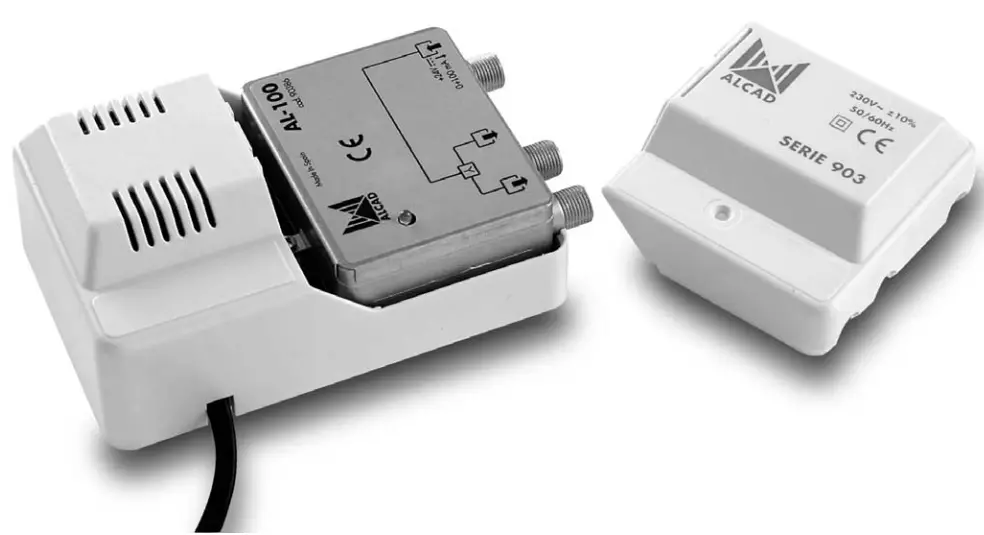

903 Series Power Supplies
| CODE | 9030086 9030087 9000000 | 9030103 | |||
| MODEL | AL-100″) I AL-1051) I AL-125′ | AL-110′ | |||
| Inputs / outputs | 1 / 2 | 1 / 4 | |||
| Frequency range | Band | TV | TV/SAT | ||
| MHz | 40 – 862 | 5 – 2400 | |||
| Output voltage | +24 | +12 | +24 | ||
| mA | 0 – 100 | 0 – 100 | 0 – 100 | ||
| Fuse | V-s- | – | 250 | – | |
| A | – | 3 | – | ||
| Mains voltage | Ve•- | 230 „, -± (2I 10% 50/60 Hz | |||
| VA | 4 | ||||
| Operating temperature | °C | -5..+55 | |||
| Protection index | IP 30 | ||||
The unused output should be loaded with an RS-275 (COD. 9120011) load.
- Protected against overloading and short-circuits. If a short-circuit occurs and there is no output voltage, unplug it from the mains or take off the load.
- Upon request 125 or 240 V,

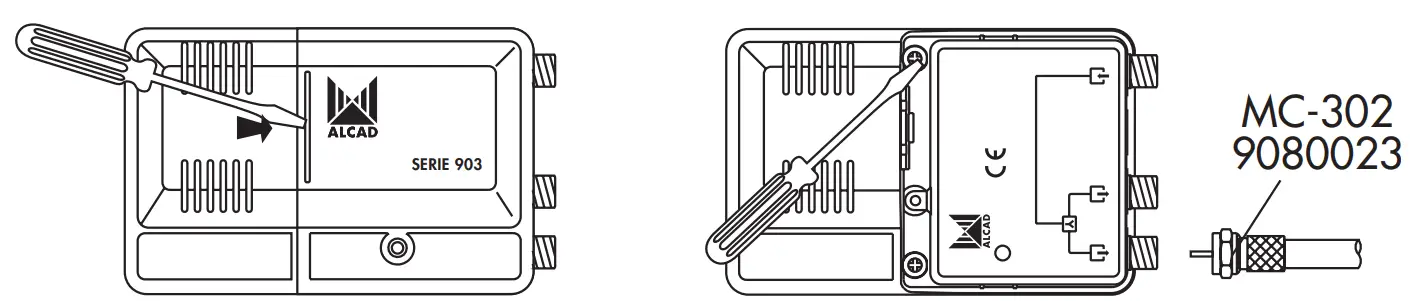

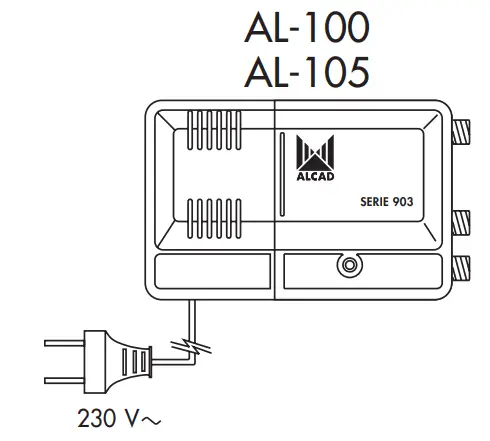

HOW TO FIX THE POWER SUPPLY (AL-100/105/125)

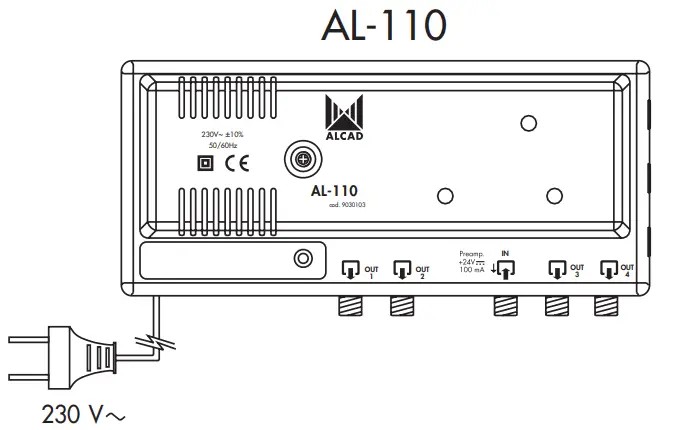

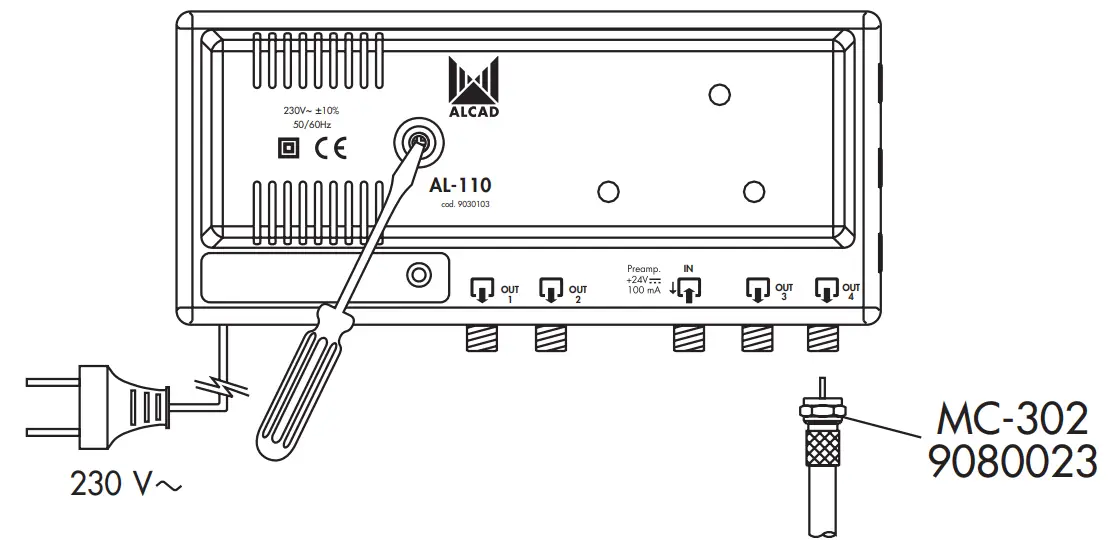

HOW TO FIX THE POWER SUPPLY (AL-11.0)

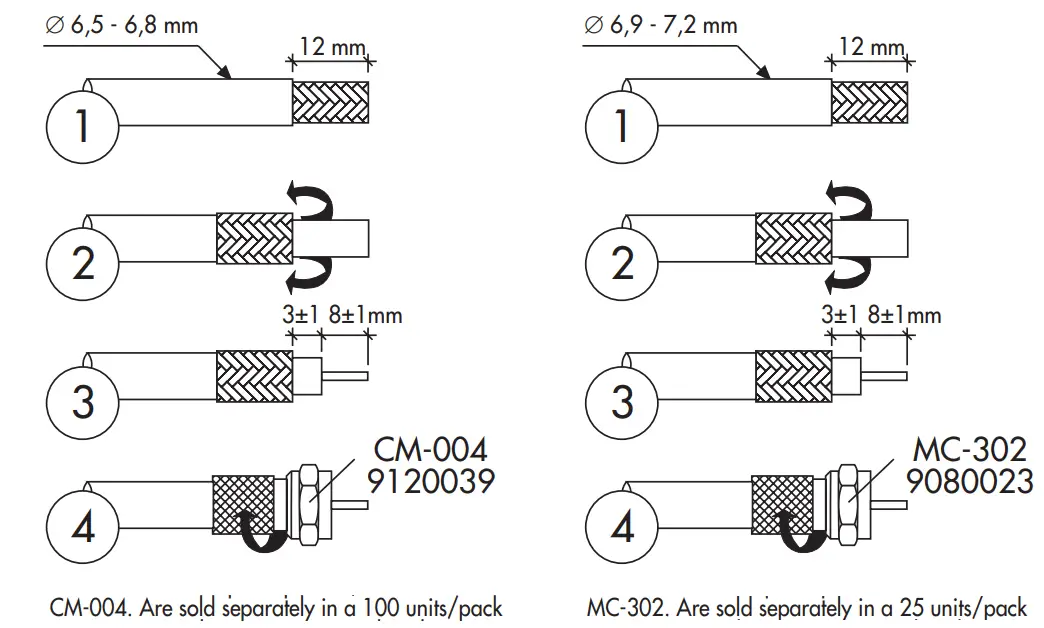

HOW TO PREPARE THE F CONNECTORS

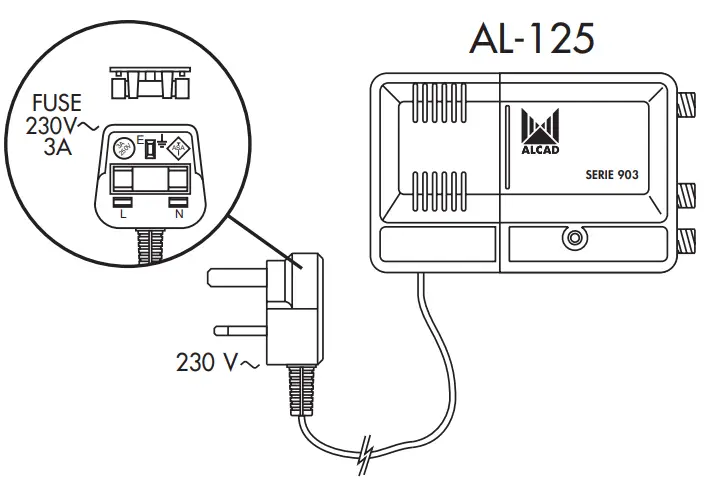

CONNECTION TO THE MAINS

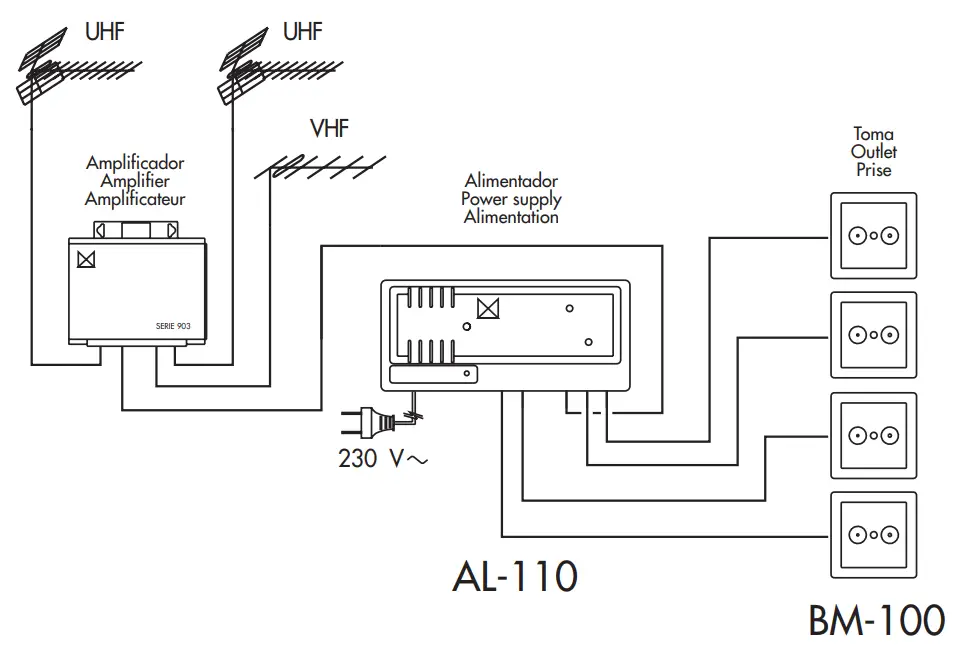

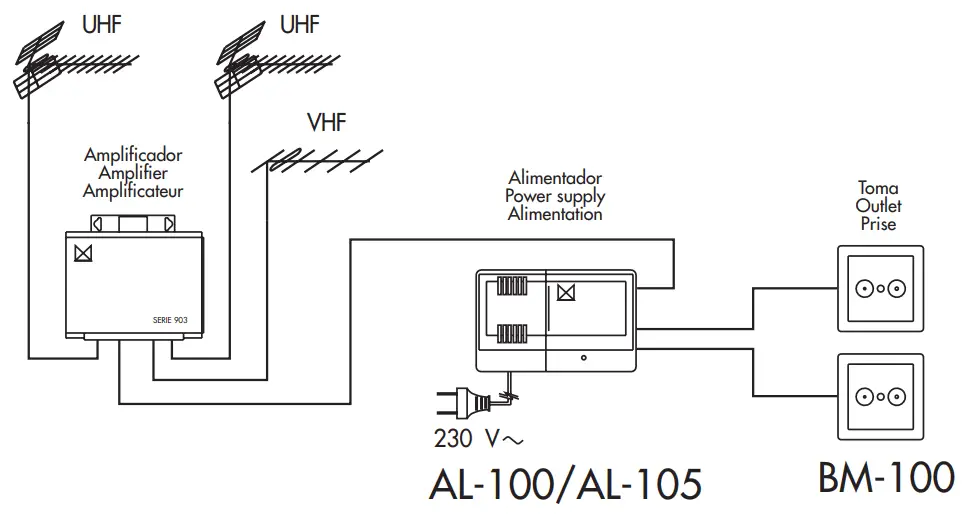

CONNECTION DIAGRAMS
Specifications subject to modifications without prior notice
