WASSERSTEIN B09TT4SYX1 Horizontal Wall Mount for Blink Video Doorbell

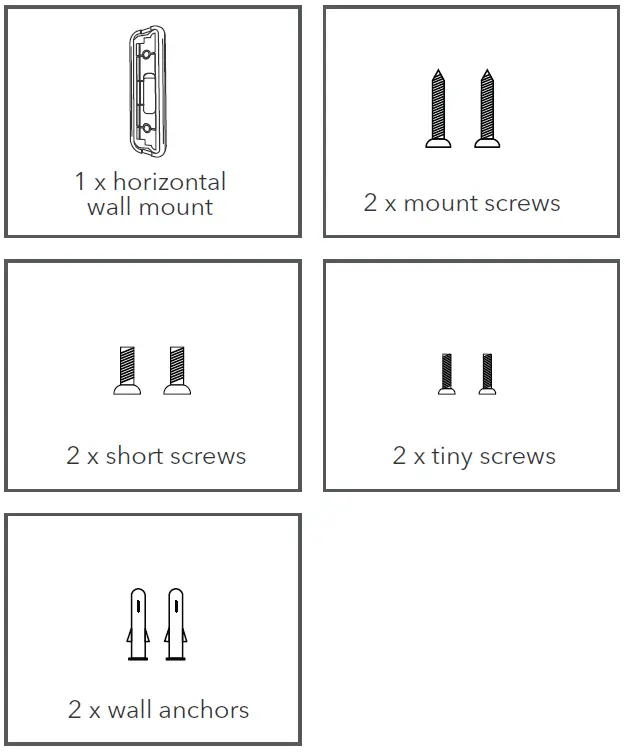

In the Box
Safety Information
- Read these instructions carefully before use. Failure to follow the safety instructions may cause injury or damage to your property.
- Small parts contained in the box can be a choking hazard. Keep small parts away from children.
- Only use this mount with the Blink Video Doorbell.
How to Install
Note:

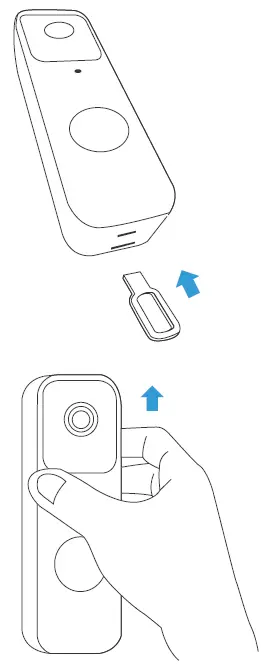

Before you install the wall mount, take down your Blink Video Doorbell if it is already installed. Detach the doorbell backplate using the opening key that comes with your doorbell.

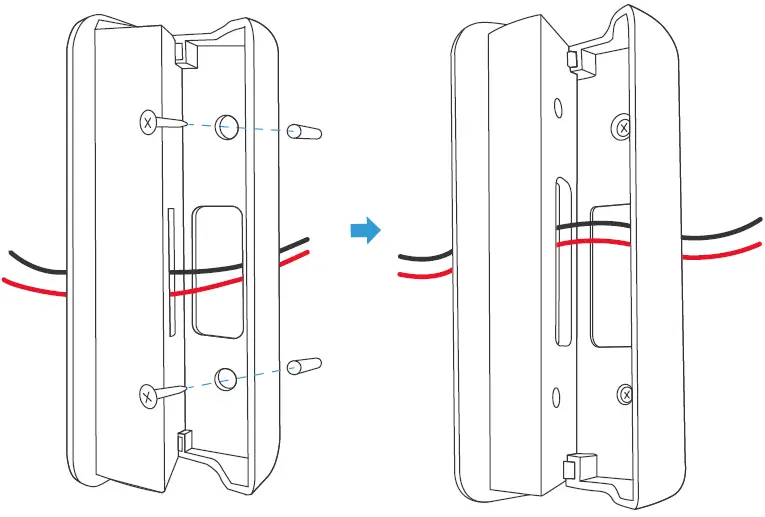

- Attach the angle mount and to the wall using the screws and anchors provided. The drill bit size is 1/8 in. If your doorbell is hardwired, make sure that the wires go through the cutout and are connected to the backplate before mounting.

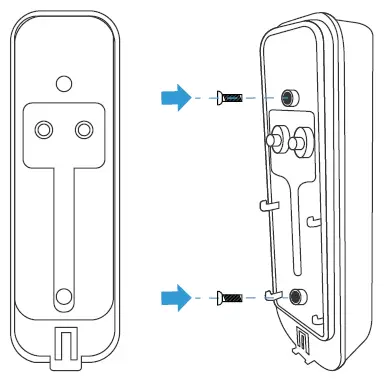

- Attach the backplate to the wall mount using the short screws provided (make sure the tab is on the bottom and the hooks are facing toward you).
- Hook the doorbell to the backplate. Press the top in first, then firmly press the bottom in until it clicks.

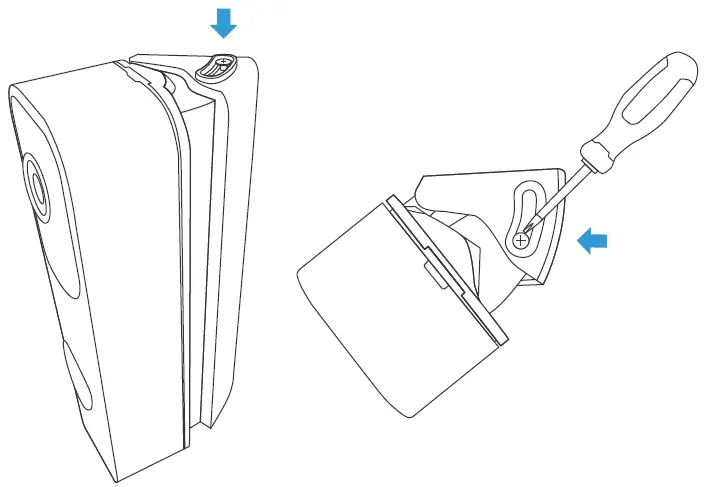

- Adjust the angle mount to your preferred angle and secure it on the top and bottom using the tiny screws provided.
Specifications
- Material: ABS plastic
- Dimensions: 1.5 x 4.8 x 0.9 in
Get More Support
Scan the QR code below or email us at [email protected].
- Blink Video Doorbell is not included.
- Blink is the trademark of Immedia Semiconductor, LLC
- Wasserstein is a trademark of Dropcases Ltd.
- Wasserstein is not affiliated with
- Immedia Semiconductor, LLC
Made in China.
