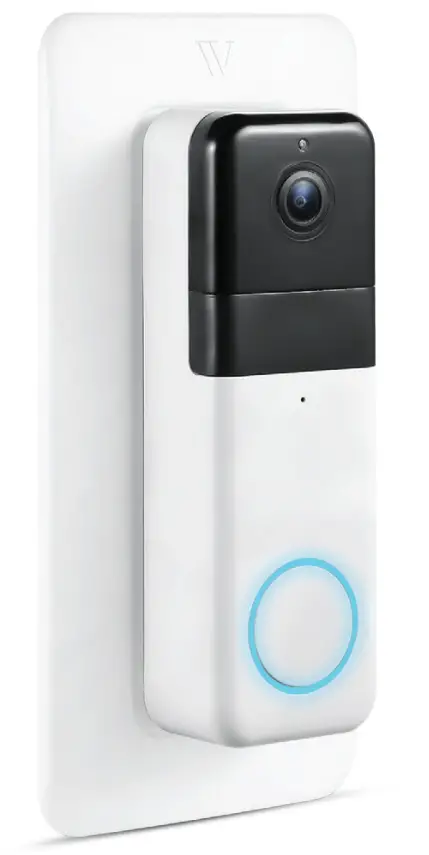

WASSERSTEIN Wyze Video Doorbell Wall Plate
In the Box
|
|
|

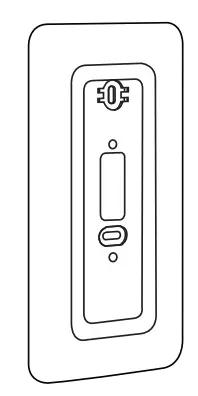

1 x wall plate
2 x wall anchors
2 x mount screwsSafety Information
- Read these instructions carefully before use. Failure to follow the safety instructions may cause injury and damage to your property.
- Small parts contained in the box can be a choking hazard. Keep small parts away from children.
- Only use this wall plate with the Wyze Video Doorbell Pro.
Pre-Installation
- Turn off the power of your existing video doorbell at the electrical panel.
Note: Always consult a professional electrician before working with electrical wires.
- Remove your existing video doorbell (if any) from the wall.
Installation

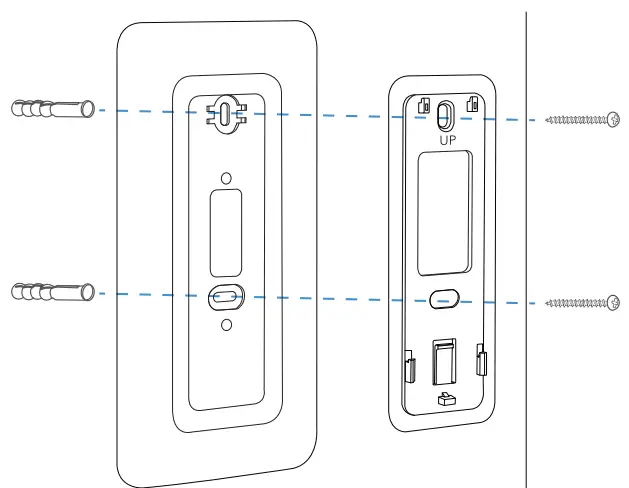

- Place the doorbell backplate on top of the wall plate and screw them both onto the wall (drill size is 1/8 in).

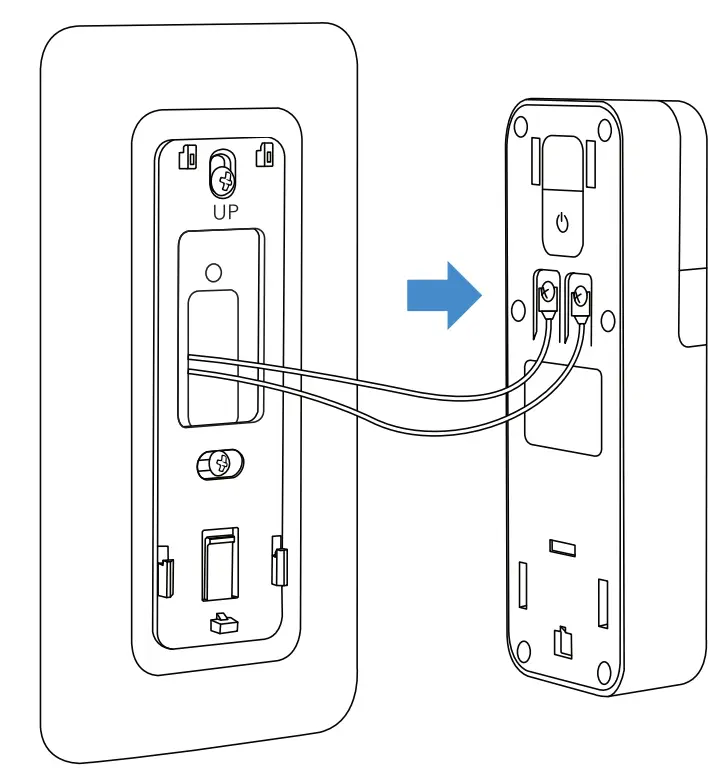

- If you have a wired doorbell, connect the wires first before securing it to the wall plate.

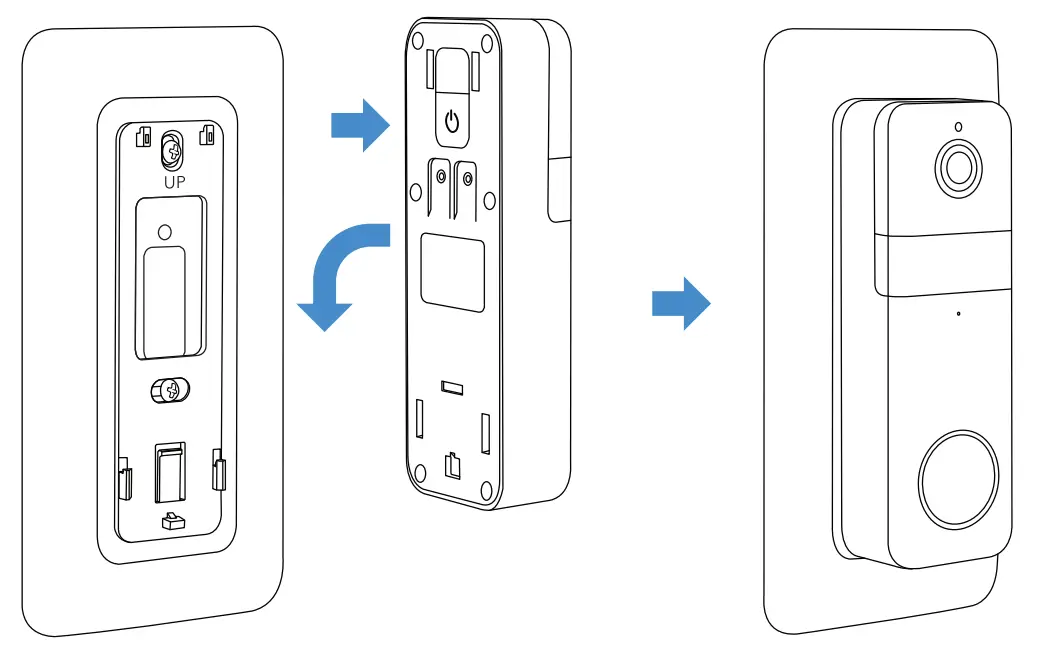

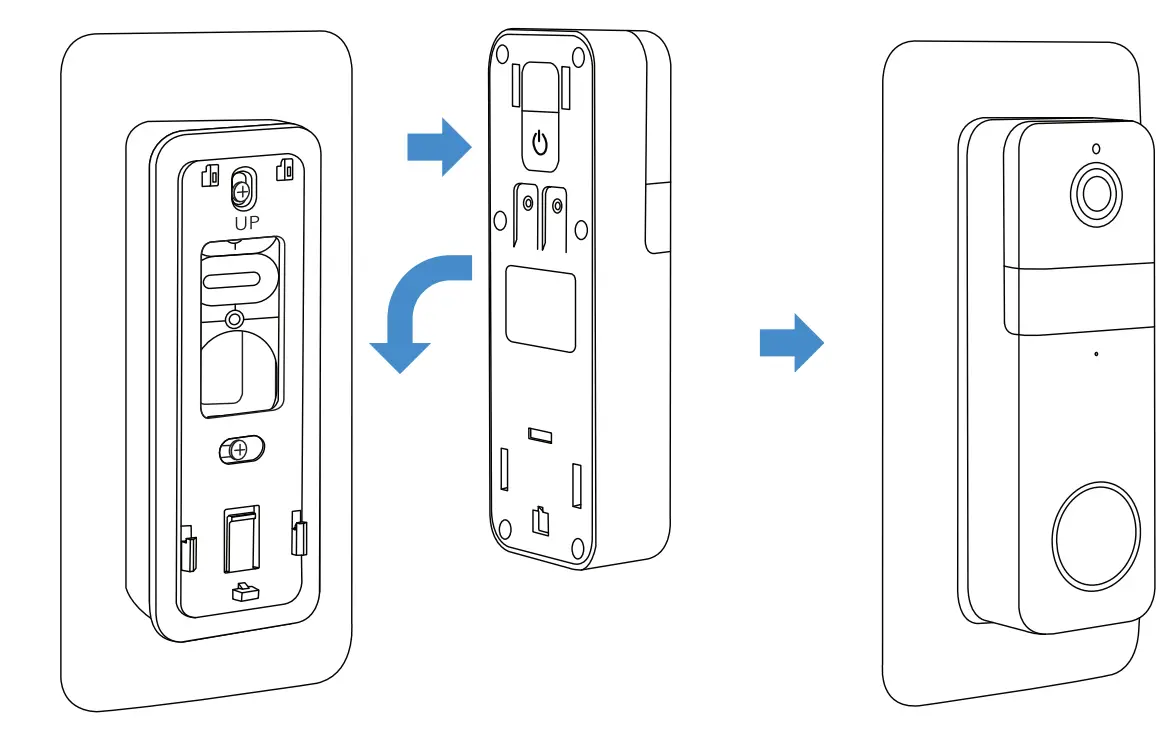

- Turn on the doorbell. Hook the tabs at the back and press firmly on wall plate until it clicks into place.

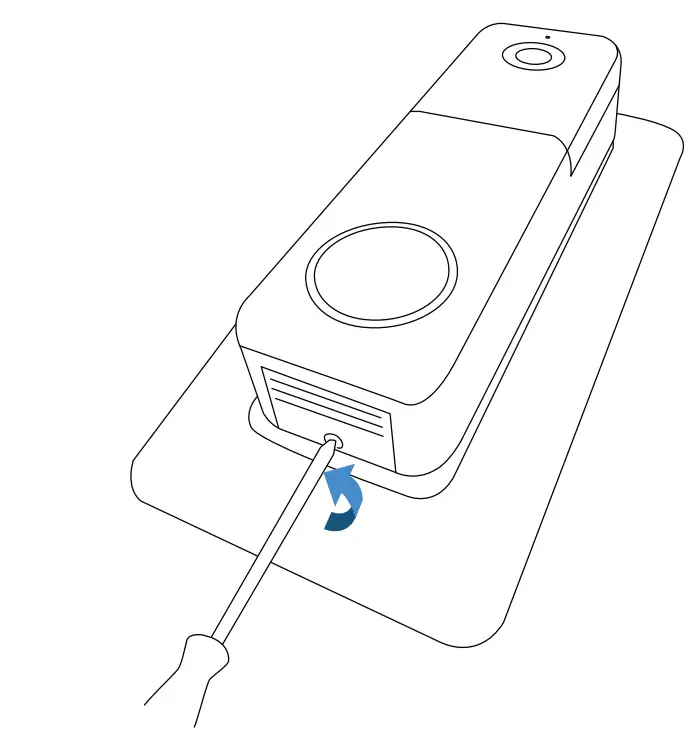

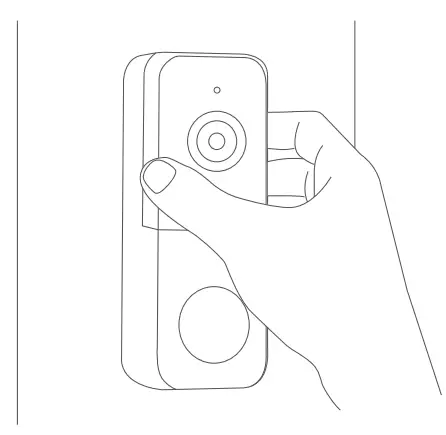

- Check the view from the App, then secure the doorbell with a screw at the bottom.
Installation with Angle Mount

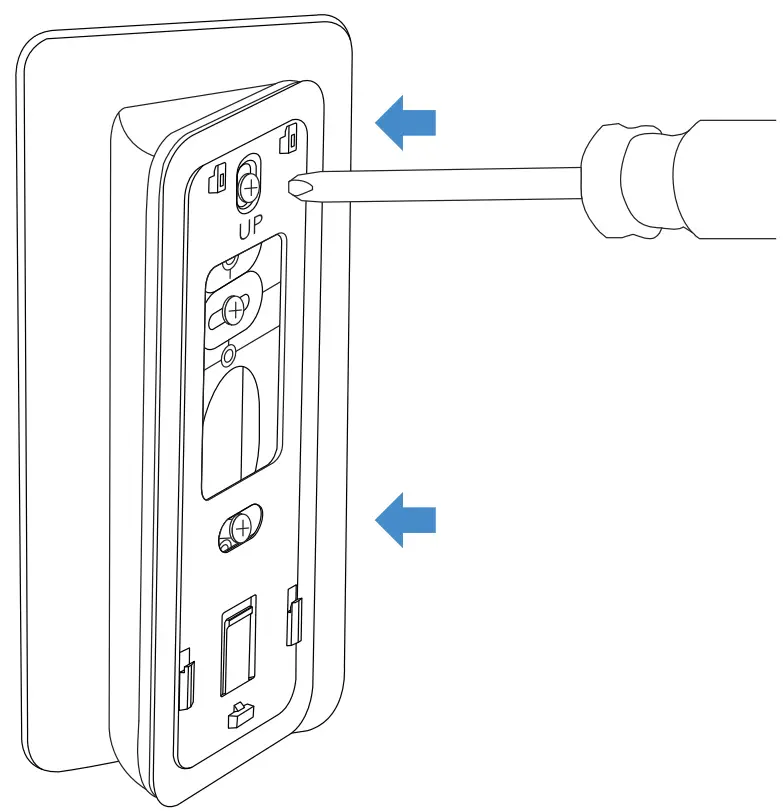

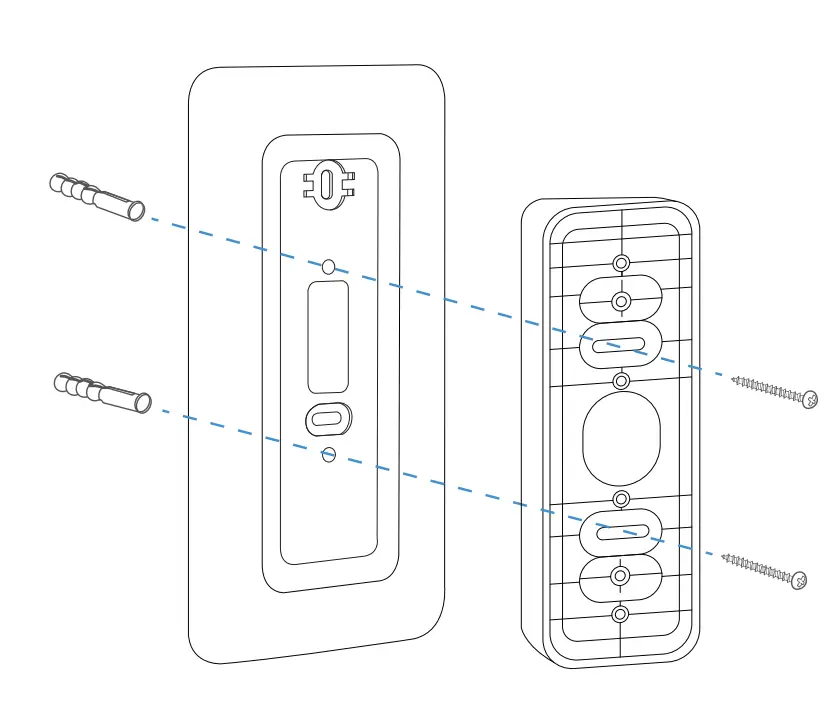

- Screw the wall plate and angle mount together onto the wall (drill size is 1/8 in).
- Screw the doorbell’s backplate onto the angle mount using the original screws that come with the doorbell.

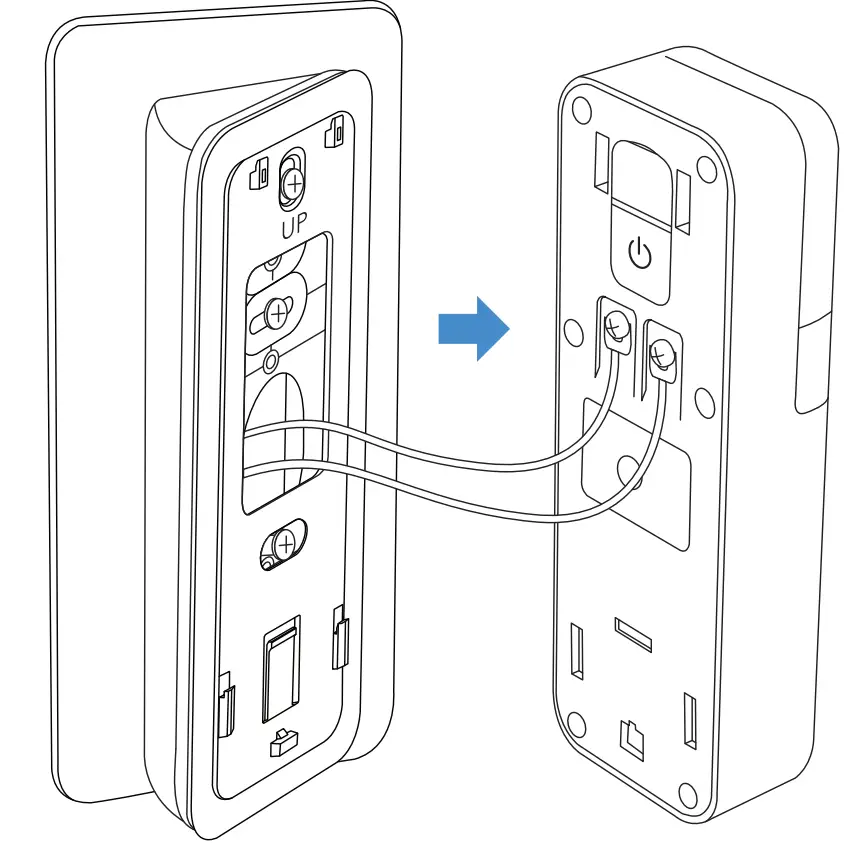

- If you have a wired doorbell, connect the wires first before securing it to the wall plate.
- Turn on the doorbell. Hook the tabs at the back and press firmly until it clicks into place.

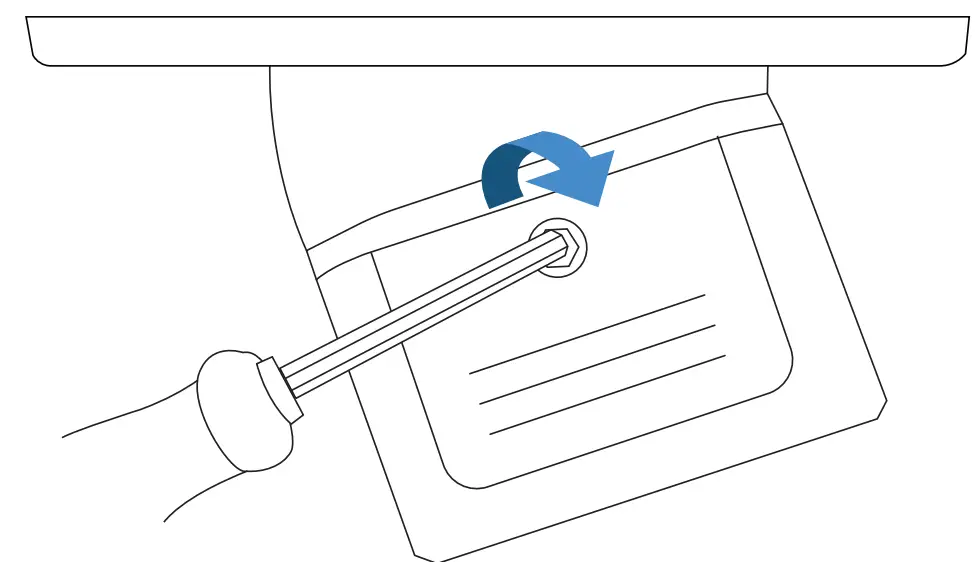

- Check the view from the App, then secure the doorbell with a screw at the bottom.
Specifications
Compatibility: Wyze Video Doorbell Pro
Dimensions: 7.28 x 3.54 x 0.30 in
Get More Support
Scan the QR code below or email us at: [email protected]
Wyze Video Doorbell Pro is not included.
Wyze Video Doorbell Pro is a trademark of Wyze Labs, Inc.
Wasserstein is not affiliated with Wyze Labs, Inc.
Wasserstein is a trademark of Drop cases Ltd.
