WASSERSTEIN Wall Plate for Blink Video Doorbell
WASSERSTEIN Wall Plate for Blink Video Doorbell

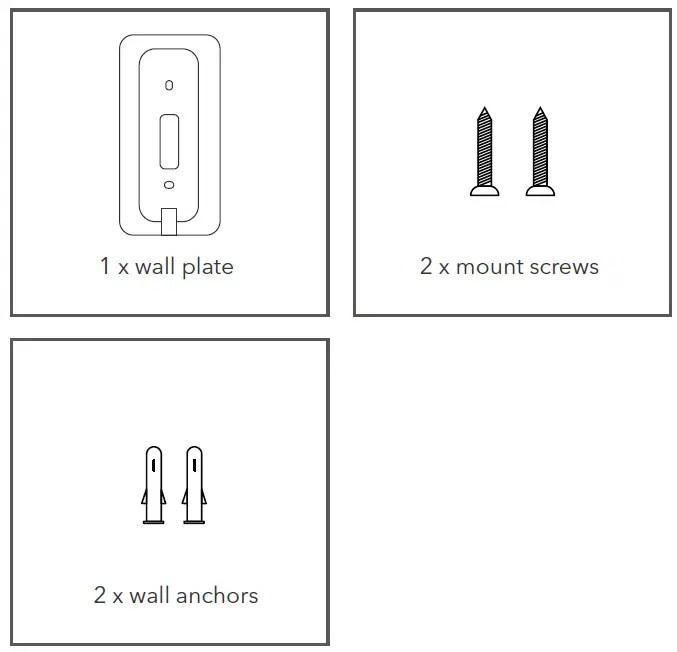

In the Box
Safety Information
- Read these instructions carefully before use. Failure to follow the safety instructions may cause injury or damage to your property.
- Small parts contained in the box can be a choking hazard. Keep small parts away from children.
- Only use this mount with the Blink Video Doorbell.
How to Install

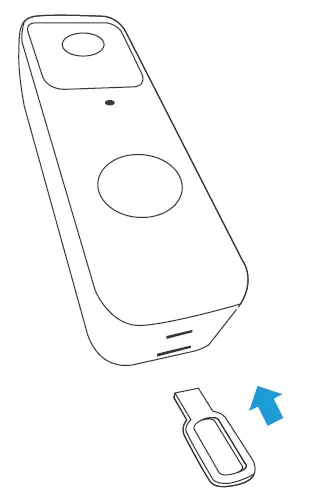

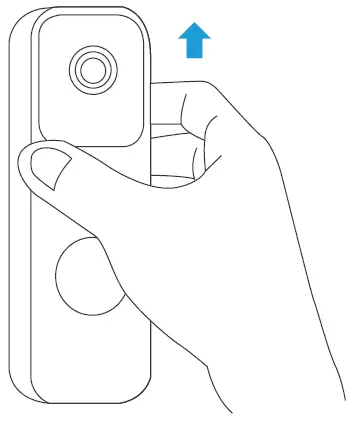

Note: before you install the wall mount, take down your Blink Video Doorbell if it is already installed. Detach the doorbell backplate using the opening key that comes with it.

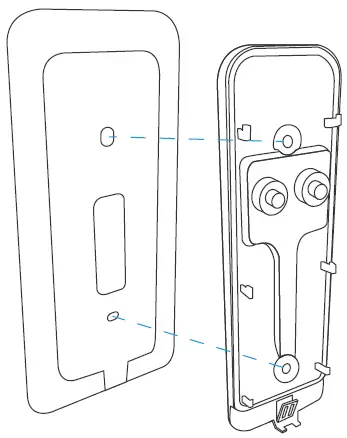

- Place the backplate in the middle of the wall plate. Line up the holes on the top and bottom.

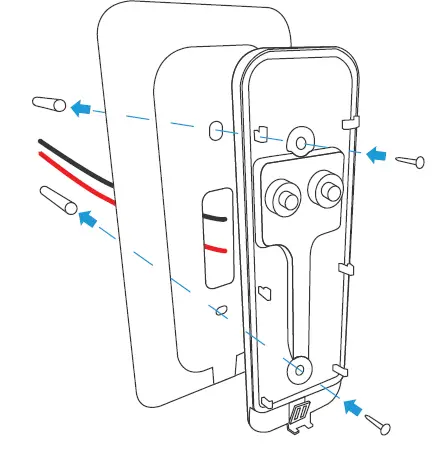

- Attach the wall plate and backplate to the wall using the screws and anchors provided. The drill bit size is 1/8 in. If your doorbell is hardwired, make sure that the wires go through the cutout and are connected to the backplate before mounting.

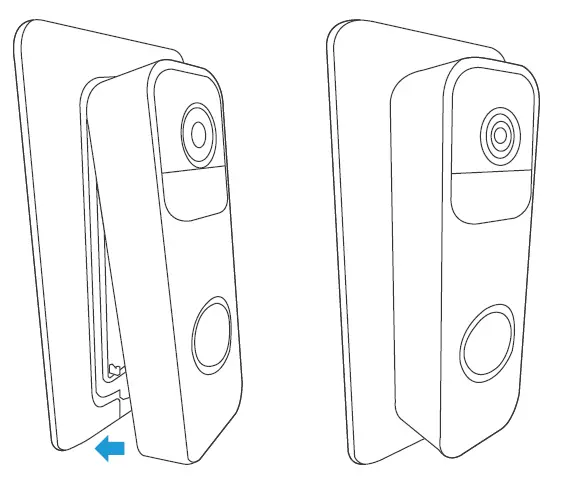

- Hook the doorbell to the backplate. Press the top in first, then firmly press the bottom in until it clicks.
Specifications
Material: ABS plastic
Dimensions: 3.1 x 6.4 x 0.2 in
Cutout dimensions: 1.7 x 0.6 in
Get More Support
Scan the QR code below or email us at [email protected].
Blink Video Doorbell is not included.
Blink is the trademark of Immedia Semiconductor, LLC Wasserstein is a trademark of Dropcases Ltd. Wasserstein is not affiliated with
Immedia Semiconductor, LLC
