R407C Eliminator Hermetic Receiver Filter Drier
Installation Guide
R407C Eliminator Hermetic Receiver Filter Drie
Refrigerants:
R134a, R404A, R407C, R507, R22, R410A.
For other refrigerants, please contact Danfoss’s representative.
Temperature range:
Max. working pressure: PS / MWP = 42 bar / 610 psig

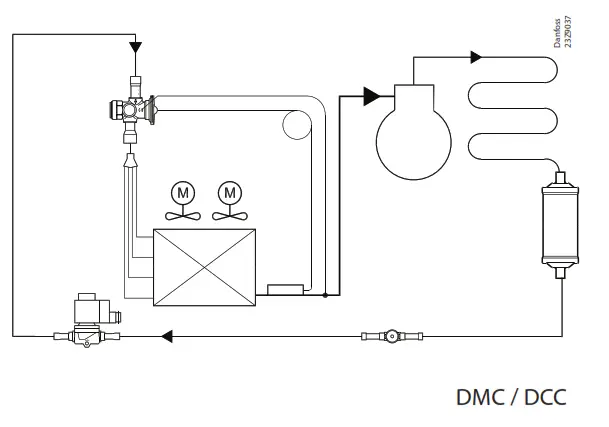

Installation

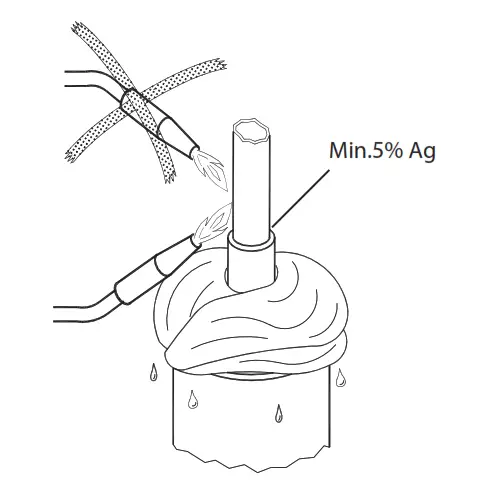

Soldering
Danfoss
23Z7016.10
After charging, mark the system with the refrigerant and the oil used.
Mounting

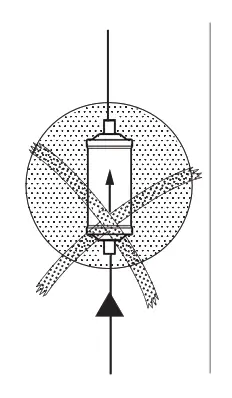

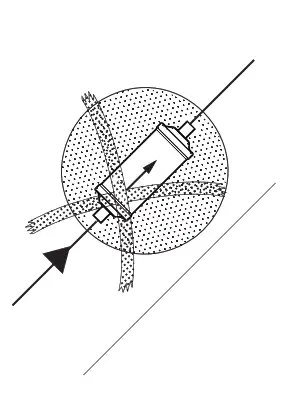

| Preferred position | Wrong position | |
 |  |  |
customer best practices will still be needed:
- Use wet wrap when installing.
- Braze the joints.
- Let them cool down.
- Clean the brazing /welding area after the installation (remove remaining flux with a brush).
- This is an important operation and needs to be done with great care to remove all remaining flux.
- Paint / Anti-corrosive needs to cover all open steel parts, areas where the black original paint has been burnt due to brazing and at least 3 cm approx of the copper.
- Paint the joints twice.
© Danfoss
Climate Solutions
AN142486435087en-000301
