Innovative Ergonomic Solutions companies

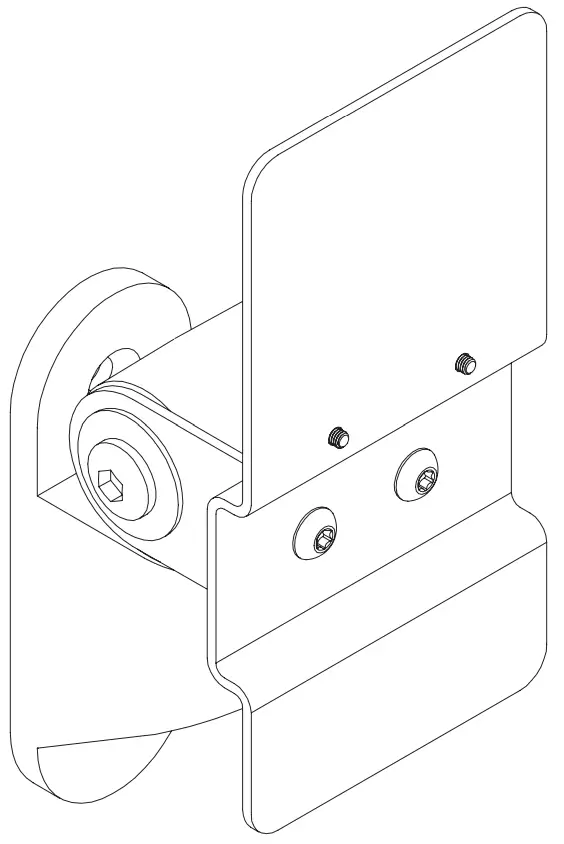

PTS-WM-P200-P400
Installation Instructions
Parts List

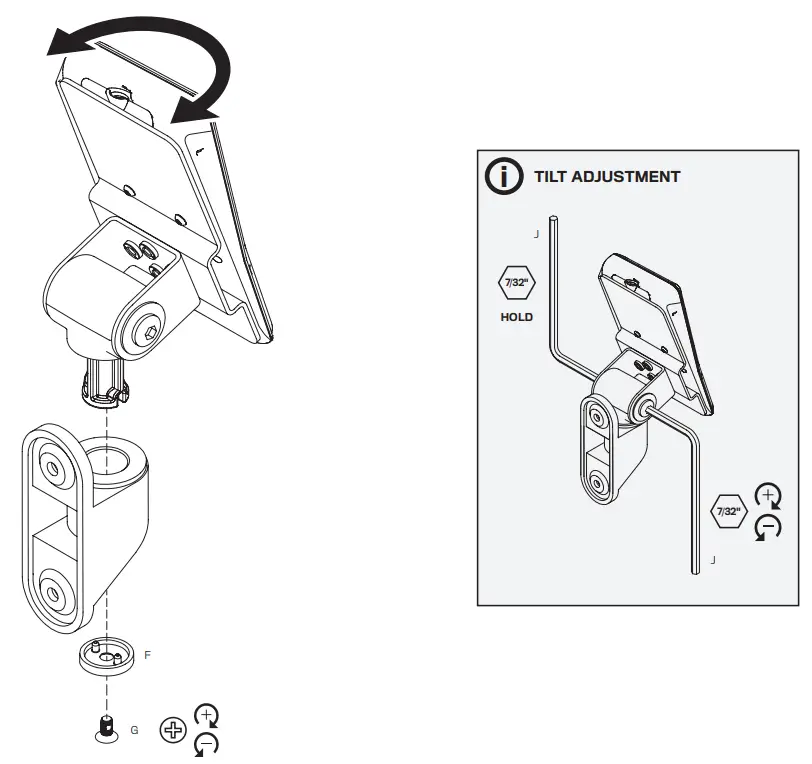

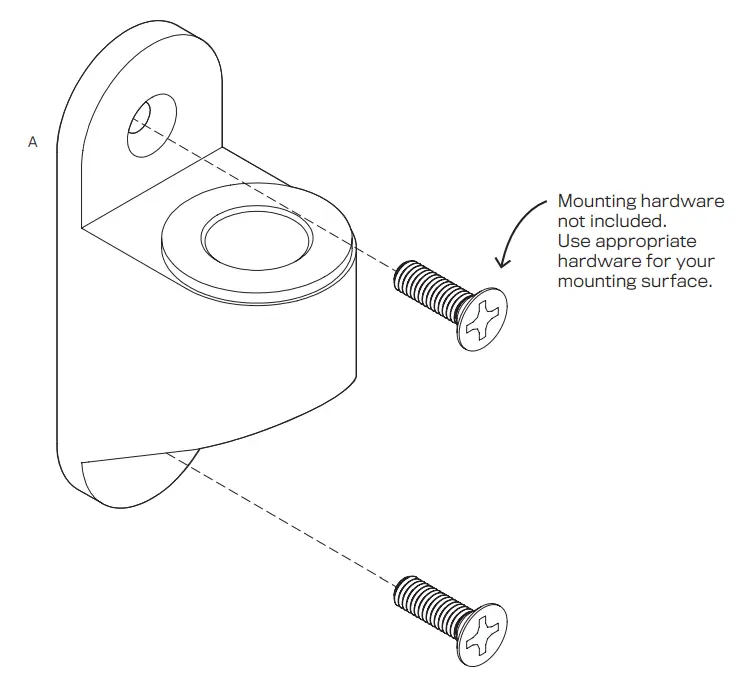

| A | Wall Mount 1x RP406795 | F | Dog Washer 1x 105189 | ||

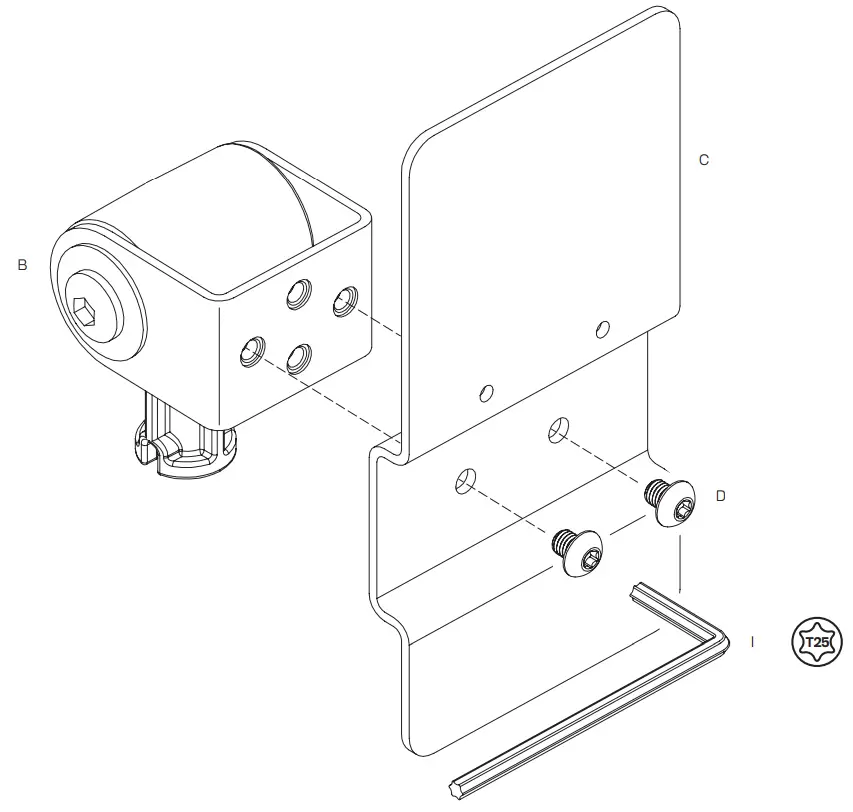

| B | Mini Tilter 1x 416267 | G | 10-32 x 3/8″ FPhMS w/Lock Patch 1x 705198 | ||
| C | Verifone P200/P400 Adapter Plate 1x 114856 | H | T10 L-Key 1x 714898 | ||

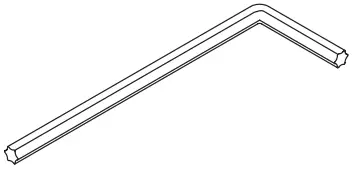

| D | Tilt Bracket Screw 2x 113900 | I | T25 L-Key 1x 714899 | ||

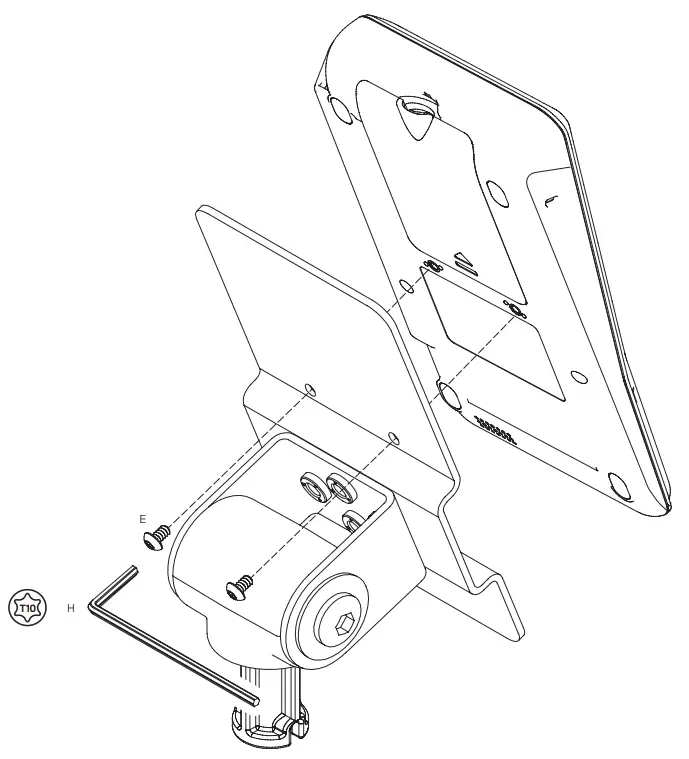

| E | M3-0.5 x 6mm Button Head Screw 2x 715251 | J | 7/32″ Allen Wrench 2x 701127 |




Innovative Ergonomic Solutions
800 524 2744
[email protected]
team-ies.com
