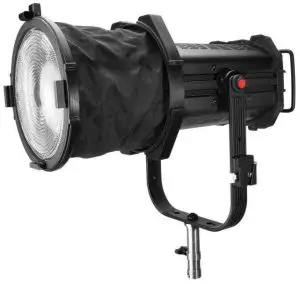

Fiilex Q8 Color LR LED Frame Light User Guide

Safety Instructions

• DO NOT look into the light source. Be cautious of the high-intensity beam.
• DO NOT disassemble Q8 Color. This will void the warranty.
• DO NOT install Q8 Color in damp or wet locations.
• DO NOT obstruct the fixture’s air vents.
• Use safety cable (not included) when rigging Q8 Color overhead.
• Only use Fiilex approved power supply and accessories. Failure to do so may damage the fixture.
• Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired, for example by cracks or deep scratches.
• The lamp shall be changed if it has become damaged or thermally deformed.
• The luminaire is intended for professional use only.

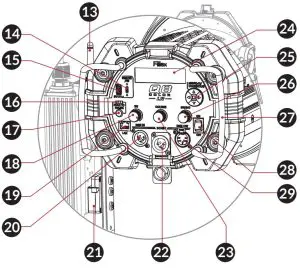

Parts Diagram

1. Vent Holes
2. Water Repellent Fabric
3. Yoke Bolt
4. Tilt Lock Lever
5. Beam Adjustment Knob (Spot to Flood)
6. Yoke
7. Junior Pin Receiver
8. Mount Tightening Knob
9. Latch
10. Fresnel Lens
11. Fresnel Lens Holder
12. Power Supply Unit (PSU)

13. Antenna
14. USB Type-C Port (For updating firmware)
15. USB Type-A Port (5V/1A Power)
16. Wireless Signal Indicator
17. Unlink Button (For disconnecting the wireless signal)
18. Intensity Control Knob
19. LAN Port
20. Dual Locking V-Mount
21. DMX Input (XLR-Male 5-pin)
22. DC Input Port
23. CCT/HUE Knob
24. OLED Display
25. Navigation Pad
26. GN/SAT Knob
27. Handles
28. ON/OFF Switch
29. DMX Output (XLR-Female 5-pin)


Fixture Operation

Mode Selection
Use Navigation Pad to enter MODES menu, then navigate to select the desired mode.

Fixture Control
1 Manual / Local :
Use Intensity Control Knob or the Navigation Pad to control the parameters.
For CCT modes and HSI modes, use either CCT/HUE Knob and GN/SAT Knob or the Navigation Pad .

2 DMX / RDM / Ethernet (ArtNet / sACN) :
Display shows DMX connection status, NO DMX or DMX OK.

Settings

Use Navigation Pad to enter and edit SETTINGS. Navigate to the right to access additional settings.

Fan speed options

Dimming options

Ethernet
Modify ArtNet and sACN settings of the fixture.

Info
View current fixture firmware versions and fixture temperature.
