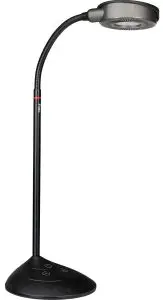

Fiilex V70 LED Color Viewing Lamp User Guide
Safety Instructions
- DO NOT disassemble V70. This will void the warranty.
- DO NOT install V70 in damp or wet locations.
- DO NOT expose V70 in the strong radio frequency surroundings. This may interfere with the touch panel function.
- DO NOT obstruct the fixture’s air vents.
- Only use Fiilex approved power supply and accessories. Failure to do so may damage the fixture.

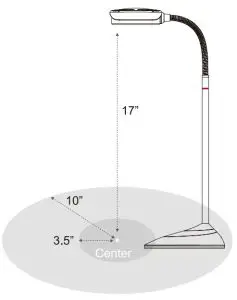

Photometrics
Highest Intensity
Position | 3000K | 4000K | 5000K | 6500K |
Center | 1382 lux | 1543 lux | 1595 lux | 1605 lux |
3.5” | 1254 lux | 1403 lux | 1450 lux | 1462 lux |
| 10” | 666 lux | 750 lux | 780 lux | 795 lux |
Lowest Intensity
Position | 3000K | 4000K | 5000K | 6500K |
| Center | 286 lux | 291 lux | 278lux | 303 lux |
| 3.5” | 260 lux | 266 lux | 252 lux | 276 lux |
| 10” | 140 lux | 144 lux | 137 lux | 151 lux |

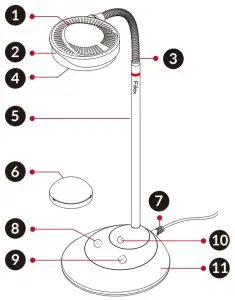

Parts Diagram
- Air Vents
- Lamp Cover
- Flexible Arm
- Lens
- Stand
- Dome Diffuser
- DC Plug
- CCT Touch Panel
- DIM Touch Panel
- Power Touch Panel
- Base
