Installation Manual
For Thermal Transfer Barcode Printer
Surpass Series
Please read this user guide before printer operation and keep this guide for reference.
Note: from the model you purchased. As for the actual interface, please refer to the product specifications The interface of the printer shown in the pictures may have some differences
* If you need more information about the product, please refer to the User’s Manual on CD.
* The printer specification, accessory, spare parts, and program are subject to change without prior notice.

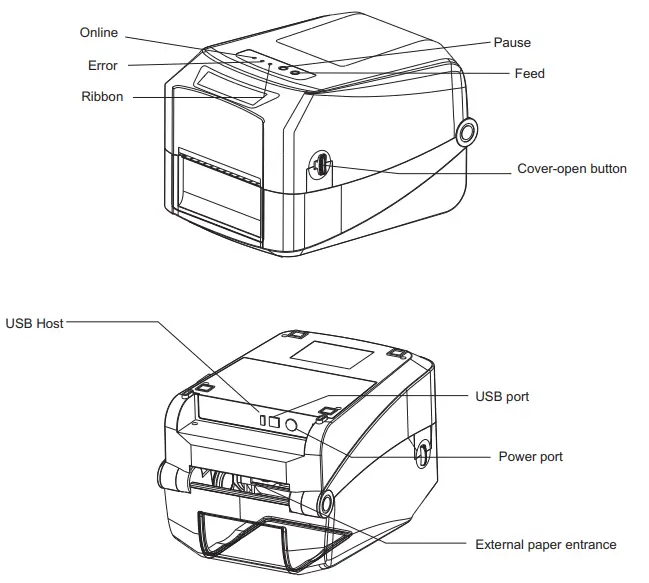

Print media loading

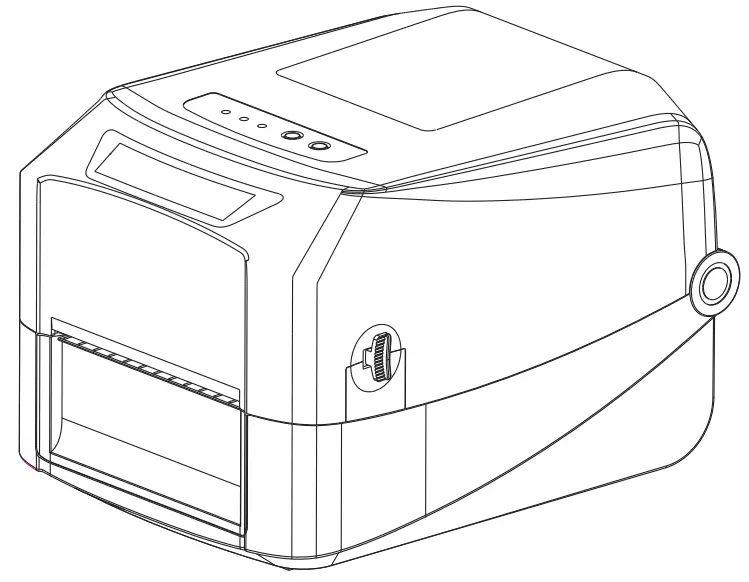

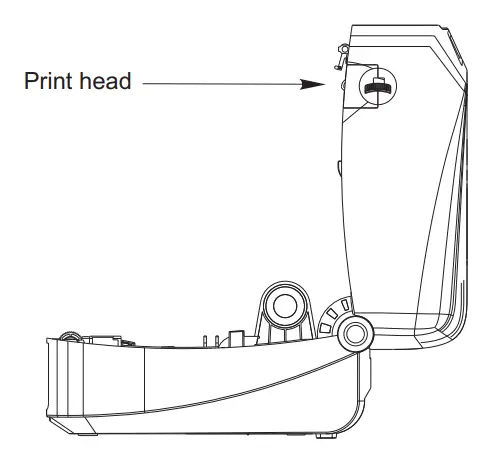

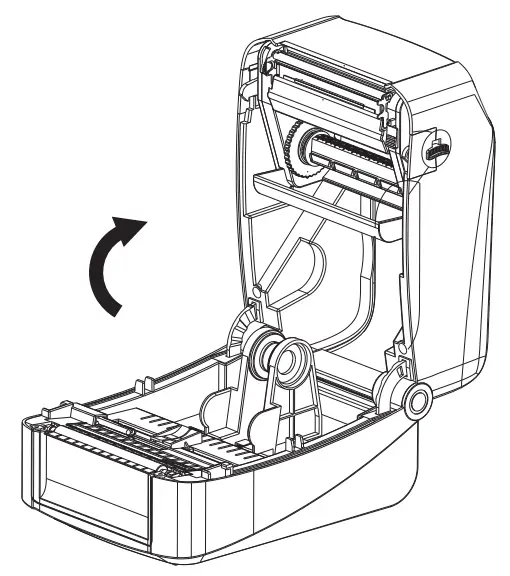

- Press two buttons on the printer’s two sides to lift and open the cover.

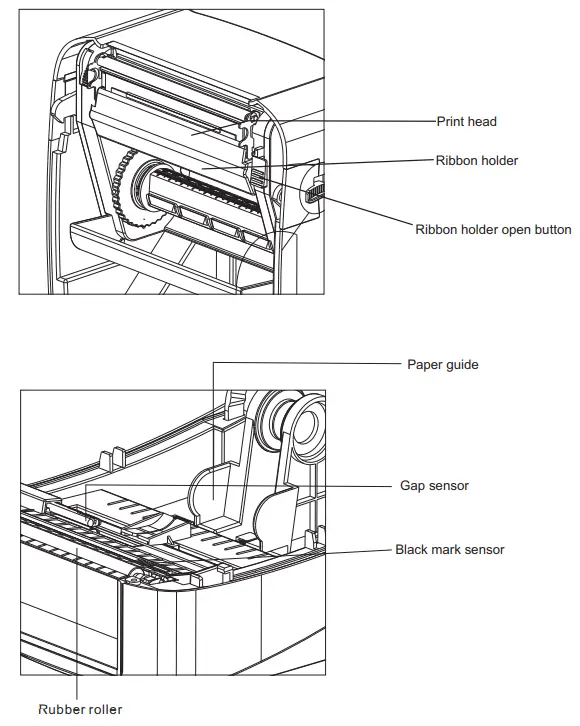

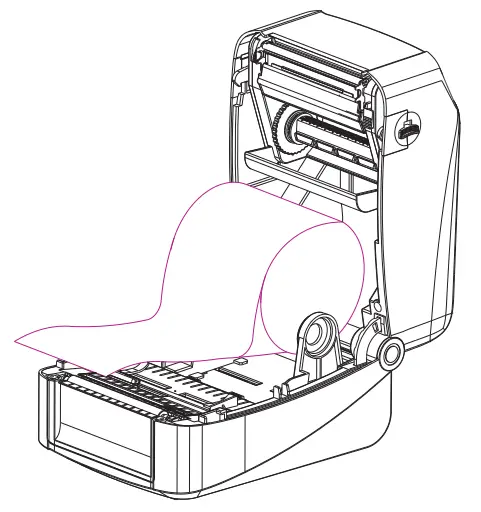

- Load print media into the printer; adjust the paper guide to be the same width as print media.

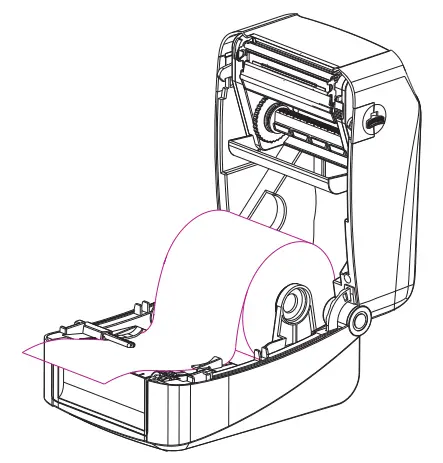

- Pull out the print media till it passes the gap sensor and cutter (cutter is optional), and complete media loading.
Ribbon loading

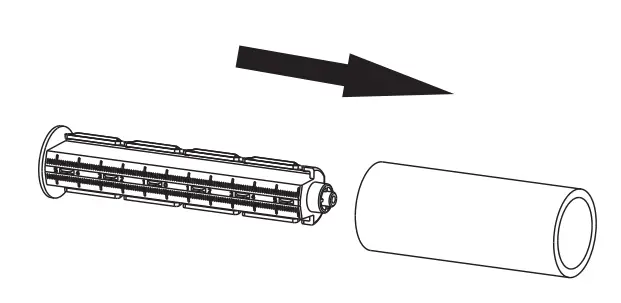

- Insert the blue ribbon roller into the new ribbon.

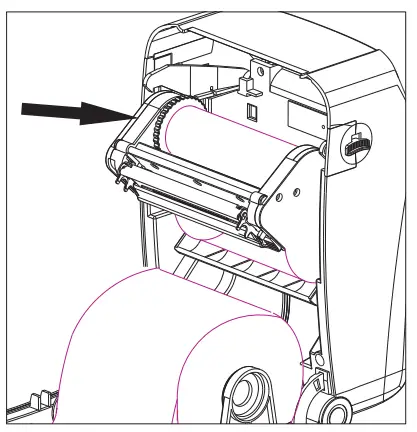

- Load the ribbon left side first and then the right side, and fix it well.

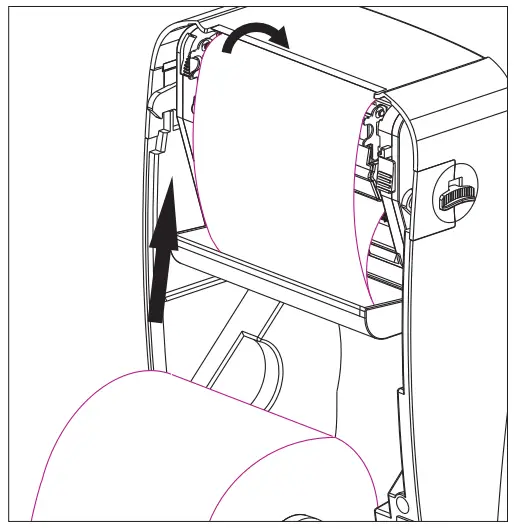

- Press the button to open the ribbon holder unit as per the picture
- Insert blue ribbon roller into the empty roll for ribbon collecting after printed
- Load the empty roll left side first, then the right side.

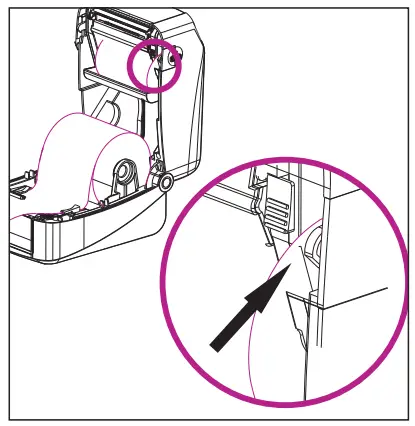

- Pull out the ribbon and stick it into the empty roll. Make sure the ribbon is flat and smooth when touching the print head.

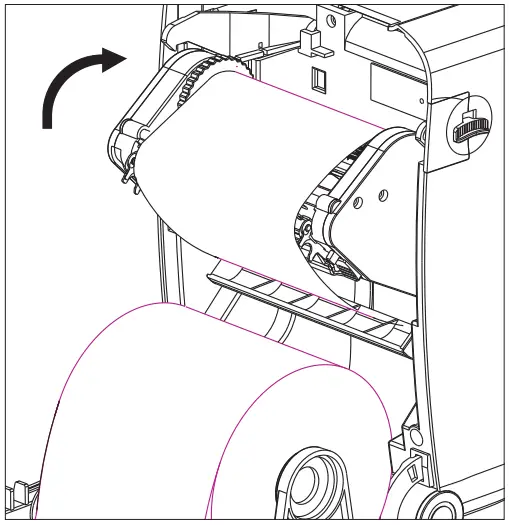

- Put the ribbon holder back in its position as the picture shows.

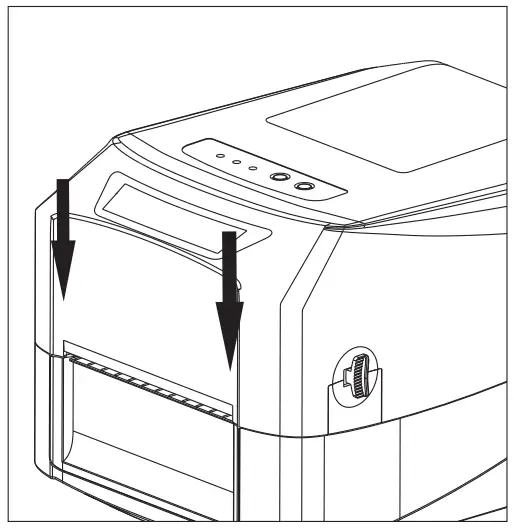

Carefully close the top cover.

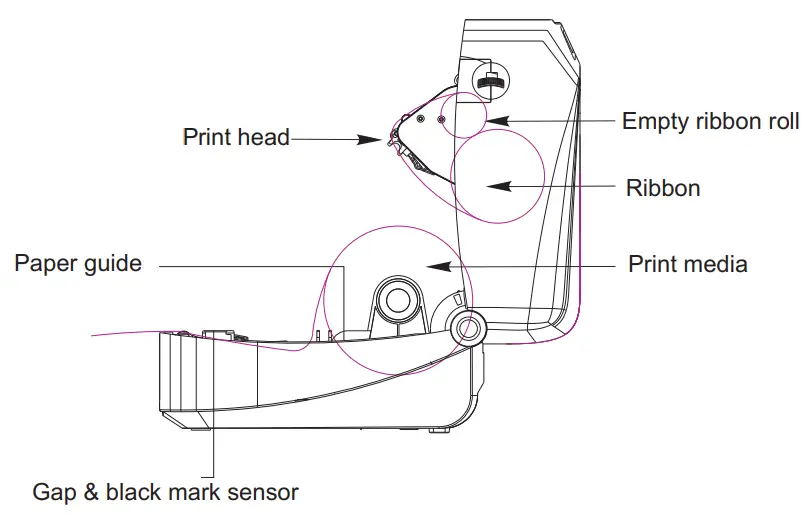

Ribbon and print media loading diagram
