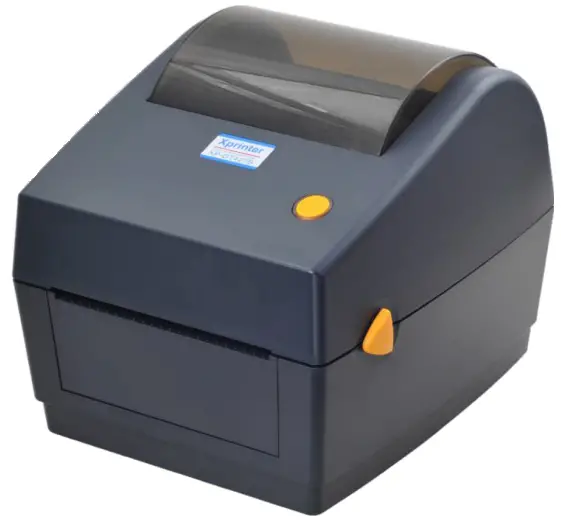

Xprinter XP-DT427B Direct Thermal Barcode Printer

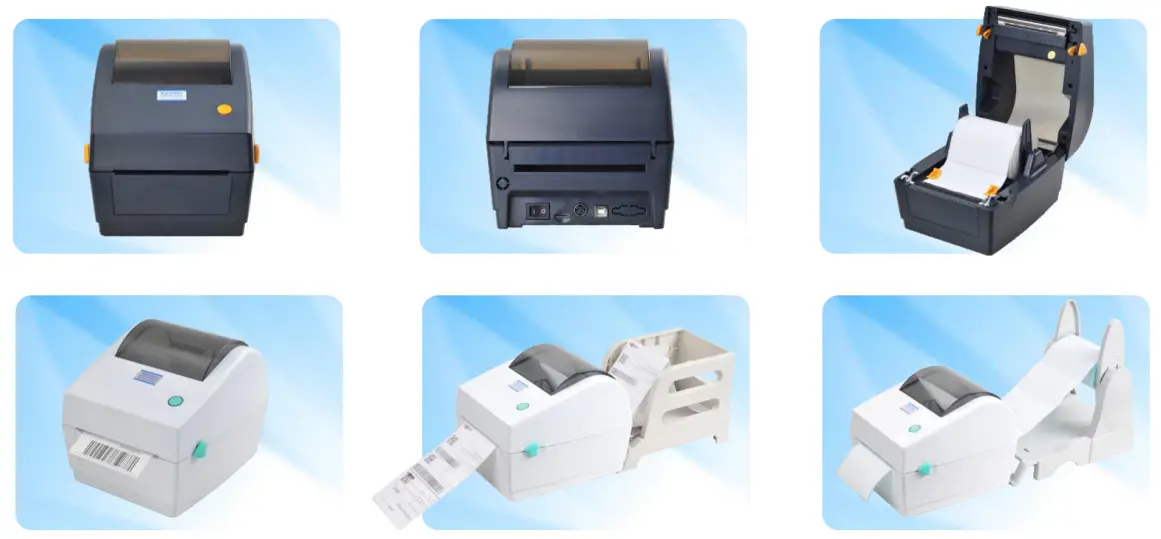

Features
- High quality double-walled clamshell design
- 203 dpi resolution models
- Head-up sensor
- USB 2.0
- 8MB SDRAM, 8 MB Flash
Specification
Model | XP-DT427B |
Resolution | 203 DPI |
| Print method | Direct Thermal |
Print speed | 152mm(6″)/s Max. |
| Max.print width | 108 mm (4 .25″) |
Max.print length | 1778 mm (70″) |
Media | |
Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 25.4~115mm |
Media thickness | 0.06 mm ~0.5 25 mm(2.36 ~ 9.8 “) |
Media core diameter | 25.4 ~ 76.2 mm (1″ ~ 3″) |
| Label length | 10~1778 mm (0 .39″~70″) |
Label roll capacity | 127 mm (5″) OD (external diameter) |
Performance Features | |
Processor | 32 -bit CPU |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb |
Interface | Standard version: USB Optional: Serial/WIFI/Bluetooth/TF card |
| Sensors | 1.Gap sensor 2. Cover opening sensor 3. Black mark sensor |
Fonts/Graphics/Symbologies | |
Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
2D barcode | PDF-417, Maxicode, DataMatrix , QR code |
| Rotation | 0°’ 90°’ 180°’ 270° |
Emulation | TSPL, EPL, ZPL, DPL |
Physical Features | |
Dimension | 210.8 mm (W) x 190.20 mm (H) x 180.2 mm (D) |
| Weight | 1.40 kg |
Software | |
| Driver | Windows/ Linux/ Mac |
SOK | Windows/ iOS / Android |
Power supply | |
| Input | AC 100-240V |
Output | DC 24V / 2.5A |
Options | |
| Factory Options | 1. Serial CV Bluetooth 2.WIFI 3.RTC 4. TF card(SD) |
Dealer Options |
|
Environmental Conditions | |
Operation | 5 ~ 40°C(41~104°F), Humidity: 25 ~ 85% non-condensing |
Storage environment | -40 ~ 60°C(-40~140°F), Humidity:10 ~ 90% non-condensing |
