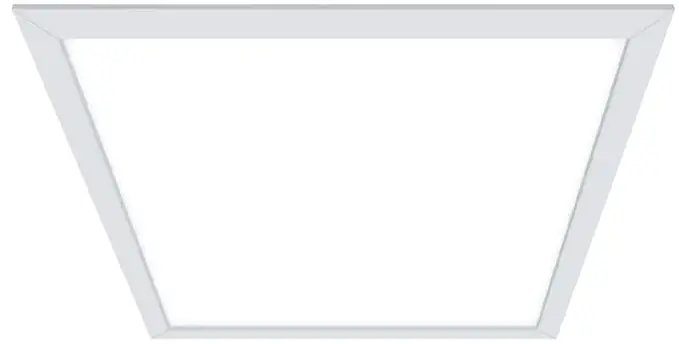

RAB EZPAN1X4-17YN-D10 Flat Panel
Driver Info
- Type Constant Current
- 120V 0.14A
- 208V 0.10A
- 240V 0.08A
- 277V 0.07A
- Input Watts 19.8W
LED Info
- Watts 17W
- Color Temp 3500K (Warm
- Neutral)
- Color Accuracy 83 CRI
- L70 Lifespan 60,000 Hours
- Lumens 2,264
- Efficacy 114.3 lm/W
Technical Specifications
Compliance
UL Listed:
Suitable for damp locations
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant:
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P8C9BVO5
Electrical
Driver:
Constant Current, Class 2, 50/60 Hz, 120-277V, 120V: 0.14A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
THD:
9.71% at 120V, 15.12% at 277V
Note:
All values are typical (tolerance +/- 10%)
Performance
Lifespan:
60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Maximum Ambient Temperature:
Suitable for use in up to -30°C (-22°F) to 50°C(122°F) IC Rated:
Suitable for insulated ceilings
Lens:
Frosted polystyrene
Mounting:
Recessed ceiling
Housing:
Lightweight aluminum housing, steel pan and junction box
Installation:
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
Construction
Finish:
Formulated for high durability and long-lasting color Green Technology: Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Other
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.
Equivalency :
Equivalent to (4)F32T8 or (4)F28T5
Trade Agreements Act Compliant:
This product is a product of Cambodia and a “designated country” end product that complies with the Trade Agreements Act
Buy American Act Compliance:
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

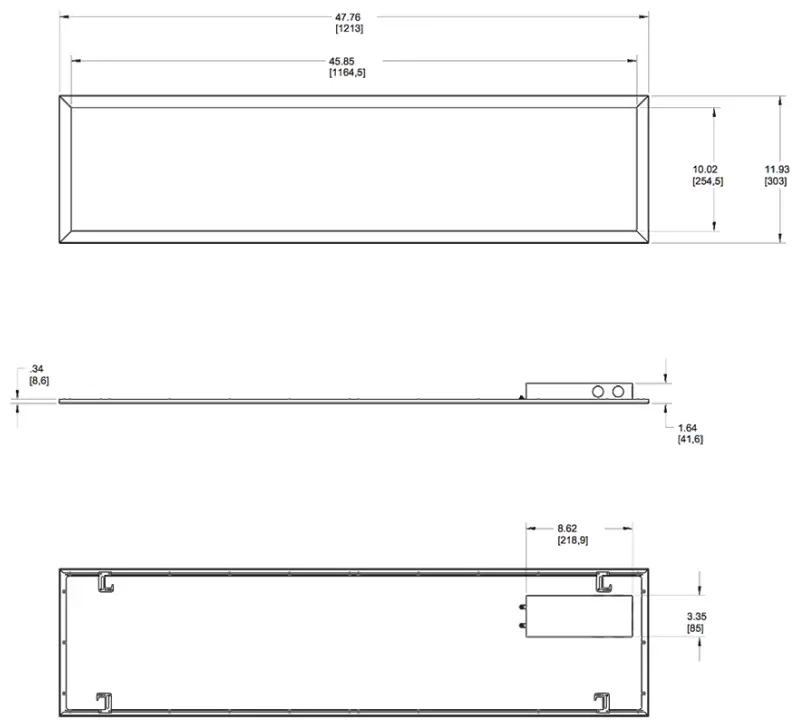

Dimensions
Features
Perfect for shallow plenums
Even and diffuse ambient illumination, ideal for spaces where glare-free lighting is required 0-10V dimmable driver, standard
Ordering Matrix
Need help? Tech help line: (888) 722-1000 Email: [email protected] Website: www.rablighting.com
Copyright © 2021 RAB Lighting All Rights Reserved Note: Specifications are subject to change at any time without notice
