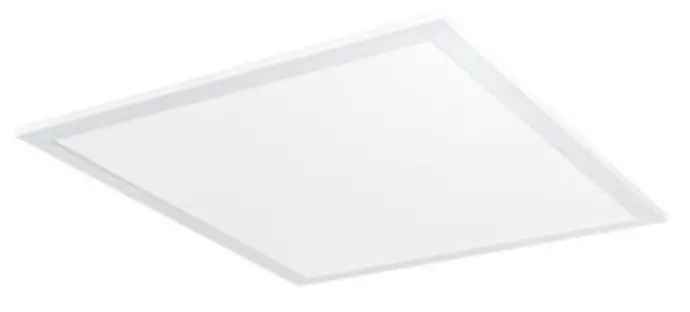

EZPAN2X2-40YN-D10 EZPAN Edgelit LED Panel Lights
User Guide
2′ x 2′ EZPAN edge-lit LED panel lights to provide smooth and uniform light edge-to-edge for a clean, modern look. Install in drop ceilings or use optional surface, pendant or recessed (drywall) mounting kits.
| Color: White | Weight: 8.5 lbs |
| Driver Info | |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.22A |
| 240V | 0.19A |
| 277V | 0.16A |
| Input Watts | 40.9W |
| LED Info | |
| Watts | 40W |
| Color Temp | 3500K (Warm Neutral) |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 60,000 Hours |
| Lumens | 4,571 |
| Efficacy | 111.8 lm/W |
Technical Specifications
Compliance
UL Listed:
Suitable for damp locations
CCEA Compliant:
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City
of Chicago
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PTDTJJX1
Dimming Driver:
The driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD: 8.49% at 120V, 14.53% at 277V
Note:
All values are typical (tolerance +/- 10%)
Performance Lifespan:
60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations Construction
IC Rated: Suitable for insulated ceilings
Maximum Ambient Temperature:
Suitable for use in up to -30°C (-22°F) to 50°C(122°F)
Lens: Frosted polystyrene
Mounting: Recessed ceiling
Housing: Lightweight aluminum housing, steel pan, and junction box
Construction
Installation:
Standard integral T-bar clips secure the fixture to Tbars and prevent T-system separation
Finish:
Formulated for high durability and long-lasting color
Green Technology:
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs:
Long-life, high-efficacy, surface-mount LEDs
Other
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance, and fixture finish. RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.
Equivalency : Equivalent to (4)F32T8 or (4)F28T5
Trade Agreements Act Compliant:
This product is a product of Cambodia and a “designated country” end product that complies with the Trade Agreements Act
Buy American Act Compliance:
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

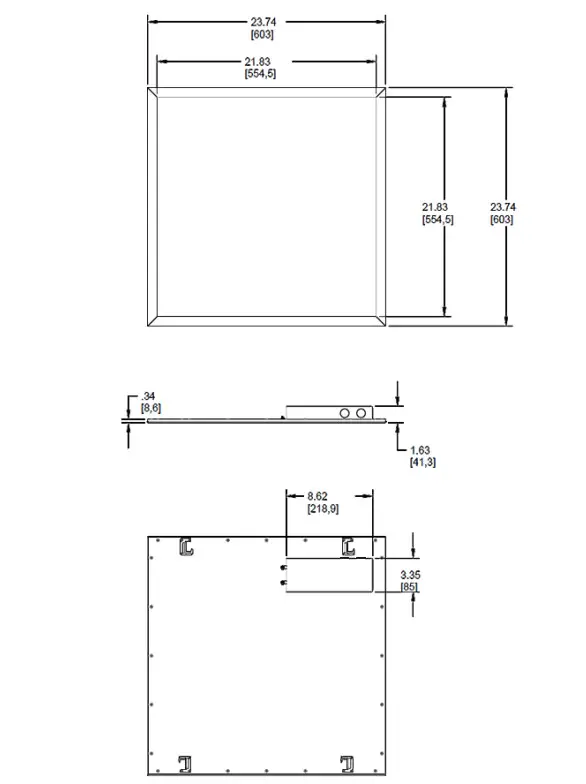

Dimensions
Features
Perfect for shallow plenums
Even and diffuse ambient illumination, ideal for spaces where glare-free lighting is required
0-10V dimmable driver, standard

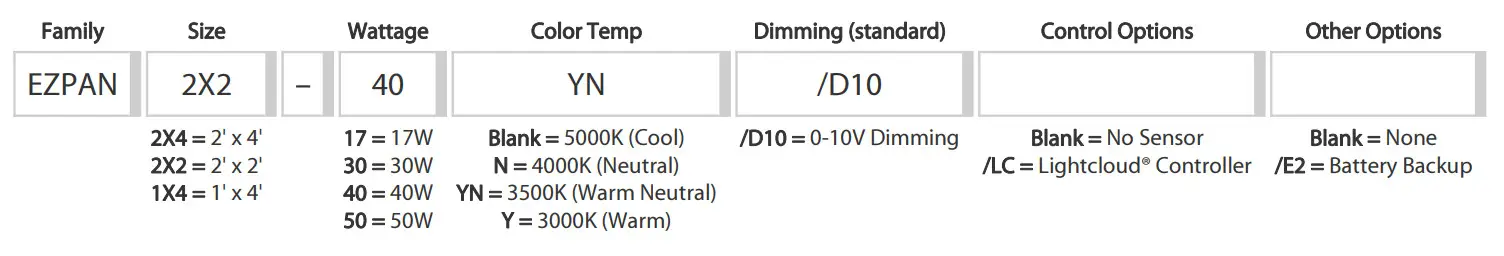

Ordering Matrix
Need help? Tech help line: (888) 722-1000 Email: [email protected] Website: www.rablighting.com
Copyright © 2021 RAB Lighting All Rights Reserved Note: Specifications are subject to change at any time without notice
