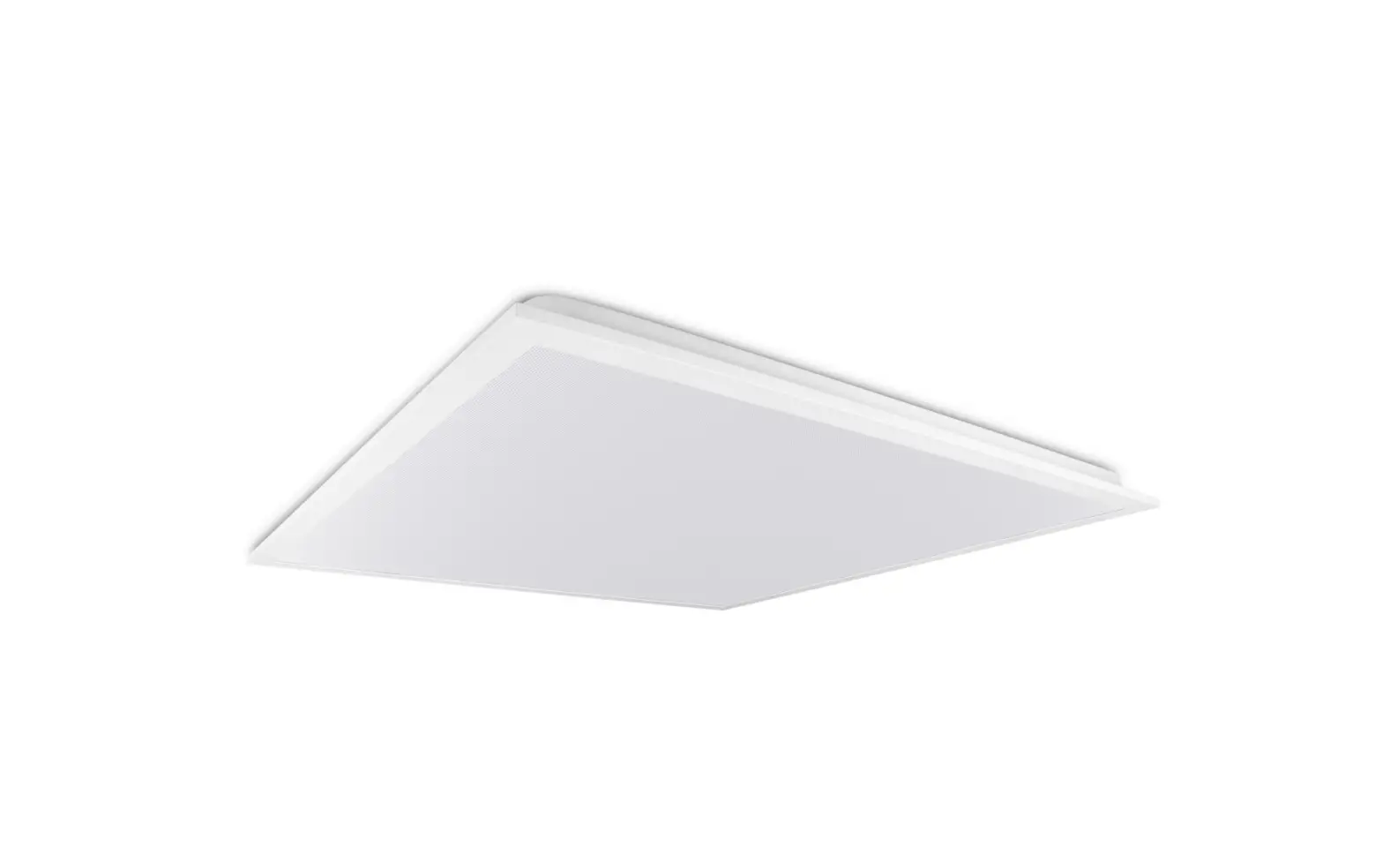

EBPN22-40WS2000-2 LED Back Lit Flat Panel
Product Information
The EBPN22-40WS2000-2 and EBPN24-50WS2000-2 models are part of
the LED Panel Series, which is a flat panel lighting system that is
LED Back-lit. These models are available in the 2×2 ft. and 2×4 ft.
sizes and are classified as 2×2|2×4 Class LED Panels. The product
comes with a junction box that has a dimmer switch, AC-L(Black),
AC-N(White), GND, and Dim+(Purple) terminals. The product can be
installed using the Recessed, Suspended, or Surface Mounted
methods. The installation process includes anchoring the panel to
the ceiling and connecting the main AC wire to the driver terminal
block.
Product Usage Instructions
Before installing the LED Panel, please review the instructions
and warnings listed below:
Safety Instructions
- Switch off before installation.
- Switch on only after complete installation and examination of
the circuit.
Caution
Make sure that the mounting surface or structural member used
for installation can support the weight of LED Panel.
Installation Procedure
Recessed Mounting (Clips)
- Remove the ceiling plaster slab.
- Feed the main AC wire in driver terminal block respectively,
connect the panel light and driver. - Fix the panel light into plaster ceiling.
- Make sure the led panel light is firmly fixed and turn on the
power.
Suspended Mounting
- Fix the anchor into target place on the ceiling.
- Fix the installation mount on the ceiling with plastic
anchor. - Hang the panel to ceiling with suspended installation kits,
adjust the length of steel wires. - Feed the main AC wire in driver terminal block respectively and
turn on the power.
Surface Mounted
- Fix the anchor into target place on the ceiling.
- Fix the installation mount on the ceiling with plastic
anchor. - Hang the panel to ceiling with suspended installation
kits,adjust the length of steel wires. - Fix the side frame back by screw.
- Make sure the frame and panel light are firmly fixed, turn on
the power.
Lamp Inspection Before Installation
Take out the lamp from the box and put it in a flat table, if
the lamp upwarps, please adjust the lamp with below steps before
installation:
- Press the opposite angles at the same time.
- Press another two opposite angles at the same time, make sure
the four angles are flat, then start the installation.
Slide Switch for Color Selection
If the product has a Slide Switch of CCT or power selection,
please select the CCT or power needed before installation. If the
product does not have this function, ignore these steps.
Cut Out Sizes
The Cut Out Sizes for Type A(mm) B(mm) are:
- PL2X2: 578x578mm
- PL1X4: 1188x278mm
- PL2X4: 1188x578mm
Note: Clips should be purchased separately as an accessory.
INSTALLATION GUIDE
MODEL#: EBPN22-40WS2000-2 / EBPN24-50WS2000-2
LED Panel Series
2×2|2×4 Class
LED Back-lit
Flat Panel
2×2 ft.| 2×4 ft.
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS LISTED BELOW PRIOR TO PROPER INSTALLATION
SAFETY INSTRUCTION
WARNING
Basic safety precautions should always be followed when installing, including the following: 1. Read instructions carefully before installing. 2. This LED Panel requires professional installation and maintenance. 3. The power supply of the LED Panel should be powered by a dedicated external LED driver. 4. Disconnect the power supply before installing or maintenance. 5. Make sure the wires have been properly connected before powering on the device. 6. Ensure the product has enough space for heat dissipation. 7. Ensure the luminaries are never covered by any heat insulation mat or slim layer material at anytime. 8. IP40 for indoor use only, not for damp location; IP54 for indoor damp location. 9. Ambient Temperature: -10C° to + 45C°, Avoid direct sunlight. 10. Storage Conditions: Cool & dry conditions.
1. Switch off before installation. 2. Switch on only after complete installation and examination of the circuit.
CAUTION
Make sure that the mounting surface or structural member used for installation can support the weight of LED Panel.
INSTALLATION PROCEDURE
B
1
A
JUNCTION BOX
Dim-(Gray)
AC-L(Black) AC-N(White)
GND Dim+(Purple)
2
Dim-(Gray) AC-L(Black) AC-N(White)
GND Dim+(Purple)
metal tube
3
1. Remove the knock-down hole on box by screwdriver (Part A), Remove screw, and take out the driver cover (Part B)
2. Connect the wire as the picture showing.
3. Cover the driver box and tighten it with a screwdriver, finish connection.
Slide switch for color selection
CW DL
xxW
xxW
xxW
Slide switch for power selection
For the product with Slide Switch of CCT or power selection, please select the CCT or power needed before installation. (Ignore these steps if without the function)
RECESSED
Lamp inspection before installation: Take out the lamp from the box and put it in a flat table, if the lamp upwarps, please adjust the lamp with below steps before installation: 1. Press the opposite angles at the same time; 2. Press another two opposite angles at the same time, make sure the four angles are flat, then start the installation.
1
1. Remove the ceiling plaster slab.
2
2. Feed the main AC wire in driver terminal block respectively, connect the panel light and driver.
3
3. Fix the panel light into plaster ceiling.
4
4. Make sure the led panel light is firmly fixed and turn on the power.
PRODUCT ILLUSTRATIONS REPRESENTED IN THIS INSTALLATION GUIDE MAY VARY IN SIZE DEPENDING ON MODEL NUMBER. INSTALLATION REMAINS THE SAME. ©2022. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
INSTALLATION GUIDE
MODEL#: EBPN22-40WS2000-2 / EBPN24-50WS2000-2
LED Panel Series
2×2|2×4 Class
LED Back-lit
Flat Panel
2×2 ft.| 2×4 ft.
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS LISTED BELOW PRIOR TO PROPER INSTALLATION
SUSPENDED
1
1. Fix the anchor into target place on the ceiling.
2
2. Fix the installation mount on the ceiling with plastic anchor.
SURFACE MOUNTED
3
3. Hang the panel to ceiling with suspended installation kits, adjust the length of steel wires.
4
4. Feed the main AC wire in driver terminal block respectively and turn on the power.
1
1. Fix the anchor into target place on the ceiling.
2
2. Fix the installation mount on the ceiling with plastic anchor.
3
3. Hang the panel to ceiling with suspended installation kits,adjust the length of steel wires.
4. Fix the side frame back by screw.
RECESSED MOUNTING (CLIPS)
1
5. Make sure the frame and panel light are firmly fixed, turn on the power.
2
Cut Out Sizes Type A(mm) B(mm) PL2X2 578 578 PL1X4 1188 278 PL2X4 1188 578
Clips should be purchased separately as an accesory
Warning: Input wire diameter 0.75mm²; Product modification and improper installation are not valid for warranty.
