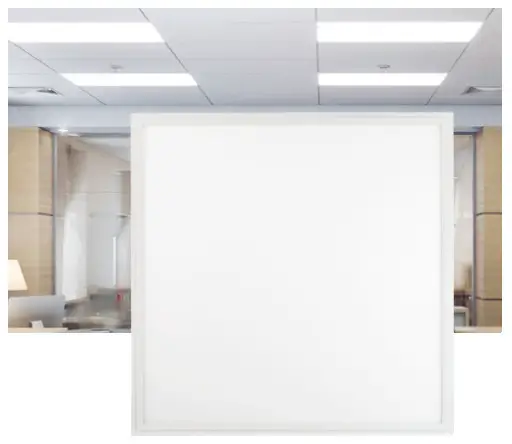

LED EDGE-LIT FLAT PANELS
Premium Series
Catalog number-———–
Notes————————
Type————————-
- DESIGN & OPTIONS – LED EDGE-LIT FLAT PANEL comes with a unique design and an anti-corrosion aluminum frame with fast heat dissipation. It also features a 0-10V dimmable driver with circuit overload, short circuit, and low voltage protection, making it both safe and reliable. The non-yellowing PC diffuser provides uniform light distribution with no glare. It comes with 120-277V and is size 2×2.
- INSTALLATION – This fixture has convenient recessed mounting for drop-in installation with standard grid ceilings. It can also be suspended via aircraft cable or wire (not included) to the attached clips. The clips can be folded over the “T” grid, locking the light to the grid. The low frame for surface mounting is sold separately. Refer to installation instructions for detailed steps.
- APPLICATION – These fixtures are perfect for commercial, industrial, and residential applications such as: offices, hospitals, schools, retail, and workshops. The fixture is Damp location rated and can operate in temperatures between 14+104°F (-10+40°C).
- ENERGY SAVINGS & EFFICIENCY – This fixture provides a lumen output that is equal to or higher than traditional fluorescent architectural troffers and can cut your electric bill by up to 80% instantly. With a lifespan of 54,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
- CERTIFICATION & WARRANTY – Buy with confidence: ASD provides a 5-year warranty along with UL and DLC Premium certifications to guarantee top-quality products and safety! Top US certifications allow participation in rebates; please check the rebate programs available in your state.
PRODUCT LEGEND:
| Family | Size | Dimmable | Watts | CCT | Series |
| ASD-ELP | XX | X | XX | XX | PRM |
| Edge-Lit Panel | 22 = type 2×2 | D = Dimmable | 27 = 27 W | 40 = 4,000 K | PRM = Premium |
LED EDGE-LIT FLAT PANEL:
| Model | Type | Watts | Dimmable | CCT | Lumens | Dimensions (LxWxH) |
| ASD-ELP22D2740PRM | 2×2 | 27 W | 0-10 V | 4,000 K | 3,607 lm | 23.7″ x 23.7″ x 0.4″ |
ORDERING INFORMATION
LED UFO HIGH BAY FIXTURE:
| Model | UPC | Pcs. per Carton | Carton Size | Carton Weight | GTIN 14 for Carton |
| ASD-ELP22D2740PRM | 8.58E+11 | 4 | 26.4″ x 26.6″ x 8.9″ | 38.5 lb | 1.09E+13 |
ACCESSORIES:
| Model | Name | Materials | Weight | Dimensions | |
| ASD-FDW-ELP22 | ASD Sheetrock mounting frame for ELP 2×2 | Iron | 0.9 lb (0.4 kg) | 25 5/16″ x 25 5/16″ x 1″ | |
| ASD-CHS4 | ASD 4″ Ceiling Hanging set for LED Panels and Troffers | Iron | 0.4 lb (0.2 kg) | 39.37″ | |
| Model | UPC | Pcs. per Carton | Carton Size | Carton Weight | GTIN 14 |
| ASD-FDW-ELP22 | 8.55E+11 | 20 | 26.8″ x 10.4″ x 7.9″ | 25.1 lb | 1.09E+13 |
| ASD-CHS4 | 8.6E+11 | 50 | 10.4″ x 10.4″ x 7.7″ | 23.7 lb | 1.09E+13 |
PRODUCT SPECIFICATIONS
| Construction & Materials | |
| Housing | Aluminum |
| Lens | Translucent white |
| Finish | White |
| Weight | 8 lbs (3.6 kg) |
| Environmental System | |
| Work Environment | Suitable for Damp Locations, IP40 |
| Operating Temperature | -14℉ to 104℉ (-10℃ to +40℃) |
| L70 Life | R > 54,000 hrs; C > 122,000 hrs |
| Optical System | |
| Luminous Flux | 3,607 lm |
| Color Temperature | 4,000 K |
| CRI | > 80 |
| Electrical System | |
| Input Voltage | 120-277 V |
| Power Consumption | 27 W |
| Power Factor | ≥ 0.9 |
| Output voltage | 30-40 V |
| Max output current | 380 mA |
| Control | |
| Linking Lengths/Qty | 15 cable feet x 20 panels |
| Dimming compatible controls | |||
| Brand | Leviton | Lutron | Cooper |
| Models | IPL710 DLZ | NFTV | SF10P-W |
| IPL710 DL | |||
Regular and Voluntary Certifications
5-year limited warranty
DesignLights Consortium (DLC) listed (Classification: Premium series)
Main: Indoor Luminaires; General Application: Troffer
Primary Use: 2×2 Luminaires for Ambient Lighting of Interior Commercial Spaces
cULus certified E473854
PACKAGE CONTENTS
| Description | Q-ty |
| LED Edge-Lit Flat Panel | 2 |
| Box | 1 |
| Cut sheet | 2 |
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION
Please read all the instructions below before installation.
- Make sure that the supply voltage corresponds to the rated product voltage.
- The product is designed for indoor use only.
WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from the carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure the correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
For recessed installation: Access above ceiling required. Inherently protected.
Vapor barrier must be suitable for 194°F.

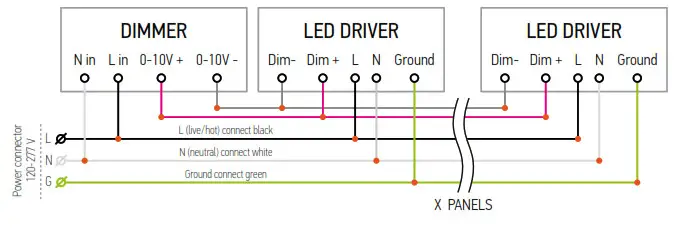

ELECTRICAL SCHEMATIC DIAGRAM
INSTALLATION STEPS RECESSED MOUNT
- Choose the ceiling panel where you want to install the product, and remove it. For convenience, move adjacent ceiling tiles. Fix the LED Panel into the ceiling: raise up the product above the bar, then place it on T-bars. Two bend points for all four tabs.
- Secure the panel with the grid as shown in the picture. Ensure the tab is securely attached to the grid. Connect the wires into the junction box of the panel matching colors N, L, and G using nuts.
- Return the adjacent ceiling tiles to their places. Turn on the main power. Installation is finished.

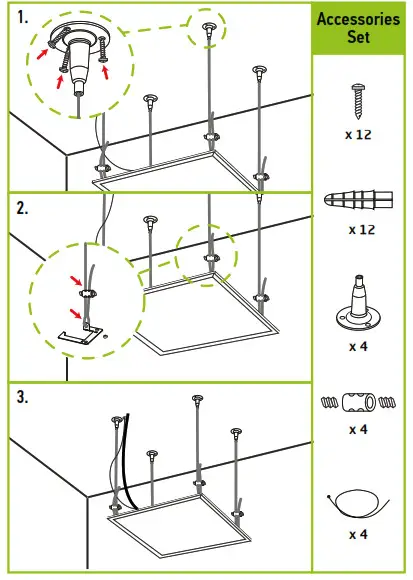

SUSPENDED MOUNT
ASD-CHS4 sold separately:
- Make sure that the ceiling can hold the weight of the LED panel and install ceiling brackets suitable to support the weight of the LED panel. Affix cables.
- Attach the suspended cables to the bends at the edges of the LED flat panel.
- Connect the wires into the junction box of the panel matching colors N, L, and G using nuts. Turn on the main power. Installation is finished.

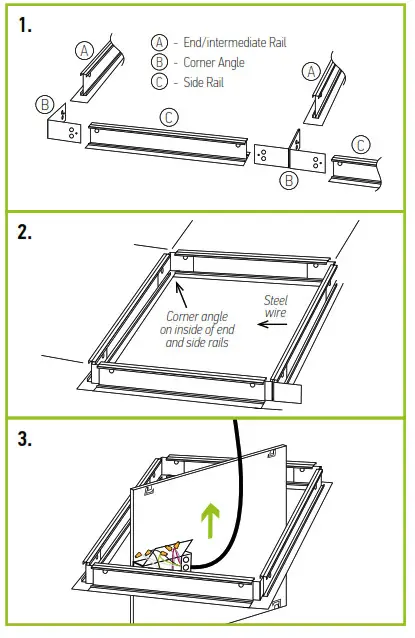

RECESSED SHEETROCK MOUNT
ASD-FDW-ELP22 sold separately:
- Following the picture above, slide part B into the inboard side of parts C and A as shown.
- Place the assembled frame into a ceiling opening and add steel wires for support as pictured below. Note: For best results, attach supporting steel wires going into the ceiling to the sides of the frame after assembly. End rail can be used as an intermediate rail for the tandem row.
- After wiring the fixture, carefully slide it through the ceiling opening, rotate, and drop the fixture into place.
For most up-to-date spec sheets please refer to asd-lighting.com
