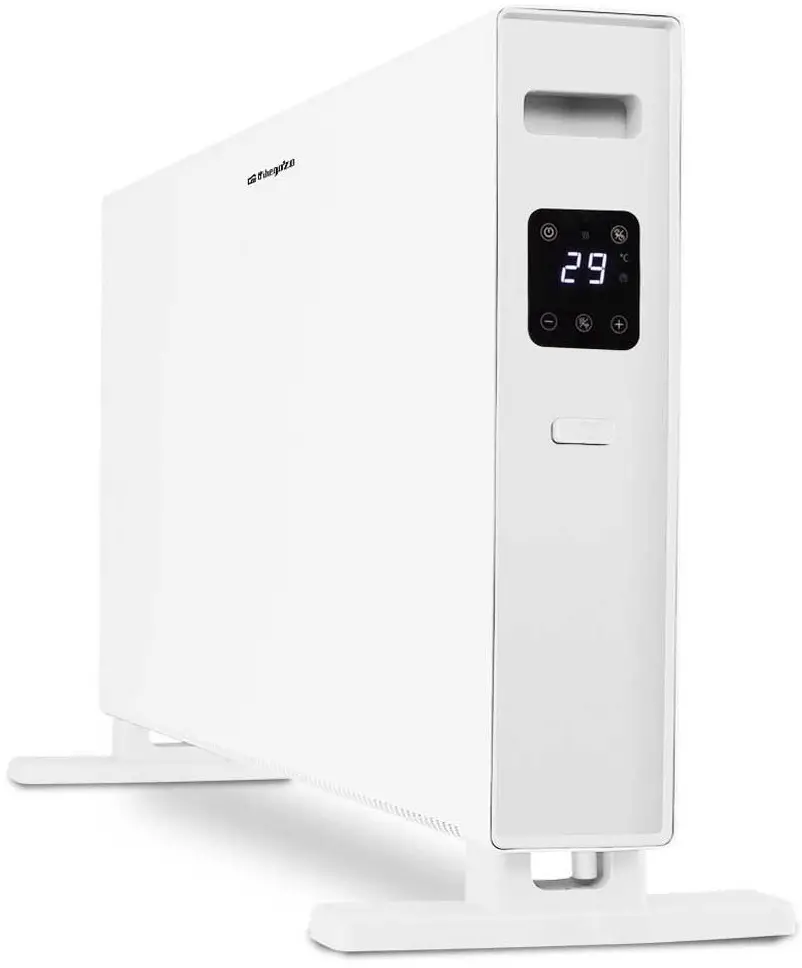

Orbegozo Rew 2050 Radiant Panel Instruction Manual

Orbegozo REW 2050 Radiant Panel Instruction Manual

Dear customer:

We congratulate you for having chosen our product.
Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.
Read the Safety information carefully before carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children’s safety please keep allpackaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10.  This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
13. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INTRUCTIONS:

•  The meaning of figure in marking is “DO NOT COVER” WARNING: In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The device should not be placed immediately below a socket base.
• Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.
• Do not use this heater in the immediate vicinity of a bath, shower or pool.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Do not use the heater in rooms with explosive gas (e. g. petrol) or while using inflammable glue or solvent (e. g. when gluing or varnishing parquet floors, PVC etc.) Do not allow aerosols, inflammable substances or materials sensitive to heat to be in the flow of hot air.
• Do not use the heater in areas or rooms which are a risk of fire, such as garages, stables, wooden shed etc.
• The unit must be mounted such that the control elements cannot be touched by persons who are in bath, shower, or any other water-filled receptacle.
• Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.

WIFI CONTROL:
The REW series of Orbegozo can be controlled via Wi-Fi through our ORBEGOZO APP, available for download on Google Play and the App Store. You can control your device remotely very easily and intuitively. For more information, refer to the application manual, also included with the device.

To review all the features of this and any other Orbegozo device, as well as to access an explanatory video about the configuration of the radiator with our APP, go to www.orbegozo.com and search for your model or scan the following QR code:

TEHNICAL DATA AND DIMENSIONS

INSTALLING INSTRUCTION

1. The panel must be standing in a horizontal position, Do not place the heater on instable surfaces, such as bed, carpets etc. and do not use the heater on uneven position, where the heater can tip-over-otherwise there is a risk of fire.
2.  A safe area to be left free is 500mm at the top and 150mm at the sides, and at the front, and at the back.

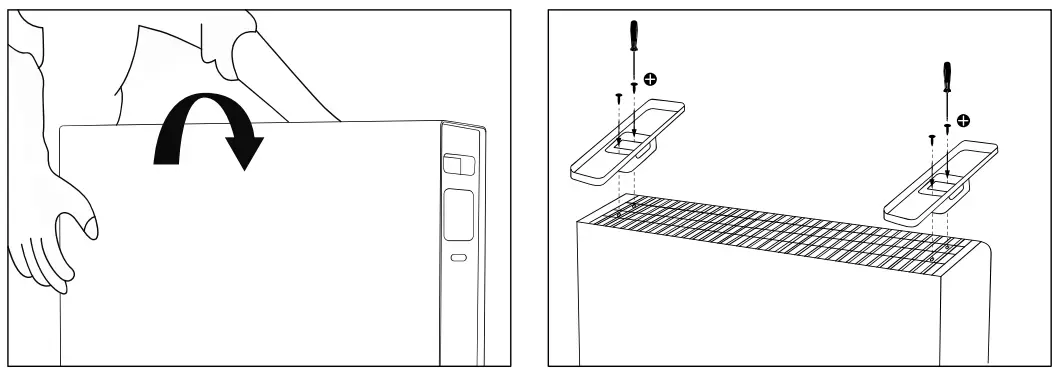

Ground Installation:

1. Gently turn the appliance over on a soft flat surface, like a rug.
2. Screw both legs to the bottom of the fixture, make sure to use the provided screws from the box.


ATTENTION:
When installing the heater on its support feet, place it on a surface that supports high temperatures.

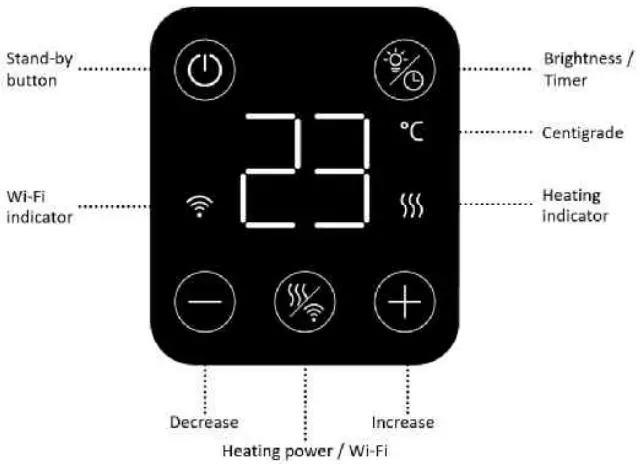

PARTS DESCRIPTION

OPERATE INSTRUCTIONS

This radiator is not only App controlled, but also manual controlled and remote controlled.
Remote control operate is similar to Manual control operate being an exception the safety child block system.

1. Plug on the heater, turn on the switch, the device will beep and the stand-by indicator will bright.
2. Press the device will start working with the factory setting temperature 19 °C, the heating indicator will bright (if the room temperature is lower than setting temperature).
3. Press or to adjust target temperature from 10°C to 35°C
4. Press to set power, the display show “H2”, the product would work in normal mode, press again and it will display “AF” in this mode the device will turn on when it detects temperatures below 7°C.
5. WIFI connection: Press for more than 3 seconds, the indicator will twinkle, use your mobile phone to set the APP.
6. Brightness of screen
   Press one time, the brightness will be reduced to 50%, press the brightness once again, the brightness will be reduced to 25%, and press again, full screen will be off. Press once again, the brightness of screen will be back to 100%.
7. Timer
   Press for more than 3 seconds, the display will show OH, Press or to set the timer off 1 -24 hours, the display will show the remaining working time, once is over the device will switch off by itself.

Cleaning your oil radiator

1. Always disconnect the heater from the mains supply before cleaning.
2. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
3. DO NOT use waxes or polishes as these may react with the heater and cause discolouration.

Storing your oil radiator

1. Save the box for off season storage.
2. Clean the heater following the cleaning instructions above.
3. Remove the stand base assemblies.
4. Place the radiator, and stand assemblies in the original box, and store in a cool and dry place.
5. If you choose to store your heater fully assembled, be sure to cover it to protect it from dust.

 Disposal of old electrical appliances.
The European directive 2012/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:
Hereby, Sonifer S.A. declares that the radiator equipment type REW 2050 is compliance with Directive 2014/53/EU.
