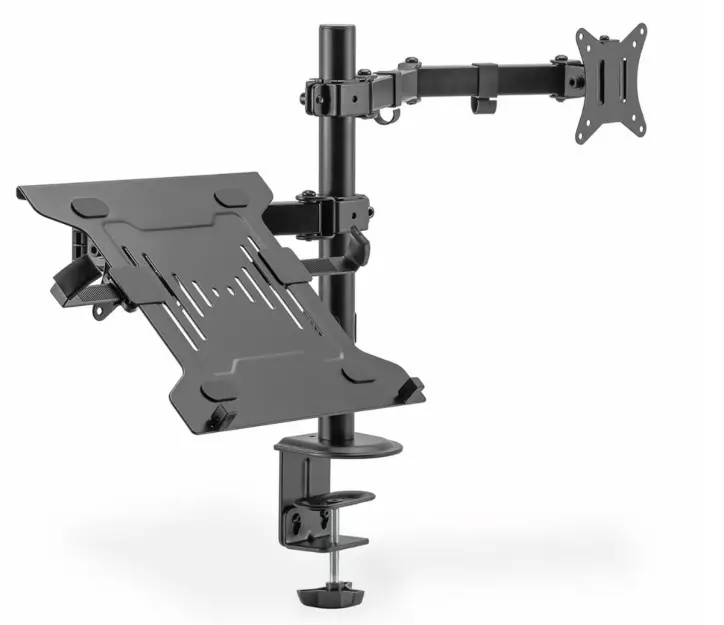

Universal monitor mount with notebook holder
Quick Installation Guide
DA-90436
Introduction
The desktop mount allows you to arrange one monitor up to 32″ / 9 kg as well as one notebook up to 15.6″ / 4 kg in an individual, space-saving and ergonomic manner. The VESA bracket supports 75 x 75, 100 x 100 mounts. The bracket offers two mounting options: both table clamp and passthrough rod. Thanks to the quick-release function, the VESA plate can be fixed/released by means of a screw during mounting and dismounting the integrated cable management ensures a tidy workplace.
Technical Features
| Description | Universal monitor mount with notebook holder |
| Suitable for | (Curved) monitors up to 32” / 9 kg max., notebooks up to 15.6″ / 4 kg max. |
| VESA compatibility | 75 x 75, 100 x 100, VESA plate can be fixed/released by means of a screw during mounting and dismounting |
| Mounting options | 2, both table clamp and passthrough rod are included in the scope of delivery |
| Material | Steel, plastic |
| Number of monitors | 1 |
| Number of notebooks | 1 |
| Monitor mount | Tilt: -45°/+45°, Swivel: -90°/+90°, Front panel rotation range: -180°/+180° |
| Surface | Powder coating |
| Color | Black, matte |
| Weight | 4,75 kg |
Package content
- 1 x Universal Monitor Stand
- 1 x Assembly instructions
- 1 x Mounting material:
| 2 x A |  |
| 2 x B |  |
| 1 x C |  |
| 1 x D |  |
| 1 x E |  |
| 1 x F |  |
| 1 x G |  |
| 2 x H |  |
| 2 x I |  |
| 1 x J |  |
| 4 x K |  |
| 1 x L |  |
| 1 x M |  |
| 4 x N |  |
| 4 x O |  |
| 1 x P |  |
| 1 x Q |  |
| 4 x M-A (M4 x 12) |  |
| 4 x M-B (M5 x 12) |  |
| 4 x M-C (D5) |  |

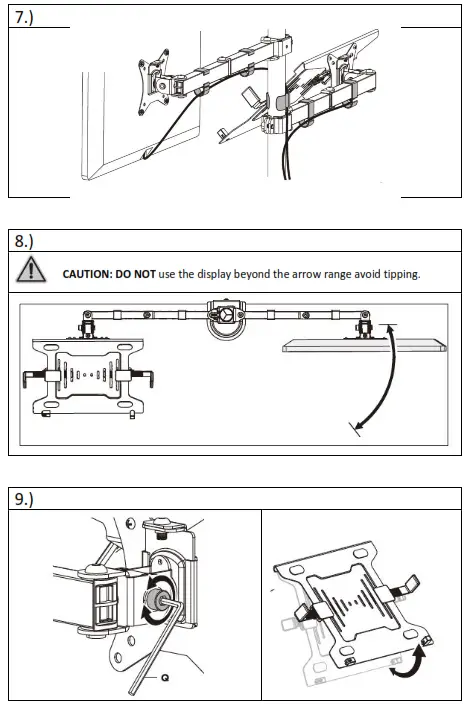

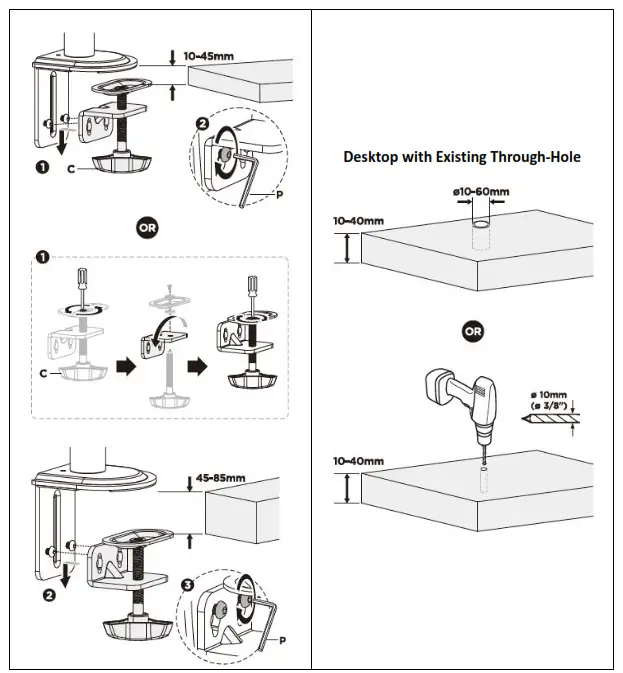

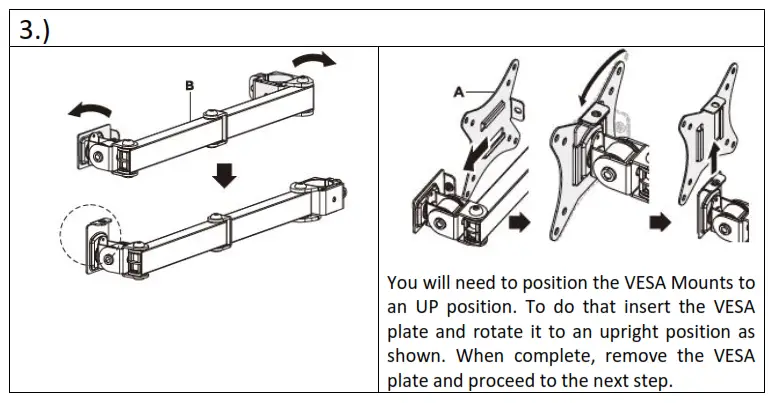

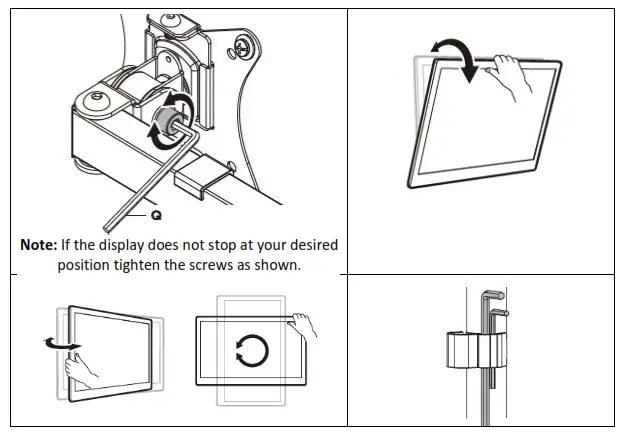

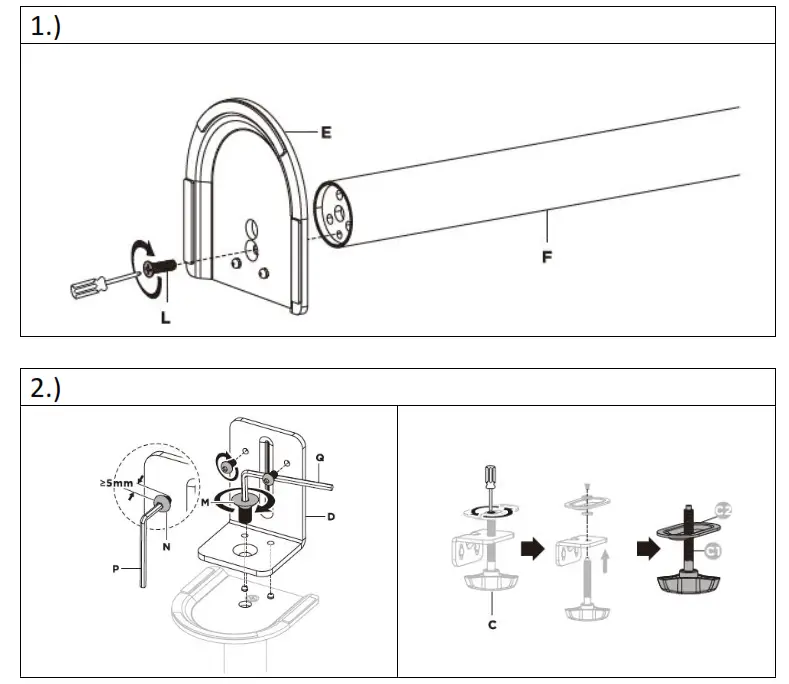

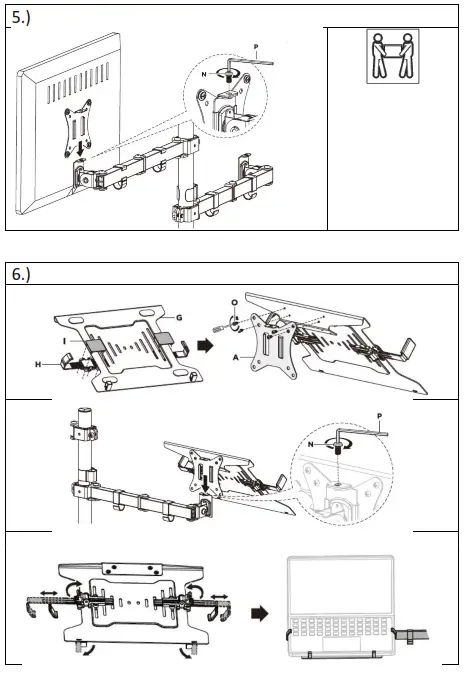

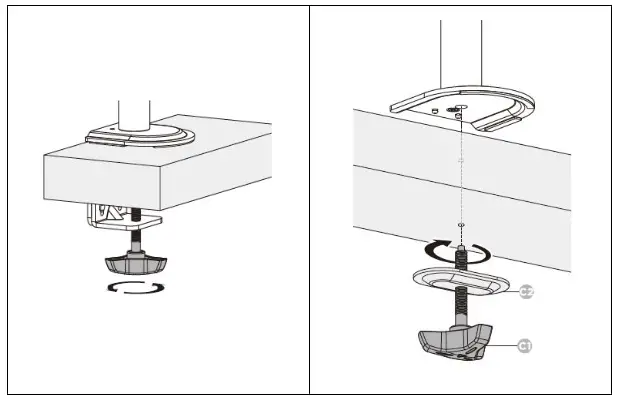

Mounting Instruction
 |  |
 |  |
 |  |
 |  |
