Variable Notebook Stand with Integrated
USB-C™ Docking Station, 8 Port
Quick Installation Guide
DA- 904008
Product Specification
| Notebook size | 10″ – 15″ |
| Loading capacity | 5 kg |
| Tilt Range | 15° – 30° |
| LAN | Supports 10/100/1000 Gigabit Ethernet |
| Card Reader | Supports TF/SD card reading, maximum 90 Mb/s |
| HDMI® Port | Supports 4K/30Hz UHD |
| VGA Port | Supports 1080p Full HD |
| External Display | Supports HDMI° / VGA |
| Charging | Supports USB-CTM Power Delivery, maximum input power 85 W |
Main Features & Specs

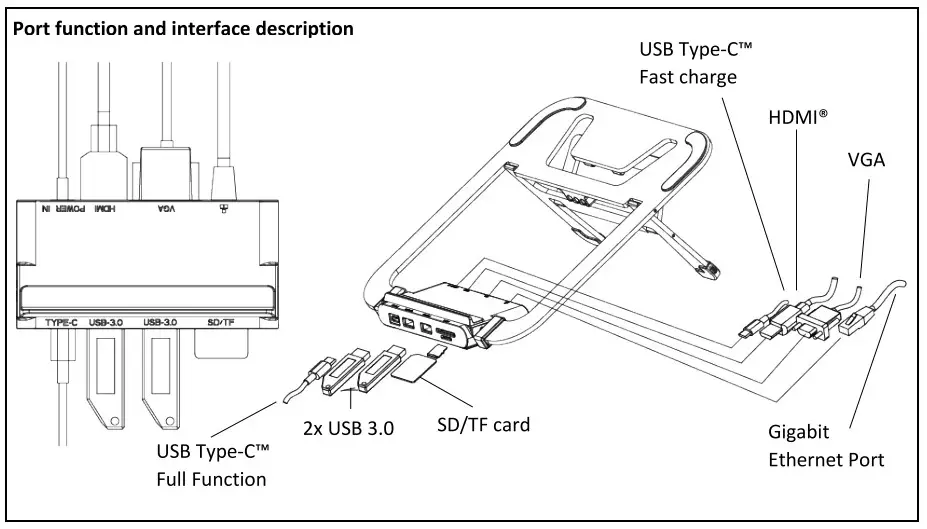

- Extends your notebook by 8 additional interfaces for video, data, power & Ethernet

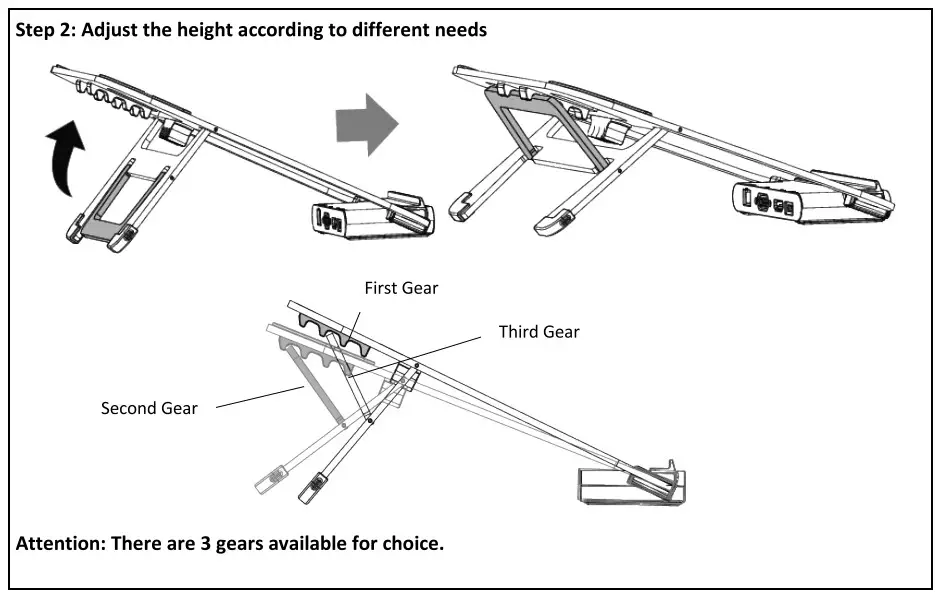

- Can be individually adjusted to your height, can be set to 4 different angles of inclination (150-301
- Compact and foldable design — Ideal for travel, home & office
- 2 x Video connections: 1 x UHD 4K HDMI® connection / 1 x Full HD VGA connection
- Simultaneous use of HDMI + VGA = Clone desktop
- Individual use of HDMI or VGA = Extend / Clone desktop
- 2 x USB-CTM connections: 1 x Host for connection with notebook / 1 x PD 3.0 (Power Delivery) USB-CTM connection to quickly charge your notebook
- 1 x RJ45 Gigabit Ethernet interface – Connects your notebook to the Internet / LAN
- 2 x USB 3.0 connections (SuperSpeed, 5 Gbps) — Data transmission / Charging of mobile devices (5 V / 0.9 A)
- Slim frame design for optimal notebook cooling

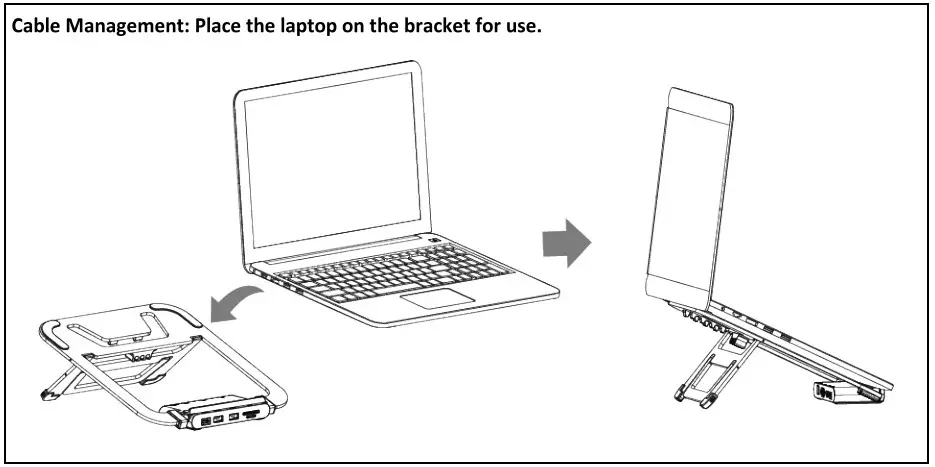

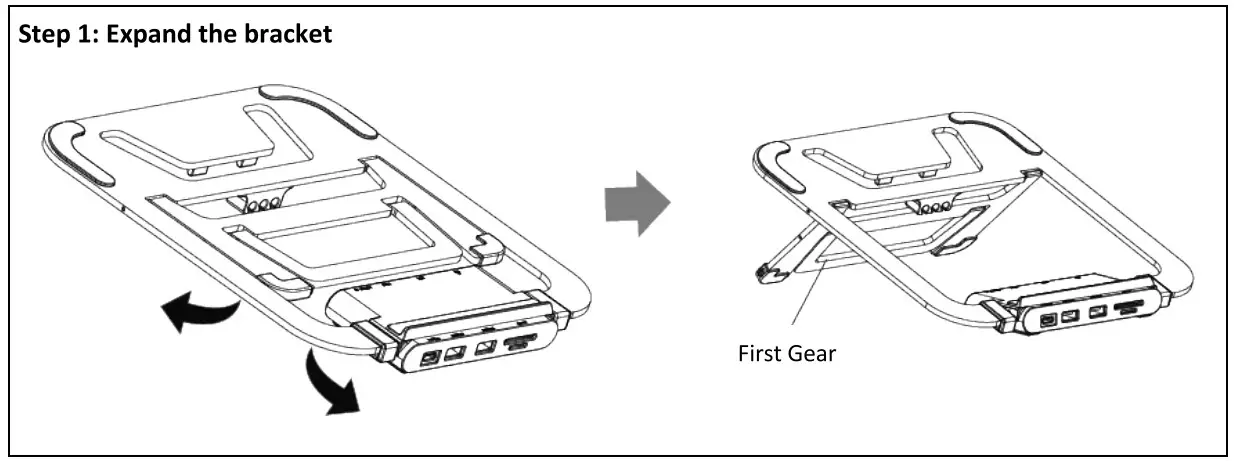

Mounting Instructions
Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
