DIGITUS DA-90429 Variable Notebook or Tablet Stand with 6 Port USB C Docking Station
Introduction

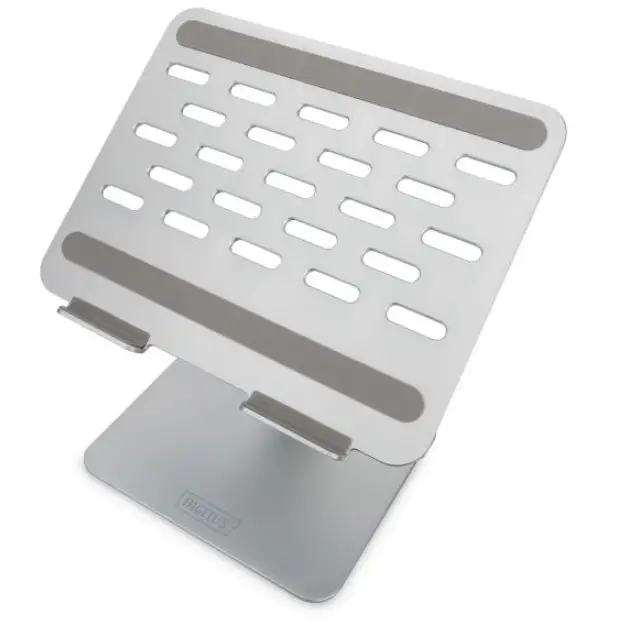

The variable Notebook/Tablet Stand with 6-port USB-C™ Docking Station from DIGITUS® combines ergonomic design and connectivity. The stand enables individual height and angle adjustment, perfectly adapted to the needs of the user. The docking station offers six ports to expand the connections (1x HDMI 2.0, 3x USB-A 3.0, 1x RJ45, 1x USB-C™ PD) of your notebook/tablet. Manufactured of high-quality aluminum, the stand features elegant and modern design along with high load-bearing capacity of up to 7.5 kg, and its own weight ensures additional stability. The design of the carrier plate was conceived to ensure additional heat dissipation for notebooks.
Features
- Carrier plate with heat dissipation: W 28 x D 23 cm, load-bearing capacity: 7.5 kg
- Individual height adjustment: 5.6 – 16.5 cm, 2x hinges each can be inclined by 180° for individual angle adjustment
- 1x HDMI (4K/60Hz) – connection of external monitor
- 3x USB-A 3.0/5 Gbps data transfer – connection of peripheral equipment
- 1x RJ-45 – Gigabit Ethernet (10/100/1000) for connection to network/internet
- 1x USB-C™ (PD 3.0) – 100W max. power supply
- High-quality aluminum design
- Rubber pads on the carrier plate protect your devices – on the stand they ensure the required stability
- Compatible with: Windows, MacOS, iPadOS, Android, Chrome OS
- USB-C™ 3.1 Gen. 1 – host connection
Package content
- 1x Variable Notebook/Tablet Stand with 6- port USB-C™ Docking Station
- 1 x USB-C™ connecting cable, 60 cm
- 1x QIG
Specifications
| Folded Size | 257.3X 280x 56.3mm |
| Weight | Approximately 1150g |
| Loading Capacity | 7.5KG |
| Hub Chipset | IT6565/RTL8153/VL817S/ VL103R/VL171 |
| Cable Length | 60cm |
| slope of top pivot | 180° |
| lope of bottom pivot | 70° |
| Operating voltage/ current consumption | 5-20 V, max 5A |
| Compatibility | Compatible with all USB C computers, USB-C smartphone and tablet with OTG support |
| System requirements | Windows 11 / 10 / 8 / 7, Mac OS 10.6 and above, iPad OS 15.3.1 and above, Chrome OS 46.0.2490.82 and above, Android 7.0 and above |
| USB specification | USB C 3.1 Gen1 |
| Operating Temperature | O °C to 40 °C (35°F to 100°F) |
| Operating Humidity | 20% to 80 % RH |
How to Connect
- Switch on your computer and boot the system
- Connect the product to a free USB port on your computer
- You do not have to install drivers, the computer will automatically recognize the product
- If necessary, follow the instructions for your operating system
- In order to use your devices, plug them into the product one after the other

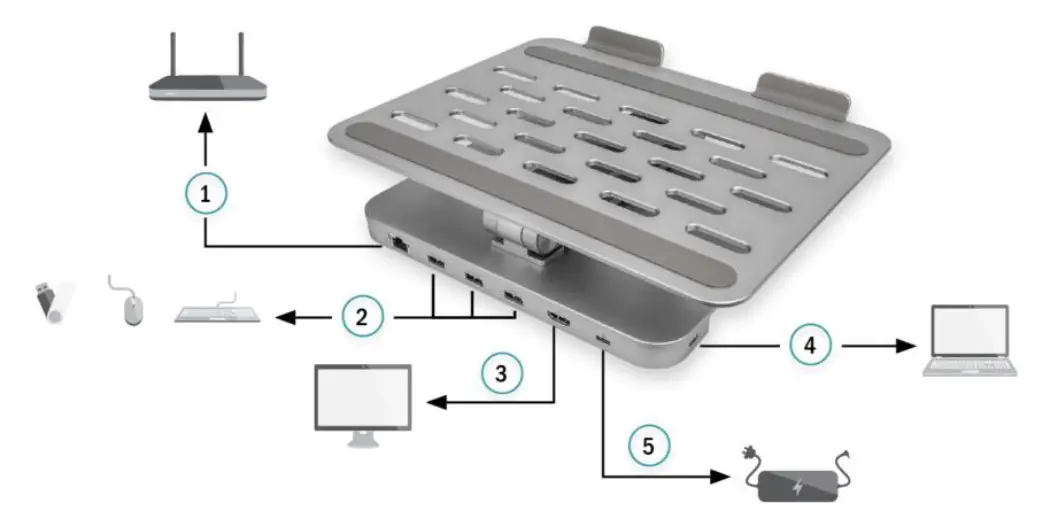

Connection Diagram
| 1 | RJ45 | Support for Modem/Router |
| 2 | 3x USB 3.0 | For connecting the mouse, keyboard, u disk and other USB devices Support USB 3.0 5Gbps, |
| 3 | HDMI | Connect to the HDMI monitor |
| 4 | USB-C (Host) | Connect to the Notebook |
| 5 | USB Type-C™ | Connect to the Charging Adapter |
Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
