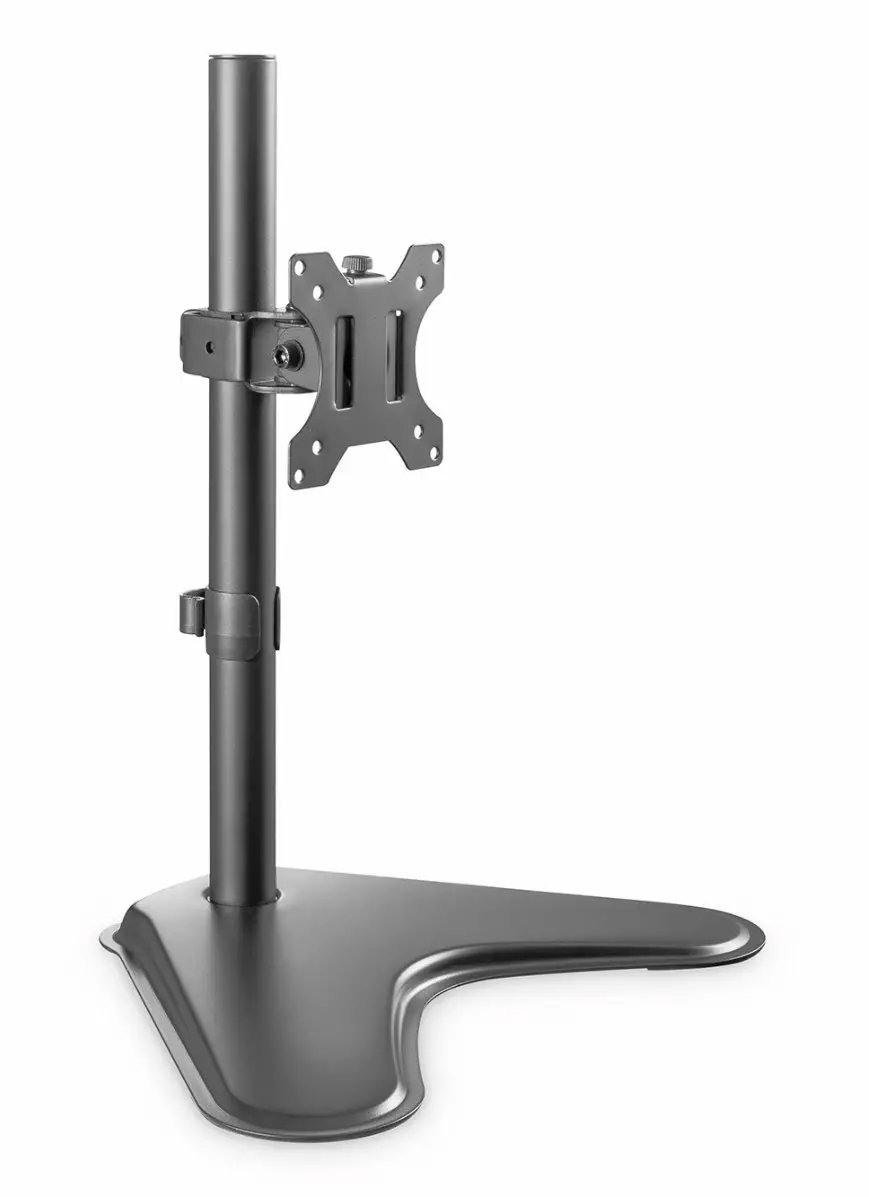

Universal Monitor Mount
Quick Installation Guide
DA-90437
Introduction
Universal Monitor Mount for flexible placement of your monitor (32″ / 8 kg max.) at the workplace with easy horizontal and vertical tilt and swivel as well as height adjustment.
Technical Features
| Description | Universal Monitor Mount |
| Suitable for | (Curved) monitors up to 32″ / 8 kg max. |
| VESA compatibility | 75 x 75, 100 x 100, can be fixed/released by means of a screw during mounting and dismounting |
| Mounting options | Stand |
| Housing | Steel, plastic |
| Number of monitors | 1 |

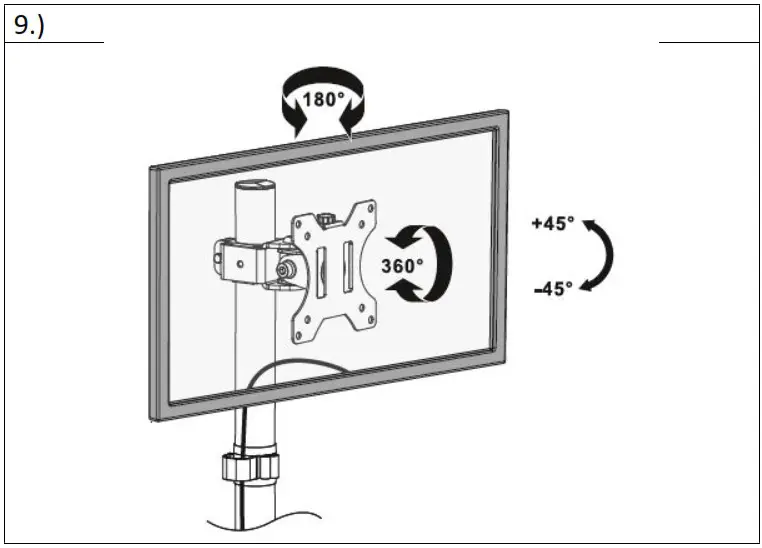

| Monitor mount | Tilt: -45°/+45°, Swivel: -90°/+90°, Front panel rotation range: -180°/+180° |
| Surface | Powder coating |
| Color | Black, matte |
Package content
- 1 x Universal Monitor Stand
- 1 x Assembly instructions
- 1 x Mounting material:
| 2 x A |  |
| 2 x B |  |
| 1 x C |  |
| 1 x D |  |
| 1 x E |  |
| 1 x F |  |
| 1 x G |  |
| 3 x H |  |
| 1 x I, 4 mm |  |
| 1 x J, 6 mm |  |
| M4 x 12 (x 4), M-A |  |
| M4 x 16 (x 4), M-B |  |
| M5 x 12 (x 4), M-C |  |
| M5 x 16 (x 4), M-D | |
| D5 (x 4), M-E |  |
| M-F (x 4) |  |

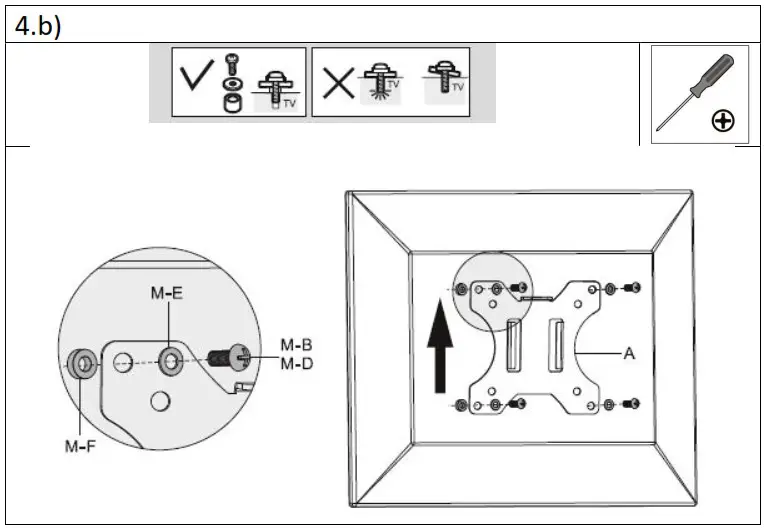

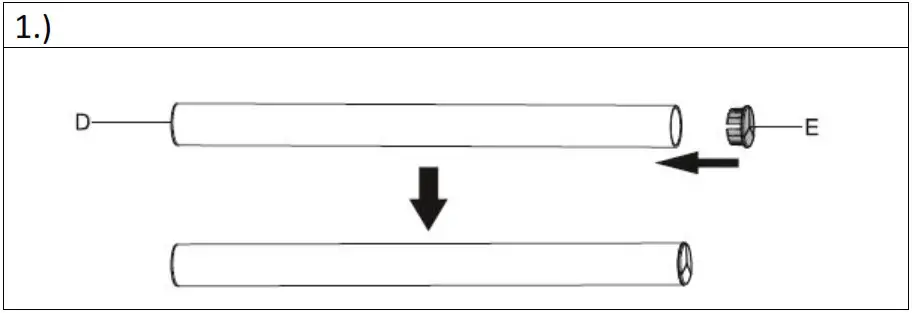

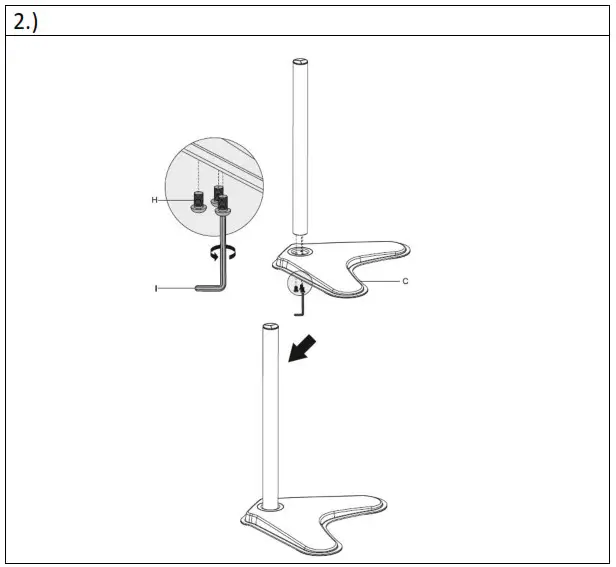

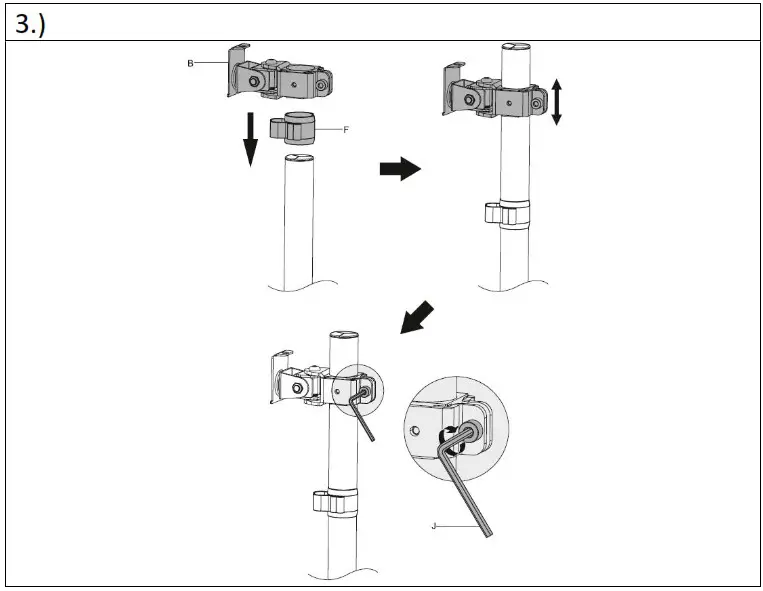

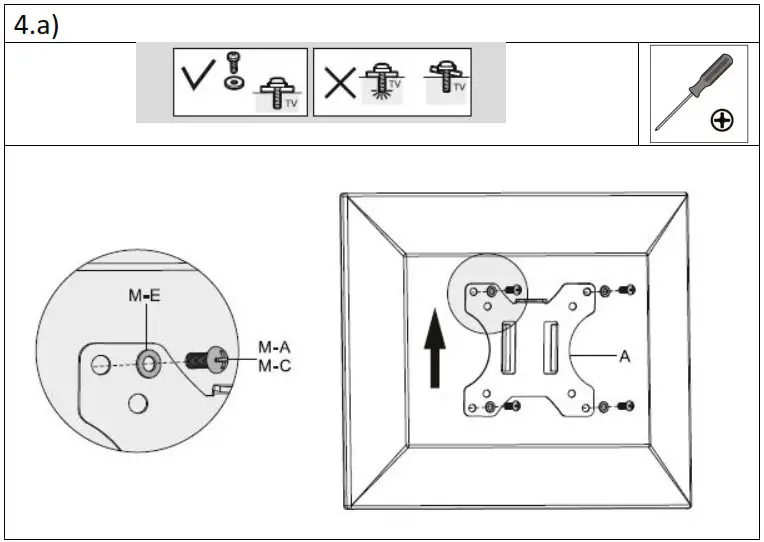

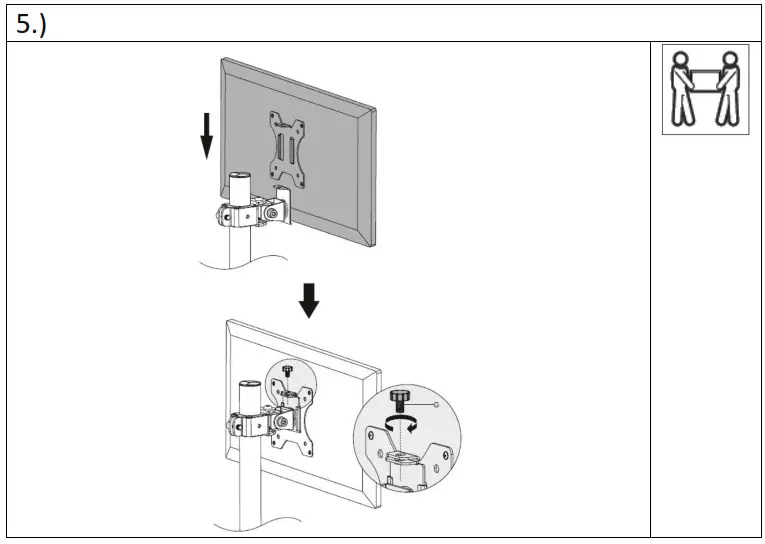

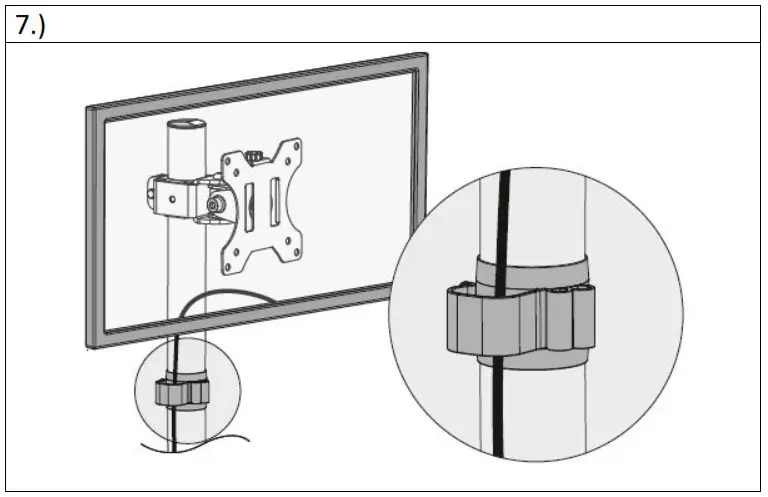

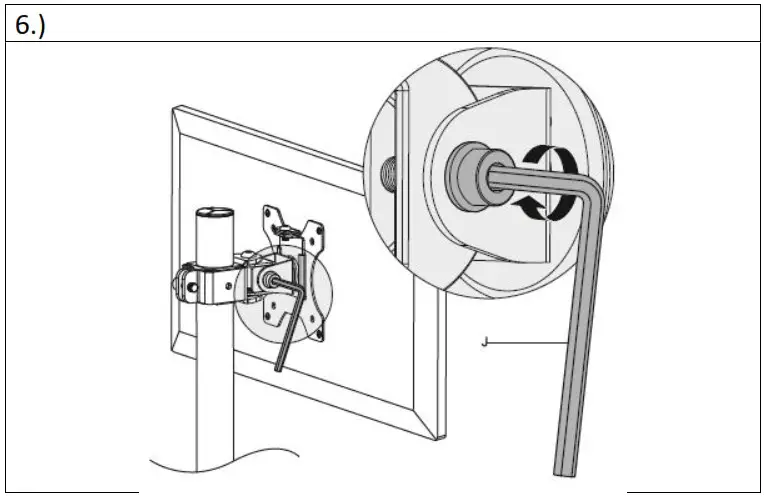

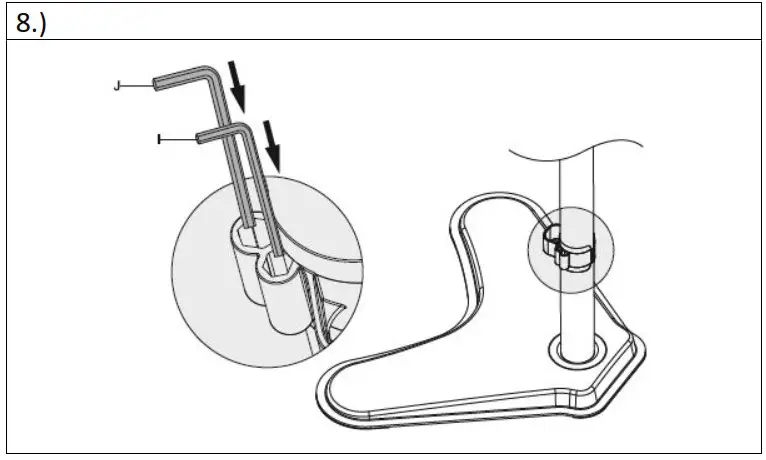

Mounting Instruction
