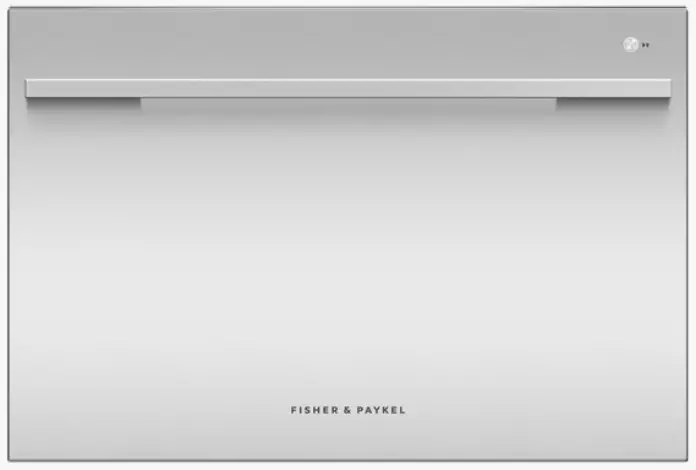

QUICK REFERENCE GUIDE > DD60SDFX9
Single DishDrawerTM Dishwasher, Sanitise
Series 9 / Contemporary / Stainless Steel
Designed to fit even full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, for loading dishes with less bending.
- Six wash programs, as well as additional Quick wash, Sanitise, and Extra Dry options
- Flexible racking allows you to customize internal shelves to suit your needs

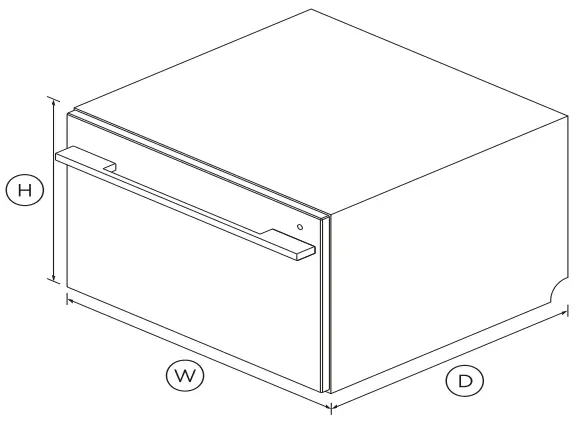

DIMENSIONS
| Height | 410mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
Ease of use
DishDrawerTM Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Seamless integration
DishDrawerTM Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling, and quality materials.
Quick, Sanitise, and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawerTM Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
Accessories
| Cutlery basket | • |
| Knife clip and multipurpose | • |
Capacity and loading
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
Consumption
| Energy rating | 3.5 star |
| Water rating | 4.5 star (WELS) |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delays start | • |
| Internal wash selector | • |
| Rinse aid indicator light | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on standard cycle top | 43dBA |
Power requirements
| Amperage | 4.2A |
Product dimensions
| Depth | 573mm |
| Height | 410mm |
| Width | 599mm |
Warranty
| Parts and labor | 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
Wash Programs
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 82325 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
