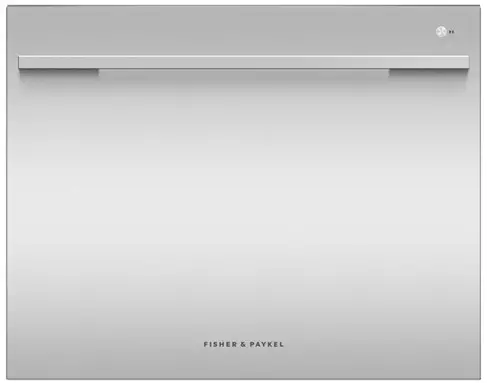

DD60SDFHTX9 Single DishDrawer Dishwasher
User Guide
Series 9 | Contemporary
Stainless Steel
DD60SDFHTX9 Single DishDrawer Dishwasher
This DishDrawer™ has extra height for large dishes and is designed to be placed anywhere in your kitchen, for loading dishes with less bending.
- With extra height for taller dishes, and customizable internal shelving
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
DIMENSIONS
| Height | 478mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
EASE OF USE
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
QUIET PERFORMER
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
DESIGNED TO MATCH
DishDrawer™ Dishwashers are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials for a stylish finish in your kitchen.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 310mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 6 |
| Consumption | |
| Energy rating | F |
| Water usage (per wash cycle) | 7.9L |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Rinse aid indicator light | • |
| Features | |
| Built-in water softener | • |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 45dBA |
| Power requirements | |
| Amperage | 4.2A |
| Product dimensions | |
| Depth | 573mm |
| Height | 478mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 5 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 82355 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
