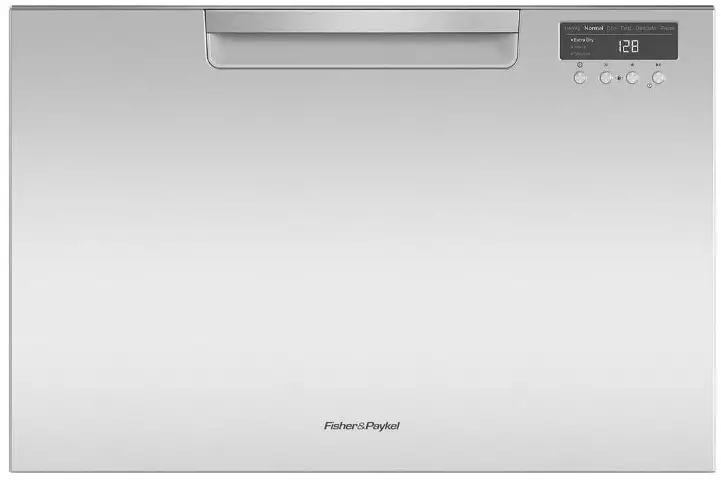

QUICK REFERENCE GUIDE > DD60SCX9
Single DishDrawer™
Dishwasher, Sanitise
Series 7 | Contemporary
Stainless Steel
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, for loading dishes with less bending.
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Flexible racking allows you to customize internal shelves to suit your needs

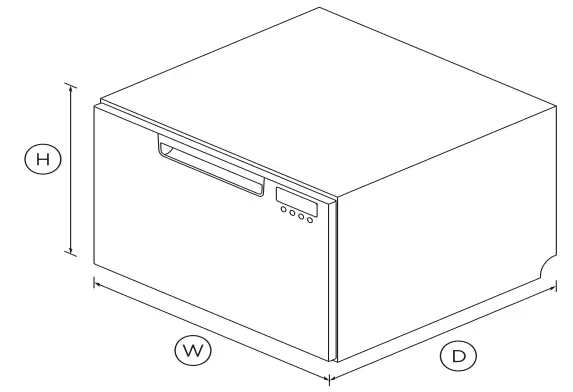

DIMENSIONS
| Height | 410mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
Easy to use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitise, and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Seamless integration
DishDrawer™ Dishwashers integrate beautifully into any kitchen space. They’re designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling, and quality materials.
SPECIFICATIONS
Accessories
| Cutlery basket | • |
| Knife clip and multipurpose | • |
Capacity and loading
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
Consumption
| Energy rating | 3.5 star |
| Water rating | 4.5 star (WELS) |
| Water usage (per wash cycle) | 6.9L |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on standard cycle top | 43dBA |
Power requirements
| Amperage | 4.2A |
Product dimensions
| Depth | 573mm |
| Height | 410mm |
| Width | 599mm |
Warranty
| Parts and labour | 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
Wash Programs
| Delicate | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Rinse | • |
Water connection
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 82316 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
