Innovative 9110-hd Heavy Duty Monitor/tv Wall Mount Installation Guide

Innovative 9110-HD Heavy Duty Monitor/TV Wall Mount Installation Guide

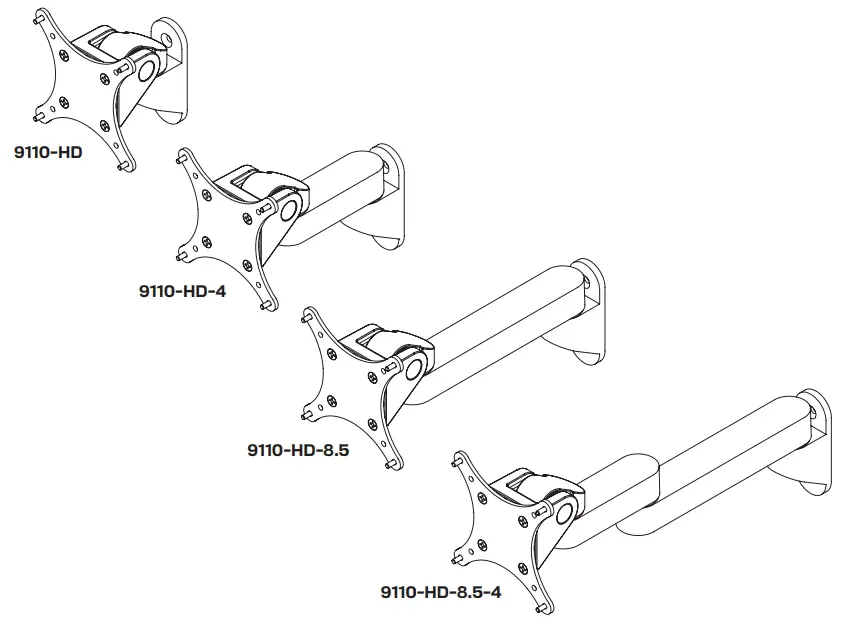

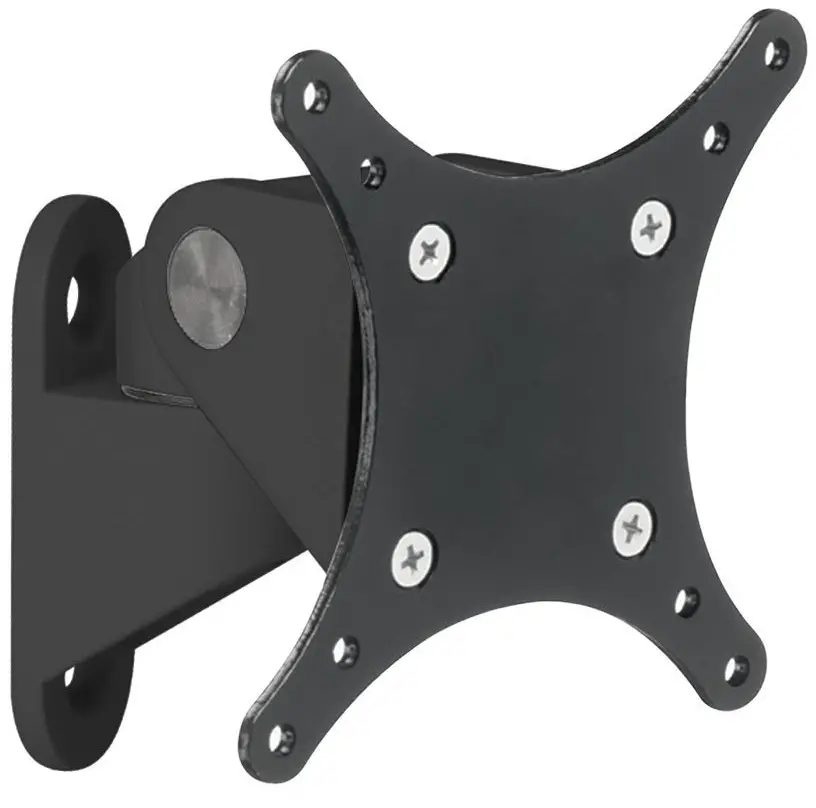

Product Overview

NOTE: THERE MAY BE ADDITIONAL PARTS UNDER TRAY.
PLEASE REVIEW ENTIRE PACKAGE PRIOR TO DISCARDING

Parts List

• A. Wall Mount RP406795

• B. 10-32 x 3/8″ PhPHS (4-pack) 702281

• C. 75/100mm VESA Adapter 105587

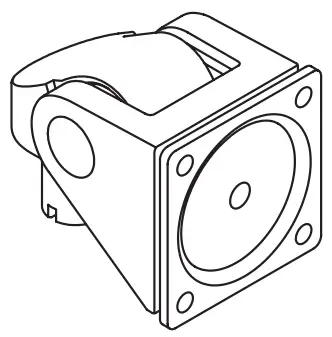

• D. Spring-Assisted Monitor Tilter 407747

• E. M4 x 12mm Phillips Pan Head Screw (4-pack) 702096

• F. Dog Washer 105189

• G. 10-32 x 3/8″ FPhMS w/Lock Patch 705198

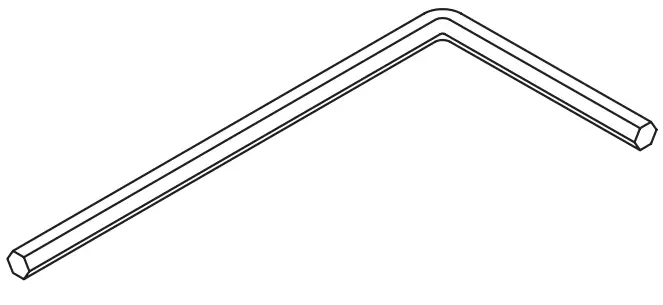

• H. 7/32″ Allen Wrench 701127

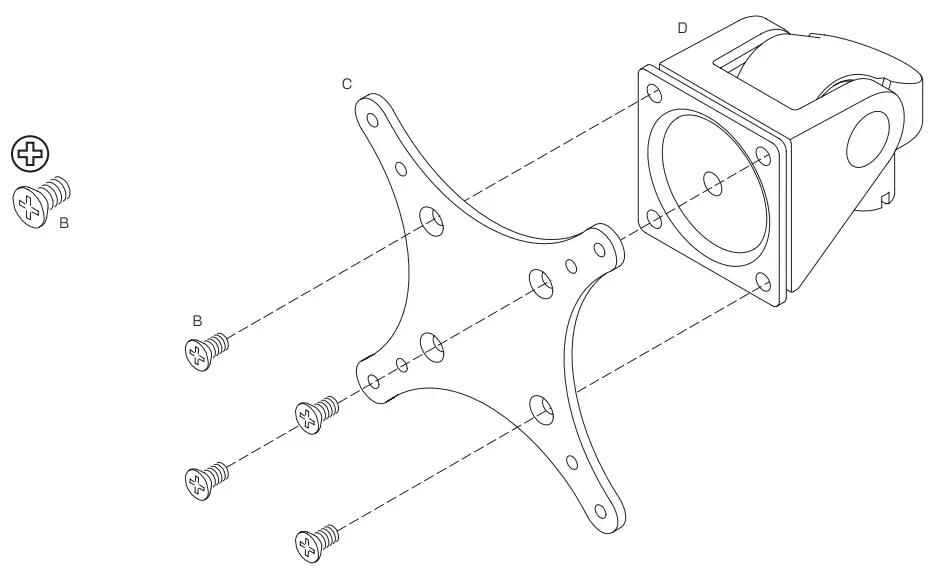

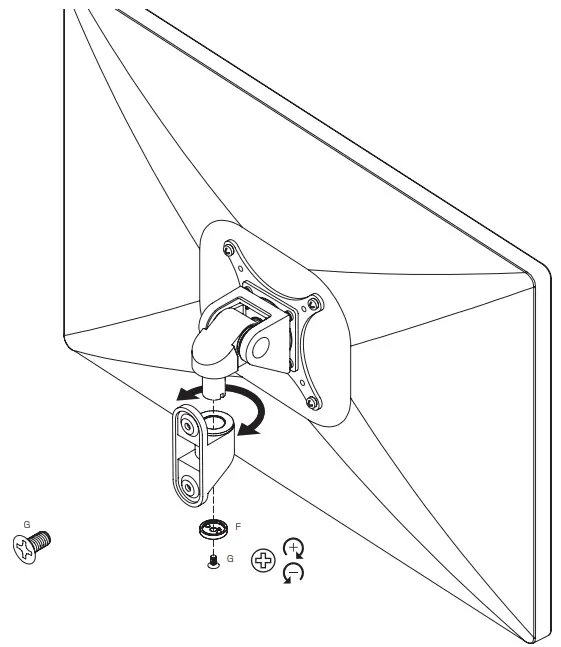

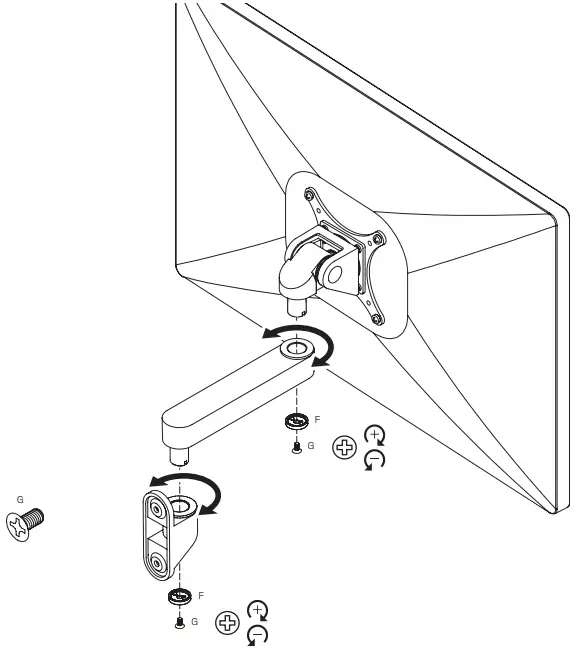

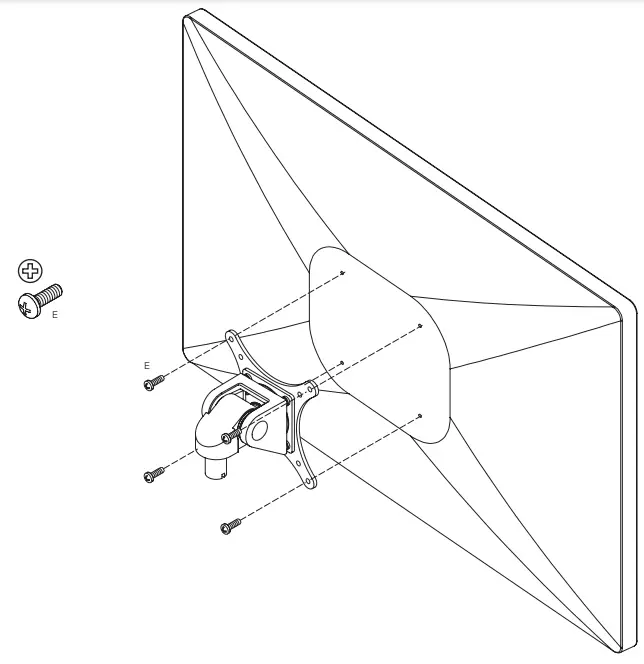

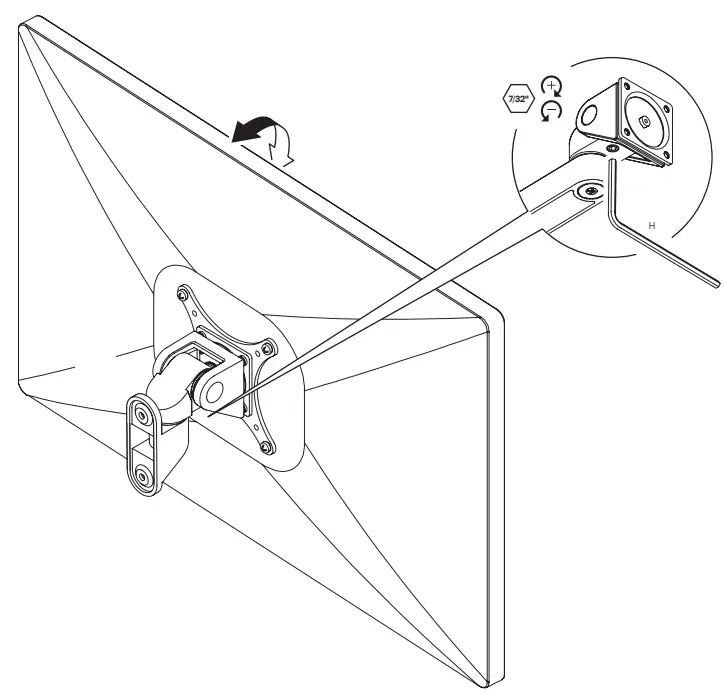

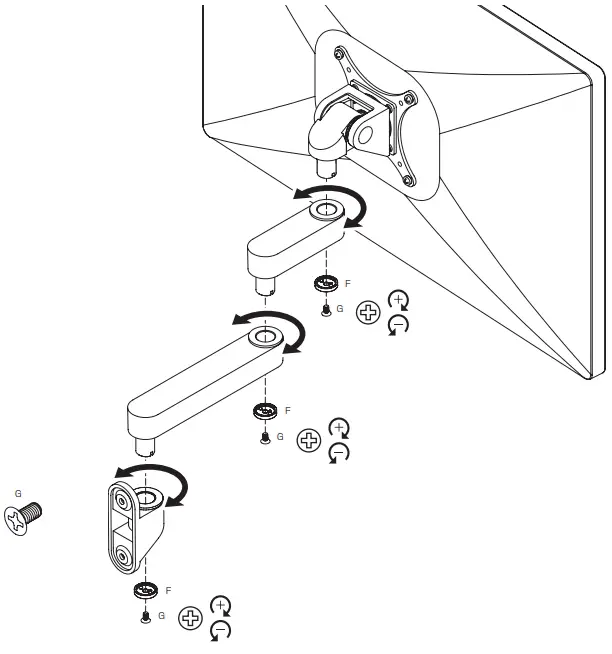

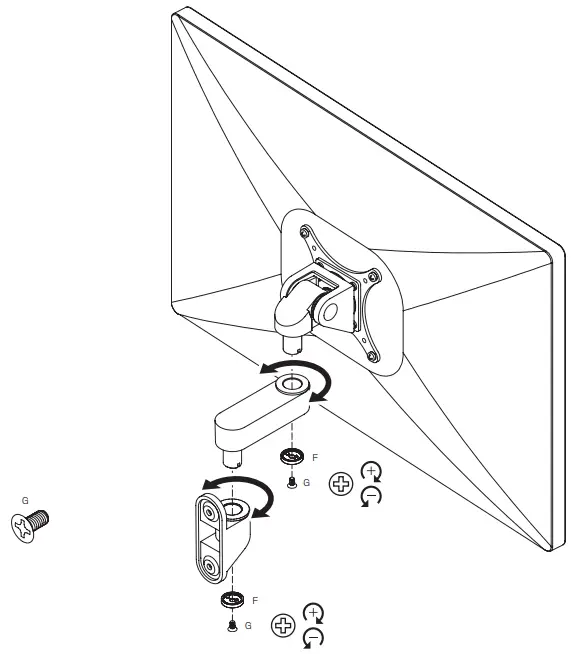

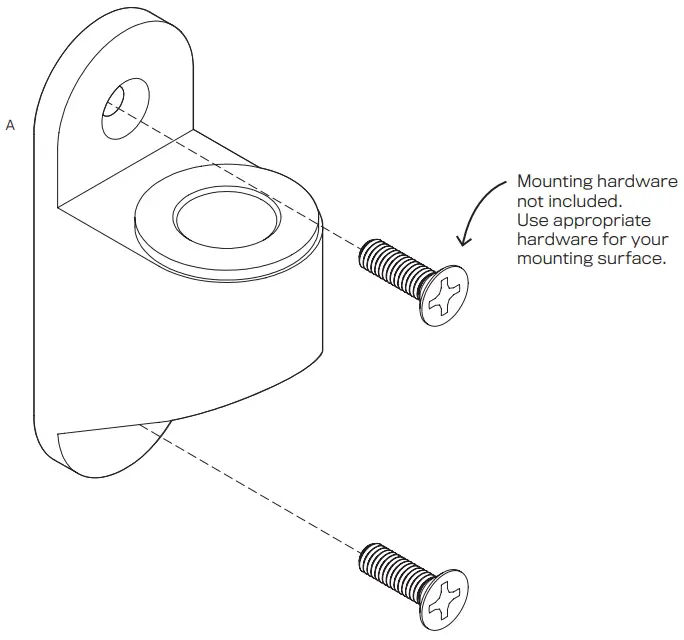

Installation Instruction

9110-HD

9110-HD-4

9110-HD-8.5

9110-HD-8.5-4


9110-HD-8.5 & 9110-HD-8.5-4
