SMART MOBILITY
The home of charging

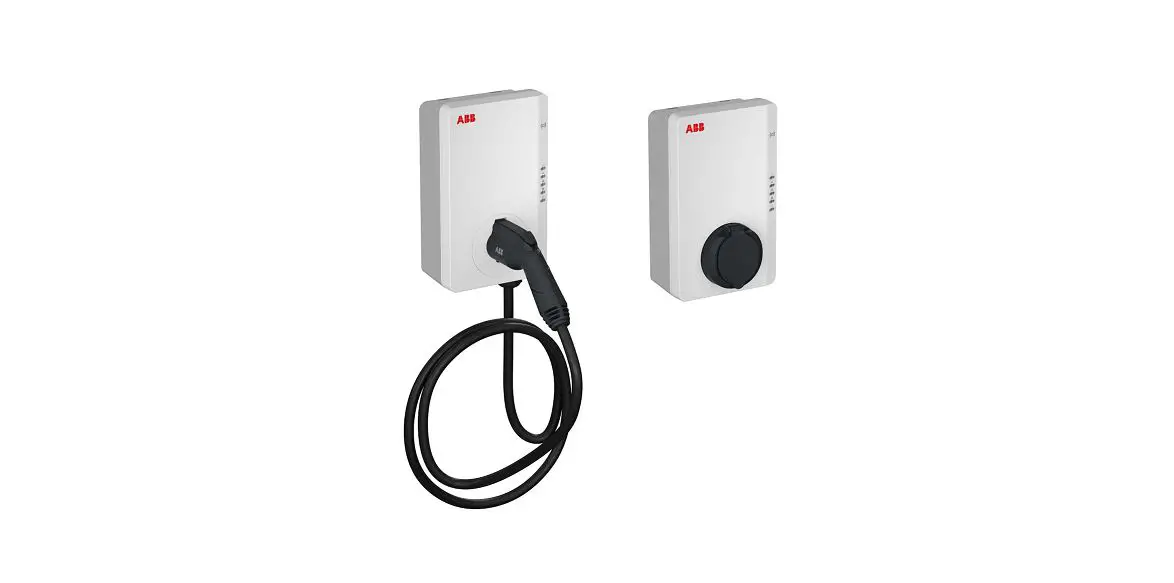

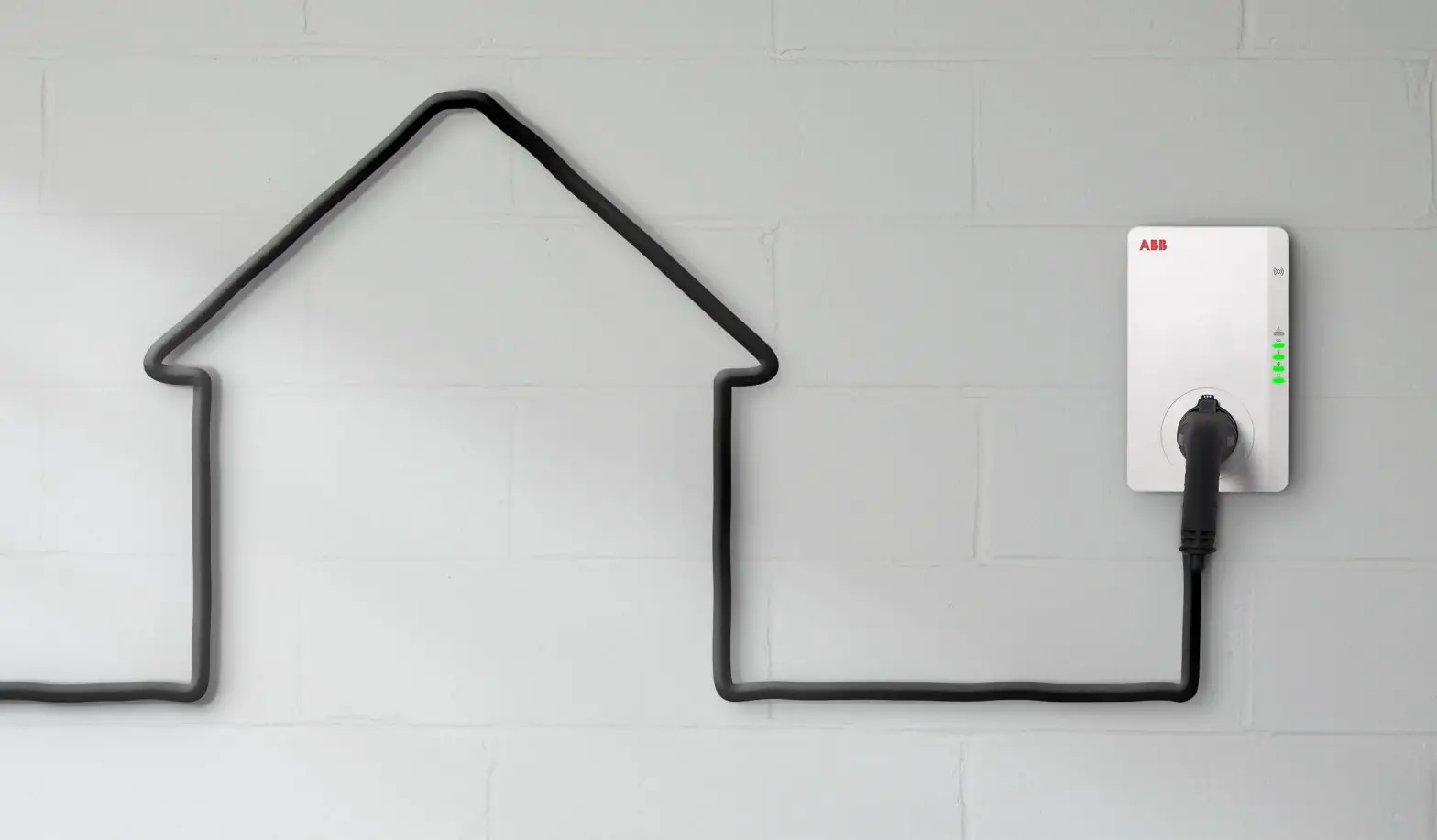

Terra AC wallbox
• High-value quality
• Futureproof flexibility
• Safety and protection
At ABB, we have 130 years of heritage inaccessible technology leadership and a world-leading AC and DC charging portfolio – for safe, smart, and sustainable mobility.
That’s why some of the world’s biggest brands trust us to provide market-leading e-mobility solutions from highway to home.
— ABB: The home of charging

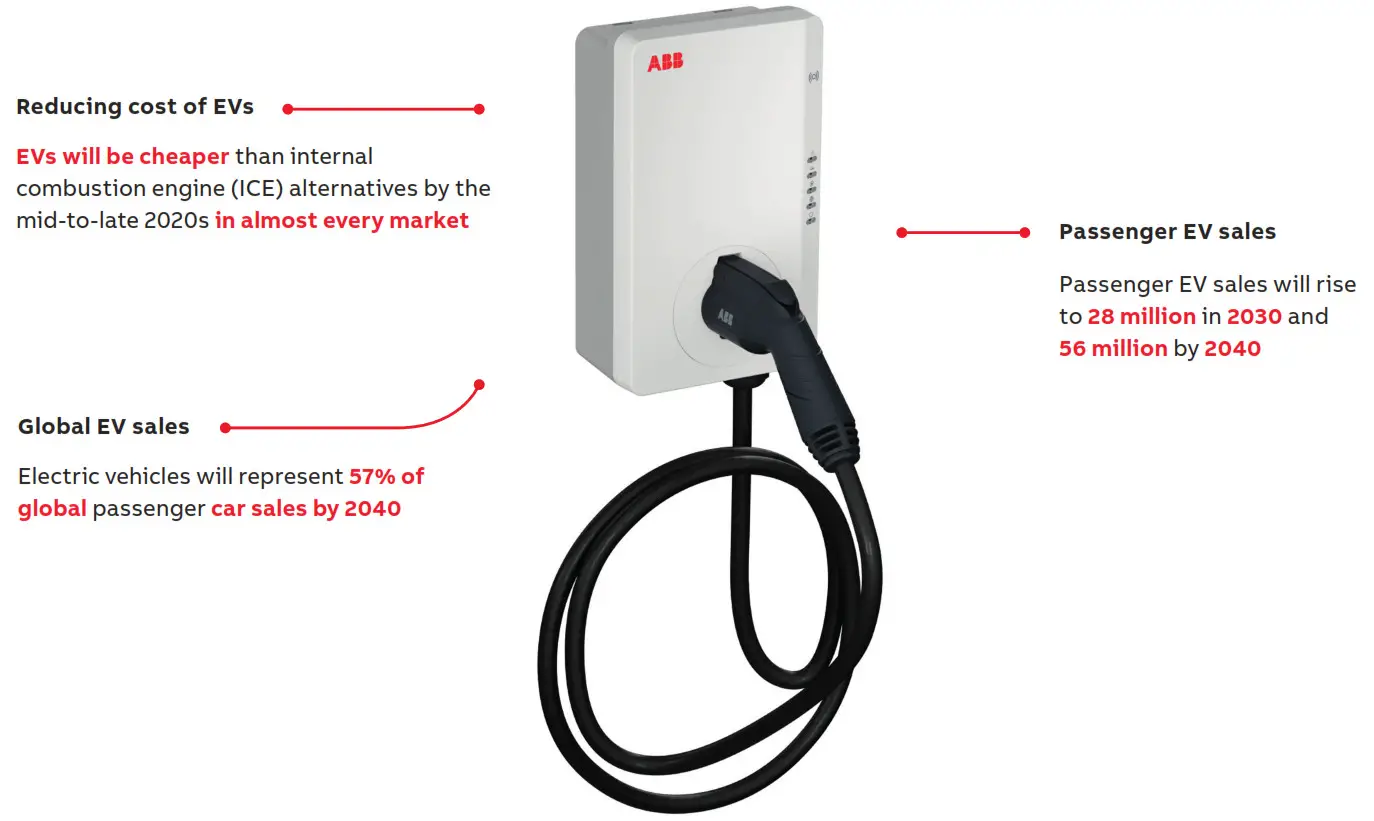

Terra AC wall box
To serve a growing market

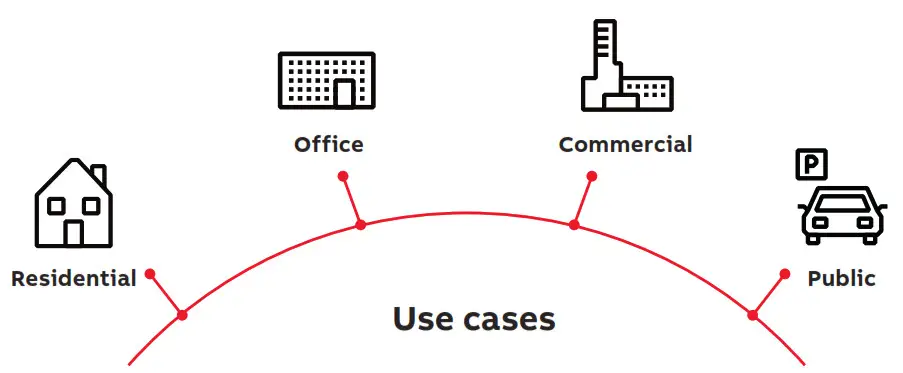

Terra AC wall box provides tailored, intelligent and networked charging solutions for any business, home, or location.
At home
From private homes to multi-tenant homes and residential communities
At work
From small offices to large offices, business parks and complexes
Commercial locations
From hotels to sports institutions and shopping centers
While parking
While on the street or in a car park
source: https://about.bnef.com/electric-vehicle-outlook/#toc-viewreport
Terra AC wall box benefits
High-value quality
- The best value AC charger on the market, providing the exceptional quality expected of the world leader in EV charging.
- Enabled remote software updates to ensure optimal performance while minimizing the need for onsite intervention.
- Broad range of connectivity options including Wifi, Bluetooth, and Ethernet for easy control and integration with existing infrastructure.

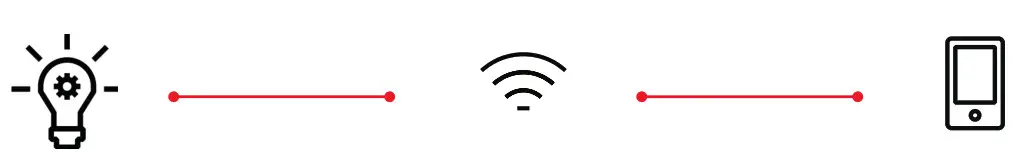

Future-proof flexibility
- Smart functionality means the wall box can adapt its power usage and provide optimal charging, today and into the future.
- Set up for energy meter integration to provide dynamic load management, reducing energy costs and preventing nuisance tripping of distribution protective devices.
- Dedicated App provides easy authentication and control of the AC charger, along with and insight into charging status for users.
Safety and protection
- Evaluated and tested to the highest standards by independent, third-party safety certification organizations.
- Current limiting protection allows maximum charging power without nuisance tripping, aligned with the design of a given building’s electrical distribution system.
- Integrated protections including DC ground fault and over-voltage protect both user and car.

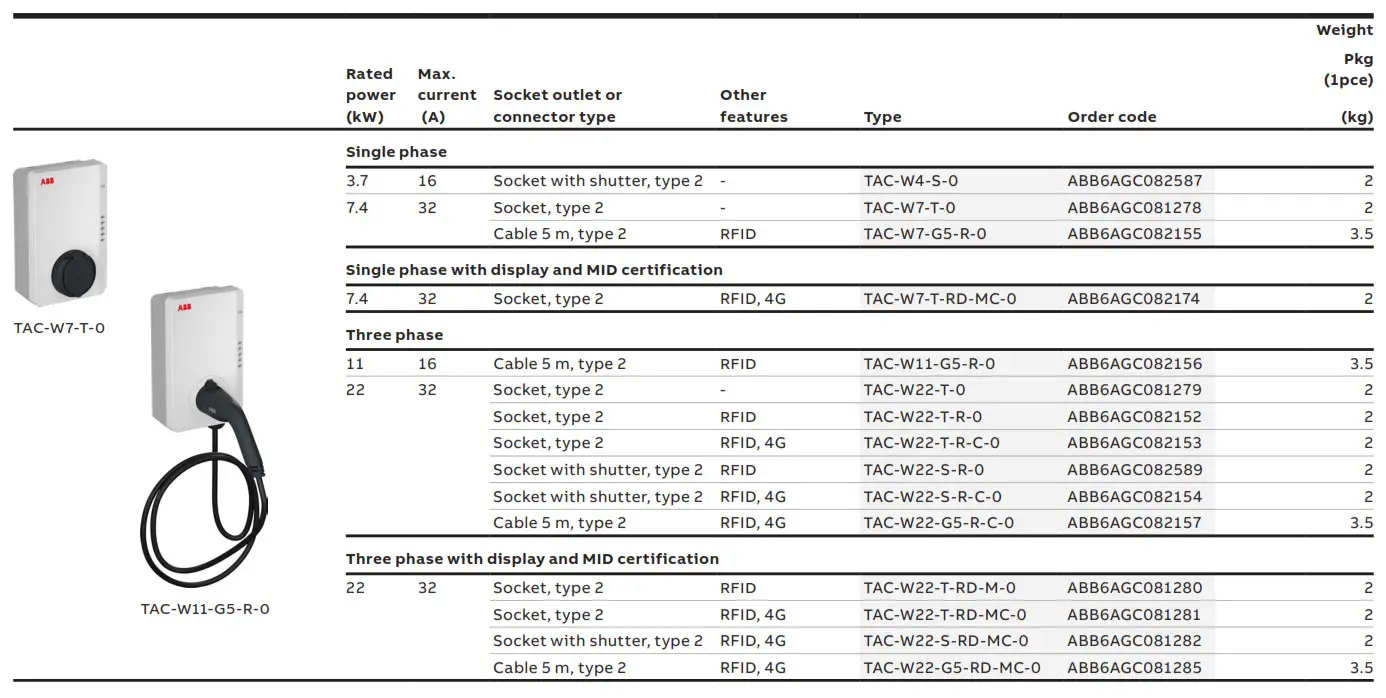

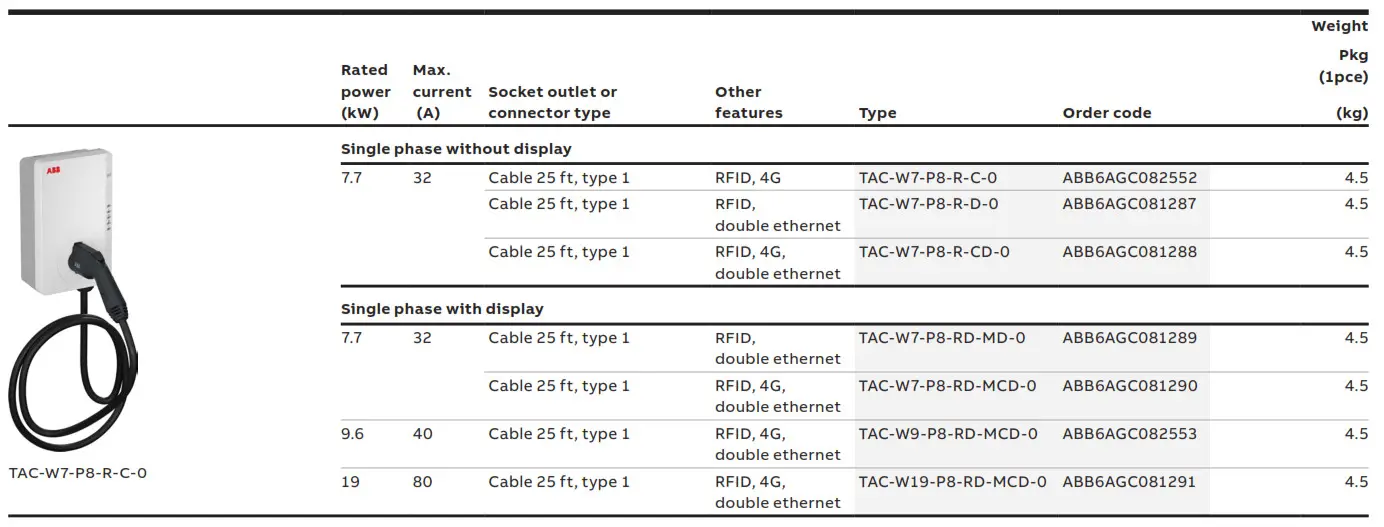

Smarter charging
EU portfolio
AC charger for electric vehicles, type 2
Power supply network: 220 … 240 V single phase and 380 … 415 V three phase, 50 / 60 Hz
North America portfolio
AC charger for electric vehicle, type 1
Power supply network: 110 … 240 V single phase, 50 / 60 Hz

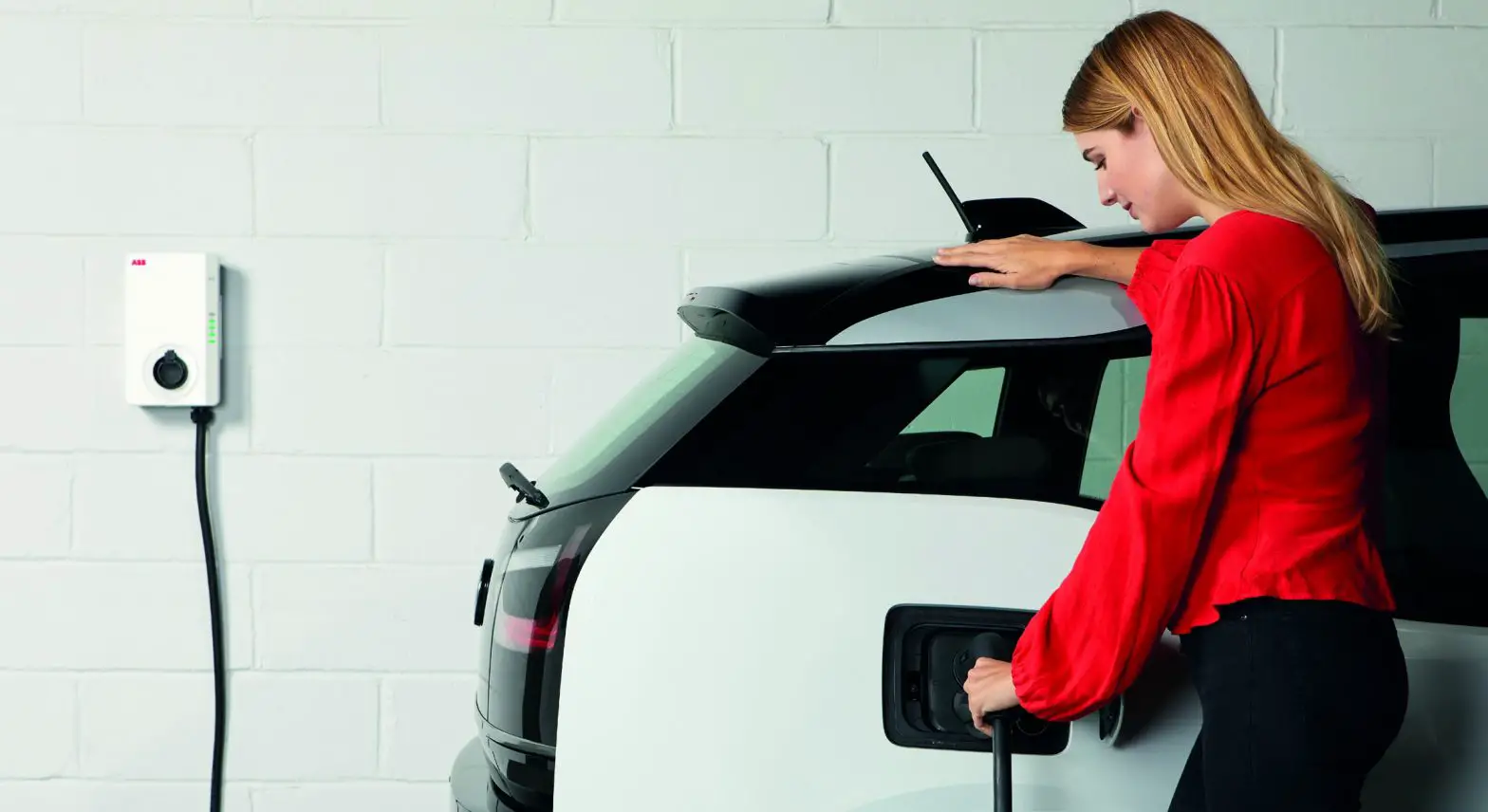

Terra AC wall box accessories
| Description | Current (A) | Type | Order code |

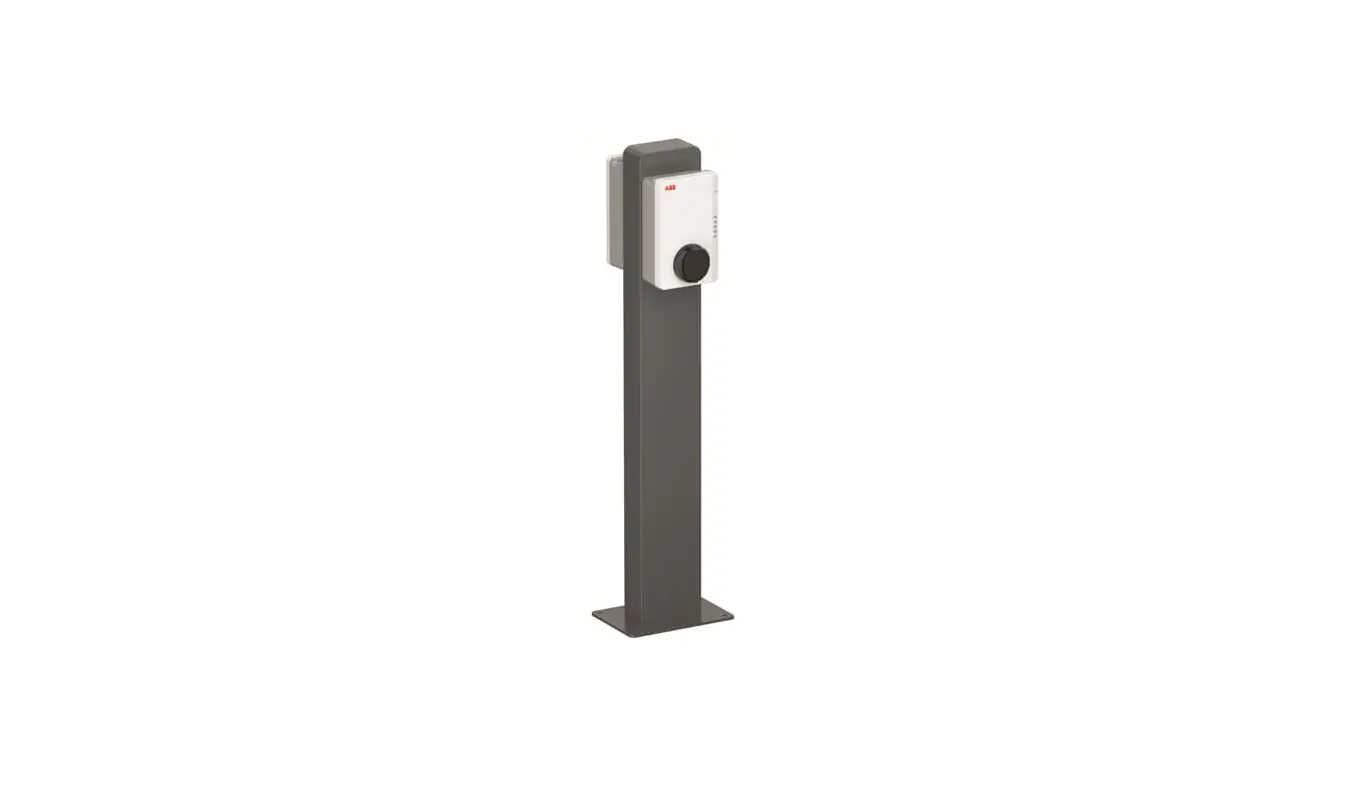

| Pedestal For floor standing installation | |||
| Adapter box for 1 or 2 chargers back-to-back (pole not included) | – | TAC-P1-2 for 60mm pole | ABB6AGC082324 |
| Adapter box for 1 or 2 chargers back-to-back (60 mm pole included) | – | TAC-P1-2 with 60mm pole | ABB6AGC082576 |
| Metal pole 60 mm with ground plate | – | SER-60mm pole H995mm | ABB6AGC082325 |

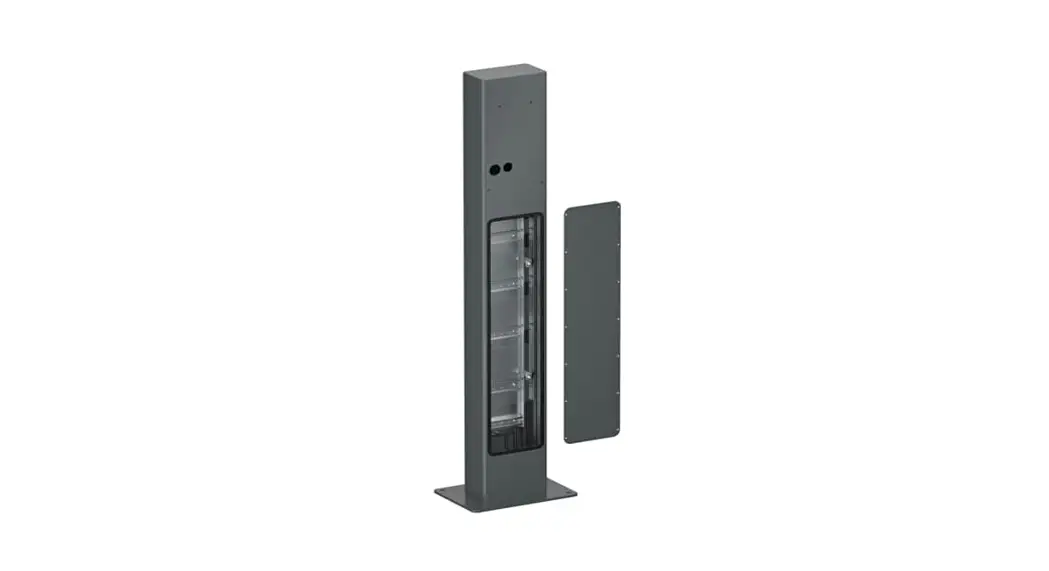

| Metal pedestal for 1 or 2 chargers back-to-back free-standing | – | TAC-P1-2 rectangular | ABB6AGC082326 |
| RFID card (MIFARE) | |||
| RFID cards with ABB logo, pack of 5 | – | SER-abbRFIDtags | ABB6AGC082175 |
| RFID cards, blank, pack of 5 | – | SER-blankRFIDtags | ABB6AGC082176 |
| Spare cables Length: 5 m For cable replacement of existing cable version charger | |||
| Type 2, three phase | 16 | SER-TAC-cable T2 5m3P16A | ABB6AGC082555 |
| Type 2, single phase | 32 | SER-TAC-cable T2 5m1P32A | ABB6AGC082554 |
| Type 2, three phase | 32 | SER-TAC-cable T2 5m3P32A | ABB6AGC082556 |
| Type 1, single phase | 40 | SER-TAC-cable T1 5m1P40A | |
| Type 1, single phase | 80 | SER-TAC-cable T1 5m1P80A | |
| Charge cables Length: 7 m Cables with 2 connectors of same or different types | |||
| Single phase | |||
| Type 2 to type 1 | 16 | TAC-cable T2-T1 7m1P16A | ABB6AGC082538 |
| Type 2 to type 2 | 32 | TAC-cable T2-T2 7m1P32A | ABB6AGC082535 |
| Type 2 to type 1 | 32 | TAC-cable T2-T1 7m1P32A | ABB6AGC082539 |
| Three phase | |||
| Type 2 to type 2 | 16 | TAC-cable T2-T2 7m3P16A | ABB6AGC082536 |
| Type 2 to type 2 | 32 | TAC-cable T2-T2 7m3P32A | ABB6AGC082537 |
TERRA AC WALLBOX
Technical specification
| Product information | |
| Charging type | Mode 3 charging, level 2 |
| Input/output power rating and current | IEC ratings: Single phase up to 7.4 kW / 32 A Three phase up to 22 kW / 32 A UL ratings up to 19 kW / 80 A |
| Input/ouput voltage | Single phase: 110 … 240 V Three phase: 380 … 415 V, 50 / 60 Hz |
| Network type | TT, TN, IT |
| Socket outlet or connector type | Type 2 socket with or without shutter Type 1 or type 2 cable. Cable can be wrapped around the charger |
| Protection | Overcurrent, overvoltage, undervoltage, ground fault including DC leakage protection, integrated surge protection |
| Overvoltage category | III |
| Energy metering | Revenue grade energy meter Class B (+/- 1%) , MID certification on display variants only |
| Mobile communication with nano SIM socket | EU: GSM, 4G, LTE, WCDMA US: 4G, LTE, WCDMA |
| Available configurable contacts | 1 input, 1 output |
| User Interface | |
| Connectivity | Wifi, Ethernet (RJ45), Bluetooth, RS485/P1, 4G / 3G |
| User authentification | ABB RFID card (1 included) or App |
| User interface | App, ABB web portal |
| Communication protocols | OCPP 1.6 and RS485/P1 for energy meter connection |
| Satus indication | 5 multicolor LED’s |
| Configuration | |
| Software update | OCPP 1.6, ABB web portal or App |
| Control and configuration | ABB web portal or App |
| General characteristics | |
| Lifetime | 10 years. 16 h charging, 8 h standby, 5 charge sessions per day |
| IP and IK rating | IP54, IK10 (IK8+ for operating temperature from -35 to -30 °C) |
| NEMA enclosure type | NEMA 4 and 4X |
| Operating altitude | 4000 m |
| Operating temperature range | -35…+50 °C (derating may apply) |
| Storage temperature range | -40…+80 °C |
| Mounting | Wall or floor using a pedestal |
| Dimensions | H x W x D 320 x 195 x 110 mm H x W x D 12.60 x 7.68 x 4.33 inches |
| Certification and standards | |
| Safety standards | IEC/EN 61851-1, IEC/EN 62311, IEC/UL 62479, IEC/UL 62955 TuV listed conforming to UL 2594, UL 2231-1, UL 2231-2, UL 1998, CSA C22.2. NO.280 |
| Codes and standards | IEC 61851-21-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12 CE RED- WLAN / RFID / E-UTRA: EN 300 328 V2.1.1, EN 300 330 V2.1.1, EN 301 908-1 V11.1.2, EN 301 908-13 EN 50470-1, EN 50470-3 FCC Part 15 Class B ENERGY STAR |
| Certification | CE, CB, MID, UL |
| Warranty | 36 months |
Smarter by design
- The App allows streamlined charger configuration
- Ready for integration with advanced smart building energy system
- Simple software updates via the App makes the charger future-ready
With the user in mind
• Enables users to authenticate their charger via the App or RFID card. Configuration is easily done via the App or ABB web portal
• Sends charging status via the App
• Provides information about the status of chargers (availability, number of sessions, energy delivery)
ABB Limited
Electrification Products business
Tower Court
Foleshill Enterprise Park
Courtaulds Way
Coventry CV6 5NX
Tel: +44 (0) 333 999 9900
E-Mail: [email protected]
Twitter: @ABBUKEP
new.abb.com/uk/smarter-mobility
© Copyright 2020 ABB. All rights reserved. Specifications are subject to change without notice.
