Konig Audio Transmitter With Bluetooth Wireless Technology For Headphones User Manual

Audio transmitter with Bluetooth® Wireless Technology for headphones

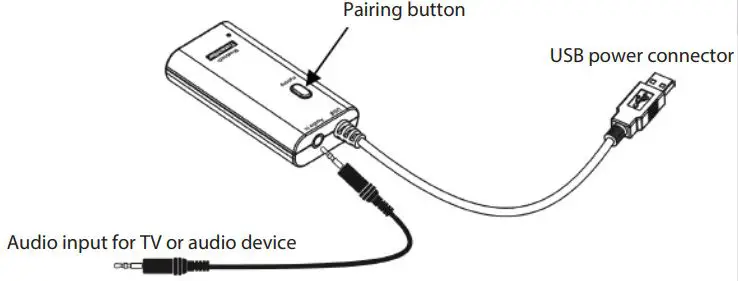

Product view

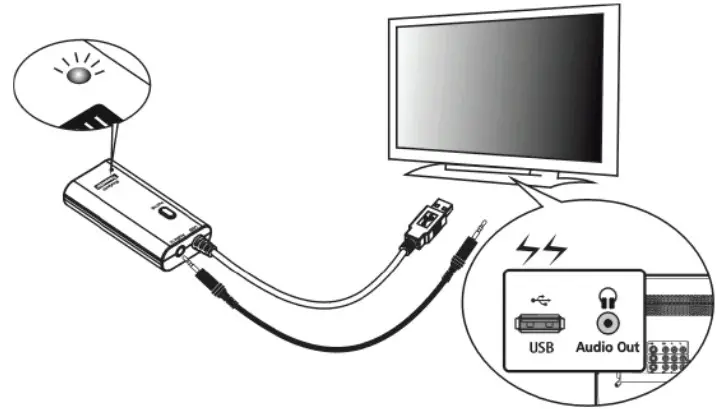

Setup

1. Connect the 3.5 mm connector to the CSBTTRNSM100.
2.  Connect the other 3.5 mm connector to the headphone output of a TV or audio device.
3.  Connect the USB connector to the USB port of the TV or audio device (or connect the USB connector to a USB power adapter)

Operation

Connect the first set of headphones or music receiver:

1. Take your Bluetooth® headphones or Bluetooth® music receiver.
2.  Press the pairing button (check the device manual).
3.  After being connected for the first time, the two devices will recognize each other next time.

Connect the second set of headphones or music receiver:

1.  Take the second set of Bluetooth® headphones or Bluetooth® music receivers.
2. Press the pairing button (check the device manual).
3.  Press the pairing button on the CSBTTRNSM100 once for approx. 1 ~ 2 seconds. The LED light starts blinking while the transmitter searches for the second set of headphones or music receivers. The device that was connected first, is muted.
4.  If the devices are connected, the LED light is constantly switched on.

Note
The CSBTTRNSM100 features the option to connect two Bluetooth® A2DP devices at the same time. If you would like to connect a second A2DP device, you need to reset the CSBTTRNSM100 to establish a new connection.

Reset

Press the pairing button on the CSBTTRNSM100 and release it again. The LED light on the CSBTTRNSM100 starts blinking while the transmitter is searching for A2DP devices nearby.

LED indication

Troubleshooting

If you do not hear any sound coming from your headphones or music receiver, check the following:

•  make sure the CSBTTRNSM100 is powered;
•  make sure the audio cable is correctly connected to the CSBTTRNSM100;
• make sure that the audio source is working properly;
• make sure the volume of the audio source is set correctly;
• make sure your device is at a maximum distance of 10 meters from the audio transmitter.

Maintenance:
Clean the product only with a dry cloth.
Do not use cleaning solvents or abrasives.
Warranty:
Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by the incorrect use of this product.
Disclaimer:
Designs and specifications are subject to change without notice. All logos, brands, and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.
Disposal:

•  This product is designated for a separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.
Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.
Please contact our customer service desk for support:
via the website: http://www.nedis.com/en-us/
via e-mail: [email protected]
via telephone: +31 (0)73-5993965 (during office hours)
NEDIS B.V., De Tweeling 28, 5215 MC ’s-Hertogenbosch, THE NETHERLANDS
