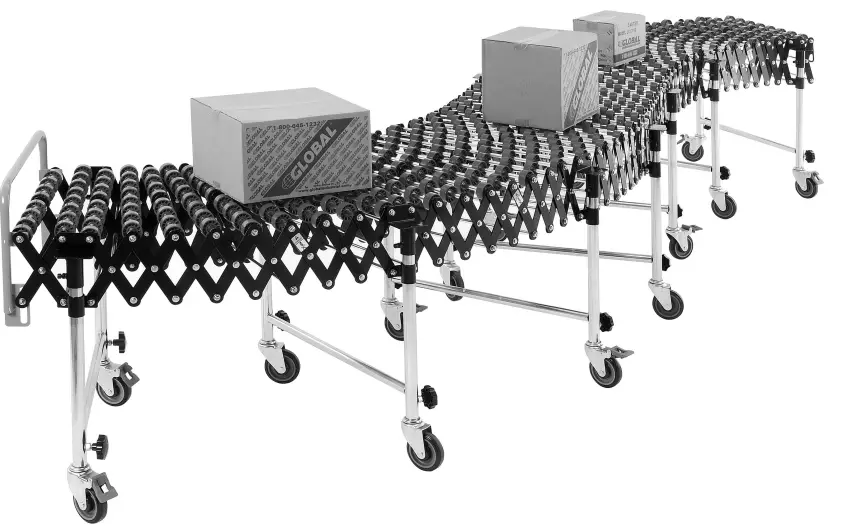

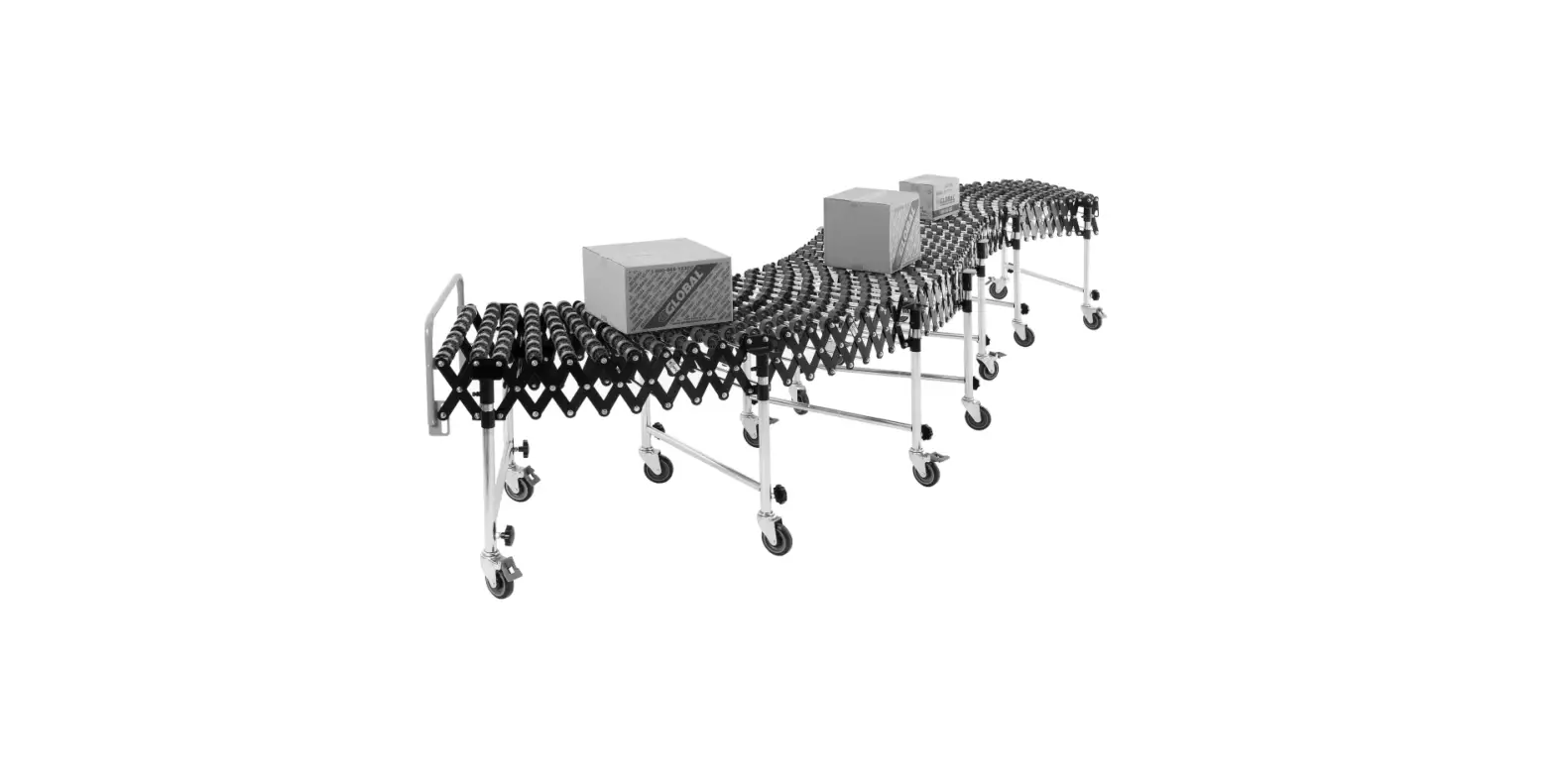

GLOBAL INDUSTRIAL 168111 Portable Flexible and Expandable Conveyor
It is the responsibility of the assembler/user to completely read and understand all instructions and safety information before proceeding with assembly. Following these instructions will ensure proper function and safety.
SAFETY INFORMATION
DANGER
- Do not put hands on scissor supports.
CAUTION
- The conveyor is very heavy. Assembly requires more than two people to prevent injury.
- Clean the conveyor regularly to maintain its lifespan.
WARNING
- Do not overload. Maximum capacity: 175 lb per foot.
- Keep the casters breaks down while in use.
- Do not stand up on top of the unit.
- The conveyor is not a toy. Not for use by children.
- This product contains chemicals that are known by the state of California to cause cancer, birth defects or other reproductive harm.
SPECIFICATIONS
| Model | Wheel Material | Effective Width in. | Overall Width in. | Retracted Length ft. | Extended Length ft. | Lowest Height in. | Highest Height in. | Load Cap. lb./ft.2 |
| — | w | W | l | L | h | H | — | |
| 168110 | Nylon | 18 | 23.6 | 7.2 | 22.6 | 27.6 | 39.4 | 175 |
| 168111 | Nylon | 24 | 29.5 | 7.2 | 22.6 | 27.6 | 39.4 | 175 |
| 168112 | Steel | 18 | 23.6 | 7.2 | 22.6 | 27.6 | 39.4 | 175 |
| 168113 | Steel | 24 | 29.5 | 7.2 | 22.6 | 27.6 | 39.4 | 175 |
Component
| Model | Component Model No. | Description | |
| 168110 | 330CP118 | 18″ Nylon Skate Wheel Expandable Conveyor (Body only) | |
| 330CP122 | 18″ Expandable Conveyor Leg Kit | ||
| 168111 | 330CP119 | 24″ Nylon Skate Wheel Expandable Conveyor (Body only) | |
| 330CP123 | 24″ Expandable Conveyor Leg Kit | ||
| 168112 | 330CP120 | 18″ Nylon Skate Wheel Expandable Conveyor (Body only) | |
| 330CP122 | 18″ Expandable Conveyor Leg Kit | ||
| 168113 | 330CP121 | 24″ Nylon Skate Wheel Expandable Conveyor (Body only) | |
| 330CP123 | 24″ Expandable Conveyor Leg Kit | ||
COMPONENTS CONTENT
| Component | Content | Key | Quantity | |
| Skate Wheel Body | Conveyor body | 1 | 1 | |
|
Skate Wheel Leg | Leg support | 2 | 7 | |
| Swivel caster with brake | 3 | 8 | ||
| Swivel caster without brake | 4 | 6 | ||
| Box stop/Handle | 5 | 1 | ||
| Hex Key | H1 | 1 | ||
| Leg knob | H2 | 14 | ||
| Box Wrench | H3 | 1 | ||
CAUTION Conveyor is very heavy. Assembly requires more than two people to prevent injury.
Installations

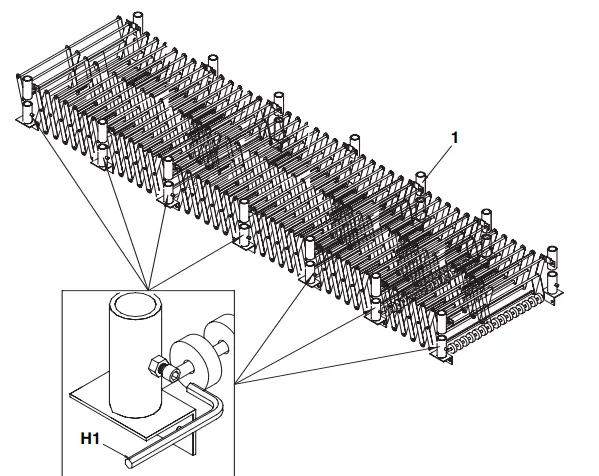

- Lay conveyor body (1) upside down on a level surface. Loosen all set screws with hex key (H1) provided.

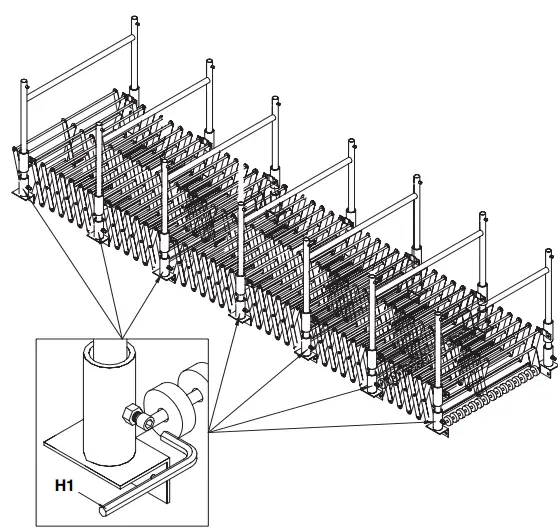

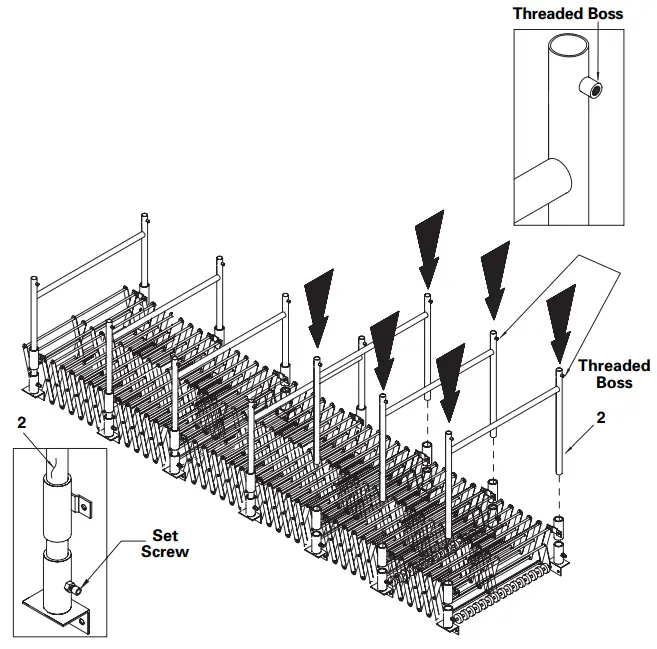

- Insert leg supports (2) into sockets making sure threaded bosses are facing same direction.
- Retighten all set screws with hex key (H1) provided.

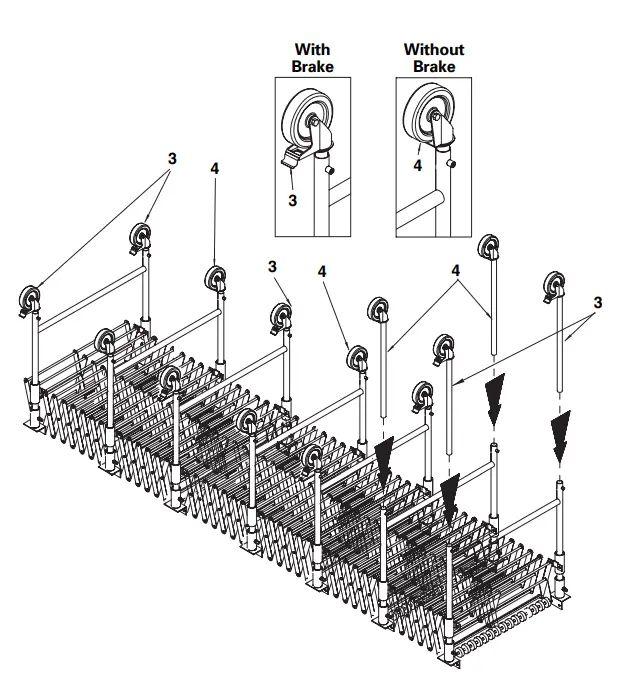

- Insert caster leg assemblies (3 & 4) into leg supports.

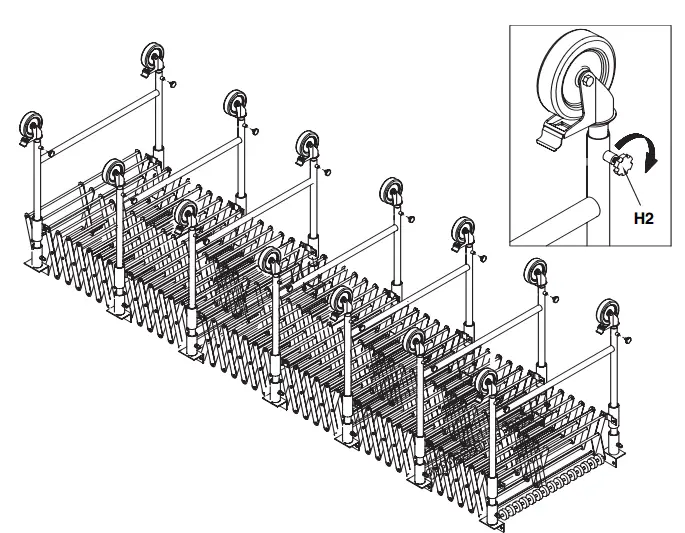

- Insert and tighten all knobs (H2) into caster posts.

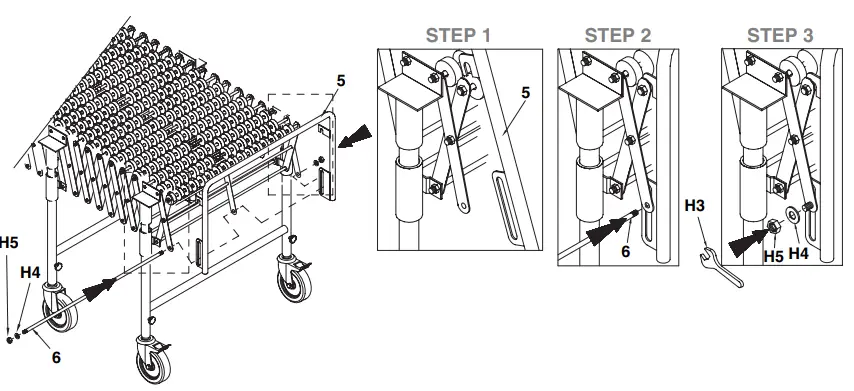

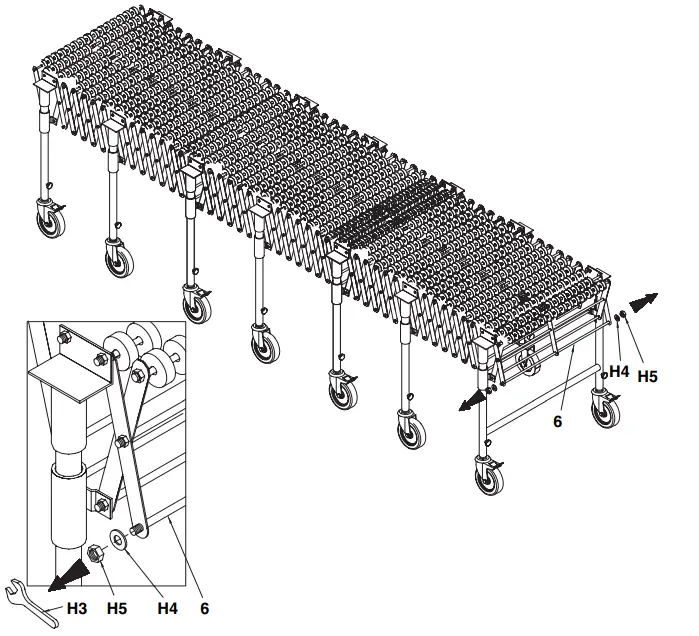

- To install the box stop loosen and remove hex nuts (H5), washers (H4), and axle rod (6).
- Attach box stop handle (5) to end of the conveyor. Insert axle rod (6). Replace washers (H4) and retighten nuts (H5) with box wrench provided (H3).

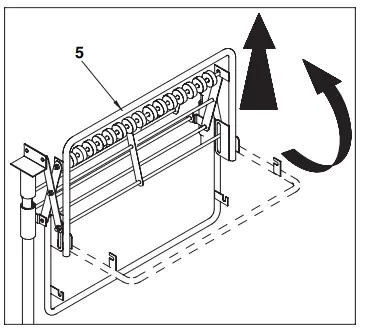

- To use the handle (5) as a box stop, lift the horizontal bar and hook it to the top rod.

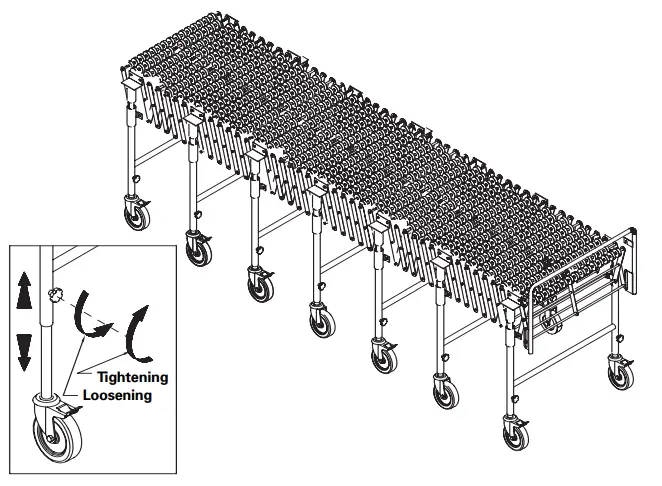

- Set pitch and height as required by adjusting caster legs up or down.
