Uline Gravity Roller Conveyors 1.9" Diameter Rollers Instruction Manual

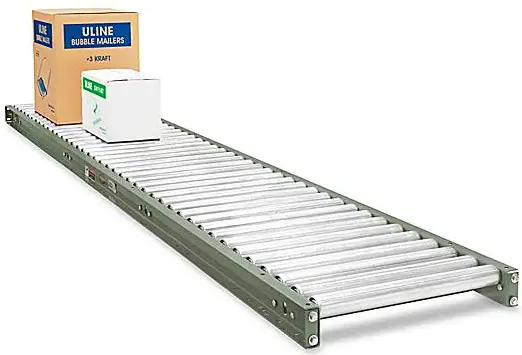

ULINE Gravity Roller Conveyors 1.9″ Diameter Rollers

ASSEMBLY INSTRUCTIONS

BOLTING CONVEYOR FRAME(S) TO H-STAND LEG SUPPORTS

NOTE: H-Stands are sold separately.
Hardware included: 4 hex head bolts, 4 flange nuts.

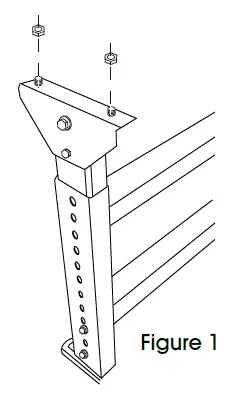

1. Hardware is pre-screwed into the tops of the H-Stands. Remove the hardware. (See Figure 1)

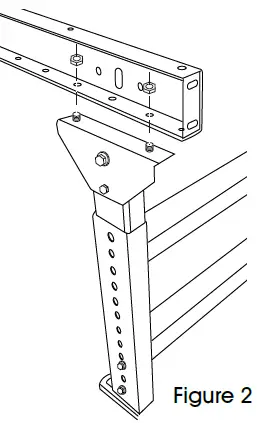

2. Bolting two H-Stands to one conveyor frame: Position
   H- Stands on the end of the conveyor frame, lining up with two holes on the end. Fasten bolts through conveyor and H-Stand.(See Figure 2)

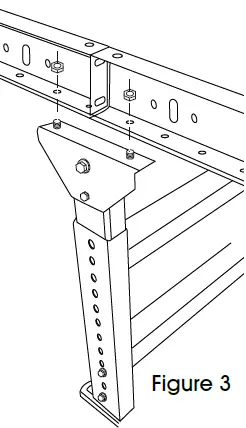

Bolting a single H-Stand to two conveyor frames: Position the H-Stand halfway between the end of two conveyor frames, lining up one hole on each conveyor with the H-Stand.
Fasten bolts through conveyors and H-Stand. (See Figure 3)

NOTE: Each conveyor frame includes mounting holes for an optional center leg support. Adding a third support increases weight capacity.

BOLTING MULTIPLE CONVEYOR FRAMES TOGETHER

NOTE: Hardware included: 4 hex head bolts, 4 flange nuts and 4 washers.

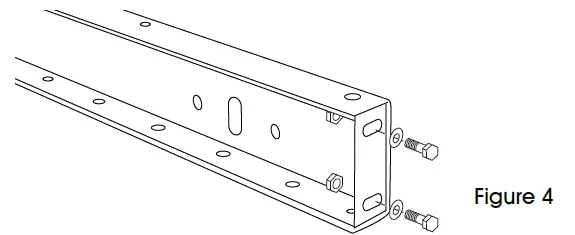

1. Hardware is pre-screwed into the ends of the conveyor frame. Remove the hardware.(See Figure 4)

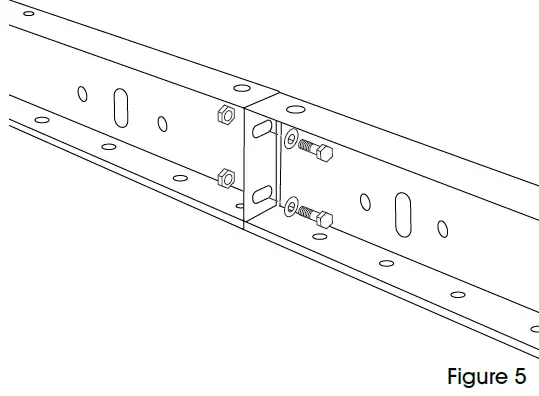

2. Fasten the bolts through the ends of both conveyor frames, using the same holes that they arrived in.(See Figure 5)
