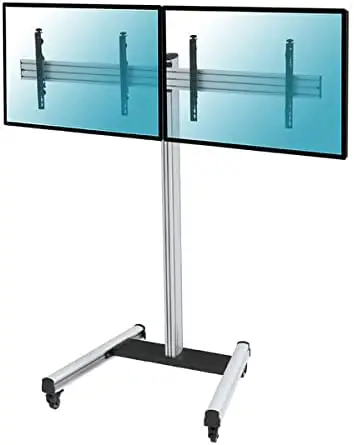

KIMEX 031-1220K2 Roller Stand Instruction Manual
Read the entire instruction manual before beginning installation and assembly. If you have any questions regarding the instructions or warnings, please contact your local distributor for assistance.
WARNING
- Use with products heavier than the rated weights may cause instability which may lead to injury.
- Please follow the assembly instructions carefully. Incorrect installation can lead to serious damage or injury! injury.
- Appropriate safety equipment and tools must be used. This product should only be installed by professionals.
- This product is designed to be installed on concrete walls or masonry walls.
- Make sure that the support surface will safely support the combined weight of the equipment and all attached hardware and components.
- Use the mounting screws provided and DO NOT OVER TIGHTEN THE mounting SCREWS.
- This product contains small items which could present a choking hazard if swallowed. Keep these items out of the reach of children.
- This product is intended for indoor use only. Using this product outdoors may cause product failure and injury
Recommended for installation

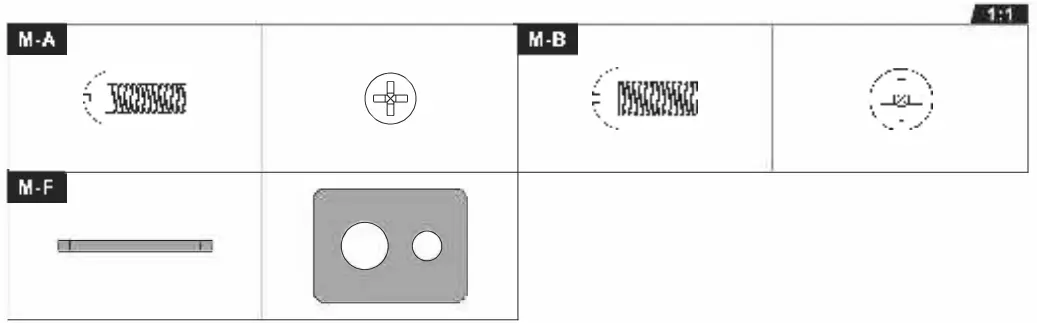

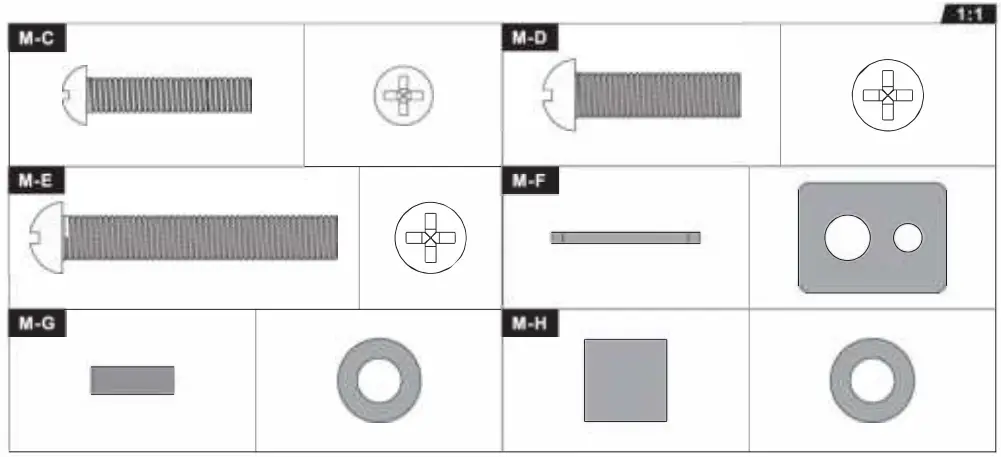

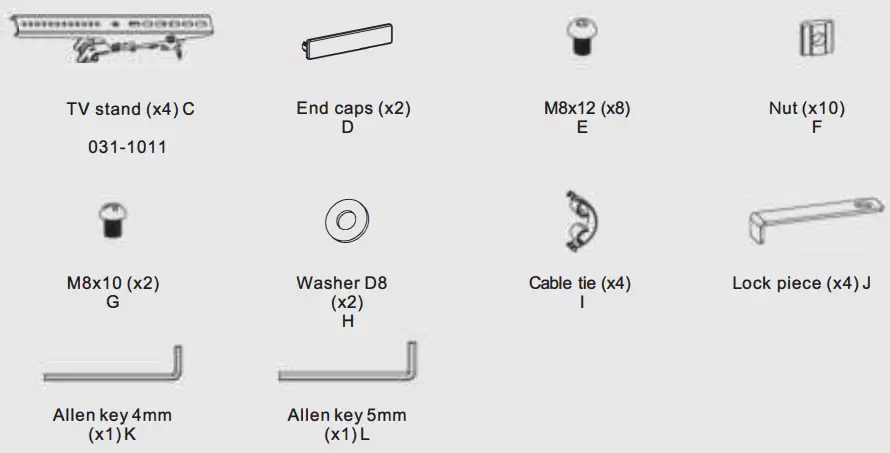

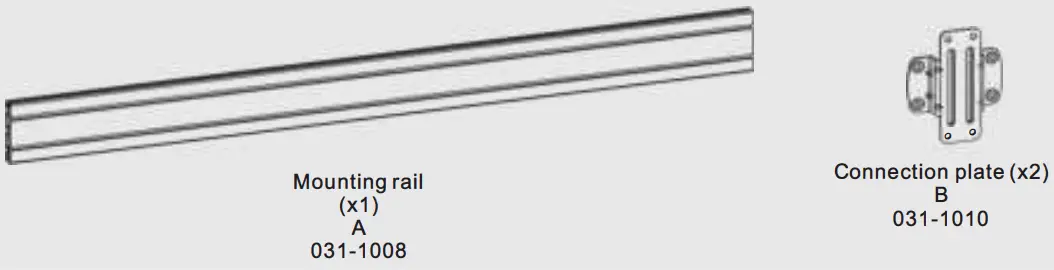

List of components
IMPORTANT: Make sure you have received all parts according to the component checklist before installation.
If any parts are missing or defective, contact your place of purchase for a replacement.

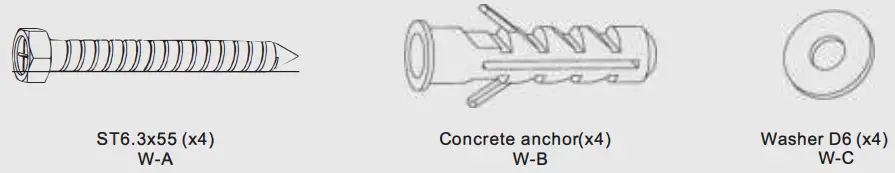

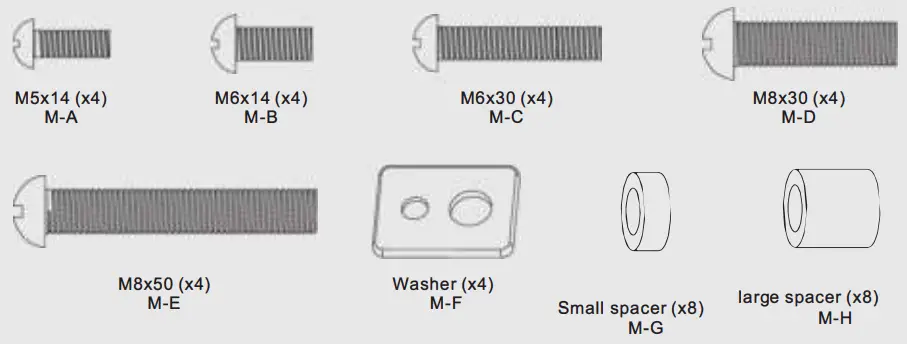

Package
M x2
Wx2
Assembly Instructions

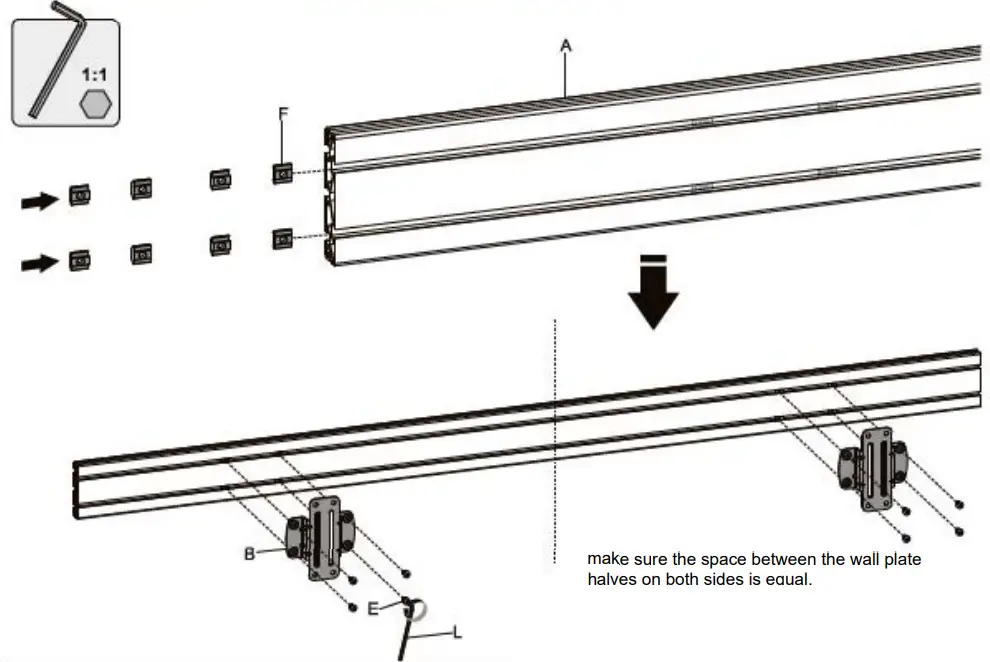

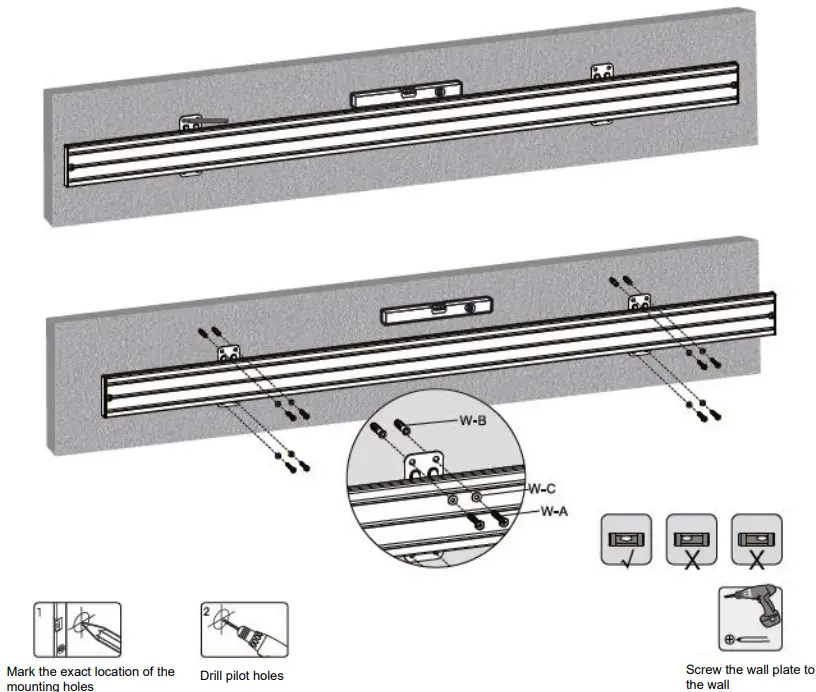

Attach the wall plate to the mounting rail

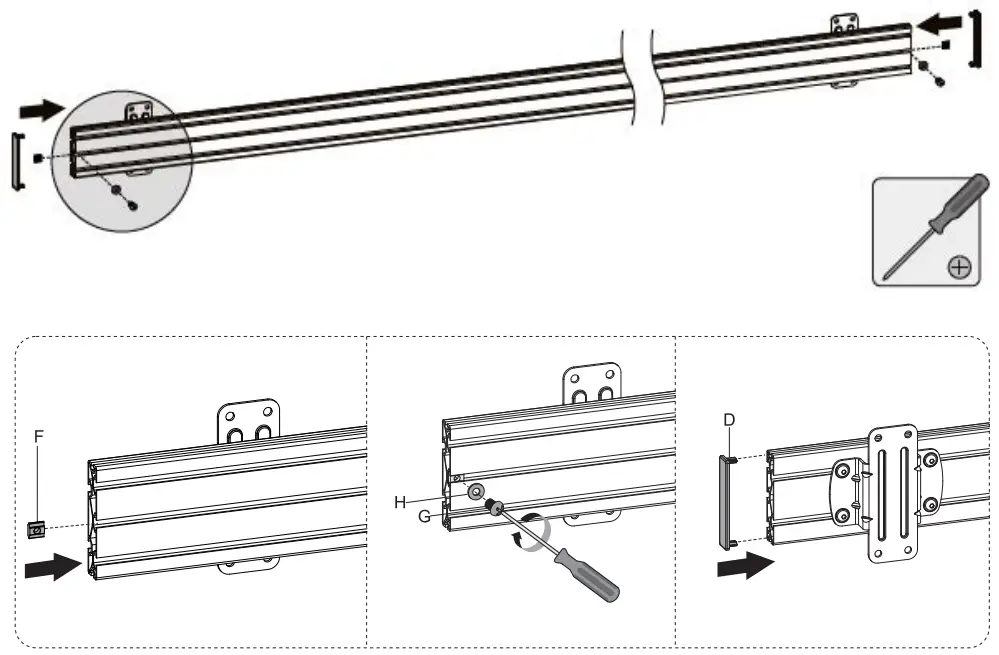

Install the mouthpiece

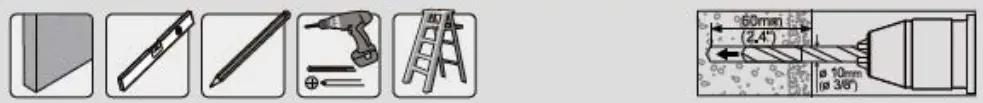

Attach the mounting rail to the solid brick
Tilt adjustment
Secure the TV stand

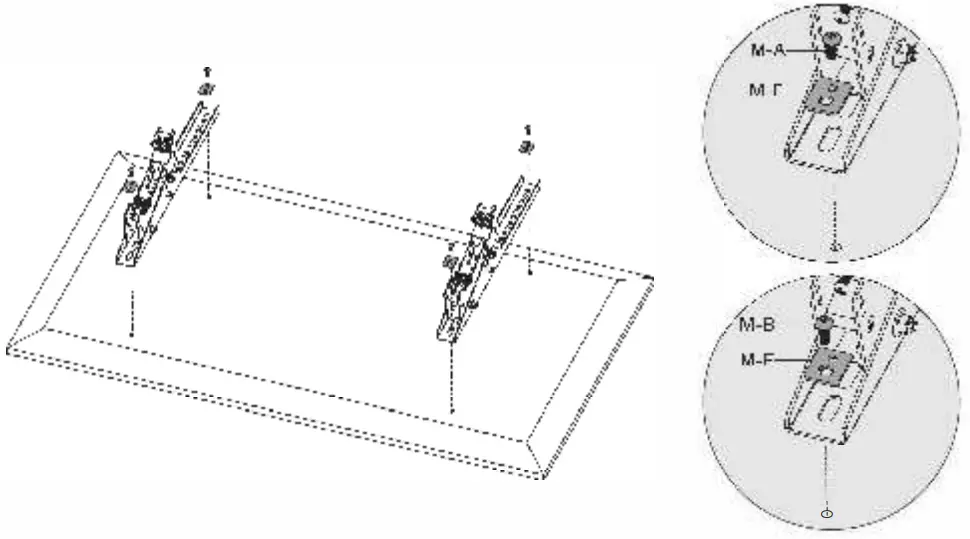

Attach the TV stand to the rear flat screen
Attach the TV stand to the back of the screen

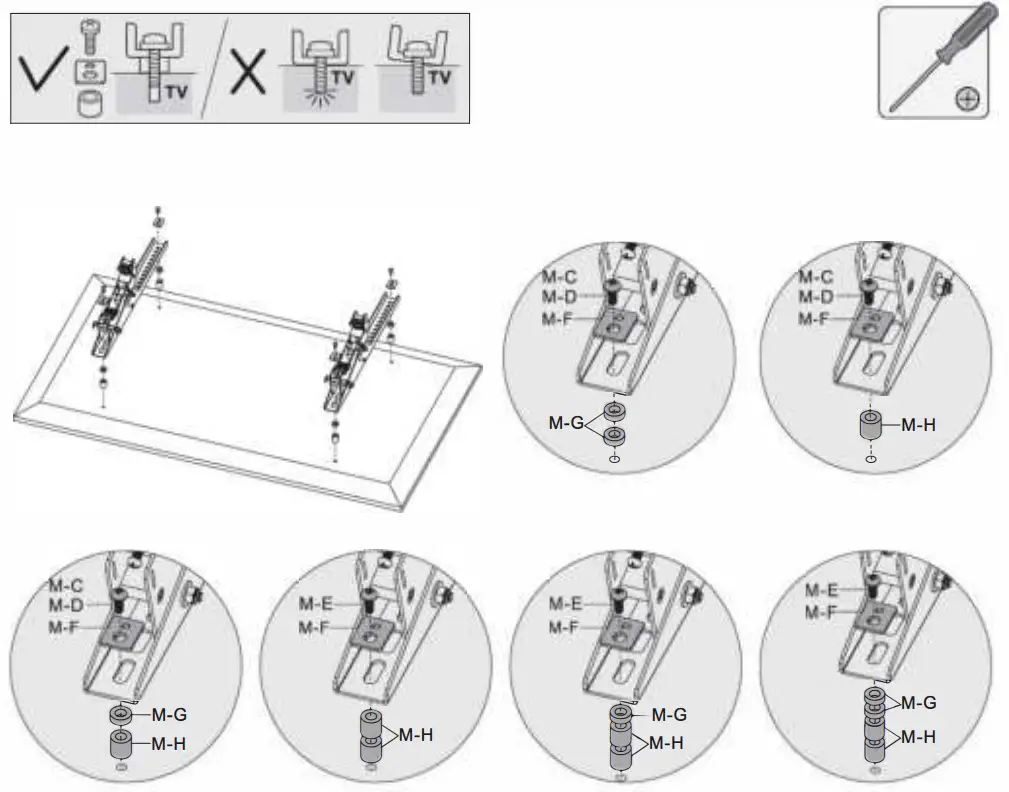

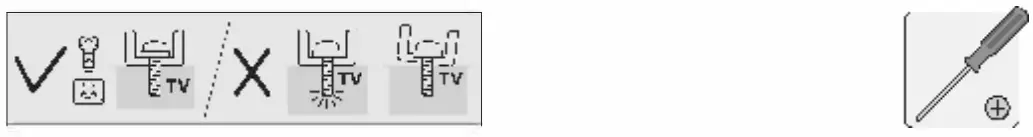

- Choose the appropriate screws, washers and spacers (if necessary) according to the type of display.
- Center the adapter brackets on the back of the display as shown, and screw the brackets to the display, being careful not to overtighten.
Hang the screen
Level adjustment

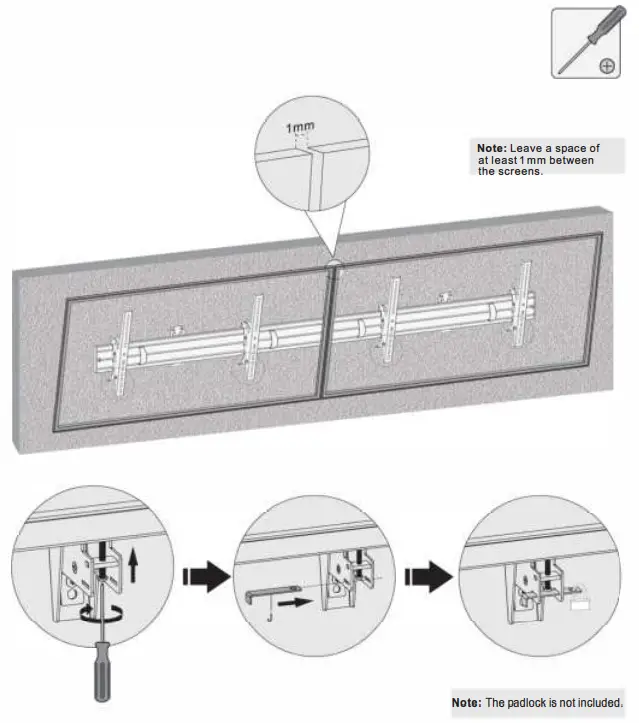

Secure with padlock
Maintenance
- Check that the mount is safe and secure to use at regular intervals (at least every three months).
- Please contact your distributor if you have any questions.
