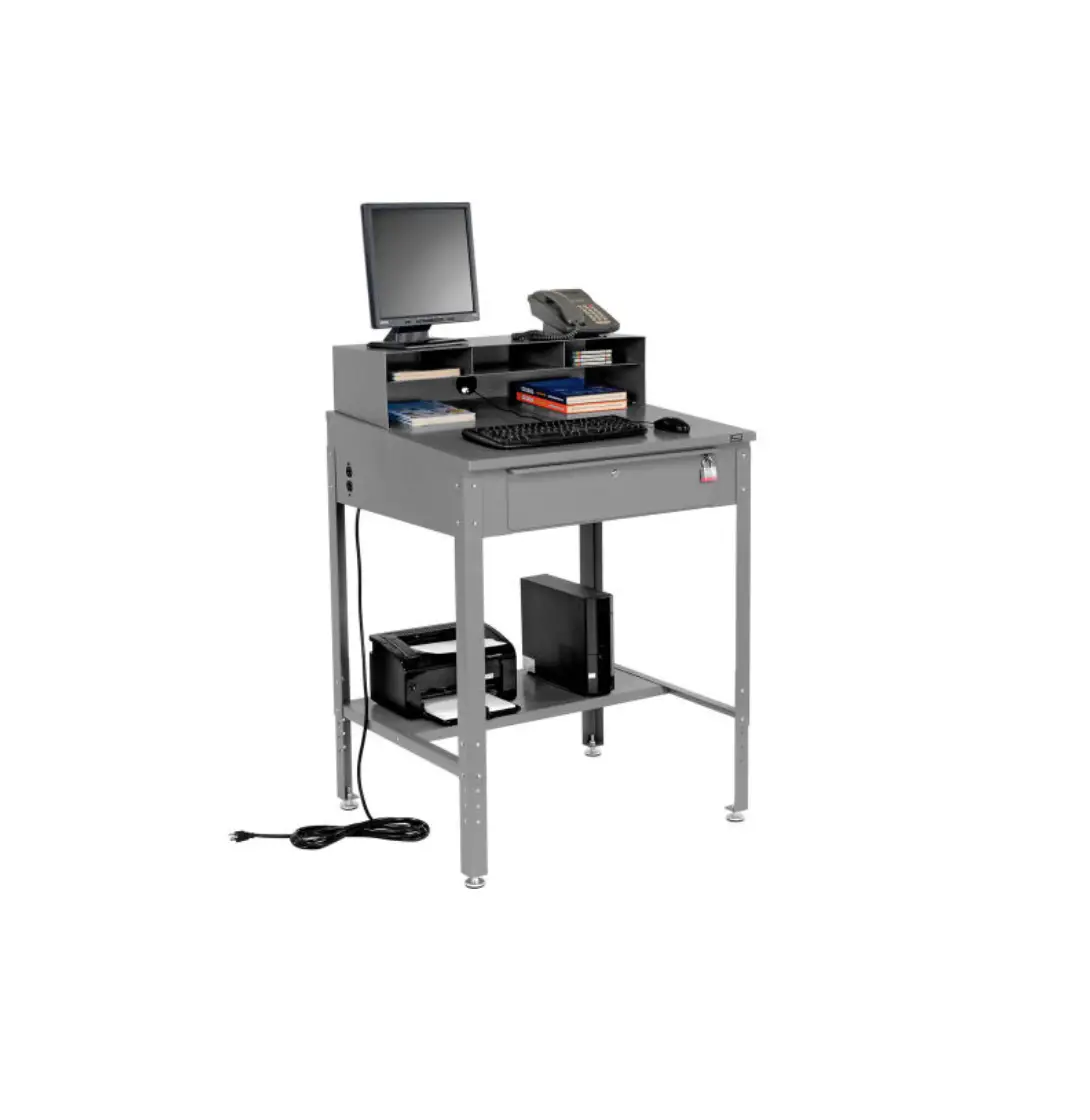

254635 Shop Desk
Instruction Manual
BEFORE YOU BEGIN

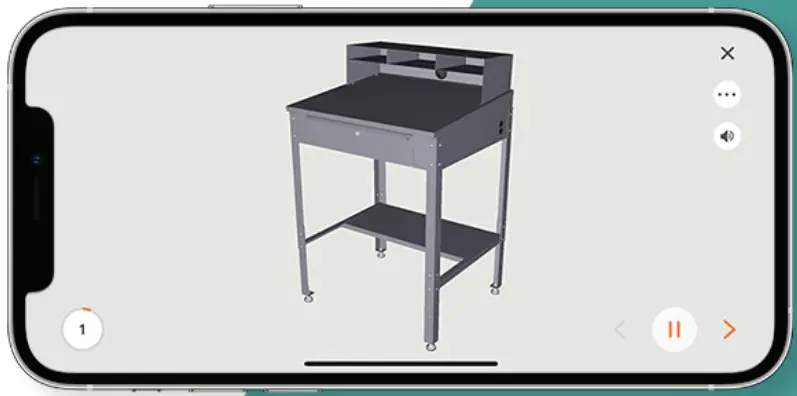

Scan for easy 3D instructions
Download the BILT app before you begin
CONTENTS
| REF. | QTY | DESCRIPTION |

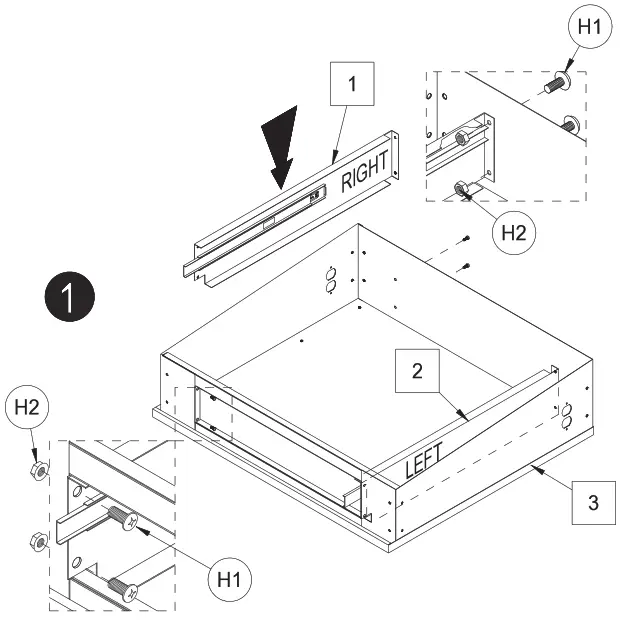

| 1 | 1 | RIGHT SIDE TRACK SUPPORT (Assembly) |
| 2 | 1 | LEFT SIDE TRACK SUPPORT (Assembly) |
| 3 | 1 | DESK TOP |

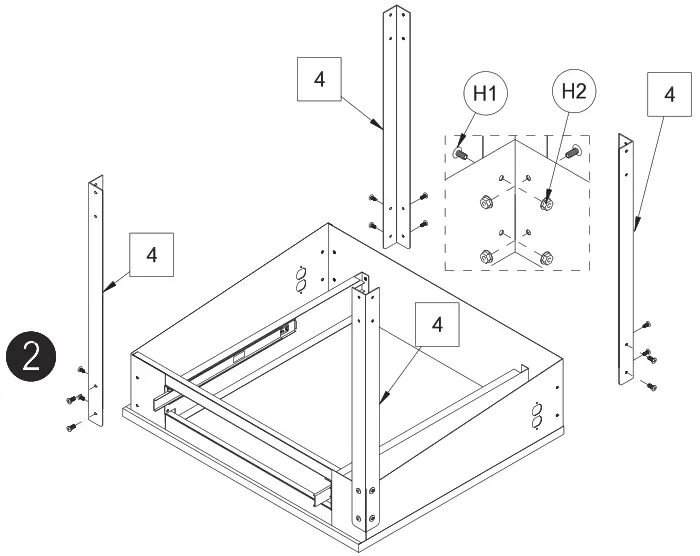

| 4 | 4 | LEG |

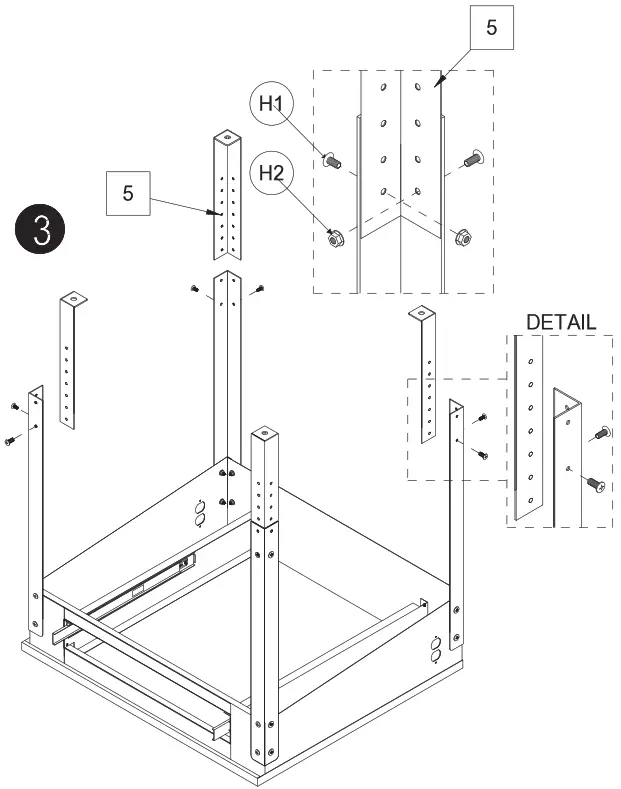

| 5 | 4 | LEG EXTENSION |

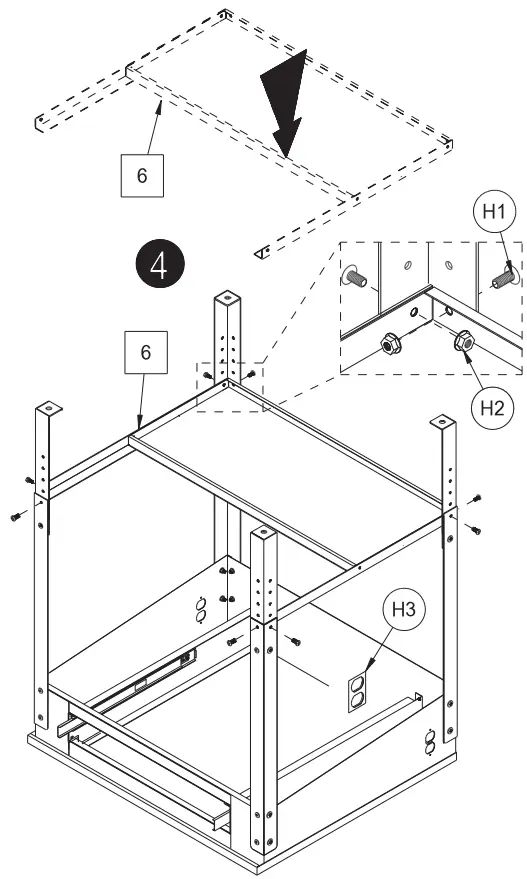

| 6 | 1 | LOWER SUPPORT SHELF |

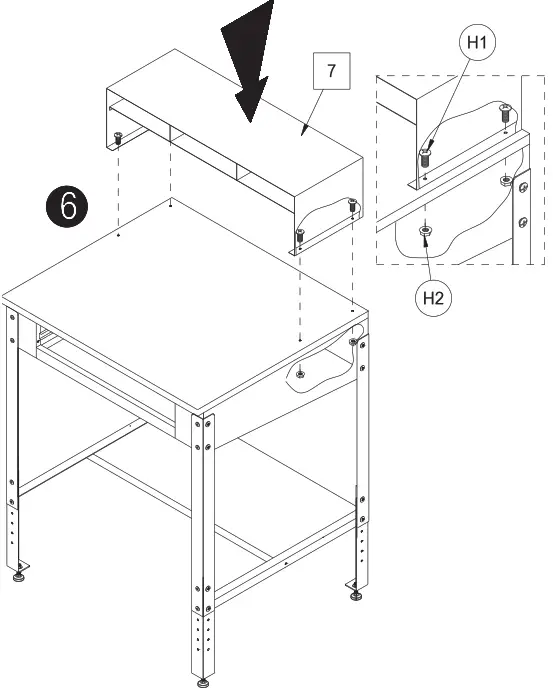

| 7 | 1 | PIGEON HOLE ORGANIZER |
| 8 | 1 | DRAWER |
| REF. | QTY | DESCRIPTION | |
| H1 | 44 | M6 x 1.0 x 12 mm Lg. Phillips Pan Head Screw |  |
| H2 | 44 | M6 Hex Serrated Flange Nut |  |
| H3 | 2 | Plastic Outlet Cover |  |

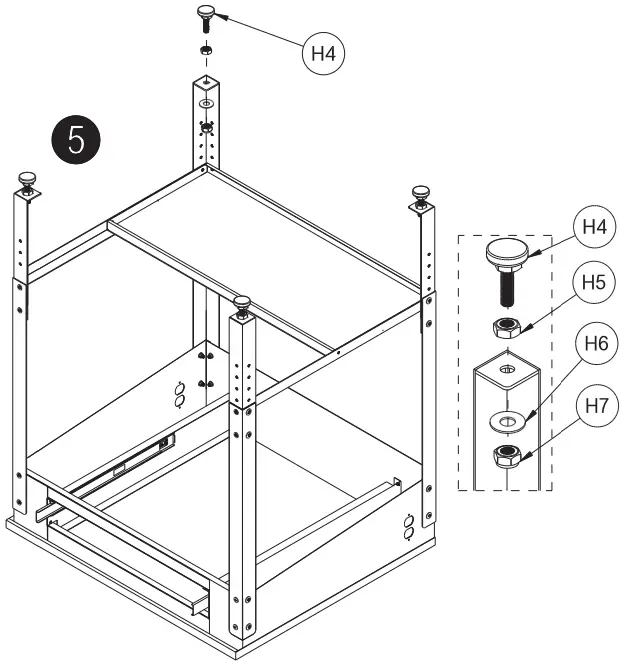

| H4 | 4 | M12 x 1.75 leveling fee |  |
| H5 | 4 | M12 Hex Nut |  |
| H6 | 4 | Plain Washer |  |
| H7 | 4 | M12 Hex Lock Nut |  |

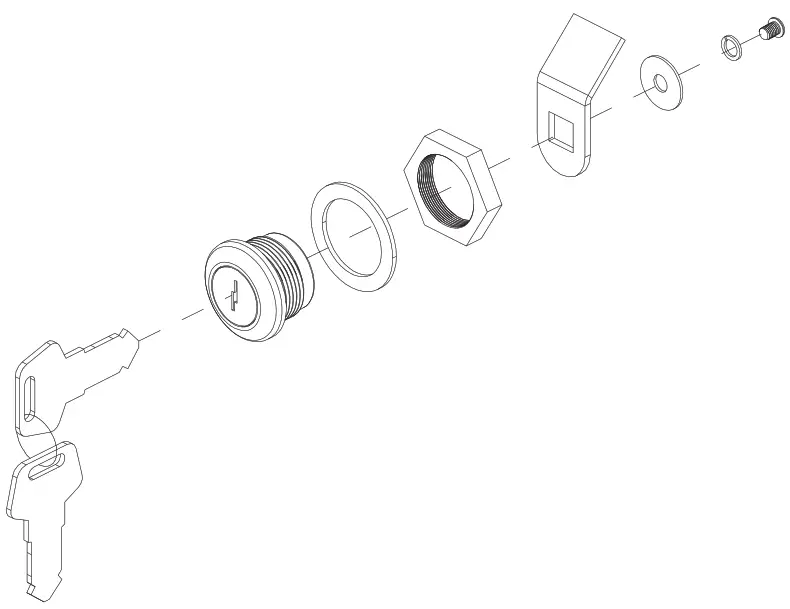

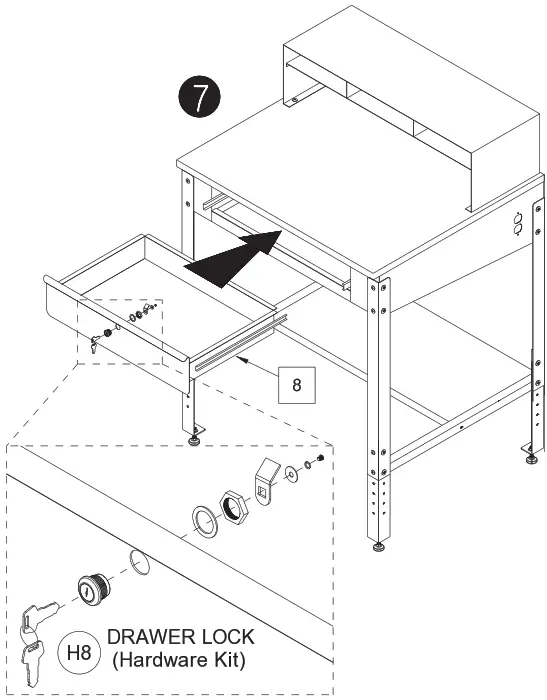

| H8 | 1(SET) | Lock Assembly |  |
 |  |
 |  |
 |  |

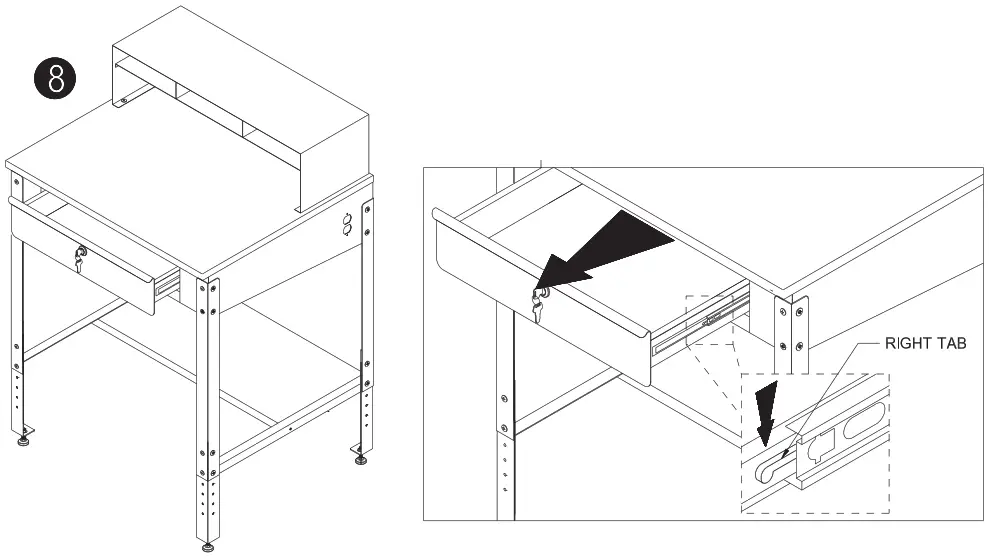

 |  NOTE: TO REMOVE DRAWER PUSH DOWN ON RIGHT TAB, AND PULL UP ON LEFT TAB. |
