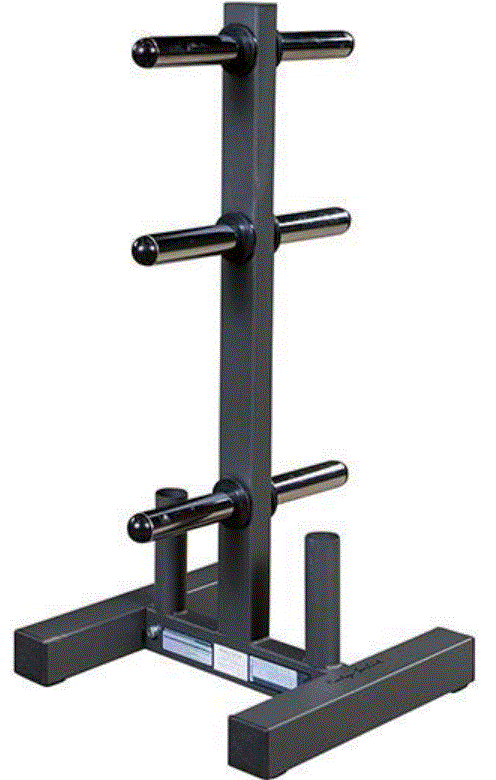

Torque Xg-opt-101 X-gym Olympic Plate Tree Installation Guide

TORQUE XG-OPT-101 X-Gym Olympic Plate Tree

Version: XG-OPT-101
Part #: 5884001-A

Product Parts List

Product Assembly Instructions

Tools Required

• Crescent wrench
• 17MM Wrench or Ratchet with 17MM socket
• Metric Allen wrenches (included)
• Wire snips (to cut plastic tie wraps)
• Scissors or utility knife (to cut hardware bags)

Optional Equipment

Optional equipment may be available for this product. Follow the instructions included with the optional equipment to assemble it to the base product.

Assembly Tips

• In a continual effort to improve our products, specifications are subject to change.
• A 6 scale is provided at the bottom of every page. To correctly measure the bolts, measure from underneath the bolt head to the end of the bolt as illustrated below.
• Read all notes on each page before beginning that step.
• Some of the items shown in the assembly steps may already be pre-assembled.
• Note: Some items have been hidden for assembly clarity.
• Note: Some pre-assembled parts may need to be temporarily removed in order to complete the step. Follow the instructions or damage to the product could occur.
• Some parts may have extra holes that will not be used. Use only the holes depicted in the instructions.
• Provide ample space around the product for ease of assembly.
• DO NOT fully tighten any connections until instructed to do so. This will help ensure that the alignment of all of the parts will be correct.
• Insert all bolts in the direction indicated in the instructions. Failure to do so may result in clearance issues and will degrade the aesthetics of the product.
• Carefully follow instructions for all pivot points. In general, primary rotating parts have connections that should be securely tightened, while secondary connections need to be loosen 1/4 turn.

Product Step-by-Step Assembly

Step 1

• Parts: M10 Flat Washer (2), M10 x 75 mm Bolt (4)
• Action: Securely tighten all bolt connections in this step.

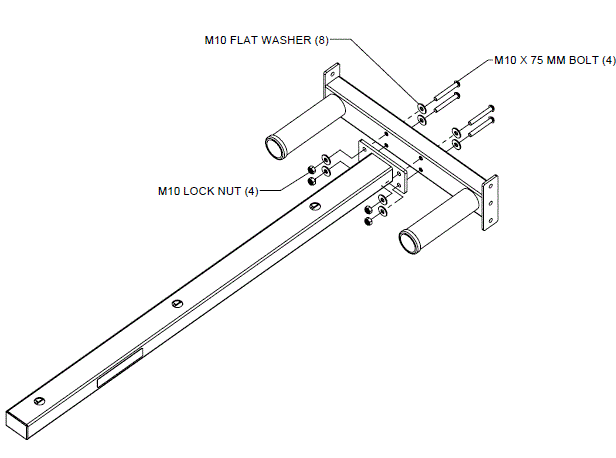

Step 2

• Parts: M10 Flat Washer (8), M10 Lock Nut (4), M10 x 75 mm Bolt (4)
• Action: Securely tighten all bolt connections in this step.

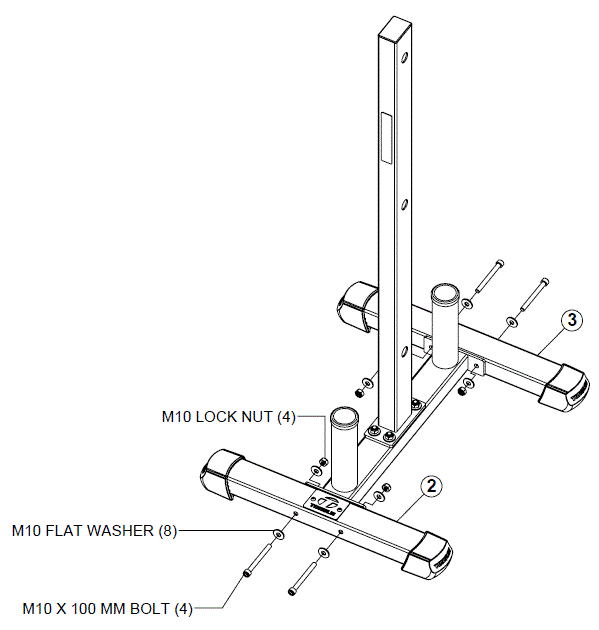

Step 3

• Parts: M10 Lock Nut (4), M10 Flat Washer (8), M10 x 100 mm Bolt (4)
• Action: Securely tighten all bolt connections in this step.

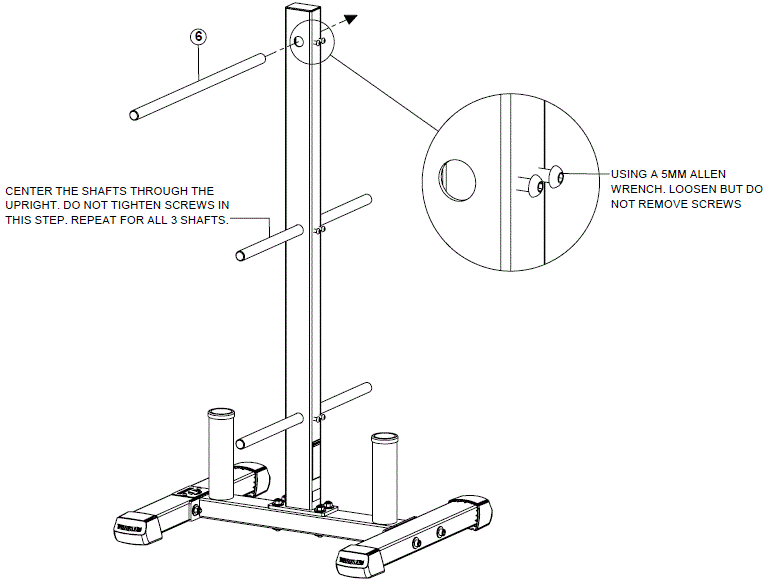

Step 4

• Action: Center the shafts through the upright. Do not tighten screws in this step. Repeat for all 3 shafts.

GENERAL NOTES

Unpacking the Equipment

• This product may be packaged and shipped in multiple boxes. Parts from all of the boxes are required for various steps during the assembly process.
• Carefully open each box and arrange all the parts near the area where assembly is to take place.
• CAUTION: Use extreme care when cutting plastic tie wraps and package banding. A wire cutter works best for protecting yourself and the parts.
• CAUTION: Some of the internal boxes may contain upholstery. Do not use a utility knife to open any boxes or the pads may be damaged.
• The hardware is packed in bags. Carefully open each bag and sort them per parts list on the next page.
• Before starting assembly, identify each part and hardware item as listed in the parts list on the next page. If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am – 5:00 pm CST). [email protected]

Note: Some items listed in the parts list may already be pre-installed on the product.

Tools Required

• Crescent wrench
• 17MM Wrench or Ratchet with 17MM socket
• Metric Allen wrenches (included)
• Wire snips (to cut plastic tie wraps)
• Scissors or utility knife (to cut hardware bags)

Optional Equipment

• Optional equipment may be available for this product.
• Follow the instructions included with the optional equipment to assemble it to the base product.

Assembly Tips

• In a continual effort to improve our products, specifications are subject to change.
• A 6″ scale is provided at the bottom of every page. To correctly measure the bolts, measure from underneath the bolt head to the end of the bolt as illustrated below.
• Read all notes on each page before beginning that step.
• Some of the items shown in the assembly steps may already be pre-assembled.
• Note: Some items have been hidden for assembly clarity.
• Note: Some pre-assembled parts may need to be temporarily removed in order to complete the step. Follow the instructions or damage to the product could occur.
• Some parts may have extra holes that will not be used. Use only the holes depicted in the instructions.
• Provide ample space around the product for ease of assembly.
• DO NOT fully tighten any connections until instructed to do so. This will help insure that the alignment of all of the parts will be correct.
• Insert all bolts in the direction indicated in the instructions. Failure to do so may result in clearance issues and will degrade the aesthetics of the product.
• Carefully follow instructions for all pivot points. In general, primary rotating parts have connections that should be securely tightened, while secondary connections need to be loosen 1/4 turn.

PART NUMBER

INSTALLATION INSTRUCTIONS

STEP 1

• SECURELY tighten all bolt connections in this step

STEP 2

STEP 3

STEP 4

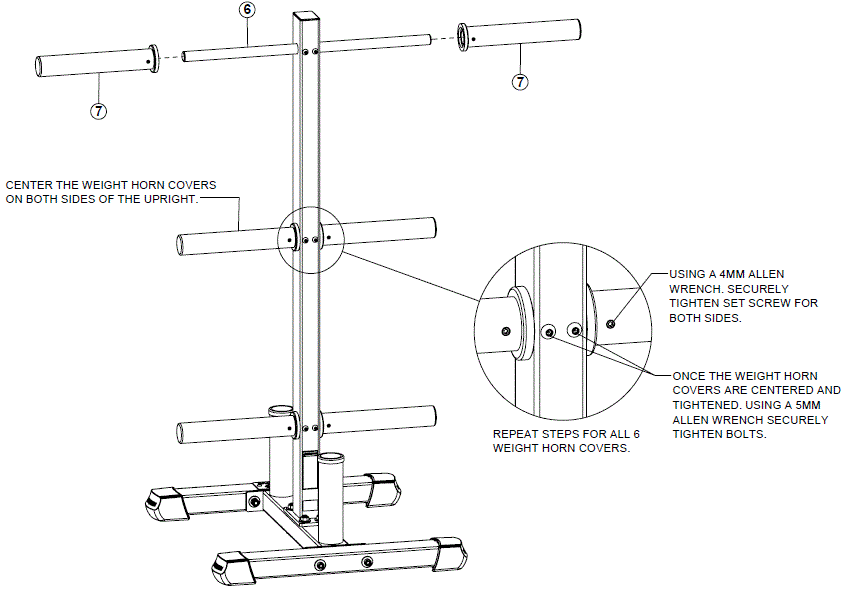

STEP 5

• SECURELY tighten all bolt connections in this step.

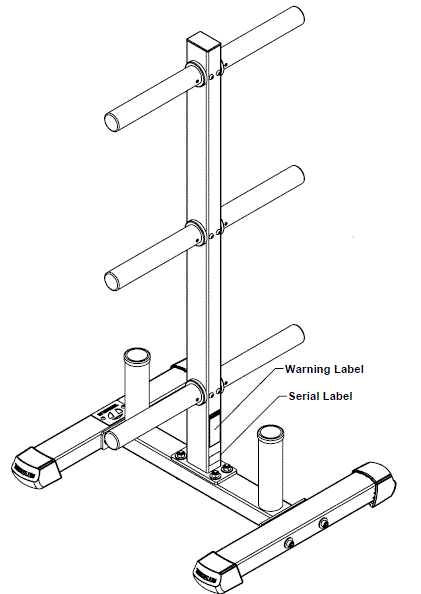

STEP 6

WARNING: ALWAYS USE CAUTION WHEN LOADING AND UNLOADING WEIGHT PLATES AND BARS.

MAINTENANCE

NUTS/BOLTS: Tighten and/or adjust as needed.

FRAME: Wipe down with a damp cloth

• For customer service contact Torque
• Fitness Customer service at: 763-754-7533 (8:30 am – 5:00 pm CST).
• [email protected]
