LAUFEN AW105 Actuator Plate
TECHNICAL DATA
| Order no. | 90010.5 |
| matching for | LAUFEN concealed cisterns CW102, order no. 92010.2, CW103, order no. 92010.3, CW104, order no. 92010.4, CW105, order no. 92010.5, CW106, order no. 92010.6, CWL102, order no. 92710.2, CWL103, order no. 92710.3, TW101, order no. 92610.1, TW102, order no. 92610.2 |
| Specification | For front/top operated, actuation force below 25 N. With chrome framed buttons. |
| Quality material | Plastic |
| Weight | 0,34 kg |
| Mounting acc. incl. | Support frame Fastening set |
| Colours | 000 – White 004 – Chrome 007 – Chrom matt |

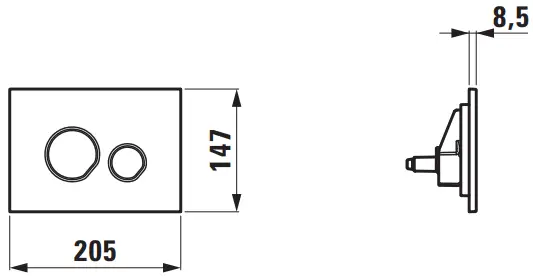

TECHNICAL DRAWINGS / S 1 : 10
