Uctronics U6162 Mounting Plate Installation Guide

Assembly Instruction
SKU: U6162

www.uctronics.com

PACKING LIST

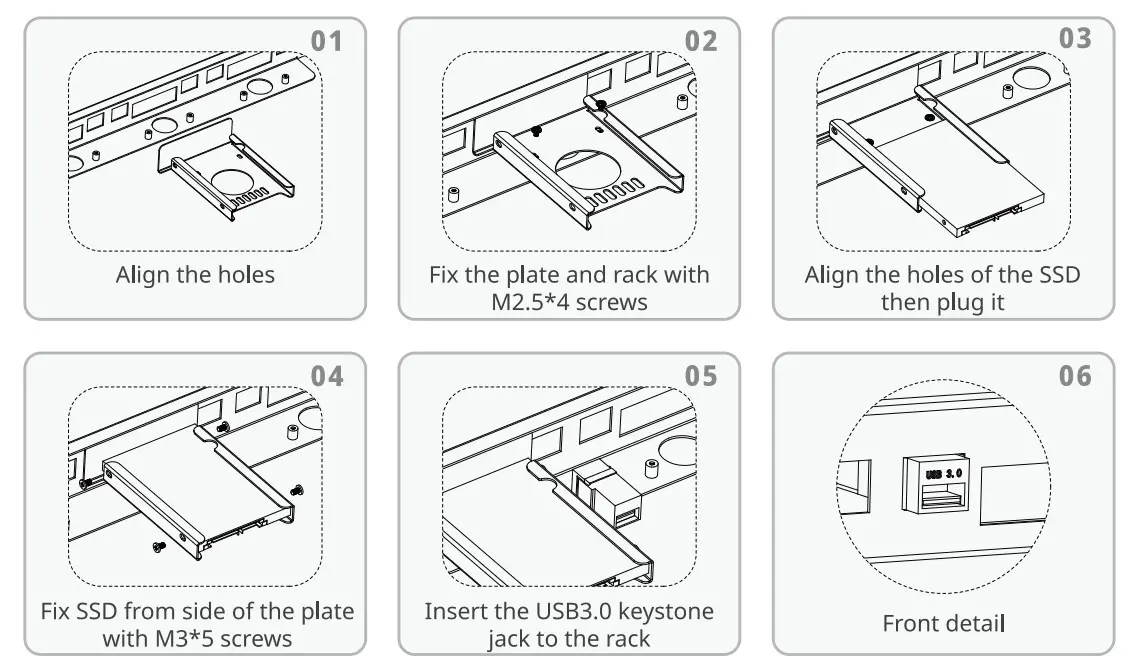

STEP

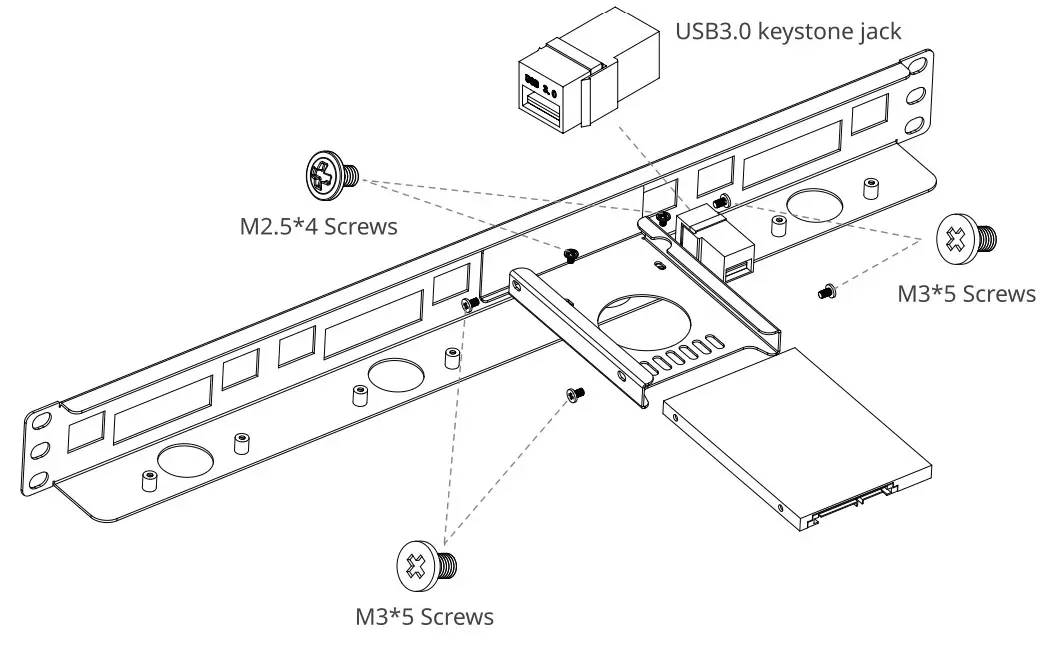

EXPLODED VIEW

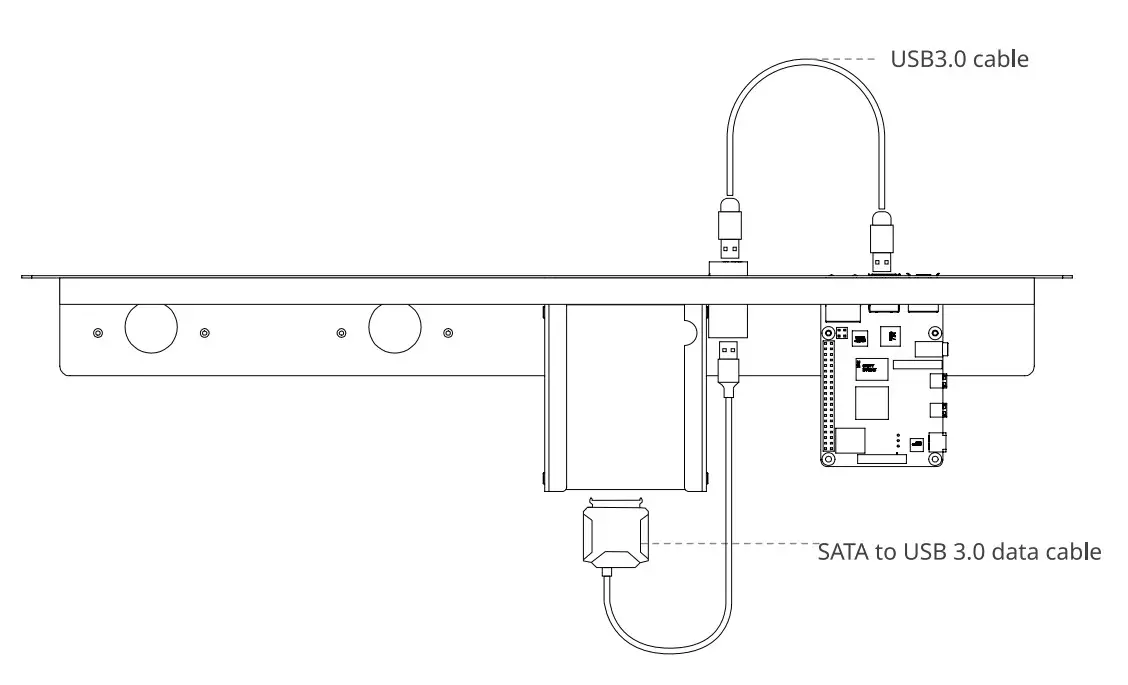

CONNECT

NOTE

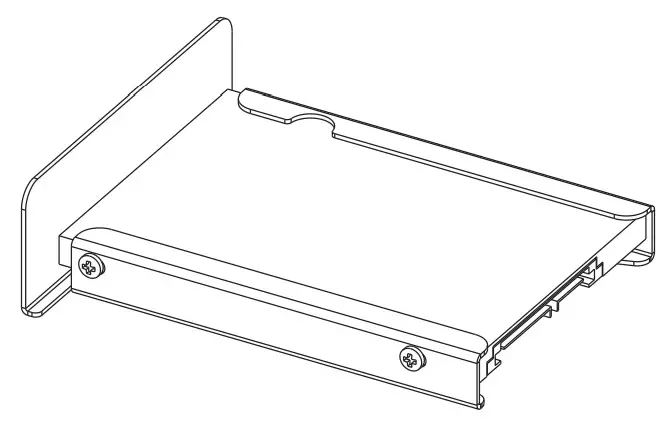

1. This assembly instruction applies to 7mm thick SSDs, if you are using a 9mm ssd, it is recommended to flip it over for installation.
2. If you need to disassemble the SSD frequently, do not install the screw near the USB3.0 keystone jack.
