Uctronics U6195 Front Removable Raspberry Pi 1u Rack Mount Installation Guide

 U6195 Front Removable Raspberry Pi 1U Rack Mount
Installation Guide

ASSEMBLY GUIDE
SKU: U6195

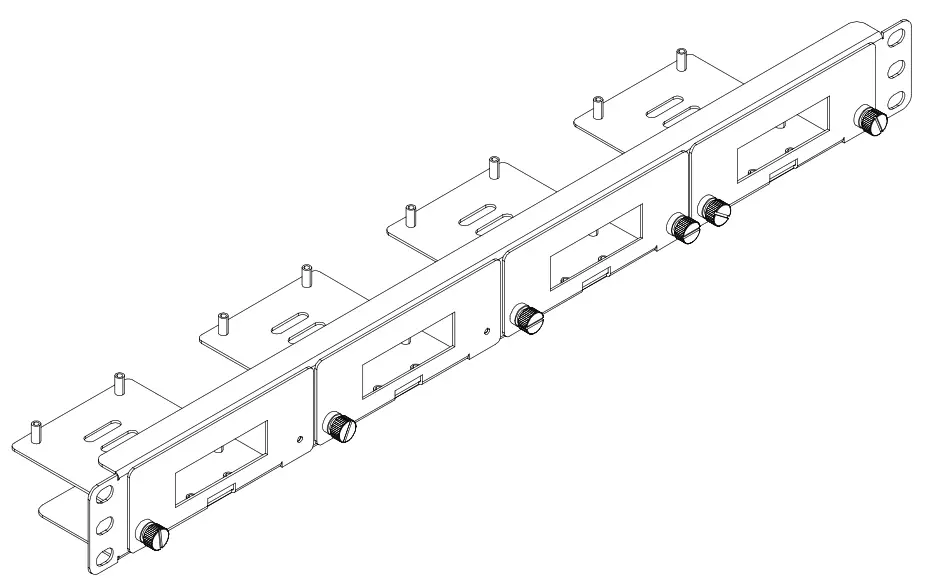

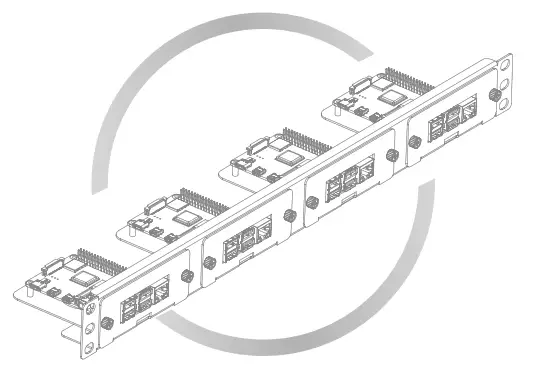

U6195 Front Removable Raspberry Pi 1U Rack Mount

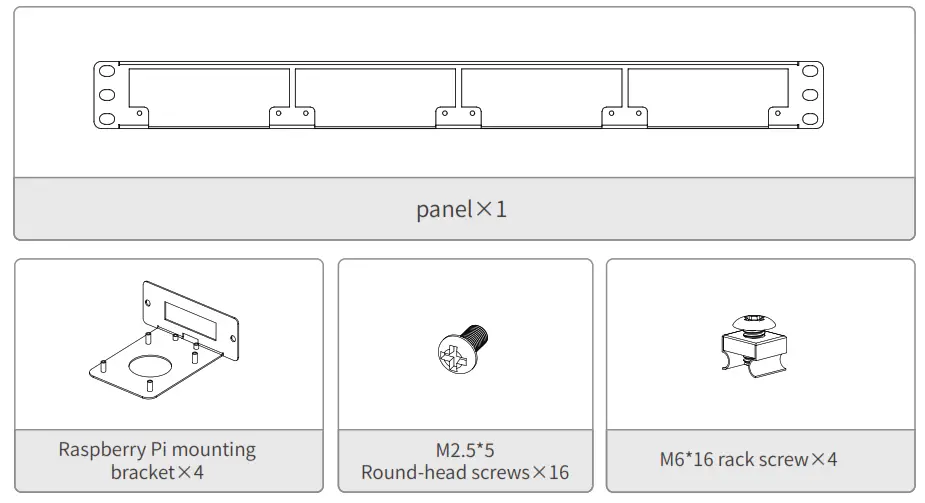

Package Contents

Raspberry Pi and SD card are not included.

Assembly Steps

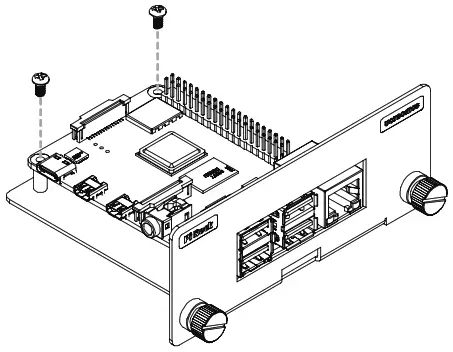

1. Mount the raspberry pi to the mounting bracket with M2.5*5 screws.

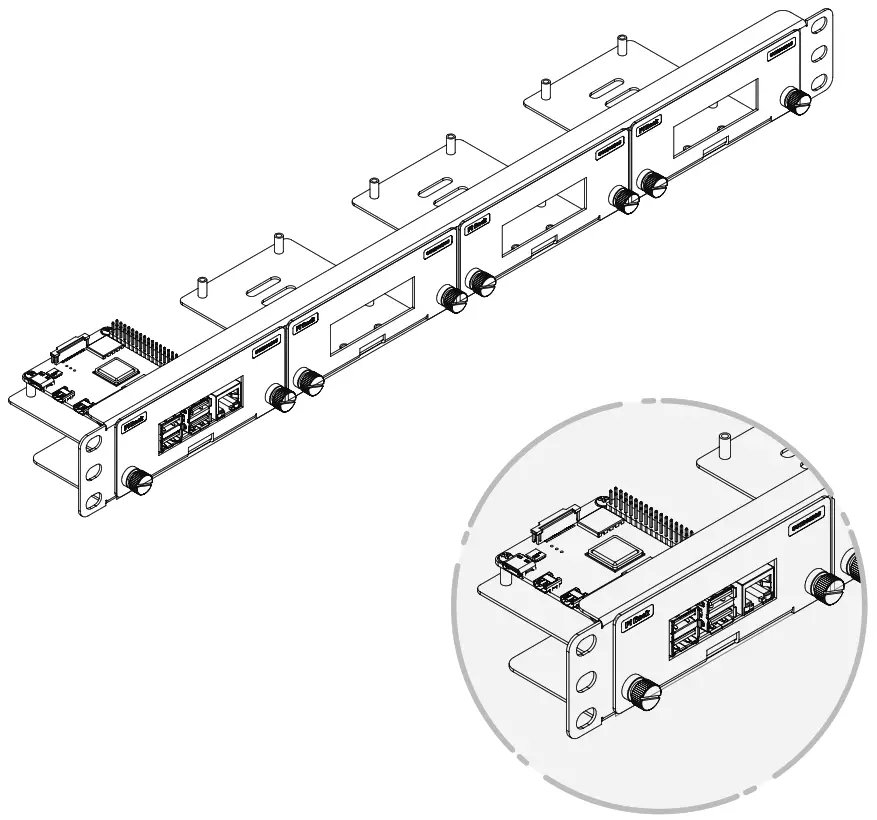

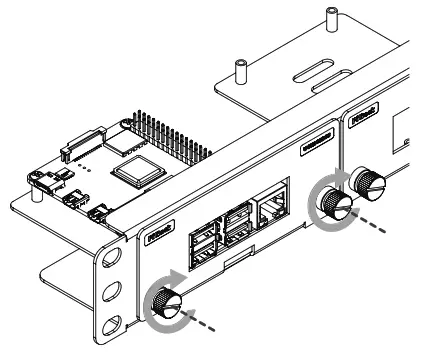

2. Insert the raspberry pi mounting brackets into the rack, and fix it with M4 thumbscrews.

www.uctronics.com

CONTACT US
If any problem, feel free to contact us.
Website: www.uctronics.com
Email: [email protected]
