MSEB-2610 Hirschmann T&M Sockets
User Manual
MSEB 2610 F 2,8 Au
| Product | MSEB 2610 F 2,8 Au |
| description | Miniature safety built-in socket, 2mm diameter, gold-plated brass. Flat push-on Connection 2.8×0.8mm complying with DIN 46244. For installation into the switch- panels and equipment Chassis till 8mm wall thickness. Installation hole: 8mm diameter |
| operating instruction | BA254 |

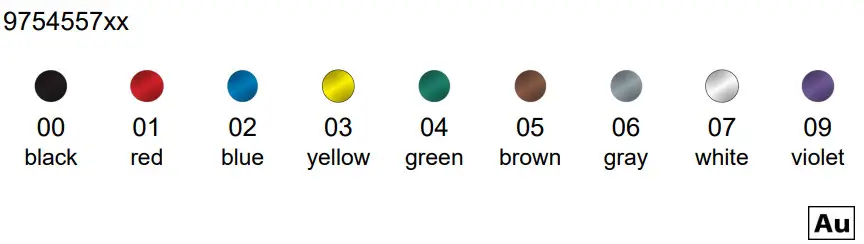

| article-no. / *colour |  |

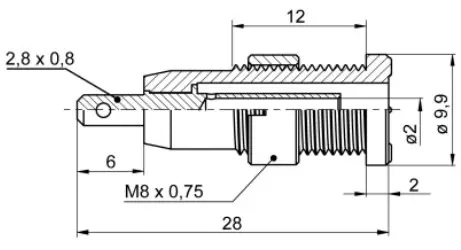

| drawing | |
 | |
| technical data | |
| connection | flat connector 2.8 x 0.8 mm |
| rated voltage(1) | AC/DC 1000 V |
| measurement cat. acc. to IEC 61010 | CAT III |
| rated current (consider derating curve) | 10 A |
| material socket | brass, gold plated |
| housing material | PA |
| temperature range acc. To IEC61010 (2) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic materials of housing) | V-2 |
| standard | IEC 61010 |
- for normal environmental conditions -5°C to +40°C
- contact the manufacturer for applications at deviating temperature ranges stand: 12.07.2019
