Kabel Kusch Ug 23 Sl-ta Solderless Socket User Manual

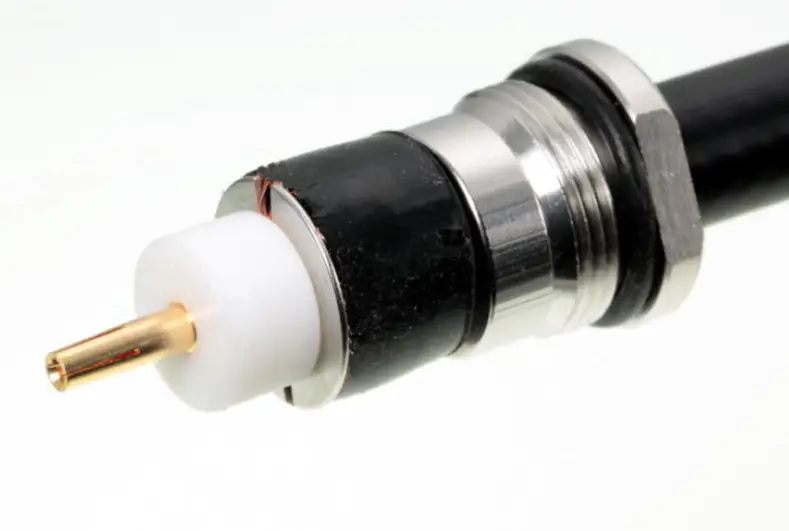

Kabel Kusch UG 23 SL-TA solderless socket

Assembly instruction

Assembly instruction for our solderless plug UG 23 SL-Ta with additional silicon-O-ring making a water solution

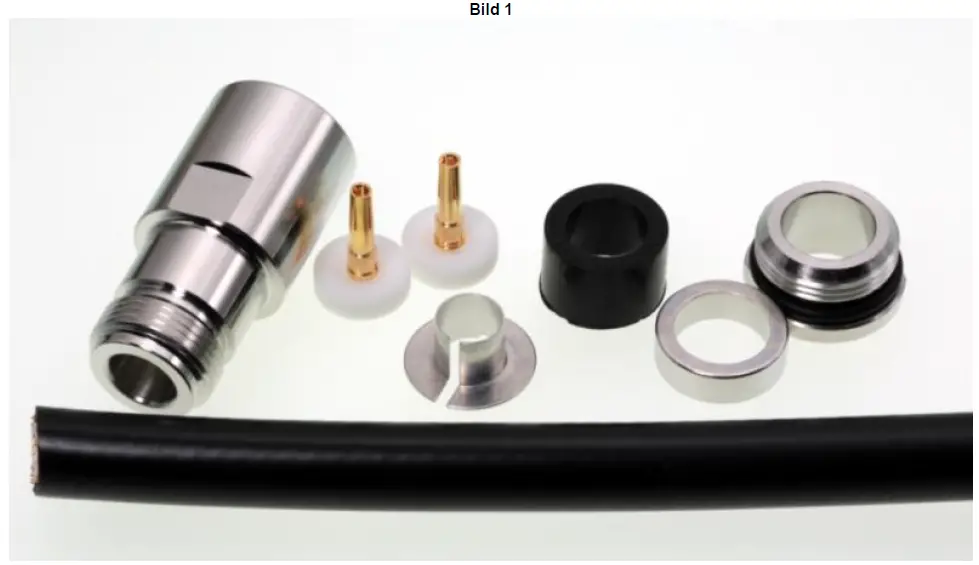

Bild 1

Parts

• 2 PTFE discs
• 2 center pins with different holes for different cable type
• double slotted clamp for the mass
• gasket
• washer hook
• nut with gasket

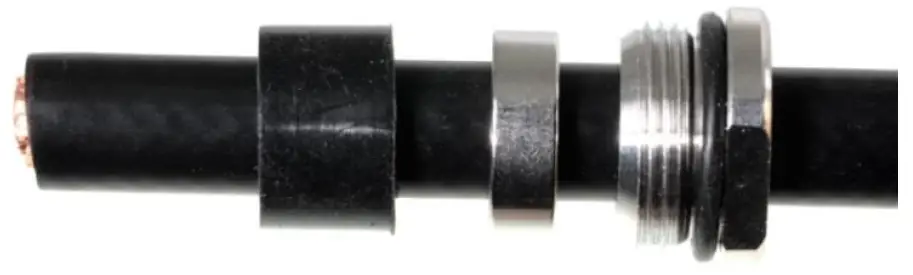

Bild 2

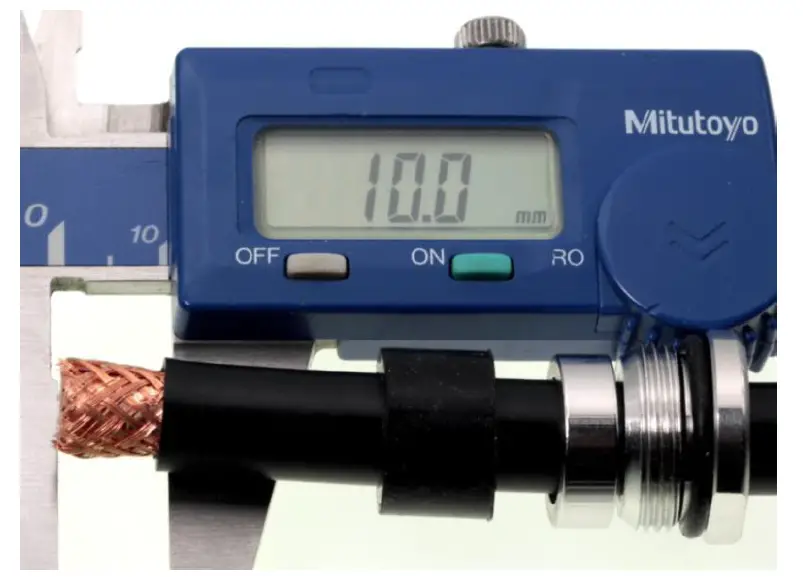

Bild 3

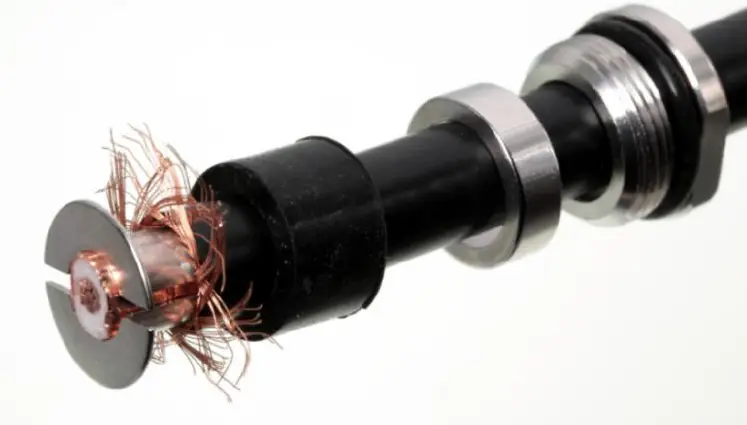

Bild 4

The clamp must be placed between the copper-foil and the braid.

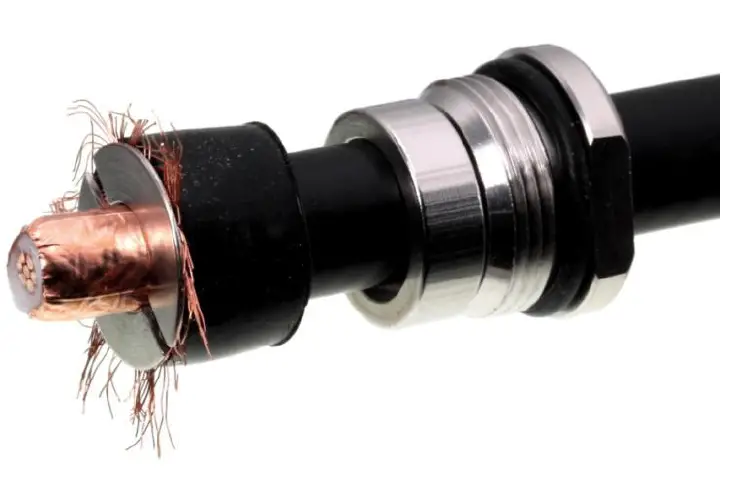

Bild 5

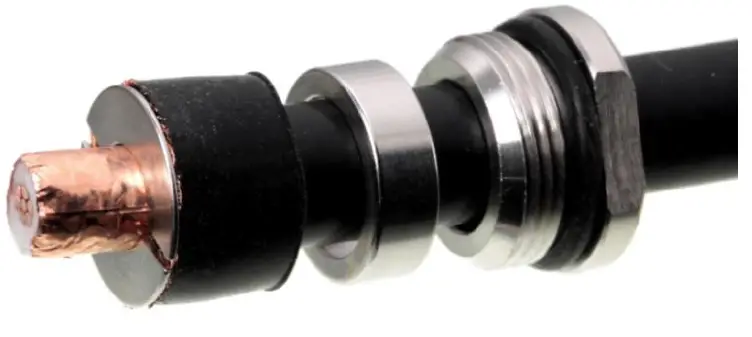

Bild 6

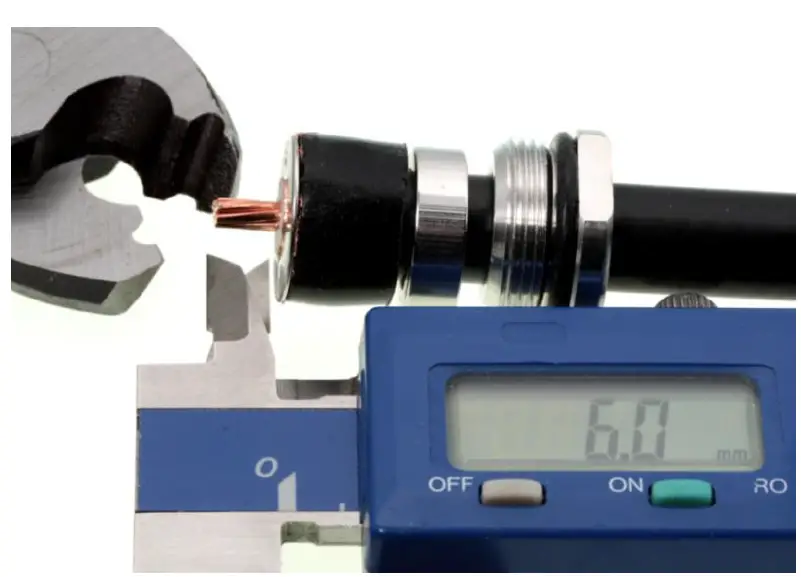

Bild 7

Our new coax cable pliers cut the center conductor very precisely without changing its inner structure. Thus you can easily place the center pin onto the cable.

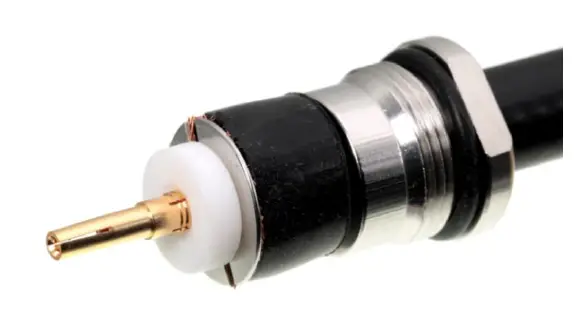

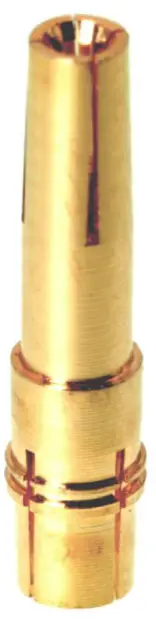

Bild 8 Bild 9

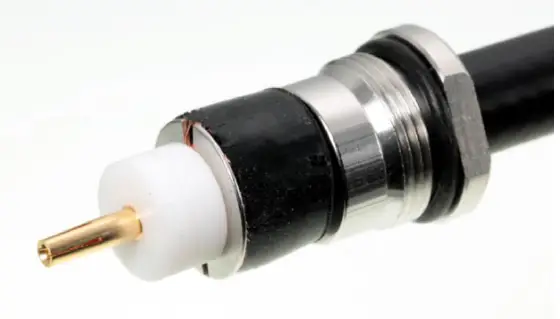

Bild 10

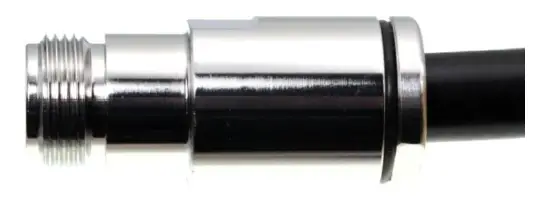

Bild 11

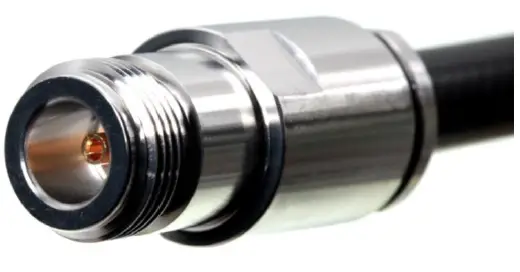

Bild 12

Please, do never forget to check, if there is a short-circuit!
Dealer enquiries wanted. We would like to prepare individual quotations for you.
