SKS MKU1 Hirschmann T&M Sockets

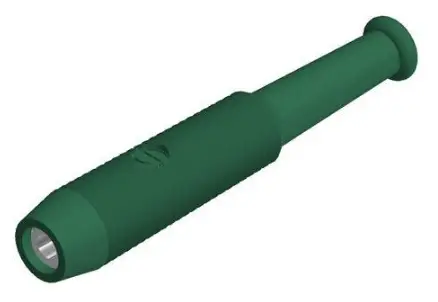

Product MKU 1
description
2 mm diameter miniature coupling, insulated, tin-plated copper beryllium contact spring with a solder connection. Flexible, shatter-proof insulated sleeve. For making up connecting leads with a maximum external diameter of 2 mm.
operating instruction
BA206
article-no./*colour
9303201xx

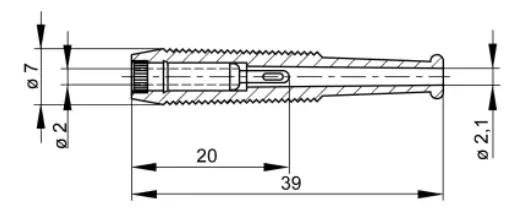

Drawing
Technical data
| technical data | |
| connection | solder connection |
| rated voltage(1) | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (3) |
| rated current(1) (consider derating curve) | 6 A |
| material socket | contact spring: copper – beryllium |
| housing material | PVC-P |
| standard | IEC 61010 |
- for normal environmental conditions -5°C to +40°C
- without rated measurement category, for other circuits that are not directly connected to mains stand: 10.01.2019
Contacts
- SKS Kontakttechnik GmbH
- Neue Schichtstraße 14 D-09366 Niederdorf
- Phone +49-37296-930-300
- Fax +49 37296-930-301
- www.sks-kontakt.de
- [email protected]
