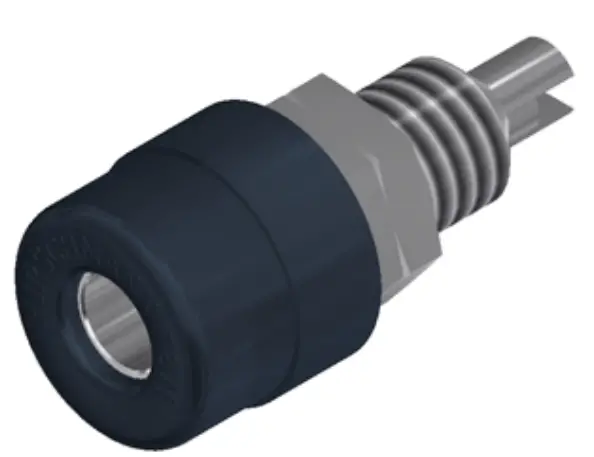

BIL 20
User Manual
| Product | BIL 20 |
| description | Socket with insulated head and ring for installation in equipment chassis and switch panels with a wall thickness up to 2 mm. 4 mm diameter tinplated zinc die-cast socket, with solder Connection and M6 thread. |
| operating instruction | BA403 |

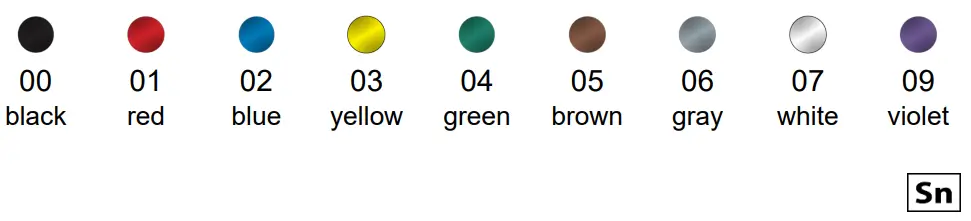

| article-no. / *colour | 9301761xx |

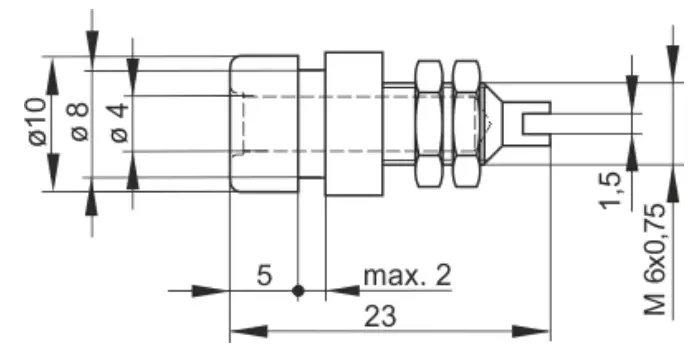

Drawing
Technical data
| Connection | M6 thread, solder connection |
| rated voltage(1) | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | 0 (3) |
| rated current(1) (consider derating curve) | 32 A |
| housing material | PA |
| temperature range acc. To IEC61010(2) | -25 °C to +85 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) | V-2 |
- for normal environmental conditions 5°C to 40°C
- contact the manufacturer for applications at deviating temperature ranges
- without rated measurement category, for other circuits that are not directly connected to mains stand: 16.08.2022
SKS Kontakttechnik GmbH
Neue Schichtstraße 14
D-09366 Niederdorf
Phone +49-37296-930-300
Fax +49 37296-930-301
www.sks-kontakt.de
[email protected]
