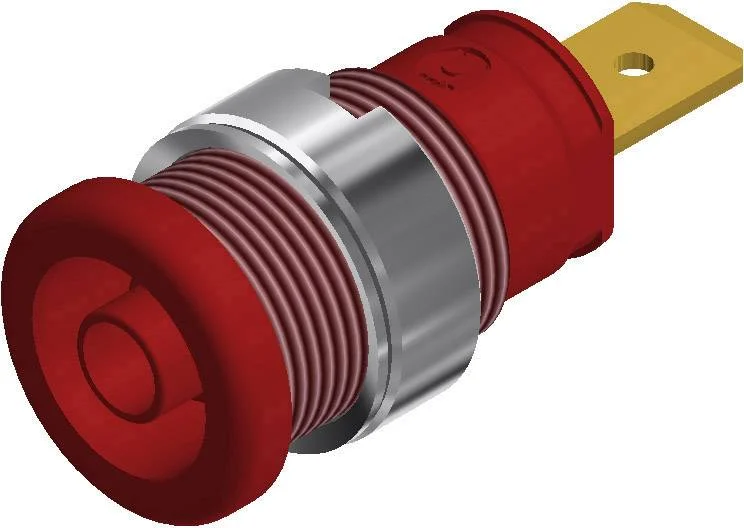

HIRSCHMANN SEB 2620 F6 3 Ni Safety Jack Socket Socket,Vertical Vertical
| Product | SEB 2620 F6,3 Ni | ||||
| description | Safety built-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, nickel-plated brass. For installation into switch panels and equipment chassis with wall thicknesses up to 6 mm. Installation hole: 12.2 mm diameter, Tightening torque: 50 Ncm, Accessory: assembly tool MW SEB | ||||
| operating instruction | BA451 | ||||
| article-no. / *colour | 9723562xx
|  |  |  |  |

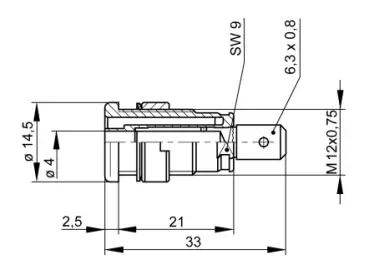

| drawing |  | ||||
| technical data | |||||
| connection | flat connector 6.3 x 0.8 mm | ||||
| rated voltage(1) | AC/DC 1000 V | ||||
| measurement cat. acc. to IEC 61010 | CAT III | ||||
| rated current(1) (consider derating curve) | 32 A | ||||
| material socket | brass, nickel plated | ||||
| housing material | PA | ||||
| temperature range acc. To IEC61010(2) | -40 °C to +80 °C | ||||
| inflammability class acc. to UL 94 (only valid for basic material of housing) | V-2 |
- for normal environmental conditions -5°C to +40°C
- contact the manufacturer for applications at deviating temperature ranges stand: 09.06.2022
SKS Kontakttechnik GmbH
- Address: Neue Schichtstraße 14 D-09366 Niederdorf
- Phone: +49-37296-930-300
- Fax: +49 37296-930-301
- www.sks-kontakt.de
- [email protected]
