00200774 Network Socket
Instruction Manual

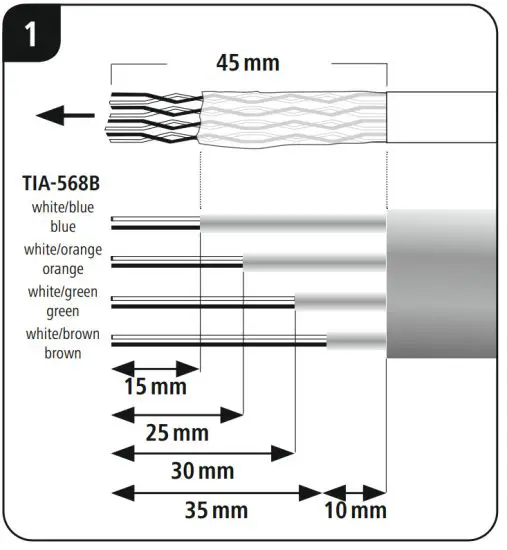

| TIA-568A | TIA-568B | |
| 1 | white/blue | white/blue |
| 2 | blue | blue |
| 3 | white/green | white/orange |
| 4 | green | orange |
| 5 | white/orange | white/green |
| 6 | orange | green |
| 7 | white/brown | white/brown |
| 8 | brown | brown |
 |  |
 |  |
Hama GmbH &CoKG
86652Monheim/Germany •www.hama.com
Compatible to CAT5,CAT 6,
CAT7,CAT 8-cable material
00200774, 00200775, 00300029
