Hama 121965 Usb Socket Adapter Instruction Manual

Hama 121965 Usb Socket Adapter Instruction Manual

hama - LOGOTHE SMART SOLUTION
00121965

USB-Steckdosenadapter

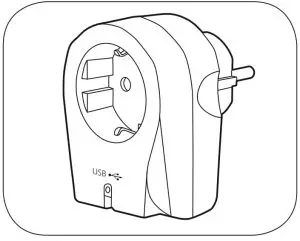

USB Socket Adapterhama 121965 USB Socket Adapter - FIG

Operating instruction

Safety Noteshama 121965 USB Socket Adapter - ICON1hama 121965 USB Socket Adapter - ICON

  • Use the product for its intended purpose only.
  • Do not operate the product outside the power limits given in the specifications.
    • Protect the product from dirt, moisture, and overheating, and only use it in an adry environment.
  • Do not use the product in moist environments and avoid splashes.
  •  Do not bend or crush the cable.
  • Do not drop the product and do not expose it to any major shocks.
  • Always pull directly on the plug when disconnecting the cable, never on the cable itself.
  • Keep this product, like all electrical products, out of the reach of children!
  •  Dispose of packaging material immediately according to locally applicable regulations.
  •  Do not modify the product in any way. Doing so voids the warranty.
  • The product is intended for private, non-commercial use only.
  • The product is intended for indoor use only.
  •  Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
  •  Use the item only in moderate climatic conditions.
  • Do not use the product in areas where the use of electronic devices is not permitted.
  • Lay all cables so that they do not pose a tripping hazard.

hama 121965 USB Socket Adapter - ICON Risk of electric shock

  •  Do not open the device or continue to operate it if it becomes damaged.
  •  Do not use the product if the AC adapter, the adapter cable, or the main cable are damaged.
  •  Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

hama 121965 USB Socket Adapter - ICON1 Warning

  • Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
  • Disconnect the product from the power supply using the On/Off switch –if this is not available, unplug the power cord from the socket.
  • If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
  • If you will not be using the product for a prolonged period, disconnect it from mains power.

hama 121965 USB Socket Adapter - ICON2 Notes

  • Disconnect the product from the power supply after use.
  • Note that simultaneous charging of two devices will cut the charging current in half and the charging time for the devices will here for ebetwice as long.
  • Disconnect the device from the power supply before cleaning it or if it is not going to be used for a long period of time.

Technical Data

Mains supply230 V~ /50Hz/max. 3680 W

Specifications in accordance with Regulation (EU) 2019/1782

Manufacturer’sname or trademark, commercial  registration number, and addressHama, HRA12159, Dresdner Str. 9, 86653Monheim
Model identifier00121965
Input voltage230 V
Input AC frequency50 Hz
Output voltage / Output current / Output power5.0 VDC/ 2.1 A/ 10.5 W
Average active efficiency79.8 %
Efficiency at low load (10 %)76.05 %
No-load power consumption0.08 W

3. Recycling Information Note on environmental protection:
hama 121965 USB Socket Adapter - ICON3After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies:  Electric and electronic devices, as well as batteries, must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual, or the package indicates that a product is subject to these regulations. By recycling, reusing the materials, or other forms of utilizing old devices/Batteries, you are making an important contribution to protecting our environment.

hama - LOGOHama GmbH &CoKG
86652 Monheim /Germany
Service &Support
www.hama.com
+49 9091 502-0

hama 121965 USB Socket Adapter - ICON4All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment is applied.
