maiwe MIEN2205 Industrial Ethernet Switch
Packing list
The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maine for assistance.
| Items | Quantity | Remarks |
| Industrial Ethernet Switch | 1PCS | |
| User Manual | 1PCS |
Product description

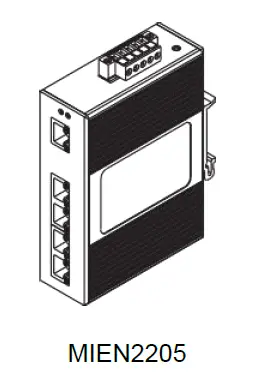

This series of switches are unmanaged din-rail industrial Ethernet switches. MIEN2205 supports 100M Ethernet ports (5*100M copper ports).

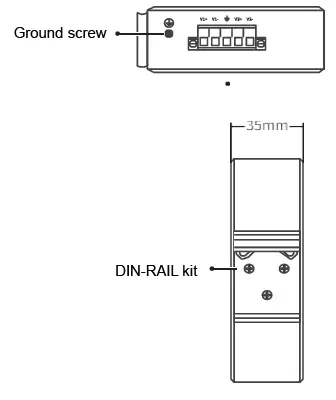

Interface description
| Item | Description |
|
Ground screw | Crimp one end of the grounding screw with the cold-pressed terminal. The other end of the grounding wire is connected to the ground, and the grounding wire is not less than 2.5mm2 |
| Power interface | Support Dual DC12-48V |
| Ethernet RJ45 port | Supports automatic MDI/MDI-X connection. You can connect the switch to terminal devices, servers, hubs, or other switches. |
| Din-rail kit | To fix the switch. |
The indicator description of the switch is shown in the following table.
| Indicator lights | Status | Definition |
| System Status LED | ||
| PWR1/PWR2 | On | The power is connected and operating normally |
| Off | The power is not connected or the system is not operating normally | |
| RUN | Flashing | The system is operating normally (some models are always on to indicate normally) |
| Off | The system is not working properly | |
| Fiber Port Status LED | ||
| LINK | On | The port has established a valid network connection |
| Flashing | There is a network activity on the port | |
| Off | No valid network connection is established on the port | |
| RJ45 Port Status LED | ||
| Each RJ45 port has two indicator lights, the yellow light is the port plastic rate indicator, the The green light is the port connection status indicator. | ||
| 10/100M (Yellow) | On | 100M working state (namely 100Base-TX) |
| Off | 10M working status (namely 10Base-T) | |
| Link/Act (Green) | On | The port has established a valid network connection |
| Flashing | There is a network activity on the port | |
| Off | No valid network connection is established on the port | |
Hardware installation
Installation and safety Precautions
To prevent equipment damage or personal injury caused by improper use, observe the following precautions:
- During the installation process, you need to wear anti-static gloves or anti-static gloves, and power of the switch.
- Please make sure that the input voltage is within the input voltage range marked on the switch.
- The transmission distance has a certain relationship with the connected wire. It is recommended to use a standard Cat5e/6 network cable.
- The equipment must be grounded for lightning protection, otherwise, the protection level of the equipment will be greatly reduced; please use a wire of No. 20 or more to connect the grounding terminal to the ground.
- The power line, ground line, and signal line are laid out separately and the distance is not less than 5cm.
- Please pay attention to the symbol below for marking the label.

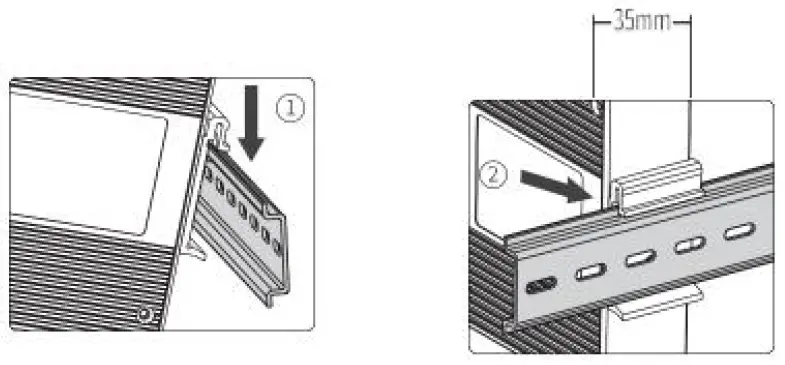

Device installation - Tilt the switch upwards so that the upper end of the buckle is fastened to the upper end of the DIN rail.

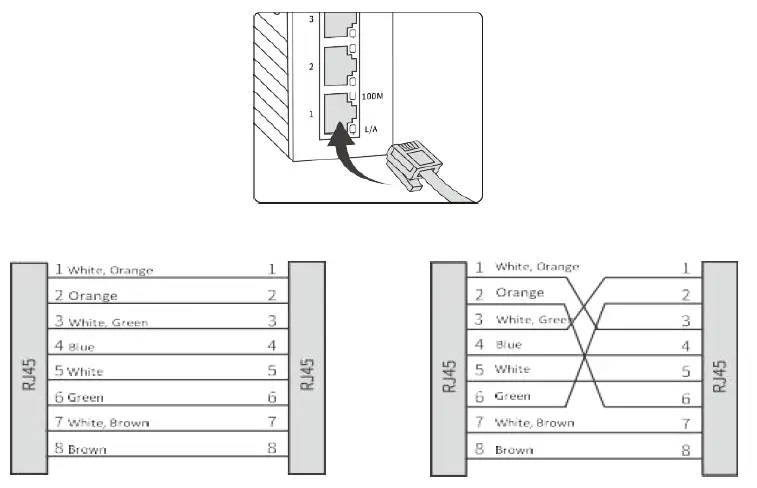

- Network cables connection
Connect the optical fiber and network cable to the port in the correct
- Optical fiber connection
Connect the optical fiber to the corresponding optical fiber interface. The optical fiber interface is used in pairs (TX and RX as a pair), TX is the optical receiver, and RX is the optical sender.
Warning
Hot Parts
- Burned fingers when handling the parts
- Wait one-half hour after switching off before handling the parts

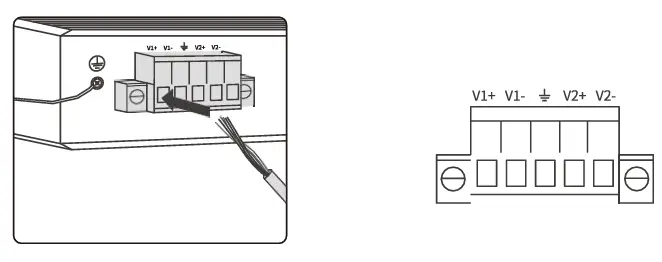

Power input
Before connecting the power cord, make sure that the ground is connected. To connect the power cord to the power terminal of the device according to the definition.
Notes
- When using a switch, the voltage can only be input from V1+ and V1-, V1+ connects to live wire L, and V1- to neutral wire N. Do not connect from V2+, V2-; pay attention to safety and prevent electric shock.
- Power-on operation: First connect the power cord to the power terminal of the device according to the definition shown in the figure above, and then power on.
- Power-off operation: first unplug the power plug, and then remove the power cord.
| MIEN2205 | |
| Switch properties | |
| Bandwidth | 1G |
| Cache size | 748Kbit |
| MAC table size | 2K |
| Port | |
| 100M Copper port | 5*10/100Base-T(X) RJ45 ports |
| Full-duplex/half-duplex adaptive supports MDI/MDI-X adaptive | |
| Power | |
| Consumption | 1.5W@24V(MAX) |
| Working current | 0.5A |
| DC power input | DC12-48V d.c. |
| Supports dual power supply redundancy and reverse connection protection | |
| Mechanical | |

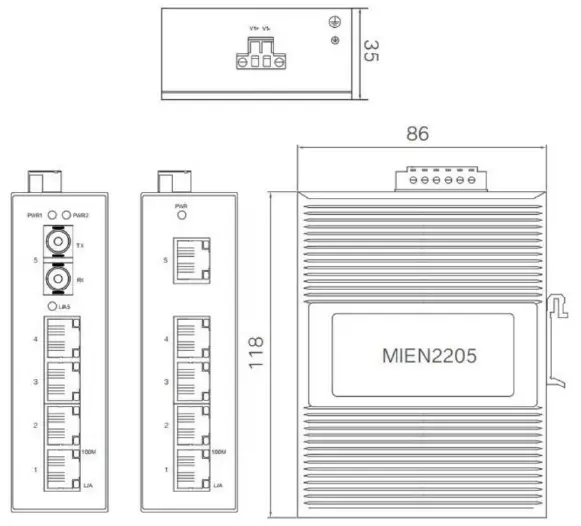

| Size | 118mm×35mm×86mm（L×W×H）(not include din-rail) |
| Installation | 35mm standard din-rail |
| Heat | Aluminum alloy single-rib chassis surface scattered |
| Weight | about 0.64kg |
| Working Environment | |
| Working Temp. | -40℃~85℃ |
| Storage Temp. | -40℃~70℃ |
| Humidity | 5%~95%(No condensation) |
| Safety | |
| Safety | UL/CSA/IEC/EN 62368-1, 2nd |
| EMC | |
Order guide
| Item | 10/100Base-T(X) | 100Base-FX | Power |
| MIEN2205 | 5 | 0 | DC: DC12-48V d.c |
Pledge
Thank you for purchasing Maiwe products. You will enjoy the following services when using Maiwe products. We solemnly promise: under normal use, one month’s return, one-year free maintenance, a five-year warranty, and lifetime maintenance. The specific details are as follows:
- If Maiwe products have quality problems and cannot work normally, they will be refunded for one month, free maintenance for one year, warranty for five years, and maintenance for life.
- If the number of repaired products is less than 10, the repair service will be completed within 7 days (excluding transportation time), and the repair service will be completed within one month for more than 10 sets.
- Optical passive products such as optical fibers, optical cables, jumpers, flanges, and optical cable terminal boxes are guaranteed within two years, but no return service is provided.
- The accessories and power supply that come with the product are guaranteed for one year.
- When sending the product back to Maiwe for repair, it is recommended that the customer use the original packaging or the packaging with the same protective effect, otherwise, the customer shall bear the risks that occur during the transportation.
- The repaired product can enjoy another 6 months of warranty service.
- The product after-sales service is detailed in the purchase and sale contract, and Maiwe has the final interpretation right of this description.
Wuhan Maiwe Communication Co., Ltd.
- Add Building E2, No. 2 Building, Area E, No. 52 Liufang Avenue, East Lake High-tech Development Zone, Wuhan, China.
- Tel: 027-87170215/16 Fax: 027-87170217
- Post Code: 430205
- Site: www.maiwe.com.
Statement
Due to the continuous updating and improvement of products and technologies, the contents of this manual will be updated from time to time. All the information in the manual is only used for instructions, if the content in the text does not completely match the actual product, please understand and please contact our customer service in time.
Copyright 2021 Maiwe Communication All rights reserved. The right to interpret the information published in this material belongs to Wuhan Maiwe Communication Co., Ltd.
