Industrial Ethernet Switch
User manual
MIEN1203-F MIEN2204-2F
MIEN2205 MIEN2205-F
Packing list
The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maiwe for assistant.
| Items | Quantity | Remarks |
| Industrial Ethernet Switch | 1PCS | |
| Power cord | 1PCS | AD220 model only |
| User Manual | 1PCS |
Product description
This series switches are unmanaged din-rail industrial Ethernet switch.

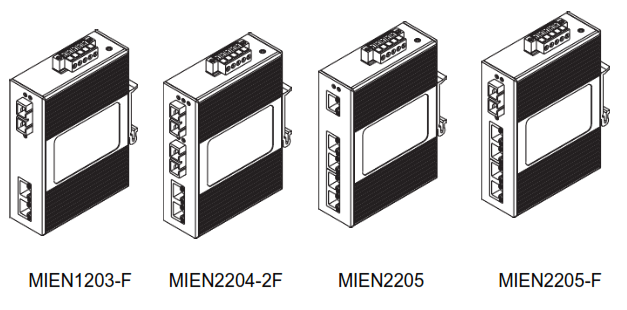

MIEN1203-F supports 3 100M Ethernet ports (1*100M fiber port and 2*100M copper ports); MIEN2205 supports 100M Ethernet ports (5*100M copper ports); MIEN2205F supports 5 100M Ethernet ports (1 100M fiber port and 4 100Mcopper port).
Interface description

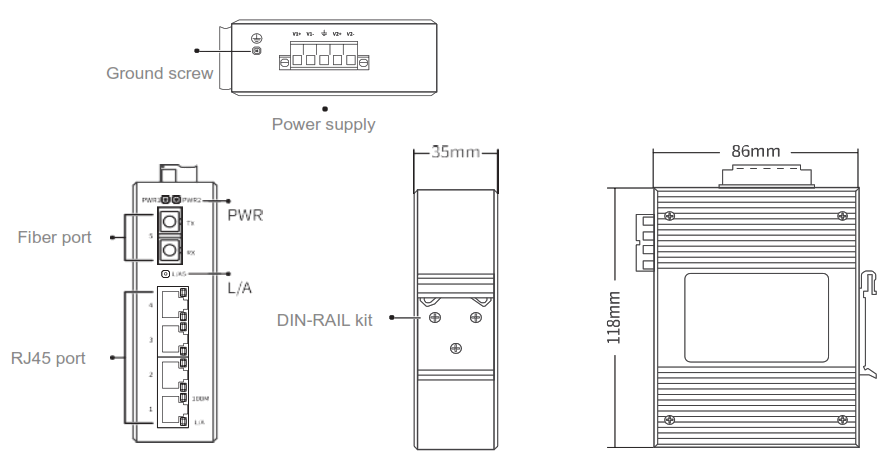

Take MIEN2205-F as an example
| Item | Description |
| Ground screw | Crimp one end of the grounding screw with the cold-pressed terminal. The other end of the grounding wire is connected to the ground, and the grounding wire is not less than 2.5mm2 |
| Power interface | Support Dual DC12-48V or DC48 (36~72V). Support single power input AC85-264V or DC110-370V. |
| Ethernet RJ45 por | Supports automatic MDI/MDI-X connection. You can connect the switchto terminal devices, servers, hubs, or other switches. |
| Fiber port | The 100M fiber port is a 100Base-FX full-duplex single-mode or multi-mode fiber connector, which support single-fiber or dual- fiber connectors, and the connector can be SC, ST or FC. The optical fiber connectors must be used in pairs (TX and RX are a pair). |
| Din-rail kit | To fix the switch. |
The indicator description of the switch is shown in the following table.
| Indicator lights Status Definition | ||
| System Status LED | ||
| PWR1/PWR2 | On | The power is connected and operating normally |
| Off | The power is not connected or the system is not operating normally | |
| RUN | Flashing | The system is operating normally (some models are always on to indicate normally) |
| Off | The system is not working properly | |
| Fiber Port Status LED | ||
| LINK | On | The port has established a valid network connection |
| Flashing | There is network activity on the port | |
| Off | No valid network connection is established on the port | |
| RJ45 Port Status LED | ||
| Each RJ45 port has two indicator lights, the yellow light is the port plastic rate indicator, the green light is the port connection status indicator. | ||
| 10/100M (Yellow) | On | 100M working state (namely 100Base-TX) |
| Off | 10M working status (namely 10Base-T) | |
| Link/Act (Green) | On | The port has established a valid network connection |
| Flashing | There is network activity on the port | |
| Off | No valid network connection is established on the port | |
Hardware installation
Installation Precautions
To prevent equipment damage or personal injury caused by improper use, observe the following precautions:
- During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Please make sure that the input voltage is within the input voltage range marked on the switch.
- The transmission distance has a certain relationship with the connected wire. It is recommended to use a standard Cat5e/6 network cable.
- The equipment must be grounded for lightning protection, otherwise the protection level of the equipment will be greatly reduced; please use a wire of No. 20 or more to connect the grounding terminal to the ground.
- The power line, ground line and signal line are laid out separately and the distance is not less than 5cm.
Device installation

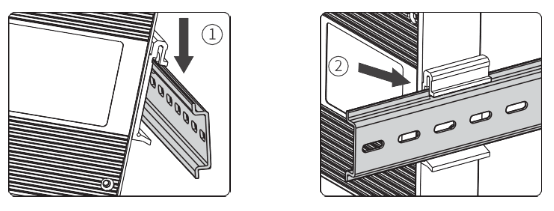

- Tilt the switch upwards so that the upper end of the buckle is fastened to the upper end of the DIN rail.
- The lower end of the back buckle is buckled into the DIN rail.
Device connection

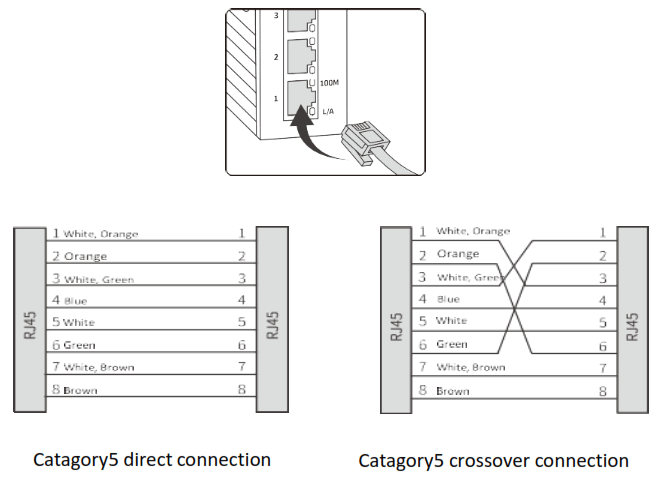

- Network cables connection Connect the optical fiber and network cable to the port in the correct
Optical fiber connection
Connect the optical fiber to the corresponding optical fiber interface. The optical fiber interface is used in pairs (TX and RX as a pair), TX is optical receiver, RX is
optical sender.
Warning
- Signals were transmitted by laser through optical fiber. The laser meets the requirement of class I, no harm with normal operation. Do not look directly into the fiber port and the end of the optical fiber terminator.
- Dust plugs need to be installed when optical connectors and optical modules are not in use. Dust caps need to be installed when optical fibers are not in use.
- The bending radius of optical fiber should be greater than 20 times the diameter of the optical fiber. In general, the bending radius should be equal to or greater than 40mm.
Power input

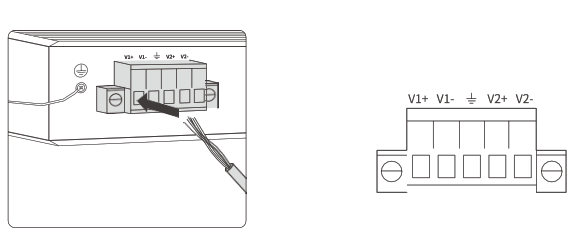

Before connecting the power cord, make sure that the ground is connected. Do connect the power cord to the power terminal of the device according to the definition.
Notes
- When using a switch, the voltage can only be input from V1+ and V1-, V1+ connectto live wire L, and V1- to neutral wire N. Do not connect from V2+, V2-; pay attentioto safety and prevent electric shock.
- Power-on operation: First connect the power cord to the power terminal of thdevice according to the definition shown in the figure above, and then power on.
- Power-off operation: first unplug the power plug, and then remove the power cord
Specifications
| MIEN1203-F | MIEN2204-2F | MIEN2205 | MIEN2205-F | |
| Switch properties | ||||
| Bandwidth | 1G | |||
| Cache size | 748Kbit | |||
| MAC table size | 2K | |||
| Port | ||||
| 100M Fiber port | 1*100Base-FX | 2*100Base-FX | / | 4*100Base-FX |
| SC/FC/ST connectors are available | ||||
| 100M Copper port | 2*10/100Base-T(X) RJ45 ports | 5* 10/100Base-T(X) RJ45 ports | 4* 10/100Base-T(X) RJ45 ports | |
| Full-duplex/half-duplex adaptive, supports MDI/MDI-X adaptive | ||||
| Power | ||||
| Consumption | 1.5W@24V (MAX) | 2.3W@24V (MAX) | 1.5W@24V(MAX) | |
|
DC powerinput | DC12〜48V, DC48V(36-72V) | DC9-60V | DC12〜48V, DC48V(36-72V) | |
| Supports dual power supply redundancy and reverse connection protection | ||||
| AC power input | AC85~264V（frequency：47~63Hz）or DC110~370V | |||
| Mechanical | ||||
| Size | 118mm×35mm×86mm（L×W×H）(not include din-rail) | |||
| Installation | 35mm standard din-rail | |||
| Heat | Aluminum alloy single-rib chassis surface scattered | |||
| IP protection | IP40 | |||
| Weight | about 0.64kg | |||
| Working Environment | ||||
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Humidity | 5%~95%(No condensation) |
| EMC | |
| EMC | IEC61000-4-2(ESD),Level 4 IEC61000-4-5(Surge),Level 4※Ethernet ports support 6KV lightning protection IEC61000-4- 4(EFT),Level 4 IEC61000-4-3(RS),Level 4 IEC61000-4-6(CS),Level 4 |
Order guide
| Item | 10/100Base-T(X) | 100Base-FX | Power |
| MIEN1203-F | 2 | 1 | DC: DC12~48V, DC48V(36~72V) MIEN2204 is DC9~60V※ AC: AC85~264V (frequency: 47~63Hz) or DC110~370V |
| MIEN2204-2F | 2 | 2 | |
| MIEN2205 | 5 | 0 | |
| MIEN2205-F | 4 | 1 |
Pledge
Thank you for purchasing Maiwe products. You will enjoy the following services when using Maiwe products.
We solemnly promises: under normal use, one month’s return, one-year free maintenance, five-year warranty, and lifetime maintenance. The specific details are as follows:
- If Maiwe products have quality problems and cannot work normally, they will be refunded for one month, free maintenance for one year, warranty for five years, and maintenance for life.
- If the number of repaired products is less than 10, the repair service will be completed within 7 days (excluding transportation time), and the repair service will be completed within one month for more than 10 sets.
- Optical passive products such as optical fibers, optical cables, jumpers, flanges, and optical cable terminal boxes are guaranteed within two years, but no return service is provided.
- The accessories and power supply that come with the product are guaranteed for one year.
- When sending the product back to Maiwe for repair, it is recommended that the customer use the original packaging or the packaging with the same protective effect, otherwise the customer shall bear the risks that occur during the transportation.
- The repaired product can enjoy another 6 months warranty service.
- The product after-sales service is detailed in the purchase and sale contract, and Maiwe has the final interpretation right of this description.
Statement
Due to the continuous updating and improvement of products and technologies, the contents of this manual will be updated from time to time. All the information in the manual is only used for instructions, if the content in the text does not completely match the actual product, please understand and please contact our customer service in time.
Copyright 2021 Maiwe Communication All rights reserved.
The right to interpret the information published in this material belongs to Wuhan Maiwe Communication Co., Ltd.
