Maiwe MIGE2206G-2GF-4GT Industrial Ethernet Switch
Packing list
The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maiwe for assistant
| Items | Quantity | Remarks |
| Industrial Ethernet Switch | 1PCS | |
| Power cord | 1PCS | AD220 model only |
| User Manual | 1PCS |
Product description

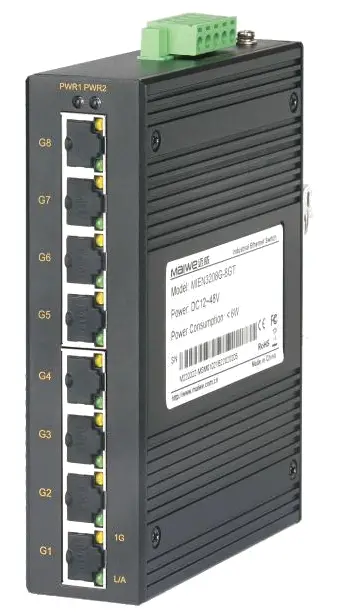

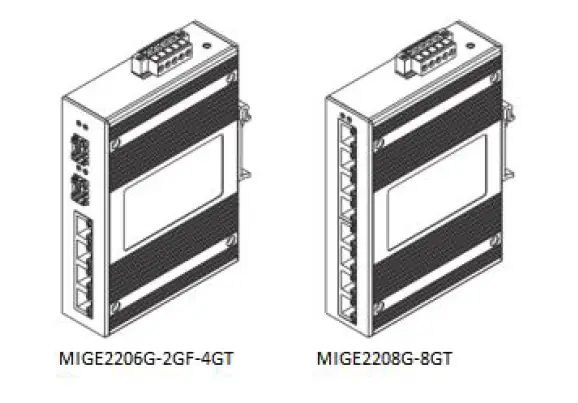

The switch is a full Gigabit unmanaged industrial managed din-rail industrial Ethernet switch. MIEN3206G-2GF-4GT provides 6 Gigabit Ethernet ports (2 Gigabit SFP ports and 4 Gigabit copper ports). MIEN3208G-8GT provides 8 Gigabit Ethernet ports (8 Gigabit copper ports).

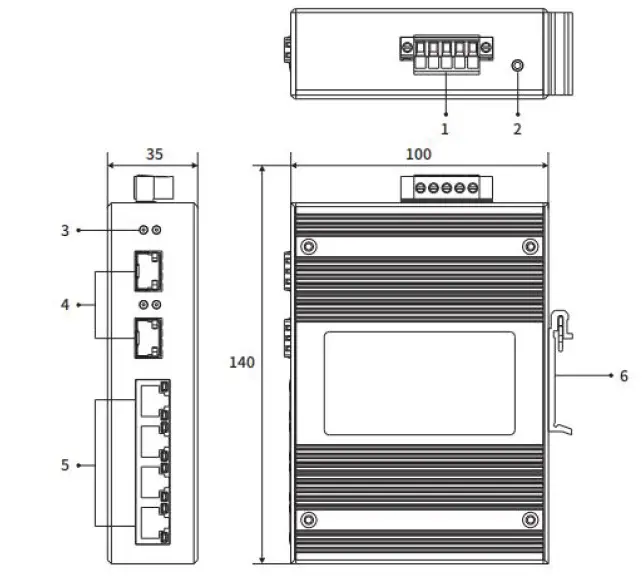

Unit:mm Take MIGE2206G-2GF-4GF as example
| 1.Power input terminal | 4.Gigabit SFP ports |
| 2. Ground screw | 5. Gigabit RJ45 ports |
| 3.Indicator light | 6.Din rail kit |
The indicator description of the switch is shown in the following table.
| Indicator lights | Status | Definition |
| System status LED | ||
| PWR | On | Power is connected and operating normally |
| Off | The power is unconnected or the system is abnormal | |
| RUN | Blinking | System operates normal |
| Off | System operates abnormal | |
| Fiber Status LED | ||
|
L/A1/G1 | On | The port has established a valid network connection |
| Blinking | The port has network activity | |
| Off | The port has not established a valid network connection | |
| Ethernet RJ45 Status LED | ||
| Each Ethernet RJ45 port has two indicator lights,The yellow light is the port rate indicator, and the green is the port | ||
| 10/100/1000M (Yellow) | On | 1000M work status (1000Base-TX） |
| Off | 10M/100Mwork statues（10Base-T or 100 Base-TX） | |
|
LINK/ACT (Green) | On | The port has established a valid network connection |
| Blinking | The port has network activity | |
| Off | The port has not established a valid network connection | |
Hardware installation
Installation Precautions
To prevent equipment damage or personal injury caused by improper use, observe the following precautions:
- During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Please make sure that the input voltage is within the input voltage range marked on the switch.
- The transmission distance has a certain relationship with the connected wire. It is recommended to use a standard Cat5e/6 network cable.
- The equipment must be grounded for lightning protection, otherwise the protection level of the equipment will be greatly reduced; please use a wire of No. 20 or more to connect the grounding terminal to the ground.
- The power line, ground line and signal line are laid out separately and the distance is not less than 5cm.
Device installation

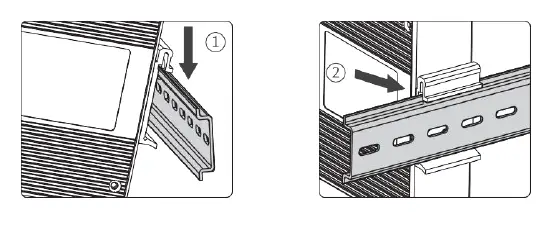

- Tilt the switch upwards so that the upper end of the buckle is fastened to the upper end of the DIN rail.
- The lower end of the back buckle is buckled into the DIN rail.

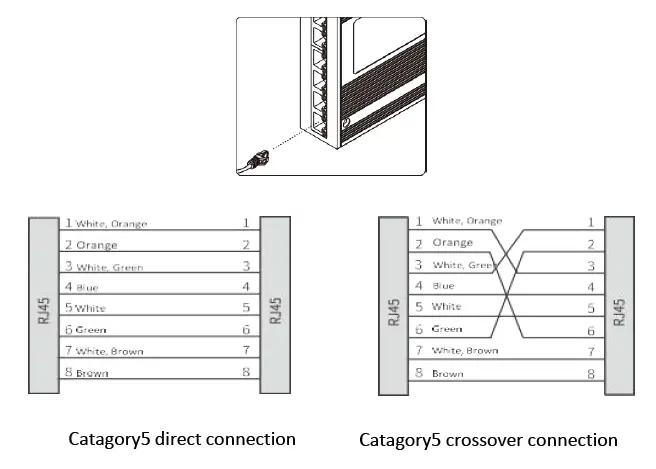

- Network cables connection
Connect the optical fiber and network cable to the port in the correct
Warning
- Signals were transmitted by laser through optical fiber. The laser meets the requirement of class I, no harm with normal operation. Do not look directly into the fiberport and the end of the optical fiber terminator.
- Dust plugs need to be installed when optical connectors and optical modules are not in use. Dust caps need to be installed when optical fibers are not in use.
- The bending radius of optical fiber should be greater than 20 times the diameter of the optical fiber. In general, the bending radius should be equal to or greater than 40mm.
Power input

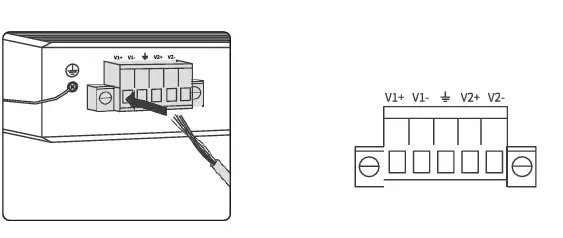

Before connecting the power cord, make sure that the ground is connected. Do connect the power cord to the power terminal of the device according to the definition
Notes
- When using a switch, the voltage can only be input from V1+ and V1-, V1+ connects to live wire L, and V1- to neutral wire N. Do not connect from V2+, V2-; pay attention to safety and prevent electric shock.
- Power-on operation: First connect the power cord to the power terminal of the device according to the definition shown in the figure above, and then power on.
- Power-off operation: first unplug the power plug, and then remove the power cord.
Specifications
| MIGE2206G-2GF-4GT | MIGE2208G-8GT | |
| Switch performance | ||
| Bandwidth | 14G | 16G |
| Cache size | 2Mbit | 1.5Mbit |
| MAC table size | 2K | 4K |
| Interface | ||
| Gigabit SFP port | 2x1000Base-X | / |
| SFP slot | ||
| Gigabit RJ45 port | 4* 10/100/1000MBase-TX RJ45 ports | 8* 10/100/1000MBase-TX RJ45 ports |
| Full duplex/half duplex self-adaptation, support MDI/MDI-X self-adaptation | ||
| Power | ||
| Power consumption | 3.5W@24V（Max） | 2.5W@24V（Max） |
|
DC input |
DC9-60V | DC9-60optional, support dual power supply, and reverse connection protection. |
| AC input | AC85~264V (frequency: 47~63Hz) or DC110~370V | |
| Mechanical | ||
| Size | 140×35mm×100mm(H×W×D)(Excluding DIN rail) | |
| Installation method | 35mm standard DIN rail installation | |
| Heat dissipation form | Aluminum alloy single-rib chassis surface heat dissipation, fanless | |
| IP protection | IP40 | |
| Weight | About 0.44kg | |
| Working environment | ||
| Operating temp. | -40～+85℃ | |
| Storage temp. | -40～+85℃ | |
| Humidity | 5～95% (No condensation) | |
| Industry standard | ||
|
EMC | IEC61000-4-2(ESD), Level4 IEC61000-4-5(Surge), Level4 IEC61000-4-4(EFT), Level4 IEC61000-4-3(RS), Level4 IEC61000-4-6(CS), Level4 ※The network port supports 6KV lightning protection | |
Order guide
| Model | Gigabit SFP | Gigabit RJ45 | Power supply |
| MIGE2206G-2GF-4GT | 2 | 4 | DC9-60V or AC85-264V (frequency: 47~-63Hz) or DC110-370V optional |
| MIGE2208G-8GT | 0 | 8 |
Pledge
Thank you for purchasing Maiwe products. You will enjoy the following services when using Maiwe products. We solemnly promises: under normal use, one month’s return, one-year free maintenance, five-year warranty, and lifetime maintenance. The specific details are as follows:
- If Maiwe products have quality problems and cannot work normally, they will be refunded for one month, free maintenance for one year, warranty for five years, and maintenance for life.
- If the number of repaired products is less than 10, the repair service will be completed within 7 days (excluding transportation time), and the repair service will be completed within one month for more than 10 sets.
- Optical passive products such as optical fibers, optical cables, jumpers, flanges, and optical cable terminal boxes are guaranteed within two years, but no return service is provided.
- The accessories and power supply that come with the product are guaranteed for one year.
- When sending the product back to Maiwe for repair, it is recommended that the customer use the original packaging or the packaging with the same protective effect, otherwise the customer shall bear the risks that occur during the transportation.
- The repaired product can enjoy another 6 months warranty service.
- The product after-sales service is detailed in the purchase and sale contract, and Maiwe has the final interpretation right of this description.
Wuhan Maiwe Communication Co., Ltd.
Add: Building E2, No. 2 Building, Area E, No. 52 Liufang Avenue, East lake High-tech Development Zone, Wuhan, China.
Tel: 027-87170215/16 Fax: 027-87170217
Post Code: 430205
Site: www.maiwe.com
Statement
Due to the continuous updating and improvement of products and technologies, the contents of this manual will be updated from time to time. All the information in the manual is only used for instructions, if the content in the text does not completely match the actual product, please understand and please contact our customer service in time.
Copyright 2021 Maiwe Communication All rights reserved.
The right to interpret the information published in this material belongs to Wuhan Maiwe Communication Co., Ltd.
