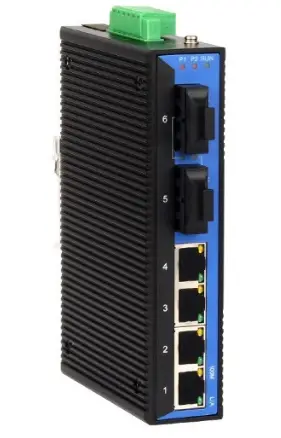

Maiwe MIEN2206-2F Industrial Ethernet Switch
Packing list
The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maiwe for an assistant.
| Items | Quantity | Remarks |
| Industrial Ethernet Switch | 1PCS | |
| Power cord | 1PCS | AD220 model only |
| User Manual | 1PCS | |
| Product certificate | 1PCS |
Product Description

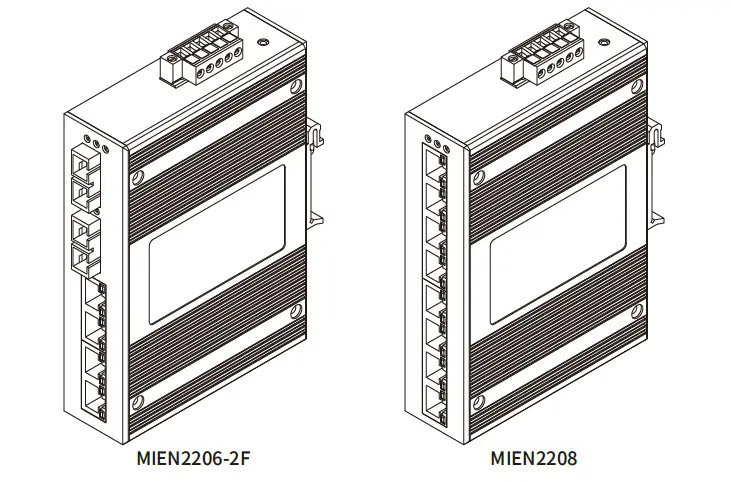

This switch is a 100M unmanaged din-raill industrial Ethernet switch. MIEN2206-2F provides 6x100M Ethernet interfaces (2x100M fiber ports and 4x100M copper ports); MIEN2208 provides 8 x100M Ethernet ports.

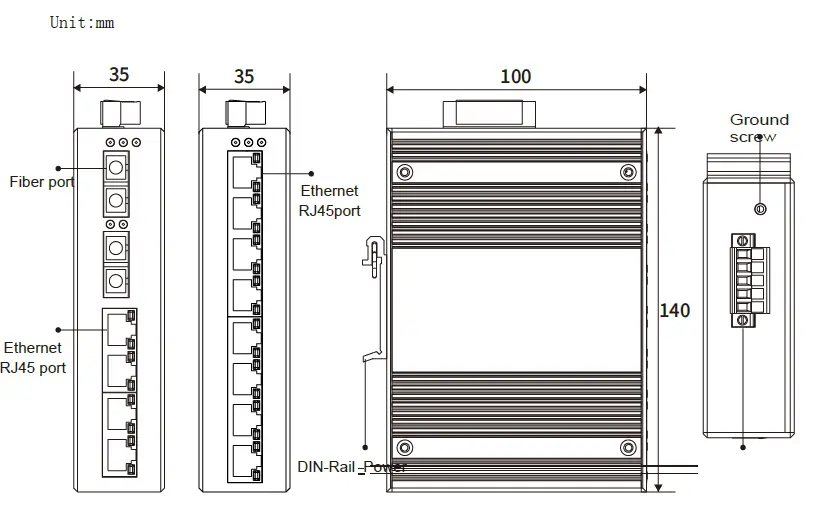

Interface and Dimension Introduction
Indicator Light Description
| Indicator light | Statues | Definition | |||
| System status LED | |||||
| PWR1/2 | On | Power is connected and operating normally | |||
| Off | The power is unconnected or the system is abornal | ||||
| RUN | Blinking | System | operates normal | ||
| Off | System operates abnormal | ||||
| Fiber port status LED | |||||
| LINK | On | The port has established a valid network connection | |||
| Blinking | The port has network activity | ||||
| Off | No valid network connection on the ports | ||||
| Ethenret RJ45 port statues LED | |||||
| Each Ethernet RJ45 port has two indicator lights,The yellow light is the port rate indicator, and the green is the port connection status indicator. | |||||
| 10/100M （Yellow） | On | 100M work status（100Base-TX） | |||
| Off | 10M work status（10Base-T） | ||||
| LINK/ACT （Green） | On | Power is connected and operating normally | |||
| Blinking | The port has network activity | ||||
| Off | No valid network connection on the ports | ||||
Hardware Installation
Installation Precautions
To prevent equipment damage or personal injury caused by improper use, observe the following precautions:
- During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Please make sure that the input voltage is within the input voltage range marked on the switch.
- The transmission distance has a certain relationship with the connected wire. It is recommended to use a standard Cat5e/6 network cable.
- The equipment must be grounded for lightning protection, otherwise the protection level of the equipment will be greatly reduced; please use a wire of No. 20 or more to connect the grounding terminal to the ground.
- The power line, ground line and signal line are laid out separately and the distance is not less than 5cm.

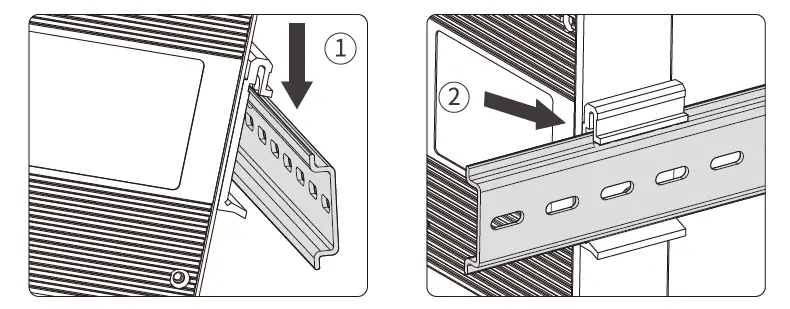

- Tilt the switch upwards so that the upper end of the buckle is fastened to the upper end of the DIN rail.
- The lower end of the back buckle is buckled into the DIN rail.

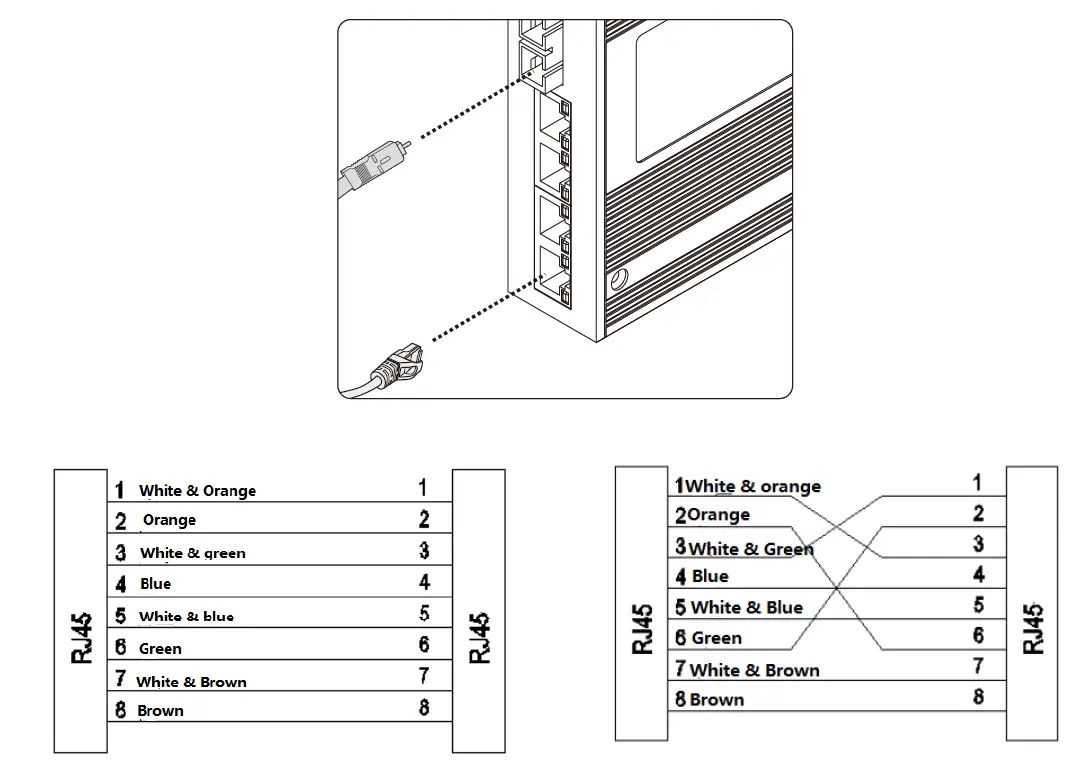

Optical fibers and network cables
Connect the optical fiber and network cable to the port in the correct direction.

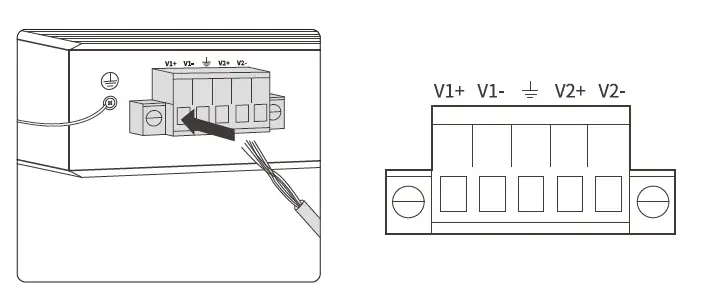

Power Input
Before connecting the power cord, make sure that the ground is connected, and then connect the power cord to the power terminal of the device according to the definition.
Specification
| MIEN2206-2F | MIEN2208 | ||
| Exchange properties | |||
| bandwidth | 1.6G 768Kbit | ||
| Cache size | |||
| MACtable siz | e | 2K | |
| Interface | |||
| 100M fiber port | x | ||
| SC/FC/ST connectors are available | |||
|
100M copper port | 4x 10Base-T/100Base- TX RJ45 ports | 8x 10Base-T/100Base- TX RJ45 ports | |
| Full-duplex/half-duplex adaptive, supports MDI/MDI-X adaptive | |||
| The power supply parameters | |||
| Power cons | umption 2.6W@24V（Max） 1.8W@2 | 4V（Max） | |
| DC power input | DC9-60V,DC48V（36-72V） Supports dual power supply redundancy and reverse connection protection | ||
| AC power | input AC85~264V (frequency: 47~63Hz) or DC110~370V | ||
| Mechanical parameters | |||
| size | 140mm×35mm×100mm) Installation | ||
| 35mm | Standard DIN rail installation | ||
| Heat dissip | ation Aluminum alloy single-rib chassis surface scattered | ||
| IP protectio | n IP40 | ||
| Weight | About 0.54kg | ||
| Working environment | |||
| Working tem | -40℃~+85℃ perature | ||
| Storage tem | perature -40℃~+85℃ | ||
| Humidity | 5%~95%（No condensation)） | ||
| Industry Standard | |||
|
EMC | IEC61000-4-2(ESD),Level4 IEC61000-4-5(Surge),Level4※Ethernet ports support 6KV lightning protectionIEC61000-4-4(EFT),Level4 IEC61000-4-3(RS),Level4 IEC61000-4-6(CS),Level4 | ||
Ordering Guide
| Models | 100M | 100M copp | er Input power |
| MIEN2206-2F | 2 | 4 | DC9~60V DC48V(36~72V) AC85〜264V（Frequency：47~63Hz） or DC110〜370V |
| MIEN2208 | 0 | 8 |
Commitment to Customers
The company solemnly promises: in the normal use of a month to return, one year free maintenance, five years warranty, lifelong maintenance. The details are as follows:
- If Maiwe products have quality problems and cannot work normally, they will be re-funded, one-year free maintenance, five-year warranty, and end-of-life maintenance.
- Two years warranty for optical fiber, cable, jumper, flange, cable terminal box and other optical passive products, but no return service.
- One year warranty for accessories and power supply comes with the product.
Wuhan Maiwe Communication Co., Ltd.
Add: Building E2, No. 2 building, Area E Fenghuang Industrial park, No. 52 Liufang Avenue, East lake Hightech Development Zone, Wuhan, China.
Tel: 027-87170215/16 Site: www.maiwe.com
Fax: 027-87170217 Post Code: 430205
