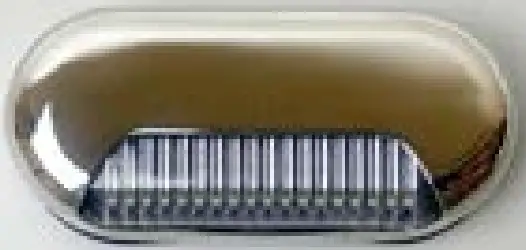

ITC 696T-FF-XXX Tread Step Light

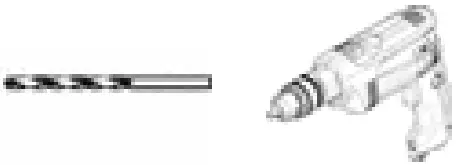

PARTS/TOOLS NEEDED:

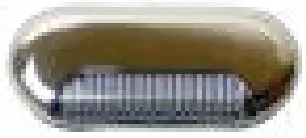

- Tread Step Light
- Drill & Drill Bit
- Screws (Included)
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
INSTALLATION

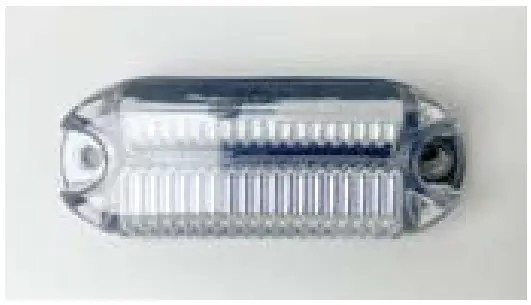

- Determine the installation location for your light and mark the location of the holes needed. Center the wire exit hole between two screw holes.

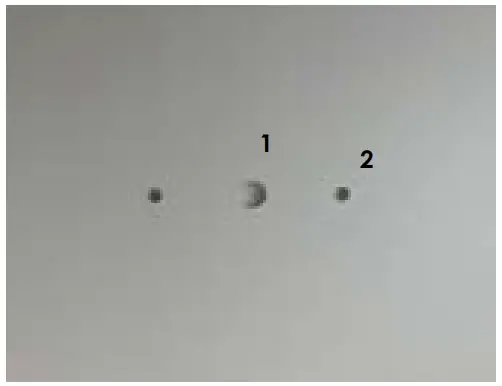

- Pre-drill a 1/4” hole for the wires.1 Pre-Drill 2 1/8” holes

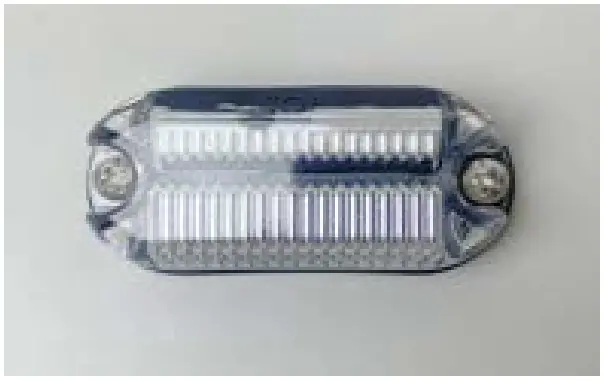

- Use the screws to attach the light housing to the desired location.

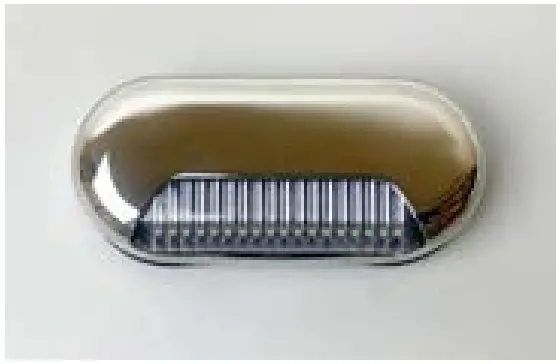

- Snap the bezel on the light housing

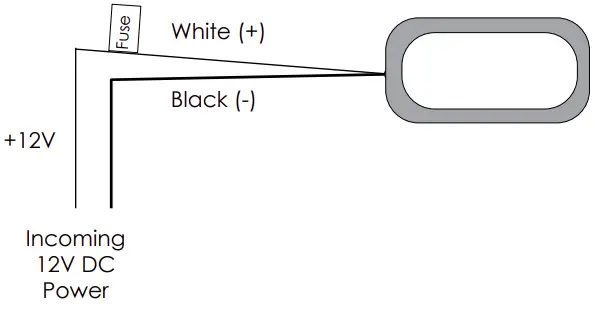

- Wire the light following the wiring diagram below.
For warranty information please visit www.itc-us.com/warranty-return-
policy
DOC #: 710-00219 • Rev B • 11/02/2022
