QAZQA 98359 Jeany SL 3 White Track Light
SAFETY INSTRUCTION
- Please study the instruction manual and below information carefully before installing or using this product.
- Please keep this User manual tor further reference
- The luminaires may only be installed by authorized and qualified technicians according to the valid regulations for electrical installation.
- Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
- The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
- Exterior lighting must not be installed during rain.
- Take into account of the minimum separation distance from other objects and the room required around the fitting.
- If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
- Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
- Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
- Take account of all available technical information.
- Meaning Of symbols
For indoor use only, where direct contact with water is impossible
This icon indicates the level of water-proof and dust-proof
Protection Class I: the fitting must be earthed
Protection Class l: the fitting is doubled insulated and does not require earthing
Protection Class Ill: the fitting is low voliage
Minimum distance from lighted objects (meters)
The type of lamp and maximum size and wattage indicated in each lighting unit must no be exceed; different items require different kind of light sources with different bulb icons
The armature is designed to work only with the indicated voltage. Different items require different working voltage.
The luminaire can be used in combination with a dimmer
The reference light angle and light space of the luminaire
This luminaire cannot be disposed together with normal domestic waste in standard rubbishcan, but you have to bring it to a staging area for electrical waste
- Take note ot the symbols when connecting wires
For indoor use only, where direct contact with water is impossible
This icon indicates the level of water-proof and dust-proof
Protection Class I: the fitting must be earthed
Protection Class l: the fitting is doubled insulated and does not require earthing
Protection Class Ill: the fitting is low voliage
Minimum distance from lighted objects (meters)
The type of lamp and maximum size and wattage indicated in each lighting unit must no be exceed; different items require different kind of light sources with different bulb icons
The armature is designed to work only with the indicated voltage. Different items require different working voltage.
The luminaire can be used in combination with a dimmer
The reference light angle and light space of the luminaire

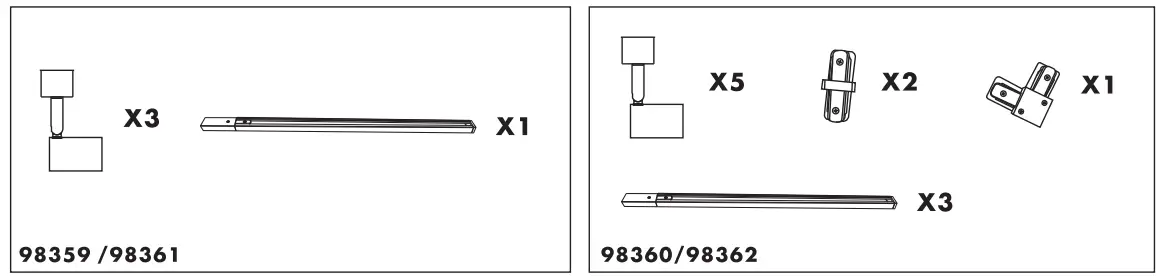

This luminaire cannot be disposed together with normal domestic waste in standard rubbishcan, but you have to bring it to a staging area for electrical wasteWhat is in box

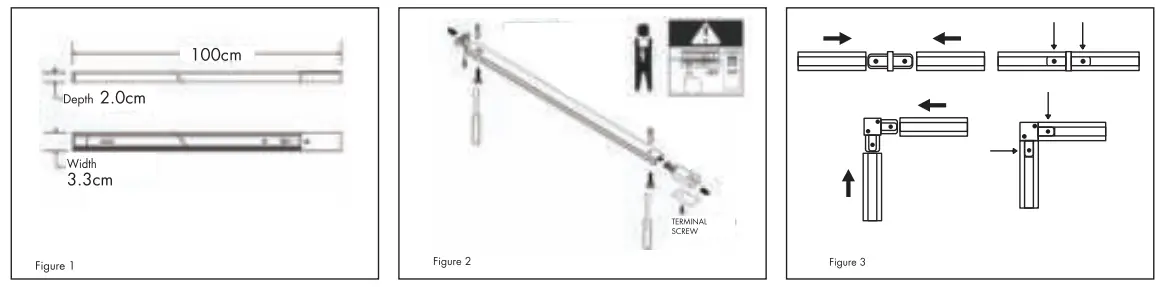

How To Use
Instructions

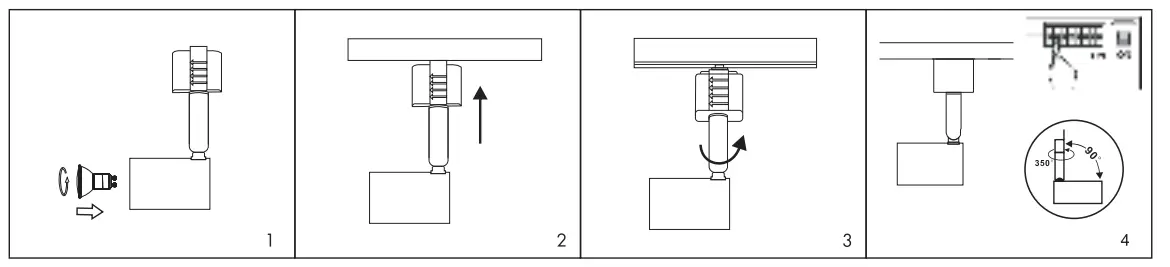

TO INSTALL
- Align arrows on spotlight track adaptor with the polarity groove on the track.
- Push up into track and rotate CLOCKWISE 90″while gently pulling back on the sliding cover until it locks into place.
- TO REMOVE: Hold the spotlight and gently pull down on the track adaptor and rotate ANTI-CLOCKWISE 90
