Icm Controls Icm530 3-phase Surge Protective Devices Instructions

ICM CONTROLS ICM530 3-Phase Surge Protective Devices

FEATURES

•  NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
• Green LED indicates surge protection present
• Easily connects to electrical panel or disconnects for indoor and outdoor applications
• UL Listed Type 1 or Type 2 SPD
• Dimensions:
  4.30” x 4.10” x 2.30”

OVERVIEW

THE ICM530 are a series of Type 1 and Type 2 three-phase surge protective devices for three-phase Delta, three-phase Wye, or Delta High-leg configurations. When a surge occurs, the ICM three-phase surge protective device will absorb the surge up to the specified limitations of the device.
ICM incorporates superior thermally protected metal oxide varistor technology into the three-phase surge suppressors, which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. There is a single status light on the controls which identifies operational status when illuminated.
The ICM 3-phase surge protective device can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications.

ICM530 (DELTA OR WYE CONFIGURATION)

•  Service voltage (3-phase): 240 VAC Delta or 120/208 VAC Wye
•  Short Circuit Current Rating (SCCR): 200 kA
• Nominal discharge current (In): 20kA
• Protection mode:
  • 3 for Delta configuration
  • 6 for Wye configuration (neutral tied to ground)
• Maximum Continuous Operation Voltage (MCOV):
  L- N: (for Wye configuration only): 150 VAC
• VPR:
  • Delta L-L: 1200 VAC Wye L-L: 1200 VAC Wye L-N: 700 VAC
•  SPD type: Type 1 (can also be used in Type 2 applications)
•  Surge protection technology: TFMOV
•  Input power frequency: 5

REPLACES

•  ABB: OVRHLDxx-120
•  ASCO: 420120Y, 420240D
•  Eaton: SP1-208Y, SP1-240D,
  SP2-208Y, SP2-240D
•  ERICO (Critec): TDX50C120/208,
  TDX50C120/240D
•  Intermatic: AG2083C3
  L5F13Y1DG1
•  Leviton: 55208-ASA
•  Siemens: TPS3D, TPS3C
•  Square D: SDSA2040,
  SDSA2040D

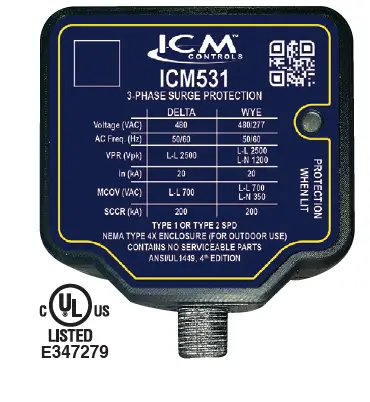

ICM531 (DELTA OR WYE CONFIGURATION)

• Service voltage (3-phase): 480 VAC Delta or 277/480 VAC Wye
•  Short Circuit Current Rating (SCCR): 200 kA
•  Nominal discharge current (In): 20kA
•  Protection mode:
  • 3 for Delta configuration
  • 6 for Wye configuration (neutral tied to ground)
•  Maximum Continuous Operation Voltage (MCOV):
  L- N: (for Wye configuration only): 350 VAC
• VPR:
  • Delta L-L: 2500 VAC Wye L-L: 2500 VAC Wye L-N: 1200 VAC
•  SPD type: Type 1 (can also be used in Type 2 applications)
•  Surge protection technology: TFMOV
•  Input power frequency: 50/60 Hz
•  Dimensions: 4.30” x 4.10” x 2.30

REPLACES

• ABB: OVRHLDxx-277
•  ASCO: 420277Y, 420480D
•  Eaton: SP1-480Y, SP1-480D,
  SP2-480Y, SP2-480D
•  ERICO (Critec): TDX50C277/480
•  Intermatic: AG4803C3,
  L5F13Y2DG1
•  Leviton: 55480-ASA
•  Siemens: TPS3E, TPS3F
• Square D: SDSA2040,
  SDSA2040D

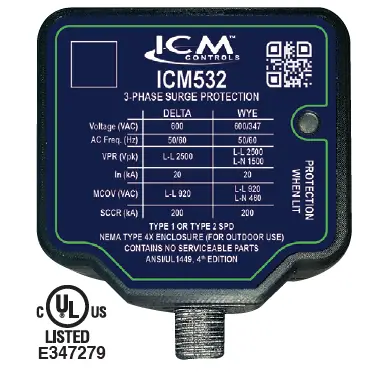

ICM532 (DELTA OR WYE CONFIGURATION)

• Service voltage (3-phase): 600 VAC Delta or 347/600 VAC Wye
•  Short Circuit Current Rating (SCCR): 200 kA
• Nominal discharge current (In): 20kA
• Protection mode:
  • 3 for Delta configuration
  • 6 for Wye configuration (neutral tied to ground)
• Maximum Continuous Operation Voltage (MCOV):
  • L-L: 920 VAC L-N: (for Wye configuration only): 460 VAC
• VPR:
  • Delta L-L: 2500 VAC Wye L-L: 2500 VAC Wye L-N: 1500 VAC
•  SPD type: Type 1 (can also be used in Type 2 applications)
•  Surge protection technology: TFMOV
•  Input power frequency: 50/60 Hz
•  Dimensions: 4.30” x 4.10” x 2.30”

REPLACES

•  ASCO: 420347Y, 420600D
•  Eaton: SP1-600Y, SP1-600D,
  AP2-600Y
•  ERICO (Critec): TDX50C347/600
•  Intermatic: AG6503, L5F13Y3DG1
•  Siemens: TPS3L, TPS3G
•  Square D: SDSA3650,
  SDSA3650D

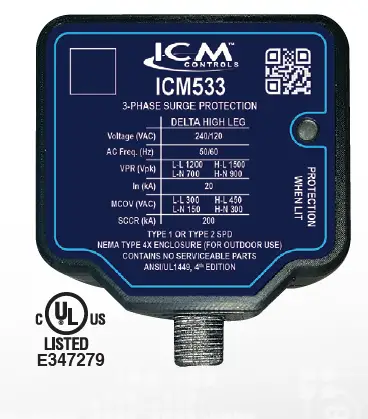

ICM533 (DELTA HIGH-LEG CONFIGURATION)

• Service voltage (3-phase): 120/240 VAC Delta High-Leg
•  Short Circuit Current Rating (SCCR): 200 kA
• Nominal discharge current: (In): 20kA
• Protection mode: 3 for Delta configuration
•  Maximum Continuous Operation Voltage (MCOV):
  • L-L: 300 VAC L-N: 150 VAC
  • H-L: 450 VAC H-N: 300 VAC
•  VPR:
  • L-L: 1200 VAC L-N: 700 VAC
  • H-L: 1500 VAC H-N: 900 VAC
• SPD type: Type 1 (can also be used in Type 2 applications)
•  Surge protection technology: TFMOV
• Input power frequency: 50/60 Hz
•  Dimensions: 4.30” x 4.10” x 2.30”

REPLACES

•  ASCO: 420240H
•  Eaton: SPD050240H1
•  Intermatic: AG2403C3,
  L5F13D1DG1
•  Siemens: TPS3B
•  Square D: SDSA2040D
