Eksa H6 Wireless Headphone User Guide

Telecom
User Guide

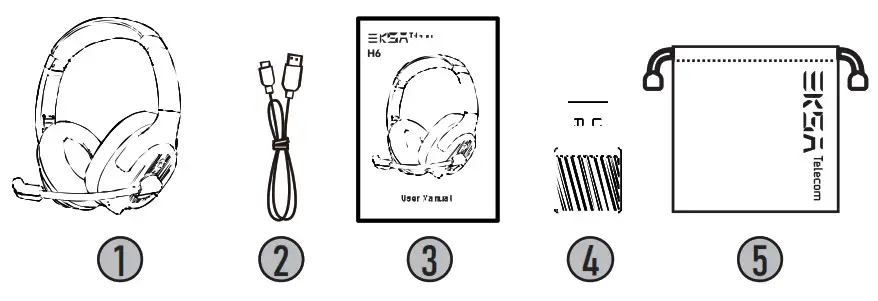

Packing List

1. EKSA H6 Headset
2. Type-C Charging Cable
3. User Manual
4. Bluetooth Adapter
5. Carry Pouch

Specification

Headset Bluetooth version: V5.0
Effective wireless range: 10 m/ 32ft
Adapter Bluetooth version: V5.2

Music time: = 55 hours (70% volume)
Talk time: = 30 hours (70% volume)
Charging time: I– 1.5 hours

Driver diameter: 40mm
Impedance: 32f1±15%
Sensitivity: 114dB±3dB
Frequency: 20Hz-20kHz

Diameter: $32.7×1.85mm
Sensitivity: -25±1 dB
Frequency: 100Hz-10kHz
Impedance: 2.2kfl
Polar Pattern: Omnidirectional
MIC: Support Al voice Intelligent Noise Cancellation

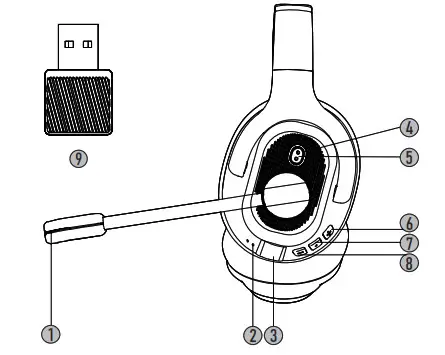

Product Oview

Al ENC microphone
Charging indicator
Type-C charging port
Don’t disturb indicator
Don’t disturb button
Volume+/next track
MFB (Mum-Function Button)
Volume-/previous track
Bluetooth transmitter

Operation Guide

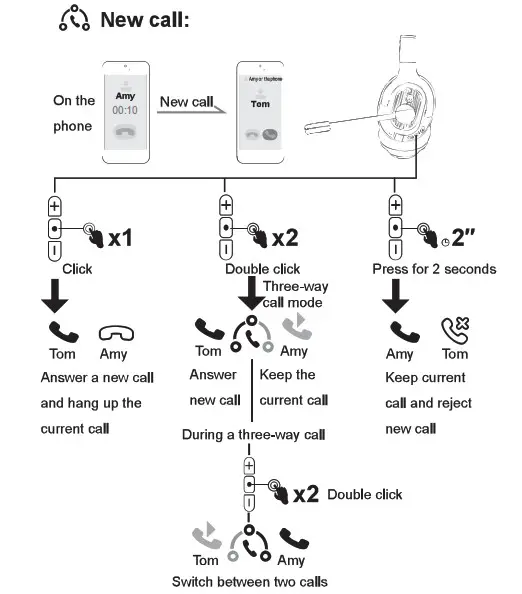

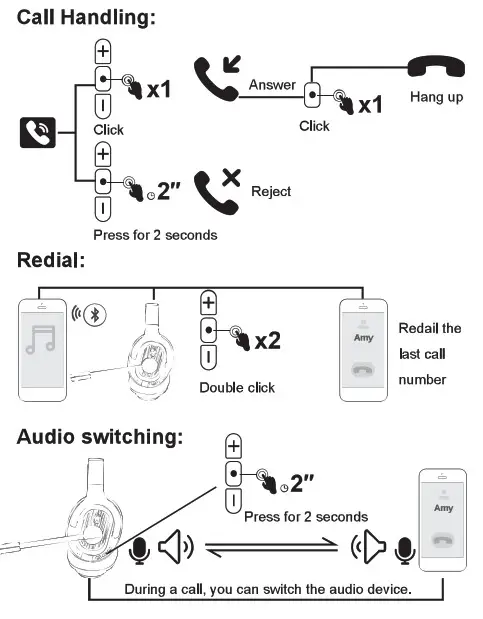

Call Functions

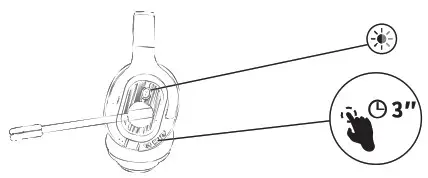

Bluetooth Pairing

1. Turn on the headset, the Bluetooth indicator flashes alternately in red and blue, indicating that the headset is in a pairing state.

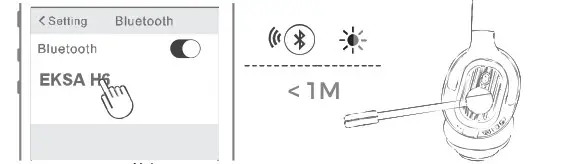

2. Turn on the Bluetooth of the device and select “EKSA H6”. After successful connection,the LED flashes slowly in blue light, and you will hear the voice prompt “your headset is connected”.
   Note:
   1. when connecting the device, please keep the headset and the device within 1 meter.
   2, If necessary, the PIN code is “0000”.
   3. If there is no connection with any device for 10 minutes, the headset will automatically shut down. 4. After the headset is turned on, it wil automatically connect back to the last connected device.

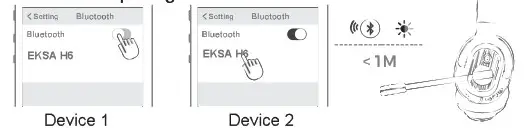

3. When connecting to a new device, turn off the Bluetooth of the currently connected device and then confirm that the headset enters the Bluetooth pairing state.

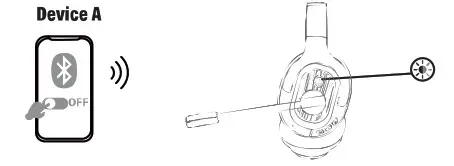

Dual Pairing

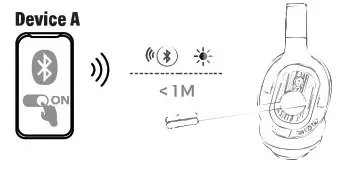

1. After successfully connecting the headset to device A, turn off the Bluetooth of device A. The headset Bluetooth indicator flashes in red and blue alternately to enter the pairing state.

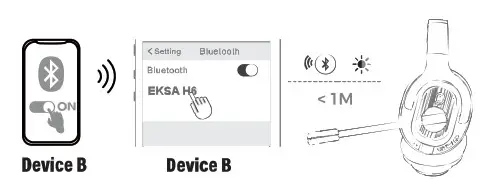

2. Turn on device B, search for and connect to EKSA H6.
3. Turn on the Bluetooth A device to connect with EKSA H6. After connection, the EKSA H6 and the devices A and B are in the connected state simultaneously.

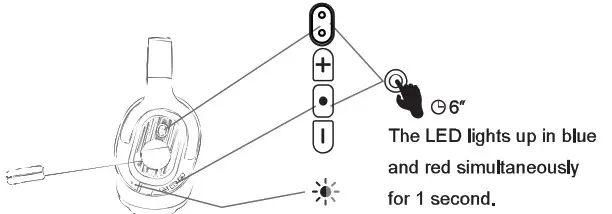

Reset

Under connected/pairing state, press the “MFB button” and the “Don’t disturb button” for 6 seconds simultaneously until the LED lights up in blue and red simultaneously for 1 second, indicating the pairing information is cleared.

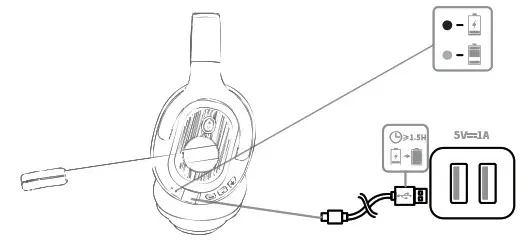

Charging

1. When the battery is less than 10%, the headset will voice prompt “battery low’ every 3 minutes, please charge it as soon as possible.
2. When EKSA H6 is not in use, please charge it at least one time every 2 months.
3.  Please use the original charging cable for charging. Charging voltage can’t exceed 5V.

Limited Warranty

Our friendly customer service team is ready and waiting to help. Here is how we can connect:
GLOBAL: +862 6940 4955 (Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT) INDIA: +91-8929489420 (Mon to Fri 1ST 9:30 am-5:30 pm)
GLOBAL: [email protected] INDIA: [email protected]
www.eksatelcom.com/pages/warranty

IMPORTANT SAFETY INSTRUCTIONS

Please read and keep all safety and use instructions.
WARNINGS/CAUTIONS

• Do NOT use the headphones at a high volume for an extended period.
  – To avoid hearing damage, use your headphones at a comfortable, moderate volume level.
  – Turn the volume down on your device before placing the headphones in/on your ears, then turn the volume up gradually until you reach a comfortable listening level.
• Do NOT use your headphones while driving for phone calls or any other purpose.
• Do NOT use the headphones at any time the inability to hear surrounding sounds may present a danger to yourself or others, e.g. while riding a bicycle or walking in or near traffic, a construction site or railroad, etc.
  – Remove the headphones, to ensure you can hear surrounding sounds, including alarms and warning signals.
  – Be aware of how sounds that you rely on as reminders or warnings may vary in character when using the headphones.
• Do NOT use the headphones if they emit any loud unusual noise. If this happens, turn the headphones off and contact EKSAtelecom customer service.
• Remove headphones immediately if you experience a warming sensation or loss of audio.
• Do NOT use mobile phone adapters to connect headphones to airplane seat jacks, as this could result in injury or property damage due to overheating.
  Do NOT use the headphones as aviation communication headsets except in case of emergency.
  – No incoming audio will be heard with a discharged or improperly installed battery.
  This could result in the potential of missed communications while piloting an aircraft.
  – Extremely loud ambient noise levels common to many propeller-driven aircraft may impair your ability to receive incoming audio communications, particularly during takeoff and climb out.
  – The headphones are not engineered for noise conditions, altitude, temperature, or other environmental conditions common in non-commercial aircraft, resulting in possible interference to critical communications.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.
This product contains magnetic material.
Consult your physician on whether this might affect your implantable medical device.

• To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture.
• Do NOT make unauthorized alterations to this product.
• Use this product only with an agency approved power supply that meets local regulatory requirements (e.g., UL, CSA, VDE, CCC).
• Do not expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire, or the like).

REGULATORY INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by YI ZHAO (SHENZHEN) CO., LIMITED. could void the user’s authority to operate this equipment.
This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with FCC and Industry Canada radiation exposure limits set forth for the general population. It must not be co-located or operating in conjunction with any other antenna or transmitter.
Meets IMDA Requirements.

CAN ICES-3(B)/NBM-3(B)

Management Regulation for Low-power Radio-frequency Devices
Article XII
According to “Management Regulation for Low-power Radio-frequency Devices” without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency device.
Article XIV
The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference Is achieved. The said legal communications mean radio communications operated in compliance with the Telecommunications Act. The low-power radio-frequency devices must be susceptible with interference from legal communications or ISM radio wave radiated devices. DON’T attempt to remove the rechargeable lithium-ion battery from this product. Contact your local EKSAtelecom retailer or other qualified professional for removal.

YI ZHAO (SHENZHEN) CO.,LIMITED. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.eksatelecom.com

For Europe: Frequency band of operation 2400 to 2483.5 MHz:
Bluetooth: Maximum transmit power less than 20dBm EIRP.
Please dispose of used batteries properly, following local regulations. Do not incinerate.
REGULATORY INFORMATION
This symbol means the product must not be discarded as household waste and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling help protect natural resources, human health and the environment. For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Removal of the rechargeable lithium-ion battery in this product should be conducted only by a qualified professional.
Please contact your local EKSAtelecom retailer or see https://www.eksatelecom.com for further information.

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (P88)	Polybrominated diphenyl ether (PBDE)
PCBs	X	0	0	0	n	0
Metal Parts	X	0	0	0	0	0
Plastic Parts	0	0	0	0	0	0
Speaker	X	0	n	U		U
Cables	X	0	U	0	0	0
This table is prepared in accordance with the provisions of WI 11364.
0: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Charging temperature range: 0° C – 45° C
Discharging temperature range: -20° C – 60° C
EC REP
C&E Connection E-Commerce (DE) GmbH
Add. Zum Linnegraben 20,65933, Frankfurt am
Main, Germany Tel. +4906927246648
E-Mail: [email protected]
UK REP
APEX CE SPECIALISTS LIMITED
Add; 89 Princess Street, Manchester, M1 4HT, UK
Tel. +441616371080
E-Mail: [email protected]
Manufacturer: YI ZHAO (SHENZHEN) CO., LIMITED
Add; 6th Floor, T3 Creative Building, Shenzhen Colorful Huawei Cultural
And Creative Expo City, No. 5010 Baoan Avenue,
Cowie Community, Hangcheng Street, Baoan
District, Shenzhen.

UK compliance statement YI ZHAO
(SHENZHEN) CO., LIMITED. Hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the UK Radio Equipment Regulations 2017 (SI 2017/1206).
A copy of the UK declaration of conformity is available online at www.eksatelecom.com [email protected]

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The EKSA H6 Headset has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure condition without restriction.

The Bluetooth Adapter has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
FCC ID: 2A25A-H6F
FCC ID: 2A25A-H6
