Eksa Gt1 True Wireless Earphone User Manual

GT1
User Manual

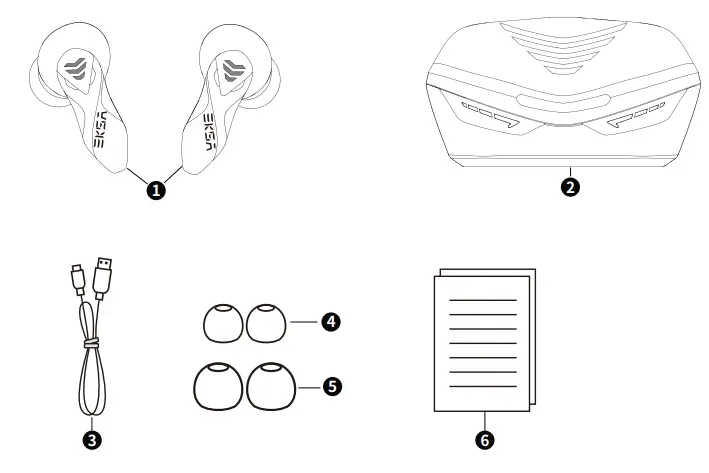

Package Contents

1. EKSA GT1 Earbuds
2. Charging Case
3. USB Type-C Charging Cable
4. Eartips: Size S x1 Pair
5. Eartips: Size L x1 Pair
6. User Manual

Specifications

Product Name: True Wireless Earphone
Bluetooth Version: V5.0 Low
Latency : 38ms
Speaker Size: Ø10mm
Operation Range: ≥10m
Impedance: 320±10%
Sensitivity: 101dB±3dB
Frequency: 20Hz-20kHz
Earbuds Battery: 50mAh
Charging Case Battery: 500mAh
Playing Time: 6hrs
Charging Time: 1.5hrs

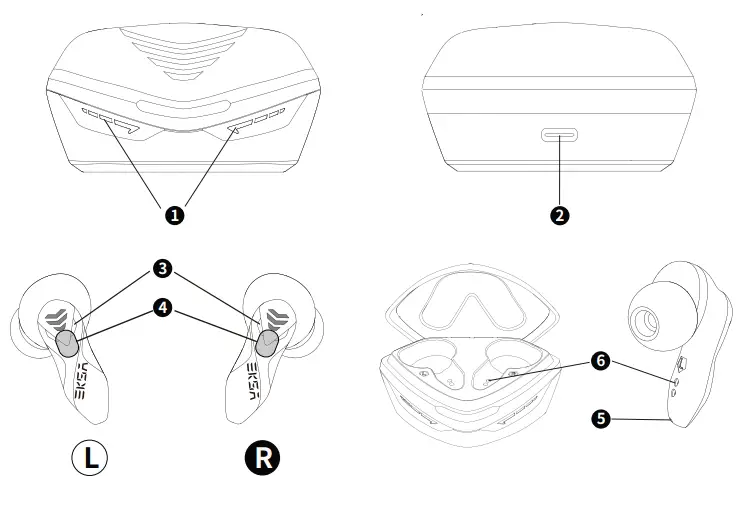

Overview

1. Charging Case LED Indicator
2. Type-C Charging Port
3. EKSA GT1 LED Indicator
4. Multi-Function Touch Button
5. Microphone
6. Wireless Charging Pins

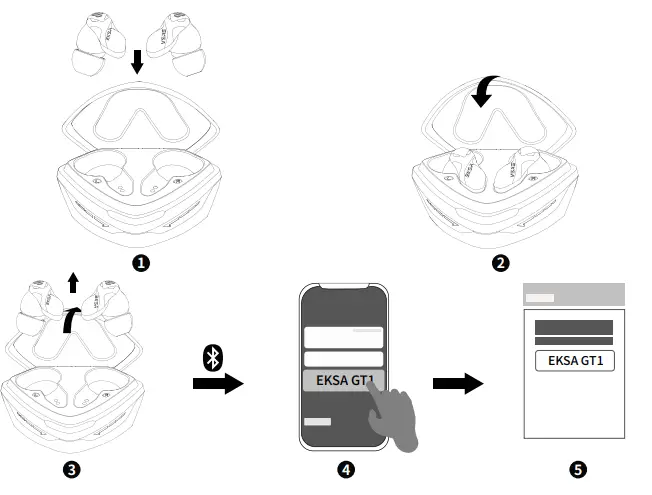

How to pair?

1. Put EKSA GT1 earbuds into the charging case.
2. Close the charging case.
3. Open the charging case and take the earbuds out, EKSA GT1 will automatically start pairing mode.
4. Turn on your device’s Bluetooth and pair your device with EKSA GT1.
5. EKSA GT1 earbuds will be connected.

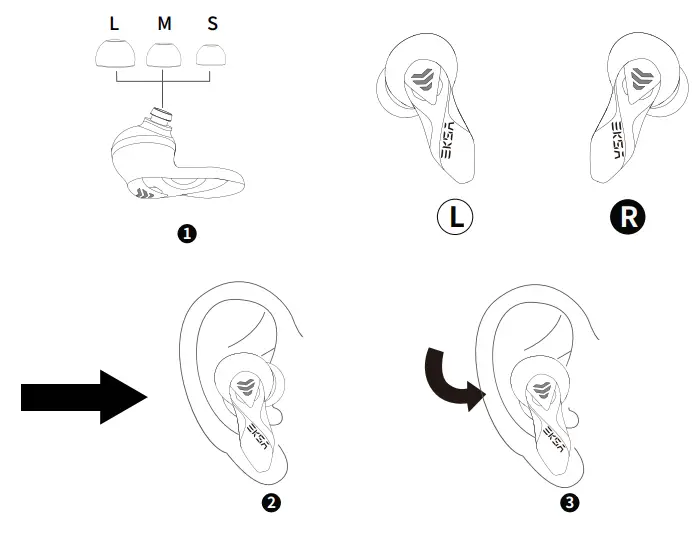

How to wear EKSA GT1 earbuds properly ?

1. Choose the proper pair of ear tips.
2. Put EKSA GT1 into your ears.
3. Adjust the earbuds to your comfort.

Control

Let’s Get Started!

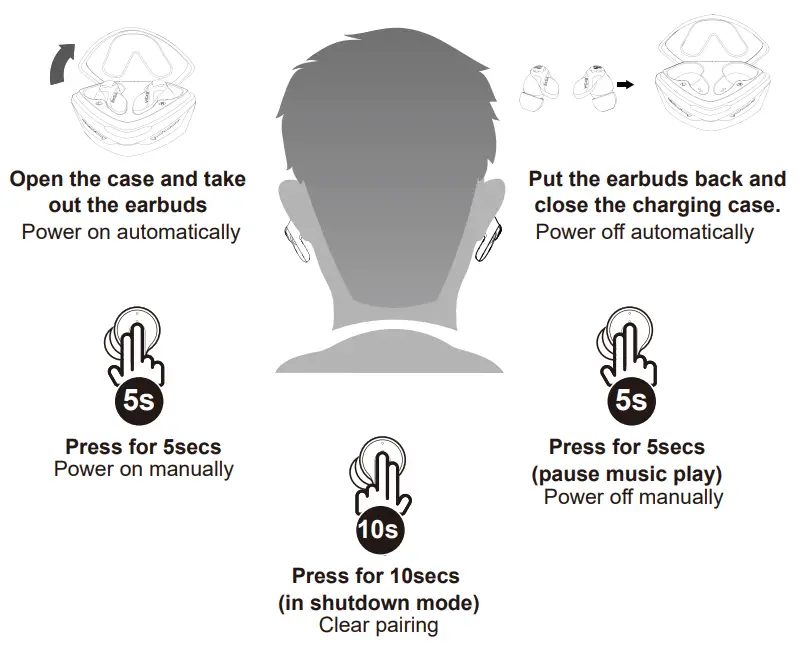

On/Off & Pairing

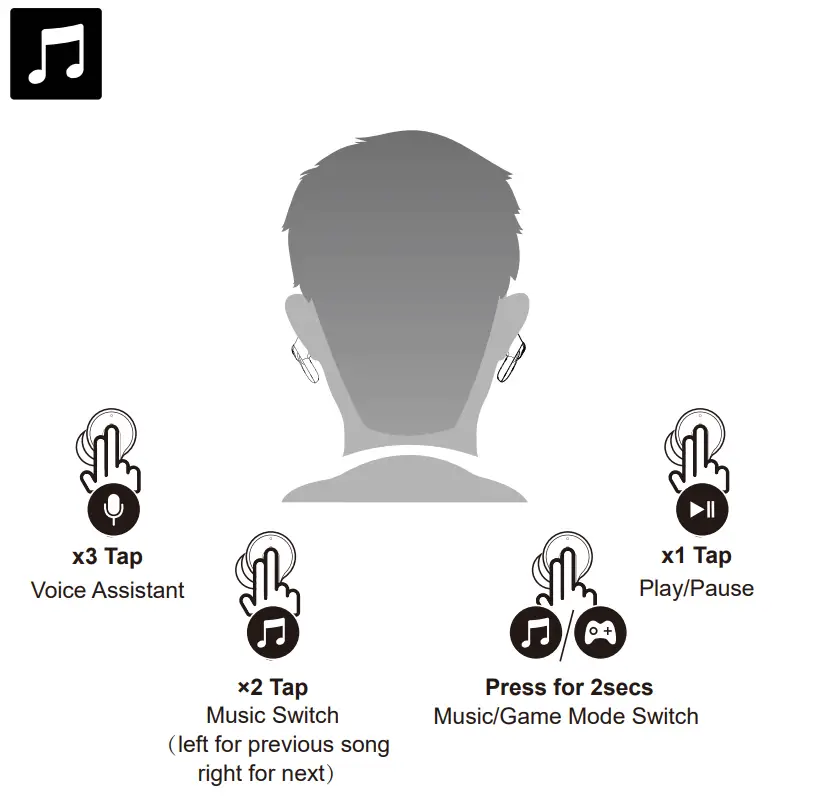

Enjoy Your Music

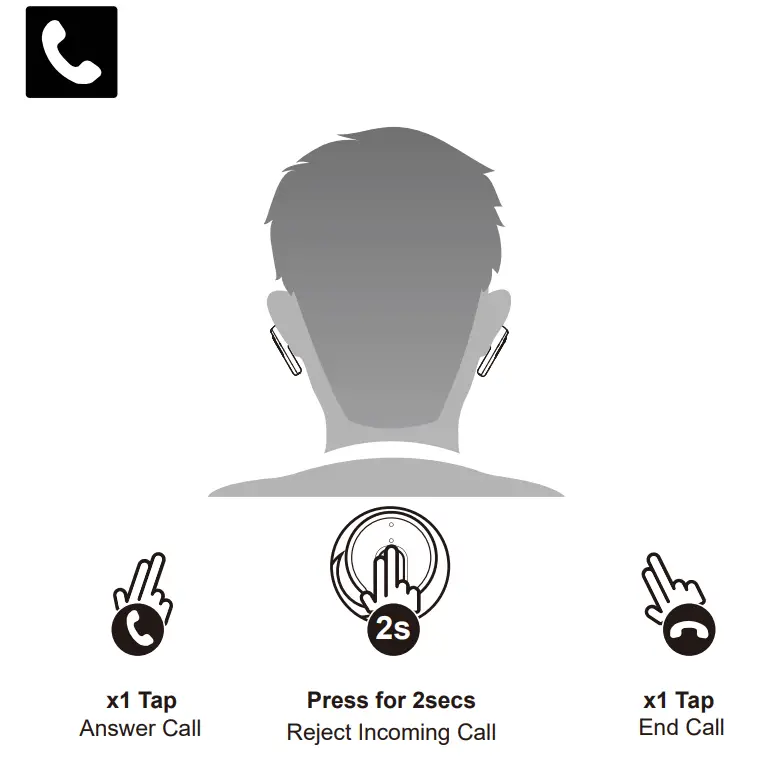

Take a Clear Phone Call

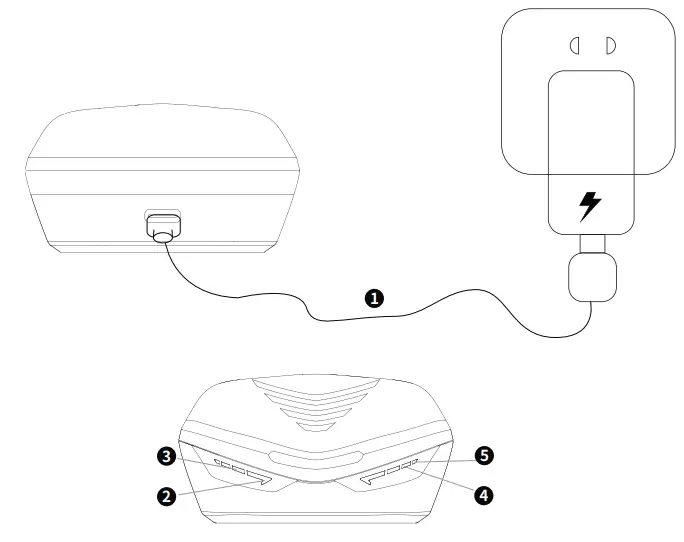

Charging

1. Output 1. DC 5V
   Charging indication:
2. 100%-75%
3. 75%-50%
4. 50%-25%
5. 25%-0

Limited Warranty

EKSA offers a one-year limited warranty for this product. We will repair or replace any defective products free of charge. Feel free to contact us:

Global:
+85269404955(Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT)
[email protected]
www.eksa.net/warranty

India:
+918929369620(Mon to Fri 9:30 am-5:30 pm, IST)
[email protected]

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RF exposure statement:
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
FCC ID：2A25A-GT1

Manufacturer’s Name: YI ZHAO (SHENZHEN) CO., LIMITED
Manufacturer’s Address: 6th Floor, T3 Creative Building, Shenzhen Colorful Huawei Cultural And Creative Expo City, No.5010 Baoan Avenue, Cowie Community, Hangcheng Street, Baoan District, Shenzhen.
Product name: True Wireless Earphone
Model number: GT1
Operating Temperature: -20°C to 55°C

EU compliance statement： YI ZHAO (SHENZHEN) CO., LIMITED. This hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
A copy of the EU declaration of the conformity is available online at www.oneodio.com

UK compliance statement: YI ZHAO (SHENZHEN) CO., LIMITED. Hereby declares that this device is in compliance with the essential requirements and A copy of the UK  declaration of the conformity is available online at www.oneodio.comc

RF specification

214-116844
