Fenrir
User Manual
Product Overview
- 50mm Audio Speaker
- PU Leather Earmuff
- Adjustable Headband
- LED Light
- Rotatable Microphone
- Volume Control Wheel
- Mic Mute Button
- 3.5mm Audio Cable + USB (only for LED lighting)
Specifications
| Interface Type | 3.5mm cable + USB cable |
| Speaker Diameter | 50mm |
| Frequency | 20Hz-20kHz |
| Operating Temperature | -10-55 C |
| Overall Dimensions | 200*95*214.5mm |
| Rated Power Input | 10mW |
| Max Power Input | 20mW |
| Sensitivity | 106dB±3dB |
| Impedance | 320±15% |
| Net Weight | ––z—— 295g |
Packing List
- EKSA Fenrir Gaming Headset
- Y Extension Cable
- User Manual

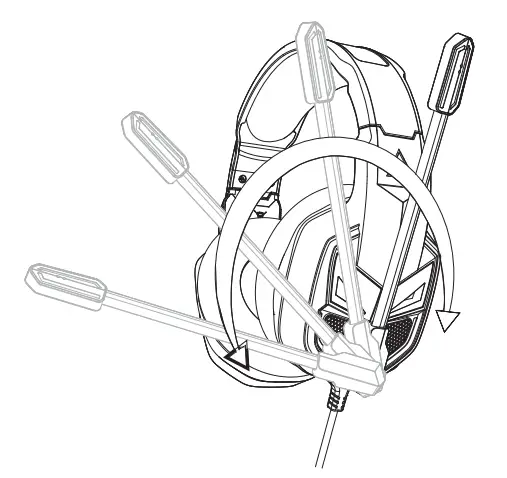

The microphone has a 120° flip-boom arm with which you can find the perfect angle to produce clear audio. It is fitted with noise reduction technology, thus eliminating the annoying background noises to collect your voice clearly.

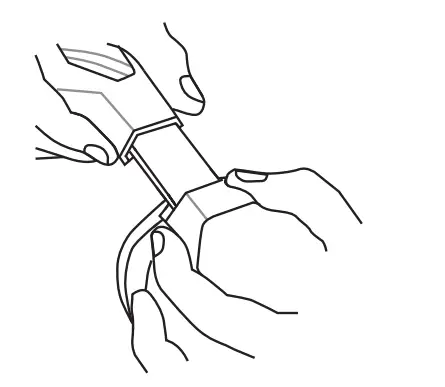

Adjustable headband allows you to enjoy a comfortable fit by adjusting it on either side of the headset.
Operating Instructions

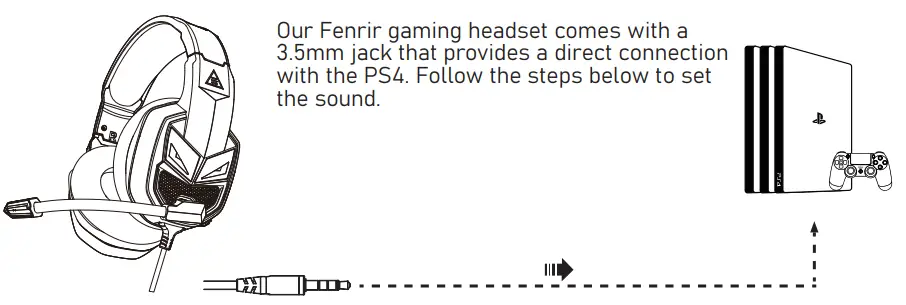

PlayStation 4 Controller:

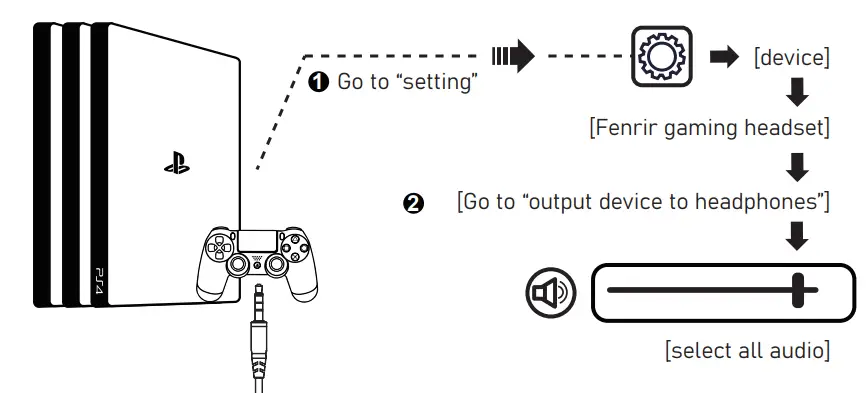

Sound Setting:

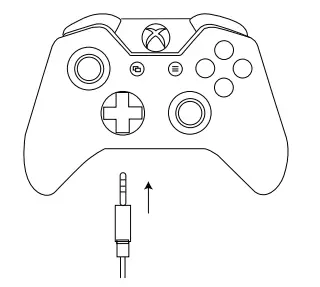

Xbox One S/X:
To work on the NEW version of the Xbox One S/X controller, you can directly connect your Fenrir headset to the controller via the 3.5mm jack.
Note:

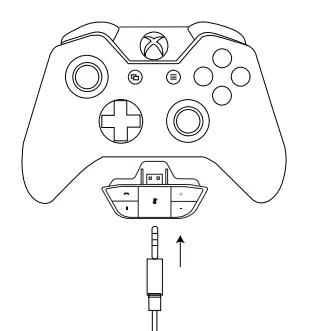

- The old version of Xbox One needs a Microsoft adaptor (Not included).
- The headset is not compatible with Xbox 360.
| Guide for Xbox Users | |
The controller has a 3.5mm jack: Driver-free, plug, and play For the Xbox One S/X controller | The controller doesn’t have a 3.5mm jack: a Microsoft stereo adaptor is required For the Xbox One controller ( old version ) |
Mac/PC:
Mac Sound Setting:

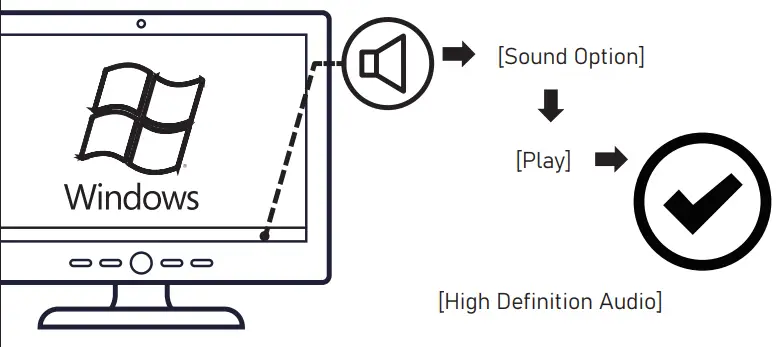

PC Sound Setting:
Limited Warranty
EKSA offers a one-year limited warranty for this product. We will repair or replace any defective products free of charge. Feel free to contact us:
Global:
+85269404955(Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT)
[email protected]
ww.eksa.net/warranty
India: +918929369620(Mon to Fri 9:30 am-5:30 pm, IST) [email protected]
INNOVATION FOR GAMERS.
